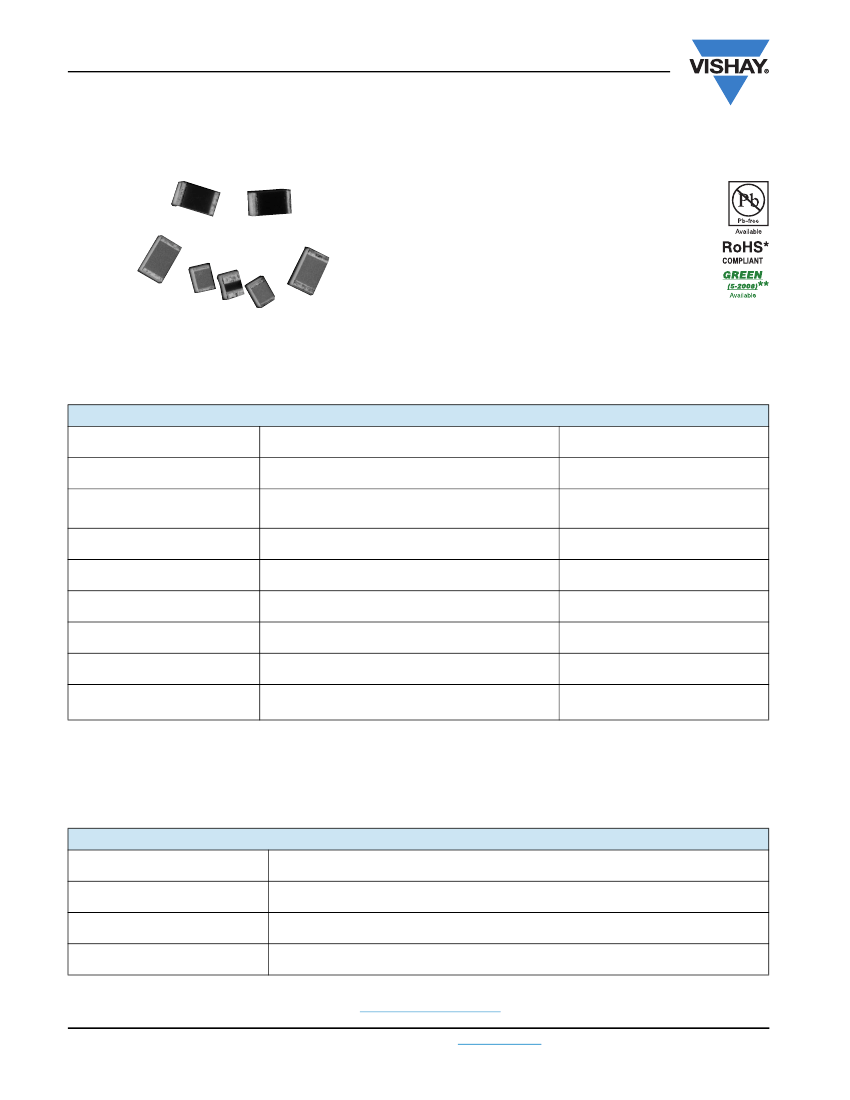

TFS
Vishay Sfernice
Wraparound and Single-In-Line, Thin Film
Temperature Sensors
FEATURES
•
Conforms to the DIN 43760 specs in - 60 °C to
+ 180 °C temperature range
•
TCR: 6180 ppm/°C (0 °C; + 100 °C)
(see note
(1)
)
•
Wide resistance range: 25
Ω
to 2500
Ω,
TFS-S
25
Ω
to 250
Ω,
TFS-W
Vacuum deposited nickel films are used to produce
temperature sensors with various characteristics. The small
size and small thermal mass of these devices result in a
quick response to changes in temperature.
•
Packaging available: W/A, SIL
ΔR
ΔCT
-
-
•
High stability (
-------
and
-----------
< 0.2 % 1000 h at Pn at 150 °C)
R
CT
•
Compliant to RoHS directive 2002/95/0EC
STANDARD ELECTRICAL SPECIFICATIONS
TEST
MATERIAL
Resistance range
Absolute TCR
(1)
Absolute tolerance
Tolerance on temperature
Operating temperature range
Storage temperature range
Stability
SPECIFICATIONS
NICKEL
25
Ω
to 2500
Ω
on TFS-S/25R to 100R on TFS W0805
25R to 250R on TFS-W 1206
+ 6180 ppm/°C
± 2 %, ± 1 %
up to 0, 33 °C
- 55 °C to + 125 °C
- 55 °C to + 155 °C
ΔR
ΔCT
------- < 0.2 %; ----------- < 0.2 %
-
-
R
CT
1000 h at Pn at + 150 °C
0 °C; 100 °C
CONDITIONS
Note
(1)
The ohmic value
R
at temperature T (°C) depends on
R
(ohmic value at 0 °C) according to the following equation:
T
0
R
T
/R
0
= 1 + 5.485 x 10-3 T + 6.65 x 10
- 6
T
2
+ 2.805 × 10
- 11
T
4
Example:
0 °C < T < 100 °C
R
T
/R
0
= 1.6180
TCR = ± 6180 ppm/°C
MECHANICAL SPECIFICATIONS
Resistive element
Substrate material
Leads (TFS-S)
Terminals (TFS-W)
Nickel, around 1.5 µm thick
99.6 % alumina
Tin/silver plated on copper alloy
Tin silver over nickel
* Pb containing terminations are not RoHS compliant, exemptions may apply
** Please see document “Vishay Material Category Policy”:
www.vishay.com/doc?99902
www.vishay.com
72
For technical questions, contact:
sfer@vishay.com
Document Number: 60033
Revision: 25-Aug-09
TFS
Wraparound and Single-In-Line, Thin Film
Temperature Sensors
DIMENSIONS
TFS-S Single-In-Line
C
D
A
B
B
A
F G
E
C
Vishay Sfernice
TFS-W Chip for SMD
DIMENSION
A
B
C
D
E
F
G
INCHES
0.200
0.200
0.200
0.025
0.100
0.020
0.010
MILLIMETERS
3.17
5
5
0.63
2.54
0.50
0.25
0705 DIMENSION
A
B
C
1206 DIMENSION
A
B
C
INCHES
0.075
0.050
0.020
INCHES
0.125
0.063
0.027
MILLIMETERS
1.90
1.25
0.50
MILLIMETERS
3.20
1.60
0.70
PACKAGING
Waffle pack or tape and reel for TFS-W
Sticks or special packaging for TFS-S
HOW TO ORDER
Wraparound
T
F
S
W
0
8
0
5
-
5
6
U
F
MODEL
TFS
STYLE
W
SIZE
0805
1206
OHMIC VALUE
In clear
U
stands for
decimal point
TOLERANCE
F
=1%
G
=2%
SIL
T
F
S
S
-
2
K
5
F
MODEL
TFS
STYLE
S
OHMIC VALUE
In clear
U
stands for
decimal point
K
stands for 1000
TOLERANCE
F
=1%
G
=2%
Historical Part Number:
TFS
TFS
W
S
0805 56U 1 %
2K5 1 % e2
e2
Document Number: 60033
Revision: 25-Aug-09
For technical questions, contact:
sfer@vishay.com
www.vishay.com
73
