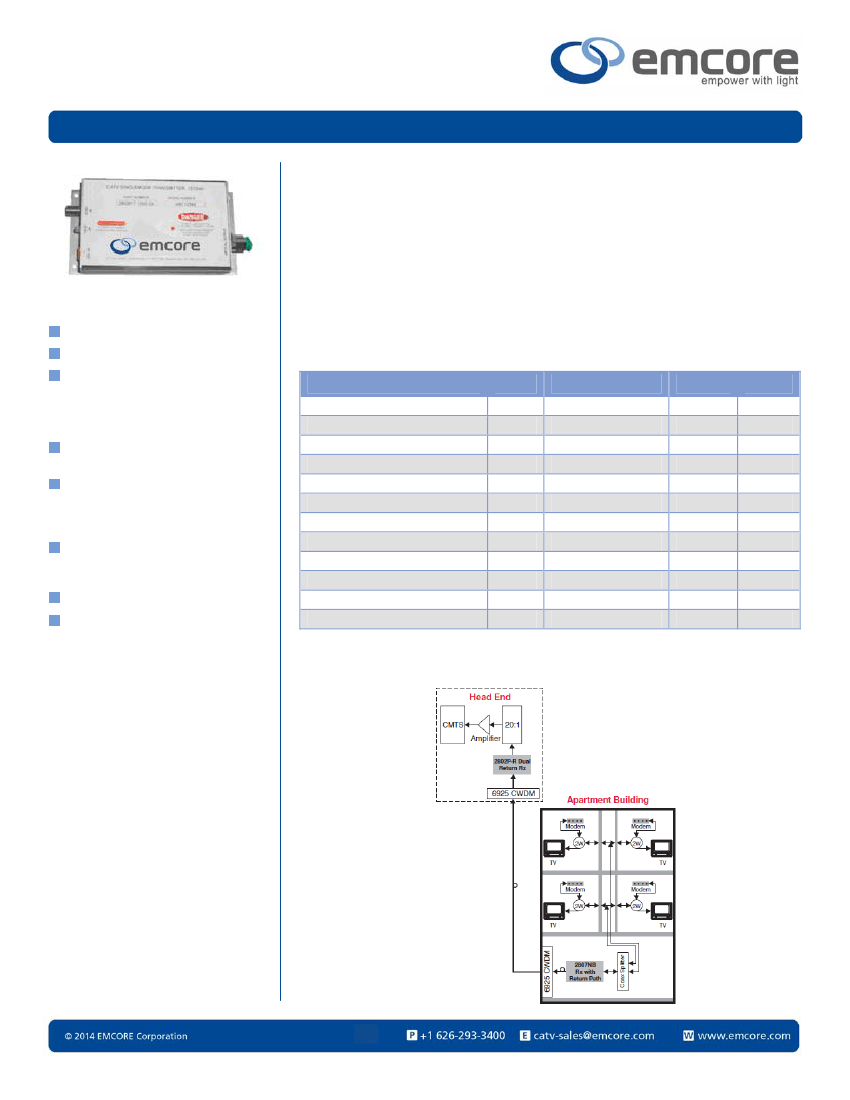

2802 PRO 10 Channel Singlemode
CATV VSB/AM Video Link
DATASHEET | JULY 2014
FIBER OPTICS
Applications
Small Corporate TV Video Distribution
Campus Media Retrieval Systems
Tele-Conferencing
The 2802 PRO 10 Channel CATV VSB/AM Video Link offers a state-of-the-art solution for
high-quality CATV transmission. The 2802 PRO offers exceptional analog bandwidth from
5 to 400 MHz allowing transmission of all sub-band, low-band, FM, mid-band, and high-
band channels. This feature allows the system to deliver custom designed video services.
In conjunction with a VCR, camcorder, or CATV feed, the 2802 PRO can transmit TV
channels and their sound carriers, over a distance of 10 km or more at 1310 nm over one
singlemode fiber. The link is ideal for implementing a CATV return path link. The link
utilizes inputs from standard CATV VSB/AM modulators, processors, and other ancillary
equipment, making the 2802 PRO link an excellent plug-and-play system. LED indicators
and built-in RF and optical power meters allow for quick assessment of the link’s status.
RF & Optical Characteristics
Parameter
Transmitter Optical Output Power
Min
+2.0
-9.0
0
1290
-
350
-
-
-
-
-
Typ
+3.0
-
-
1310
-
400
75
+24
+4
-63
-70
53.5
Max
+4.0
+4.0
12
1330
5
-
-
-
-
-57
-65
Units
dBm
dBm
dB
nm
MHz
MHz
Ohms
dB
dB
dBc
dBc
dB
Features
Able to Transmit Up to 10 CATV
Channels Over One Singlemode Fiber
Supports Transmission of Sub-Band,
Low-Band, FM, Mid-Band, and High-
Band Channels, Adding Flexibility to the
System
Built in RF Input Level Indicator Aids in
Commissioning and Troubleshooting the
Link
Ideal for Use as CATV Return Path Link
Compatible with Standard Television
Industry Voltages and Impedances
Receiver Optical Input Power
Optical Loss Range
Operating Wavelength
Lower Bandwidth
Upper Bandwidth
RF Impedance
0 dB Optical Loss
10 dB Optical Loss
Composite Triple Beat (CTB)
Composite Second Order (CSO)
Carrier-to-Noise Ratio
System performance specifications indicated for use with 9/125
µm
singlemode fiber
Network Diagram
| REV 2014.07
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
2802 PRO 10 Channel Singlemode
CATV VSB/AM Video Link
DATASHEET | JULY 2014
FIBER OPTICS
Electrical Characteristics
Parameter
Power Supply Voltage
Transmitter Power Supply Current
Receiver Power Supply Current
-
-
Min
Typ
+9
205
95
Max
260
150
Units
VDC
mA
mA
Physical Characteristics
Parameter
Weight (Stand-Alone Tx/Rx)
Dimensions (Stand-Alone Tx/Rx)
Min
-
-
Typ
6
170
5.75 x 2.95 x 1.143
146 x 75 x 29
Max
-
-
Units
oz.
g
in
mm
Environmental Characteristics
Parameter
Operating Temperature Range
Storage Temperature Range
Relative Humidity
Min
+10
-20
0
Typ
-
-
-
Max
+40
+70
95
Units
O
O
C
C
%
10 Channel Singlemode Transmitter and Receiver Part Numbers
Part Number
2802P-T-1310-FA
2802P-T-1310-SA
2802P-R-FA
2802P-R-SA
Description
Stand-Alone Transmitter, 1310 nm, FC/APC Optical Connector
Stand-Alone Transmitter, 1310 nm, SC/APC Optical Connector
Stand-Alone Receiver, 1310/1500 nm FC/APC Optical Connector
Stand-Alone Receiver, 1310/1550 nm SC/APC Optical Connector
Note: Power Supply Part Number PS095 included
Accessory Part Numbers
Part Number
PS095
PS095
Description
Transmitter Stand-Alone Power Supply, +9 Volts DC
Receiver Stand-Alone Power Supply, +9 Volts DC
| REV 2014.07
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
