2805 79 Channel CATV
Private Network Solution (PNS)
DATASHEET | JULY 2014
FIBER OPTICS
Applications
CATV
Broadband LANs
Distance Learning
Multiple Data Services
The 2805 79 Channel CATV PNS transmitter is part of a robust system for transporting up
to 79 Channels of VSB/AM modulated signals over a singlemode optical fiber. The system
provides 40-870 MHz of usable bandwidth for video signals stacked at 6 MHz intervals. A
low loss singlemode fiber allows full channel loading to beyond 20 km while maintaining a
good carrier-to-noise ratio. The 2805 may be used with the 2807 mini-node receiver for use
in return path and multiple splitter applications or with the 2808 receiver for basic
79 channel CATV transmission. In all cases, the link provides excellent performance for
many demanding applications such as broadband LANs, distance learning, and multiple
data services.
RF and Optical Characteristics
Parameter
Channel Loading
Operating Wavelength
Bandwidth
Input/Output RF Impedance
Side Mode Suppression Ratio
Back Reflection Tolerance
Required Fiber Bandwidth
Composite Second Order (CSO)
Composite Triple Beat (CTB)
Carrier-to-Noise Ratio
Min
-
1290
40
-
30
-
2,000
-
-
Typ
-
1310
-
75
-
-
-
-60
-65
56.5
Max
79
1330
870
-
-
-50
-
-
-
Units
ch.
nm
MHz
Ohms
dB
dB
MHz
dBc
dBc
dB
Features
Transmits Up to 79 Channels Over One
Singlemode Fiber at 1310 nm
VSB/AM Transmission Ensures
Compatibility with Standard CATV
Modulators, Processors, etc
Transmitter Includes Status Indicator
LED’s that Provide Easy Assessment of
the Transmitter’s Performance
Excellent for Structured In-Building
Premise Wiring Video Distribution
High-Capacity Backbone Transport for
Multiple Data Services (RS-232, T1/E1,
Ethernet, etc.) Via CATV RF Modem
CATV HFC Distribution Network,
Distance Learning, CCTV Video
Surveillance, Campus Video Distribution,
Teleconferencing and More
+13 dBm Optical Output Power Supports
Links to Beyond 20 km
System performance specifications indicated for use with 9/125
µm
singlemode fiber
.

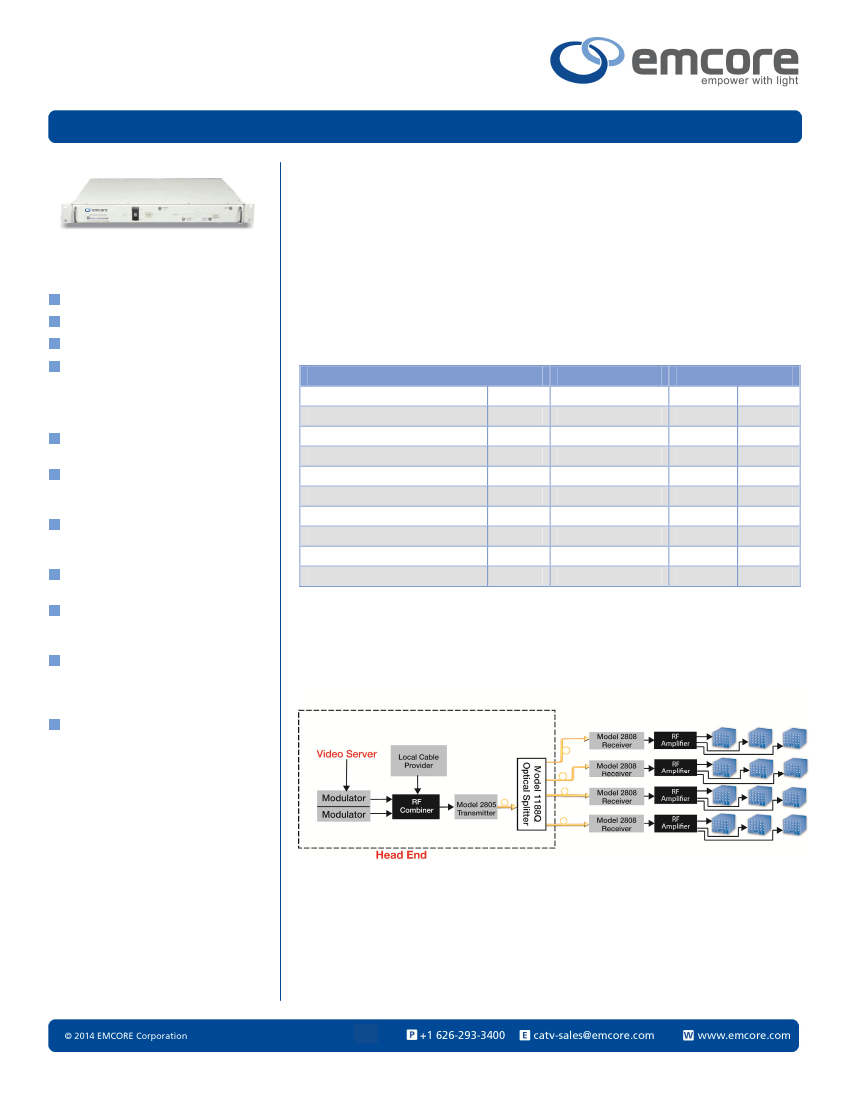

Network Diagram
| REV 2014.07
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
2805 79 Channel CATV
Private Network Solution (PNS)
DATASHEET | JULY 2014
FIBER OPTICS
Electrical Characteristics
Parameter
Power Supply Voltage
Power Supply Frequency
Power Dissipation
Fuse Rating (Slow Blow)
Min
-
50
-
Typ
120
60
20
1.25
Max
240
-
-
Units
V
AC
Hz
Watts
A
Physical Characteristics
Parameter
Weight
Dimensions
Min
-
-
Typ
5.5
2.5
19 x 1.72 x 12.1
483 x 43.7 x 307
Max
-
-
Units
lbs
kg
in
mm
Environmental Characteristics
Parameter
Operating Temperature Range
Storage Temperature Range
Relative Humidity
Min
0
-20
0
Typ
-
-
-
Max
+45
+70
90
Units
O
O
C
C
%
79 Channel Transmitter Part Numbers
Part Number (SC/APC
Optical Connector)
2805TD-SCSP/06
2805TD-SCSP/08
2805TE-SCSP/10
2805TF-SCSP/12
2805TG-SCSP/13
Part Number (FC/APC
Optical Connector)
2805TD-SCAP/06
2805TD-SCAP/08
2805TE-SCAP/10
2805TF-SCAP/12
2805TG-SCAP/13
Description
1 RU Transmitter, +6 dBm Optical Output Power
1 RU Transmitter, +8 dBm Optical Output Power
1 RU Transmitter, +10 dBm Optical Output Power
1 RU Transmitter, +12 dBm Optical Output Power
1 RU Transmitter, +13 dBm Optical Output Power
| REV 2014.07
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
