2806 79 Channel CATV
Limited Distance Solution (LDS)
DATASHEET | JULY 2014
FIBER OPTICS
Applications
CATV
Broadband LANs
Distance Learning
Multiple Data Services
The 2806 79 Channel CATV LDS transmitter is part of a low cost system for transporting up
to 79
channels
of VSB/AM modulated signals over a singlemode optical fiber. The system
provides 40-870 MHz of usable bandwidth for video signals stacked at 6 MHz intervals. A
low loss singlemode fiber allows full channel loading to beyond 10 km while maintaining a
good carrier-to-noise ratio. Because of its relatively small size, the 2806 can be mounted
almost anywhere and it is a true plug-and-play system when used with 2808 or 2809
receivers. Together, this link provides excellent performance for many demanding
applications such as broadband LANs, distance learning, and multiple data services.
RF & Optical Characteristics
Parameter
Channel Loading
Operating Wavelength
Optical Output Power
Bandwidth
Input/Output RF Impedance
Side Mode Suppression Ratio
Backreflection Tolerance
Required Fiber Bandwidth
Composite Second Order (CSO)
Composite Triple Beat (CTB)
Carrier-to-Noise Ratio
Min
-
1290
-
40
-
30
-
2,000
-
-
Typ
-
1310
+4.5
-
75
40
-
-
-57
-65
56
Max
79
1330
-
870
-
-
-50
-
-
-
Units
ch
nm
dBm
MHz
Ohms
dB
dB
MHz
dBc
dBc
dB
Features
Transmits Up to 79 Channels Over One
Singlemode Fiber
VSB/AM Transmission Ensures
Compatibility with Standard CATV
Modulators, Processors, etc
Designed for Distances up to 10 km,
Offers an Optical Output Power of +4.5
dBm
Convenient Compact (3” x 8.5”)
Enclosure is One of the Smallest in the
CATV Industry
Built-In, Universal AC Power Supply
Frees System User from Bulky Wall-
Mount AC Adapters
Excellent for Low Budget Structured In-
Building Premise Wiring Video
Applications
System performance specifications indicated for use with 9/125
µm
singlemode fiber.

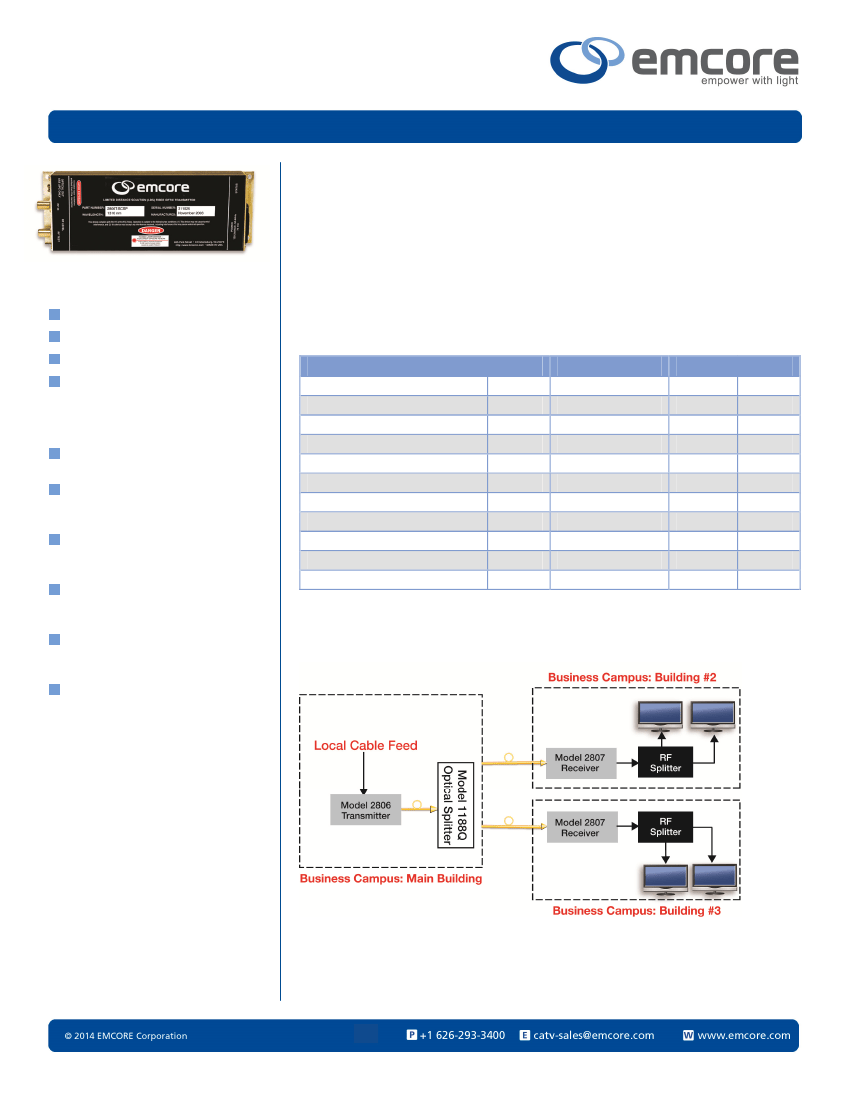

Network Diagram
| REV 2014.07
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
2806 79 Channel CATV
Limited Distance Solution (LDS)
DATASHEET | JULY 2014
FIBER OPTICS
Electrical Characteristics
Parameter
Power Supply Voltage
Power Supply Frequency
Power Supply Current
Min
-
50
-
Typ
120
60
75
Max
240
-
-
Units
V
AC
Hz
mA
Physical Characteristics
Parameter
Weight
Dimensions
Min
-
-
Typ
1.0
0.45
8.45 x 2.95 x 1.12
215 x 75 x 29
Max
-
-
Units
lb
kg
in
mm
Environmental Characteristics
Parameter
Operating Temperature Range
Storage Temperature Range
Relative Humidity
Min
0
-20
0
Typ
-
-
-
Max
+45
+70
90
Units
O
O
C
C
%
79 Channel Transmitter Part Numbers
Part Number
2806T-SCSP
2806T-SCAP
Description
Flange Mount Transmitter, +4.5 dBm Optical Output Power, SC/APC
Optical Connector
Flange Mount Transmitter, +4.5 dBm Optical Output Power, FC/APC
Optical Connector
| REV 2014.07
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
