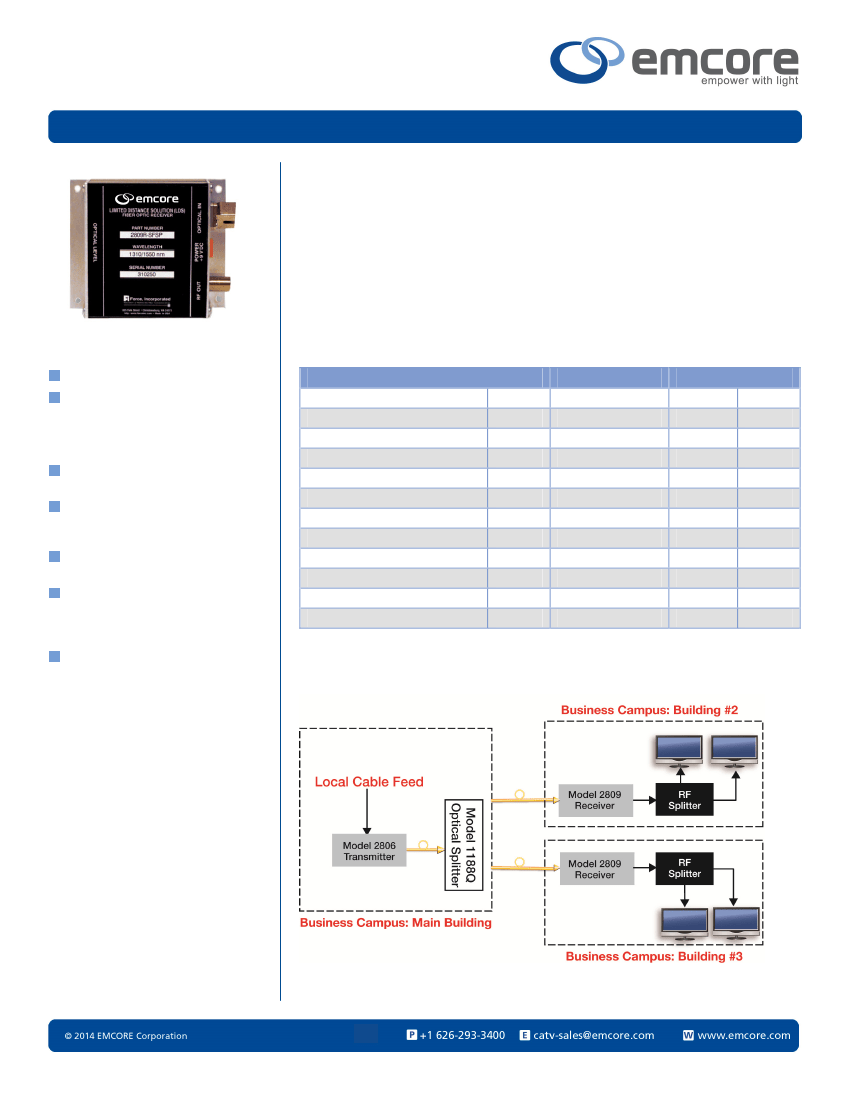

2809 79 Channel LDS CATV Optical Receiver
DATASHEET | JULY 2014
FIBER OPTICS
The 2809 79 Channel CATV Optical Receiver facilitates a low-cost system for transporting
up to 79 channels of VSB/AM modulated signals over a singlemode optical fiber. The 2809,
working with 2806 transmitter, provides excellent performance up to 10 km with full channel
loading, high sensitivity, and 550 MHz of usable bandwidth. With a wide optical input range
of -8.0 to +4.5 dBm and +18 dBmV of RF output at 0 dBm optical input, the 2809 allows
excellent performance for intra-facility limited distance applications, such as corporate
CATV delivery and campus/enterprise distribution where cost, small size, and performance
are major considerations. This low-cost system gives CATV providers the ability to provide
reliable limited distance fiber optic video distribution systems.
Applications
CATV
Video Distribution Systems
RF & Optical Characteristics
Parameter
Optical Input Power
Operating Wavelength
Operating Wavelength
Bandwidth
Output RF Impedance
RF Output Level
RF Output Return Loss
Back Reflection Tolerance
Required Fiber Bandwidth
Composite Second Order (CSO)
Composite Triple Beat (CTB)
Carrier-to-Noise Ratio
Min
-8.0
1280
1490
40
-
-
-
-
2,000
-
-
Typ
0.0
1310
1550
-
75
+18
16
-
-
-63
-66
56
Max
+4.5
1340
1610
550
-
-
-
-50
-
-
-
Units
dBm
nm
nm
MHz
Ohms
dBmV
dB
dB
MHz
dBc
dBc
dB
Features
Bandwidth of 40 to 550 MHz
Accommodates Up to 79 Channels
Provides Excellent Picture Quality with a
CNR up to 54.5 dB, CSO of -63 dBc,
and CTB of -66 dBc
Low Profile, Rugged Package Allows
Great System Installation Flexibility
Wide Optical Input Range of -8 dBm to
+4.5 dBm Permits the Use of a Lower
Power Transmitter, Reducing System
Cost
Excellent for HFC, Short-Haul, Intra-
Facility, and Campus/Enterprise
Distribution
System performance specifications indicated for use with 9/125
µm
singlemode fiber
.
Network Diagram
| REV 2014.07
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
2809 79 Channel LDS CATV Optical Receiver
DATASHEET | JULY 2014
FIBER OPTICS
Electrical Characteristics
Parameter
Power Supply Voltage
Power Dissipation
Min
+8
-
Typ
-
5
Max
+10
-
Units
V
DC
Watts
Physical Characteristics
Parameter
Weight
Dimensions
Min
-
-
Typ
6.6
187
3.75 x 2.95 x 1.12
95 x 75 x 29
Max
-
-
Units
oz
g
in
mm
Environmental Characteristics
Parameter
Operating Temperature Range
Storage Temperature Range
Humidity (RH, non-condensing)
Min
0
-20
5
Typ
-
-
-
Max
+50
+70
95
Units
O
O
C
C
%
79 Channel CATV Receiver Part Numbers
Part Number
2809R-SFSP
2809R-SFAP
Description
Fiber Optic Receiver, 1310/1550 nm, SC/APC Optical Connector
Fiber Optic Receiver, 1310/1550 nm, FC/APC Optical Connector
Note: Power Supply Part Number PS095 Included.
| REV 2014.07
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
