09
Compact Fanless BOX PC Solutions
09-9

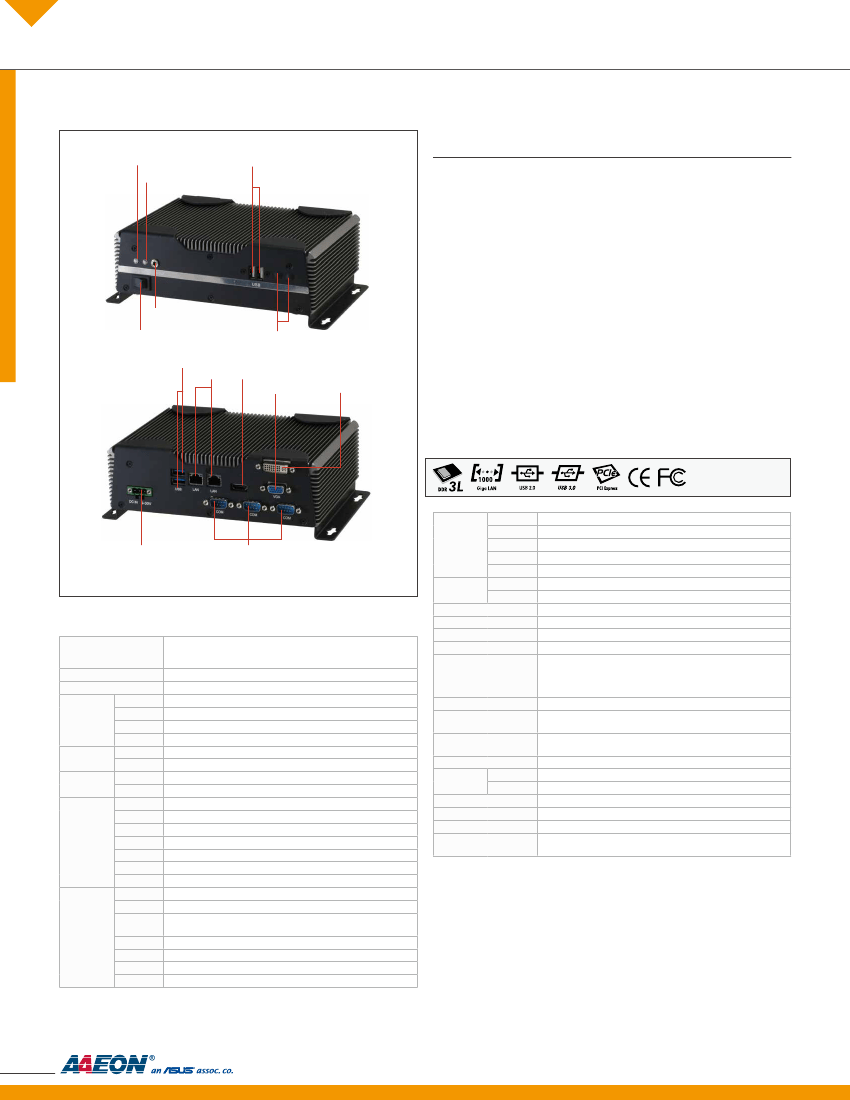

AEC-6638
Fanless Embedded Box PC with 4th Generation Intel® Core™ i7/i5/i3 Processor and PCH QM87
Front View
Power LED
HDD active LED
USB 2.0 x 2
Features
■
■
4th Generation Intel® Core™ i7/i5/i3 Processor CPU:
Line Out
Power switch
Antenna Hole x 2
USB 3.0 x 2
LAN x 2 HDMI x 1
VGA x 1
DVI-D x 1
Rear View
i7-4700EQ (2.4 GHz)[37W]/ i5-4400E (2.7 GHz)[37W]/ i3-4100E (2.4
GHz)[37W]
■
■
COM Port x 3, USB 3.0 x 2 , USB 2.0 x 2
■
■
Intel® Gigabit Ethernet x 2 (Intel® I217/I218 Gigabit PHY & Intel®
I210/I211 Gigabit)
■
■
VGA Output Resolution: Up to 2048 x 1536 (QXGA) @ 60 Hz
■
■
DVI-D Output Resolution: 1920 x 1200 @ 60 Hz
■
■
HDMI Output Resolution: Up to 3840 x 2160 @ 30 Hz
■
■
Mini-Card x 1 or mSATA x 1 Selected by Jumper Setting
■
■
Fanless System Design
■
■
AAEON's Hi-Safe & Hi-Manager Support
PCIe [x1]
PCI
Power Input
COM x 3
Expansion
Mini-Card
Mini PCI
Others
Indicator
Front
Rear
—
—
Mini-Card x 1
—
—
Power LED x 1, HDD LED x 1
—
DC 9 ~ 30V with 3-pin terminal block
Core i5-4400E 1.8A@19V (34.2W) without USB loading
Passive
Wallmount
Intel® Core™ i7/i5/i3 37W BGA CPU:
(1) 5°F ~ 122°F (-15°C ~ 50°C) W/T CFast™ (with AirFlow)
(2) 5°F ~ 131°F (-15°C ~ 55°C) W/T HDD (with AirFlow)
with industrial grade device (according to IEC68-2-14)
-4°F ~ 158°F (-20°C ~ 70°C)
5 Grms/ 5 ~ 500Hz/ operation – CFast™
1 Grms/ 5 ~ 500Hz/ operation – HDD
50 G peak acceleration (11 msec. duration) – CFast™
20 G peak acceleration (11 msec. duration) – HDD
78,000
Specifications
CPU
Chipset
System Memory
VGA
Display
Interface
Storage
Device
Network
DVI
HDMI
Others
CF/CFast™
HDD/SSD
LAN
Wireless
USB Port
LAN
Serial Port
Front I/O
DIO
Audio
KB/MS
Others
USB Port
LAN
Serial Port
Rear I/O
DIO
Audio
KB/MS
Others
4th Generation Intel® Core™ i7-4700EQ 2.4 GHz Processor (37W)
4th Generation Intel® Core™ i5-4400E 2.7 GHz Processor (37W)
4th Generation Intel® Core™ i3-4100E 2.4 GHz Processor (37W)
Intel® QM87
204-pin DDR3L 1333/1600 MHz SODIMM x 1, up to 8GB
DB-15 x 1 for VGA
DVI-D x 1
HDMI x 1
—
CFast™ x 1
2.5" SATA 3 (6.0 Gb/s) HDD drive bay x 1
Gigabit Ethernet x 2
—
USB type A x 2 for USB 2.0
—
—
—
Line-out x 1
—
Antenna Hole x 2, Power switch x 1
USB type A x 2 for USB 3.0
RJ-45 x 2
DB-9 x 1 for RS-232/422/485 (Ring/ +5V/ +12V), RS-485 with auto flow
DB-9 x 2 for RS-232 x 2
—
—
—
3-pin terminal block x 1 for Power Input
Power Requirement
Power Consumption
System Cooling
Mounting
Operating Temperature
Storage Temperature
Anti-Vibration
Anti-Shock
MTBF (Hours)
Certification
EMC
Safety
CE /FCC Class A
—
8.35" x 6.14" x 2.53" (212.2mm x 156mm x 64.3mm)
7.94 lb (3.6 kg)
6.0 lb (2.7kg)
Windows® 10, Windows® 8.1 (32/64-bit), Windows® 7(32/64-bit), WES7/
WES8, Linux Ubuntu 14.04/ Kernel 3.13.0
Dimension (W x H x D)
Gross Weight
Net Weight
OS Support
Note: All specifications are subject to change without notice.
AEC-6638
Dimension
Unit: mm
A1M / A2M/ A3M Version
20
222
238
212.2
50
156
50
R2
64.3
77.9
R5
.3
Ordering Information
Part Number
CPU
i3-4100E 2.4GHz
processor
i5-4400E 2.7GHz
processor
i7-4700EQ 2.4
GHz processor
RAM
LAN
USB
3.0
2
USB
2.0
2
RS-232
RS-
232/422/485
1
Storage
CFast™ kit x 1
SSD/HDD kit x 1
CFast™ kit x 1
SSD/HDD kit x 1
CFast™ kit x 1
SSD/HDD kit x 1
Accessory
Cables
—
Display
VGA x 1
DVI-D x 1
HDMI x 1
VGA x 1
DVI-D x 1
HDMI x 1
VGA x 1
DVI-D x 1
HDMI x 1
Expansion
Mounting
Power
Temp.
5°F ~ 122°F (-15°C ~ 50°C) – with W/T CFast™ (with Airflow)
5°F ~ 131°F (-15°C ~ 55°C) – with W/T HDD (with Airflow)
With industrial grade device (According to IEC68-2-14)
5°F ~ 122°F (-15°C ~ 50°C) – with W/T CFast™ (with Airflow)
5°F ~ 131°F (-15°C ~ 55°C) – with W/T HDD (with Airflow)
With industrial grade device (According to IEC68-2-14)
5°F ~ 122°F (-15°C ~ 50°C) – with W/T CFast™ (with Airflow)
5°F ~ 131°F (-15°C ~ 55°C) – with W/T HDD (with Airflow)
With industrial grade device (According to IEC68-2-14)
AEC-6638-A1M-1010
—
2
2
Mini-Card x 1
Wallmount
DC 9-30V
AEC-6638-A2M-1010
—
2
2
2
2
1
—
Mini-Card x 1
Wallmount
DC 9-30V
AEC-6638-A3M-1010
—
2
2
2
2
1
—
Mini-Card x 1
Wallmount
DC 9-30V
Packing List
•
Wallmount Bracket x 2
•
Screw Package x 1
•
RAM Thermal Pad x 4 (1998F15003 x 1, 199866630 x 2, 199866652 x 1)
•
Product DVD
•
AEC-6638
Optional Accessories
•
1255901202
Power Adapter (120W), Input: AC100/240V, Output:
DC 19V, 6A
•
9741663703
Factory-install Dual 2.5" SATA HDD Kit, Removable
•
1702031802
Power Cord (US Type)
•
9741663704
Factory-install Dual 2.5"SATA HDD Kit,
AEC-6636/6637
•
1702031803
Power Cord (European Type)
•
974166250A
Factory-install 3.5" HDD ASS'Y Kit,
for AEC-6625/6636/6637
•
170203180E
Power Cord (Japanese Type)
•
9741663701
Factory-install 2.5" SATA HDD/DVD Kit w/o DVD-ROM
•
9741C50W04
Factory-install Wireless LAN Kit,■for AEC Series,
(Spark LAN WPEA-152GN), IEEE 802.11 b/g/n w/
Cable & Antenna
•
9741663700
Factory-install Slim DVD-ROM + 2.5" SATA HDD Kit
•
9741C50W05
Factory-install Wireless LAN kit, for AEC series,
(Spark LAN WPEA-251NPEA), IEEE 802.11 a/b/g/n
Dual Band w/ Cable & Antenna
•
9741663705
External Fan Kit
Note: All specifications are subject to change without notice.
