Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Description
The ZXMS6004SGQ is a self protected low side MOSFET with logic
level input. It integrates over-temperature, over-current, over-voltage
(active clamp) and ESD protected logic level functionality. The
ZXMS6004SGQ is ideal as a general purpose switch driven from 3.3V
or 5V microcontrollers in harsh environments where standard
MOSFETs are not rugged enough.
Applications
Especially suited for loads with a high in-rush current such as
lamps and motors
All types of resistive, inductive and capacitive loads in switching
applications
μC
compatible power switch for 12V and 24V DC applications
Automotive rated
Replaces electromechanical relays and discrete circuits.
Linear Mode capability - the current-limiting protection circuitry is
designed to de-activate at low V
DS
to minimise on state power
dissipation. The maximum DC operating current is therefore
determined by the thermal capability of the package/board
combination, rather than by the protection circuitry. This does not
compromise the product’s ability to self- protect at low V
DS
.
Mechanical Data
Case: SOT-223
Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish
Weight: 0.112 grams (approximate)
SOT-223
Top View
Top view
Pin Out
Ordering Information
Product
ZXMS6004SGQTA
Notes:
Marking
ZXMS6004S
Reel size (inches)
7
Tape width (mm)
12
Quantity per reel
3,000 units
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
ZXMS
6004S
ZXMS6004S = Product type Marking Code
IntelliFET is a registered trademark of Diodes Incorporated.

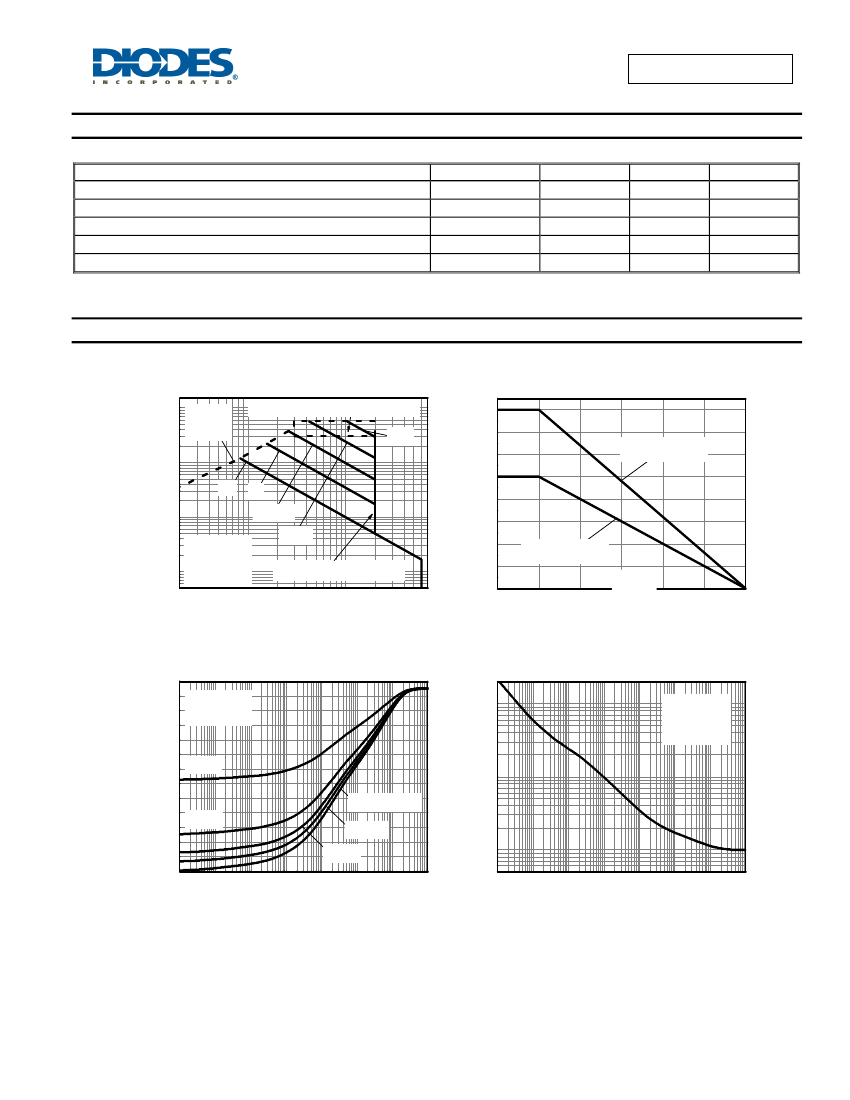

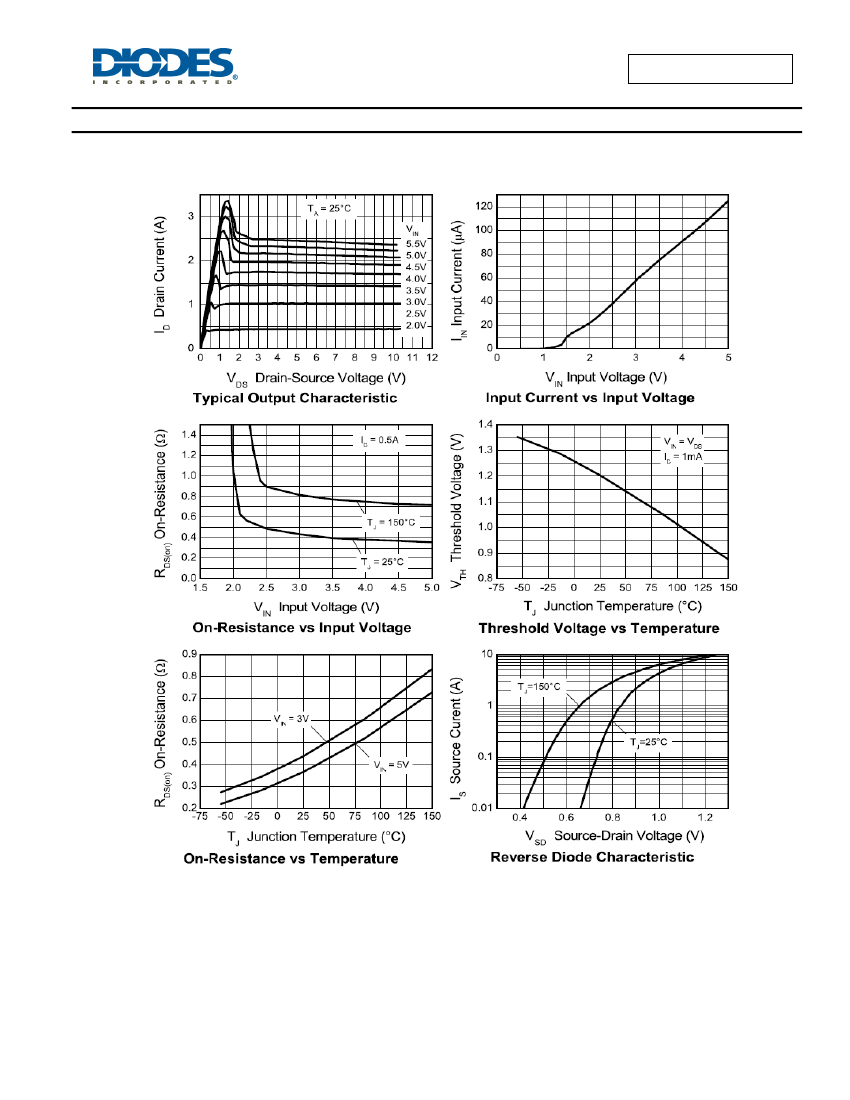

9. The drain current is restricted only when the device is in saturation (see graph ‘typical output characteristic’). This allows the device to be used in the
fully on state without interference from the current limit. The device is fully protected at all drain currents, as the low power dissipation generated outside
saturation makes current limit unnecessary.
10. Over-temperature protection is designed to prevent device destruction under fault conditions. Fault conditions are considered as “outside” normal
operating range, so this part is not designed to withstand over-temperature for extended periods.
IntelliFET is a registered trademark of Diodes Incorporated.
