Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
AEC-Q101-006 Short Circuit Reliability Characterized
PPAP Capable (Note 4)

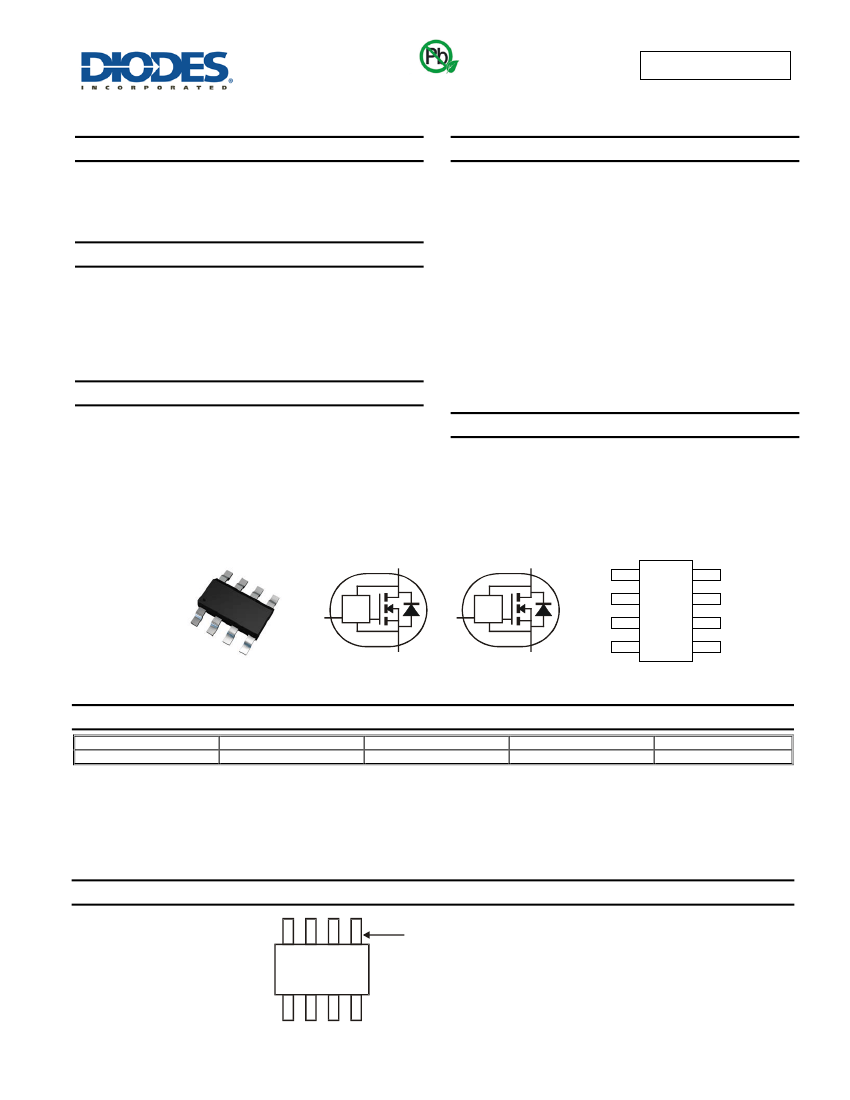

Description
The ZXMS6005DT8Q is a dual self protected low side MOSFET with
logic level input. It integrates over-temperature, over-current, over-
voltage (active clamp) and ESD protected logic level functionality. The
ZXMS6005DT8Q is ideal as a general purpose switch driven from
3.3V or 5V microcontrollers in harsh environments where standard
MOSFETs are not rugged enough.
Applications
•
•
•
•
Lamp Driver
Motor Driver
Relay Driver
Solenoid Driver
Mechanical Data
•
•
•
•
•
SM-8
D1
Case: SM-8
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish
Weight: 0.117 grams (approximate)
D2
1
IN1
S1
D1
D1
D2
D2
Top View
Pin-Out
IN1
IN2
IN2
S2
S2
S1
Top View
Device Symbol
Ordering Information
(Note 5)
Product
ZXMS6005DT8QTA
Notes:
Marking
ZXMS6005D
Reel size (inches)
7
Tape width (mm)
12
Quantity per reel
1,000
1. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

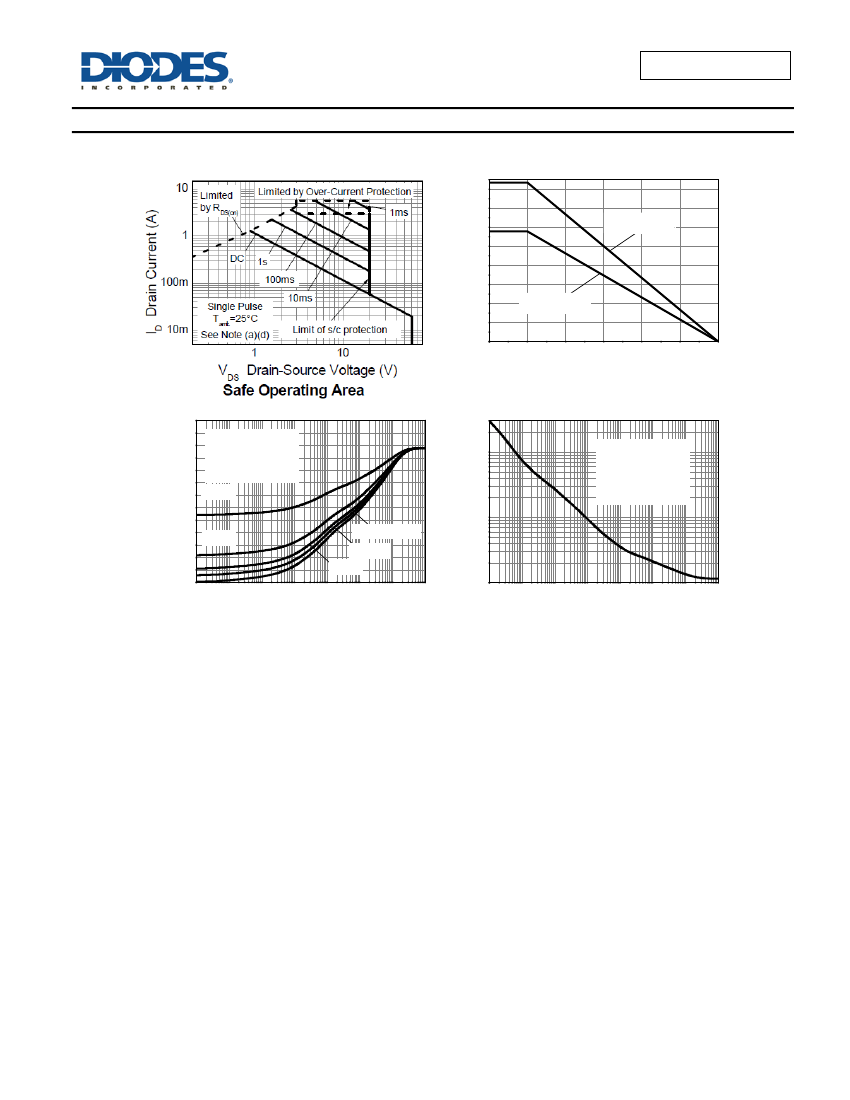

11. The drain current is restricted only when the device is in saturation (see graph ‘typical output characteristic’). This allows the device to be used in the
fully on state without interference from the current limit. The device is fully protected at all drain currents, as the low power dissipation generated
outside saturation makes current limit unnecessary.
12. Over-temperature protection is designed to prevent device destruction under fault conditions. Fault conditions are considered as “outside” normal
operating range, so this part is not designed to withstand over-temperature for extended periods.
