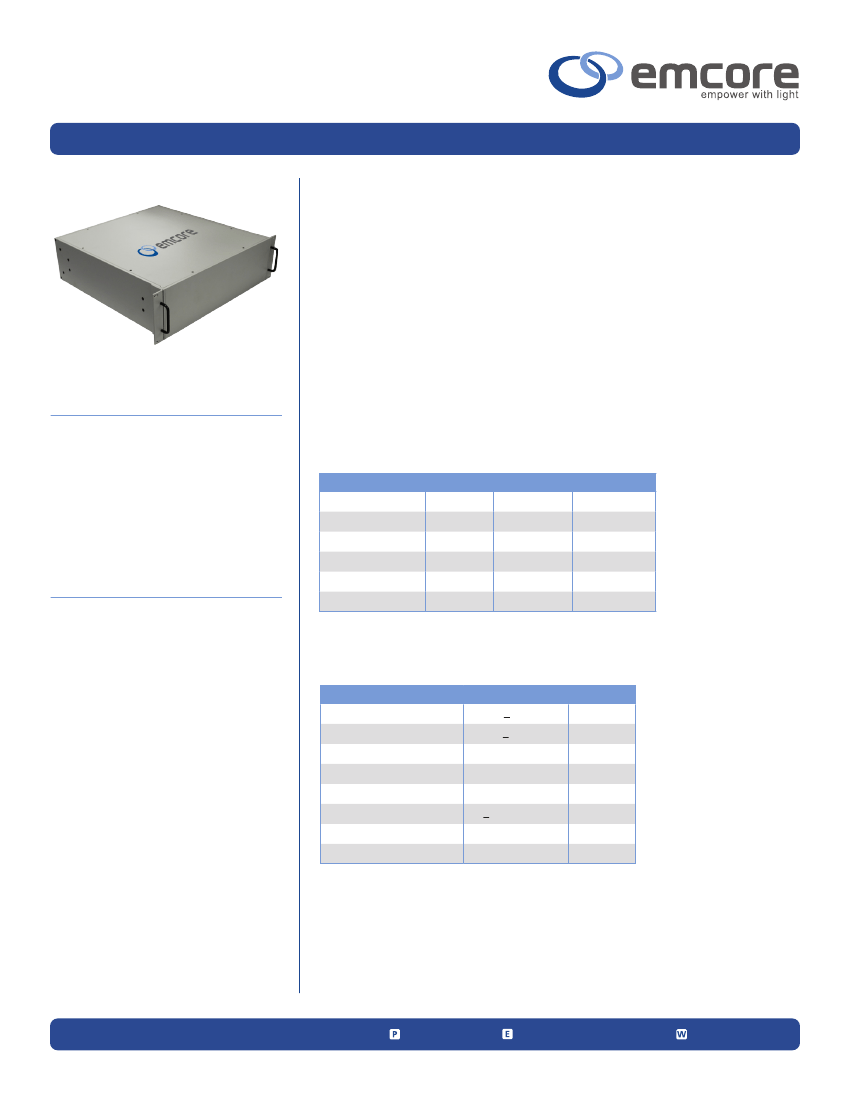

359A Series 1310 & 1550 nm Standard and
Ultra Fiber Optic Delay Line Modules
DATASHEET | NOVEMBER 2014
MICROWAVE
The 359A Series Standard and Ultra Fiber Optic Delay Line Modules provide opti-
cal delays for 1310 and 1550 nm applications housed in an industry standard 19”
rack-mount enlcosure. Fiber Optic Delay Lines deliver unmatched performance for
radar testing, signal processing, phased array antennas and phase noise testing.
The 359A Series provides both a standard single-mode fiber and offers a purpose
built solution for applications requiring maximum delay length.
The 359X platform works with a wide range of fiber optic transport products for
satellite and microwave communications from 1 MHz to 40 GHz. These units can
be used to construct transparent inter- and intra-facility links from 1 meter to
>100 km for RF and microwave signal transport, antenna remoting, video trans-
port, electronic warfare systems and other high-dynamic-range applications.
Applications
Radar Testing/Calibration
Signal Processing
Phased Array Antennas
Phase Noise Processing
Delay Length Specifications
Product
359A - Standard*
359A - Ultra*
359A - Standard*
359A - Ultra*
Size
1 RU
1 RU
3 RU
3 RU
5 RU
5 RU
Max Delay
110 µs
200 µs
350 µs
580 µs
600 µs
1000 µs
Max. Length
24 km
40 km
72 km
118 km
120 km
200 km
Features
Delays Up to 1000 microseconds
200 KM
Small Size
359A - Standard*
359A - Ultra*
*Standard uses 250 micron buffer, Ultra uses 200 micron buffer
Optical Specifications
Parameter
Attenuation @ 1550 nm
Attenuation @ 1310 nm
IOR @ 1550 nm
IOR @ 1310 nm
Zero Dispersion Wavelength
Zero Dispersion Slope
Typical Dispersion Slope
Typical Total Dispersion @ 1550 nm
Typical
< 0.21
< 0.34
1.468
1.467
1312
±
10
< 0.090 ps/nm^2
0.087 ps/nm^2
16.2
km
km
ps/nm-km
Units
dB/km
dB/km
Flat RF Amplitude Response and Phase
© 2014 EMCORE Corporation
|
REV 2014.11
+1 626-293-3400
satcom-sales@emcore.com
www.emcore.com
Information contained herein is deemed to be reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specifications at any time without notice.
359A Series 1310 & 1550 nm Standard and
Ultra Fiber Optic Delay Line Modules
DATASHEET | NOVEMBER 2014
MICROWAVE
Mechanical Specifications
Description
Body Dimensions
1 RU
3 RU
5 RU
Faceplate Dimensions
1 RU
3 RU
5 RU
Storage Temperature
Operating Temperature
Value
16.75 (425.4) x 1.72 (43.7) x 12 (304.8)
16.75 (425.4) x 5.22 (132.6) x 18 (458)
16.75 (425.4) x 8.72 (221.5) x 18 (458)
19 (482.6) x 1.75 (44.5)
19 (482.6) x 5.25 (133.4)
19 (482.6) x 8.75 (222.3)
-60 to +85
-40 to +85
Units
in (mm)
in (mm)
°C
°C
Ordering Information
Product Number
359A-WW-XXXXXX-YY-ZZ
When ordering replace “WW” with one of the Rack Unit Size Options
When ordering replace “XXXXXX” with one of the Delay Options
When ordering replace “YY” with one of the Connector Type Options
When ordering replace “Z”Z with one of the Optional Features
Coil Type
“A”
A = Standard or
Ultra Delay
Rack Unit Size
“WW”
1U = 19” x 1.75” (1 RU)
3U = 19” x 5.25” (3 RU)
5U = 19” x 8.75” (5 RU)
Delay in
µS
“XXXXXX”
001000 = 10 µs Delay
010000 = 100 µs Delay
100000 = 1000 µs Delay
Connector Type
“YY”
SA = SC/APC
FA = FC/APC
LA = LC/APC
EA = E2000/APC
Optional Features*
“ZZ”
P = Pigtail Leads
B = Bulkhead
PM = Midspan Breakout - Pigtail
BM = Midspan Breakout - Bulkhead
Midspan Breakouts - For some applications, particularly coils greater than 50 km in length for 1550 nm applications, higher signal levels and
more configurability is required. For these cases, midspan breakouts can be placed at every 50 km (about every 245 µs) interval of the 359A
Series Delay and Dispersion Compensation Modules to allow the insertion of optical amplification (EDFA).
Pigtail Leads - If preferred, the standard bulkhead connector input and output of the 359A Series Delay and Dispersion Compensation Modules
can be replaced with a one meter long pigtail with a male connector on the end.
