HA2R800B: DescriptionPCI Cards protection; File Size199KB，4 Pages; ManufacturerHUAAN; Websitehttp://www.huaandz.com

Download Datasheet View All

HA2R800B Overview

PCI Cards protection

Preview

Download Datasheet

View All

(

Ø5.5

x6mm)

2-Electrode Gas Discharge Tubes

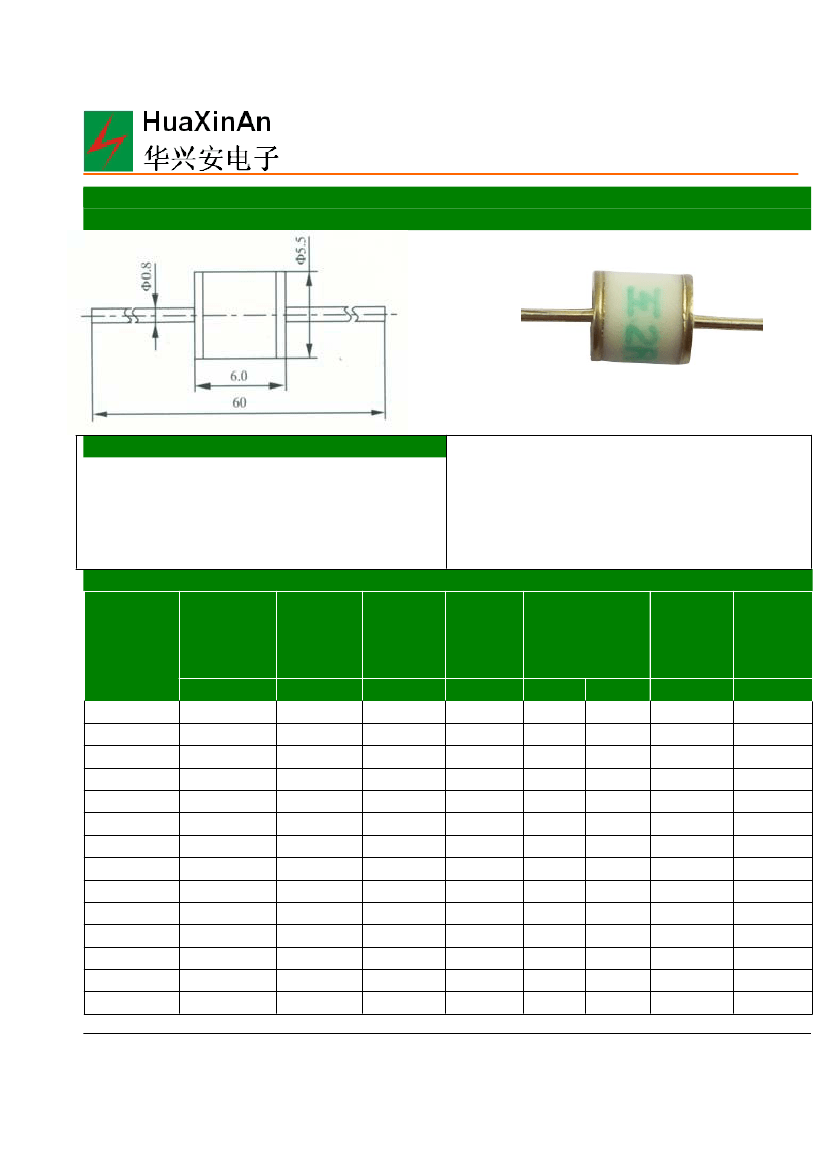

1：Dimension(mm)

5KA/3KA

Fast Delivery Time

2:Main Applications

•PCI Cards protection

•Telephone/Fax/Modem protection

•single line protection

•ADSL/XDSL Splitter,Power Supply

•Surge Protection Device/Surge Protector

4 Electrical Characteristics

DC

Spark-over

Voltage

@ 100V/S

V

HA2R75B

HA2R90B

HA2R150B

HA2R230B

HA2R250B

HA2R300B

HA2R350B

HA2R400B

HA2R420B

HA2R470B

HA2R500B

HA2R600B

HA2R800B

HA2R1000B

75±20%

90±20%

150±20%

230±20%

250±20%

300±20%

350±20%

400±20%

420±20%

470±20%

500±20%

600±20%

800±20%

1000±20%

Impulse

Spark-over

Voltage

@100V/

μs

V

<500

<600

<800

<900

<1100

<1200

<1300

<1400

Impulse

Spark-over

Voltage

@1KV/

μs

V

<600

<700

≤ 900

≤ 1000

≤ 1200

≤ 1300

≤ 1400

≤ 1500

3:Features

•

100% Lead-Free(

RoHs Compliant )

•Non-Radioactive

•Low capacitance (≤1pF)

•Fast Response-time,High Insulation Resistance.

•Small size :Ø5.5x6(mm)

Insulation

Resistance

Impulse discharge

current(

8/20

μs

)

AC discharge

current

(50Hz,1s,10ti

mes)

Part Number

Capacitan

ce

(1MHz)

PF

≤1

GΩ

>1

10 Times

1 Time

10KA

5KA

A

5

3

5KA

3KA

1

Revised:February 25,2014

www.huaandz.com

Table continues on next page
