I2041AF-08TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> I2041AF-08TR

I2041AF-08TR: DescriptionVersatile EMI Reduction IC; CategoryThe embedded processor and controller Microcontrollers and processors; File Size118KB，8 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric View All

I2041AF-08TR Overview

Versatile EMI Reduction IC

I2041AF-08TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ON Semiconductor
Parts packaging code	SOIC
package instruction	TSSOP-8
Contacts	8
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ALSO OPERATES WITH 5V SUPPLY
JESD-30 code	R-PDSO-G8
length	4.4 mm
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	3/5 V
Master clock/crystal nominal frequency	60 MHz
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum slew rate	35 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	3 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER

Preview

Download Datasheet

View All

P2041A

Versatile EMI Reduction IC

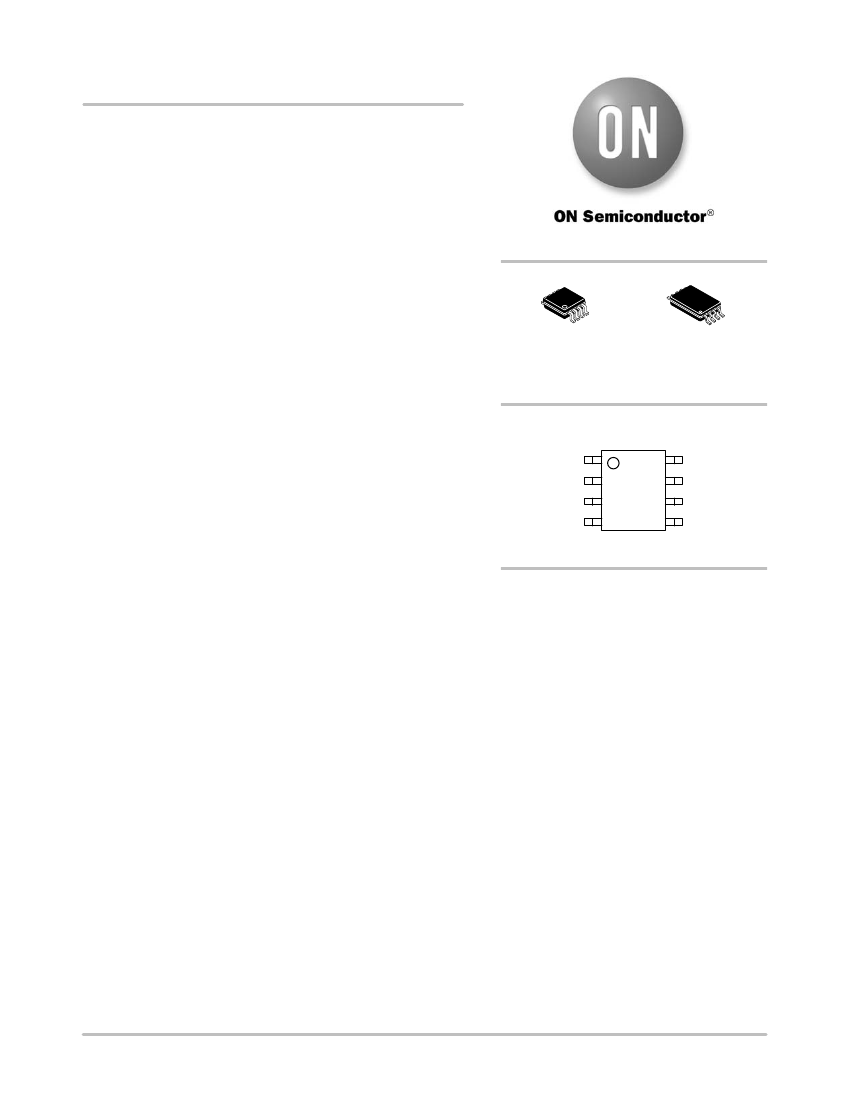

Description

The P2041A is a selectable spread spectrum frequency modulator

designed specifically for PC peripheral and embedded controller

markets. The P2041A reduces electromagnetic interference (EMI) at

the clock source which provides system wide reduction of EMI of all

clock dependent signals. The P2041A allows significant system cost

savings by reducing the number of circuit board layers and shielding

that are traditionally required to pass EMI regulations.

The P2041A uses the most efficient and optimized modulation

profile approved by the FCC and is implemented in a proprietary

all−digital method.

The P2041A modulates the output of a single PLL in order to

“spread” the bandwidth of a synthesized clock and, more importantly,

decreases the peak amplitudes of its harmonics. This results in

significantly lower system EMI compared to the typical narrow band

signal produced by oscillators and most frequency generators.

Lowering EMI by increasing a signal’s bandwidth is called ‘spread

spectrum clock generation.’

Applications

http://onsemi.com

SOIC−8

S SUFFIX

CASE 751BD

TSSOP−8

T SUFFIX

CASE 948AL

PIN CONFIGURATION

XIN / CLK

XOUT

SR1

VSS

(Top View)

VDD

P2041A

SR0

ModOUT

SSON

The P2041A is targeted towards the embedded controller market

and PC peripheral markets including scanners, MFP’s, printers, PDA,

IA, and GPS devices.

Features

•

FCC Approved Method of EMI Attenuation

•

Provides up to 20 dB of EMI Suppression

•

Generates a Low EMI Spread Spectrum Clock of the Input

•

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 7 of this data sheet.

Frequency

Optimized for 25 MHz to 60 MHz Input Frequency Range

Internal Loop Filter Minimizes External Components and Board

Space

4 Selectable Spread Ranges

SSON Control Pin for Spread Spectrum Enable and Disable Options

Low Cycle−to−Cycle Jitter

3.3 V or 5.0 V Operating Voltage

Low Power CMOS Design

Available in 8−pin SOIC and TSSOP Packages

These are Pb−Free Devices

Semiconductor Components Industries, LLC, 2011

August, 2011

−

Rev. 2

Publication Order Number:

P2041A/D
