K30-3C1E48MR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> K30-3C1E48MR

K30-3C1E48MR: DescriptionCMOS Output Clock Oscillator, 48MHz Nom; CategoryPassive components oscillator; File Size49KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric View All

K30-3C1E48MR Overview

CMOS Output Clock Oscillator, 48MHz Nom

K30-3C1E48MR Parametric

Parameter Name	Attribute value
Objectid	2058351918
Reach Compliance Code	compliant
Other features	TRISTATE ENABLE/DISABLE FUNCTION
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	K30-3C
Installation features	SURFACE MOUNT
Nominal operating frequency	48 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	15 pF
physical size	5mm x 3.2mm x 1mm
longest rise time	10 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

Clock Oscillators (SMD)

K30-3C Series (3.3V)

K30 SERIES

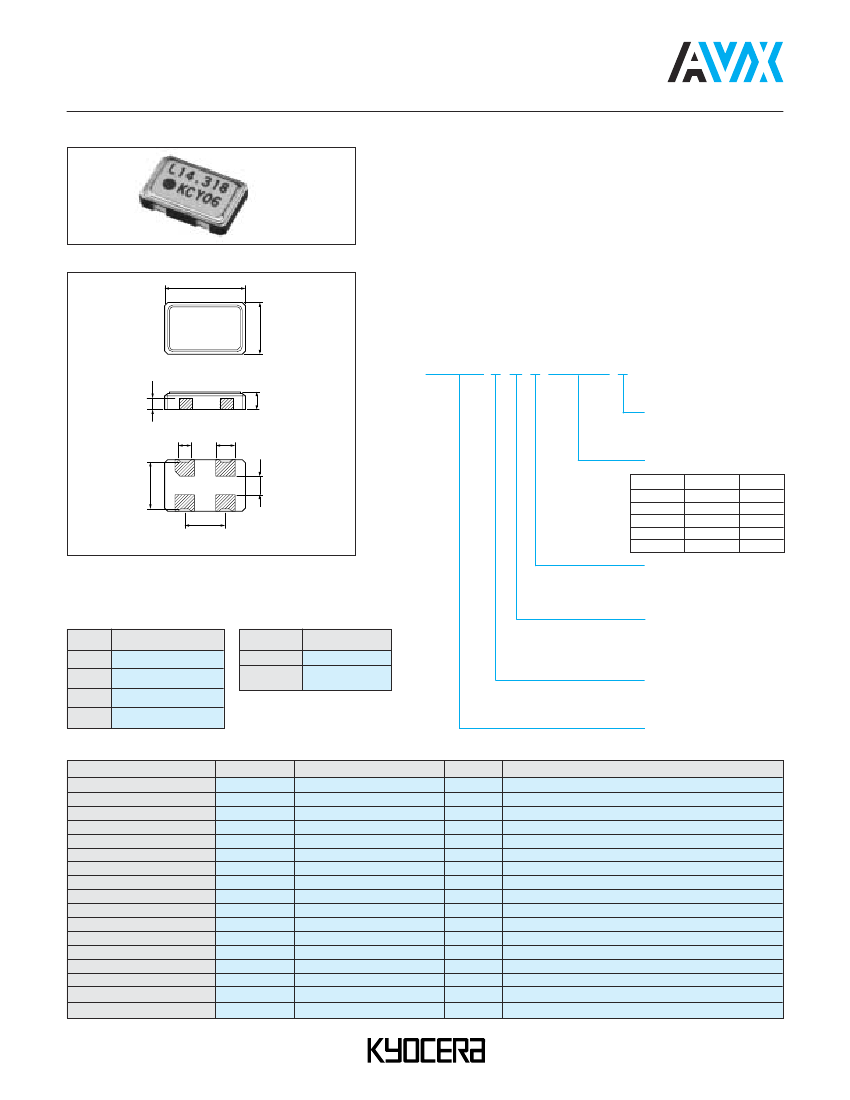

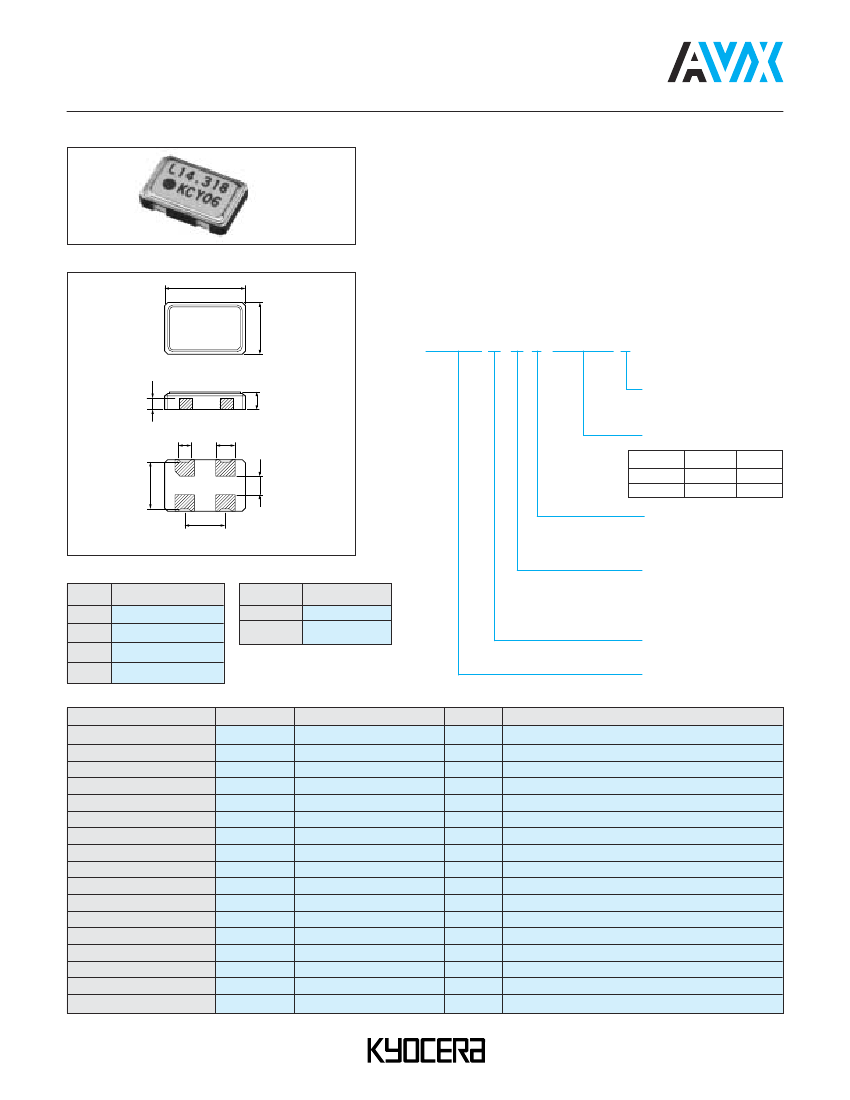

FEATURES

•

High reliable miniature SMD ceramic package

Frequency range = 8MHz to 67MHz

Frequency tolerance = ±100ppm, ±50ppm

Tristate output inhibit

Low current consumption

DIMENSIONS

5.0 (0.197)

APPLICATIONS

millimeters (inches)

3.2 (0.126)

• PDAs

• Notebook PC

• Portable electronics

HOW TO ORDER

K30 - 3C 1

1.0 (0.039)

0.7 (0.028)

E 40.0000M R

Packaging

R = Tape and reel,

1,000 pcs/reel

1.2 (0.047)

0.8 (0.031)

1.2 (0.047)

Frequency (MHz)

13.0000

14.31818

16.0000

17.7345

20.0000

24.0000

24.5760

25.0000

27.0000

28.37516

28.63636

29.4989

30.0000

32.0000

44.0000

48.0000

66.6667

—

2.9 (0.114)

2.5 (0.098)

Standard Tol.

±0.2mm

(0.008)

Enable/Disable

Function

E = with function (STD)

PIN CONNECTION ENABLE/DISABLE

Pin #

Function

CONTROL

CASE GND

OUTPUT

Pin #1

“H” or Open

“L”

Pin #3

Oscillation

High Impedance

or Oscillation Stop

Duty Ratio

= 40% to 60% (STD)

S = 45% to 55%

(f>20MHz)

Tolerance

1 = ±100ppm

0 = ±50ppm

Series

Code

OUT

F/F

OPR

STR

SYM

—

Rating

8 to 67

±100, ±50

±5

-10 to 70

-55 to 125

3.3±0.3

25 max.

10 max.

40 to 60, 45 to 55

0.1V

max.

0.9V

min.

10 max.

15 max.

5 max.

0.3V

max.

0.7V

min.

10 max.

Unit

MHz

ppm

ppm/y

°C

µA

nsec

msec

Remarks

—

Over all Conditions

@ 25°C

—

Loaded @ 67 MHz

—

0.5V

DC Level

= 8mA

= -8mA

0.1V

CC–

0.9V

—

Minimum Operating Voltage to be 0sec

SPECIFICATIONS

Items

Output Frequency

Frequency Tolerance

Aging

Operating Temperature

Storage Temperature

Supply Voltage

Supply Current

Stand by Current

Duty Ratio

Output 0 Level

Output 1 Level

Rise/Fall Time

Load Capacitance

Enable/Disable Time

Input Voltage Low

Input Voltage High

Start-up Time
