MXOHTBL2M24C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> MXOHTBL2M24C

MXOHTBL2M24C: DescriptionHCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size223KB，6 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

MXOHTBL2M24C Overview

HCMOS Output Clock Oscillator,

MXOHTBL2M24C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7175489017
package instruction	DIP-8/4
Reach Compliance Code	compliant
Other features	ENABLE/DISABLE FUNCTION; FOAM; TRAY
maximum descent time	7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e1
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	24.576 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	13.2mm x 13.2mm x 6.45mm
longest rise time	7 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	55/45 %
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)

Preview

Download Datasheet

View All

MXOHT

High Temperature

CMOS Clock Oscillator

•

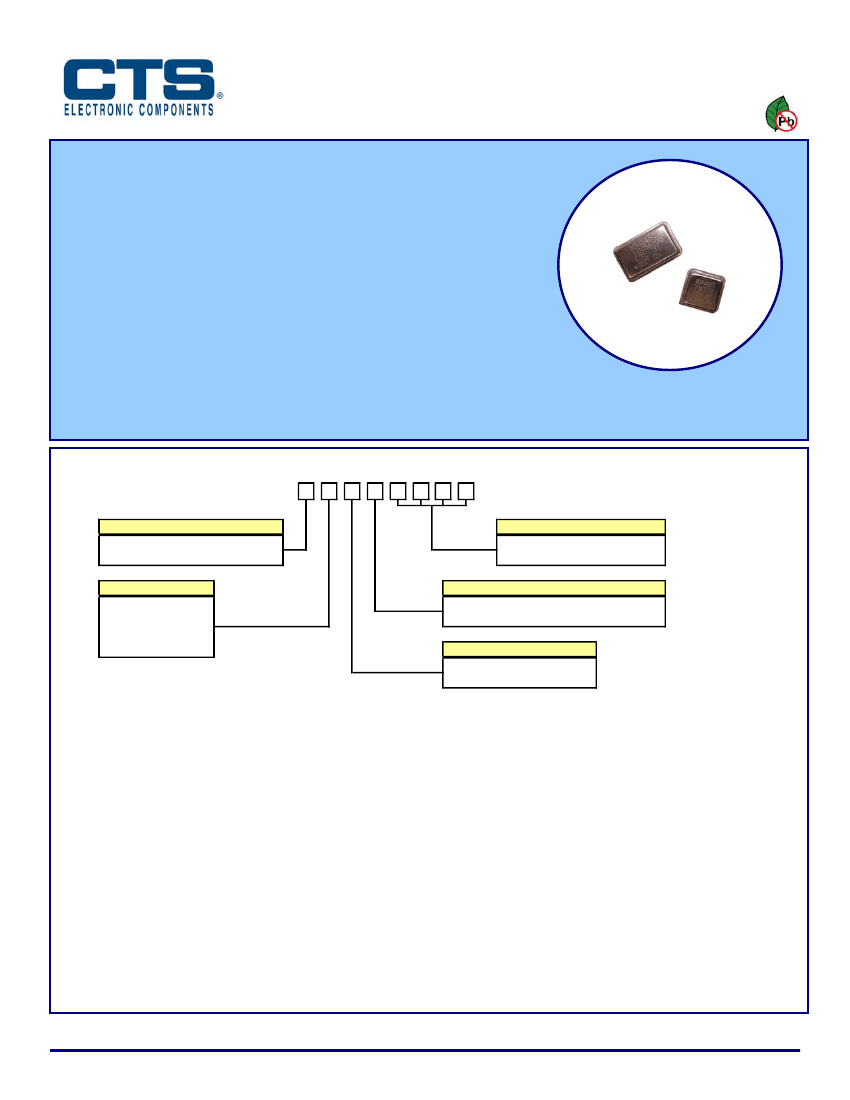

FEATURES

Standard 14 Pin or 8 Pin DIP Packages

HCMOS Compatible Output

Fundamental and 3

Overtone Crystal Designs

Frequency Range 1 – 125 MHz

Frequency Stability ±100 ppm Standard

Operating Temperatures ao -55°C to +105°C & -55°C to +125°C

Operating Voltage +1.8Vdc, +2.5Vdc, +3.3Vdc, +5.0Vdc

Output Enable Standard

Plastic Tray Packaging

RoHS/Green Compliant [6/6]

APPLICATIONS

MXOHT is developed for use in extended-industrial temperature range applications.

ORDERING INFORMATION

MXOHT

PACKAGE / ENABLE OPTIONS

A = 14 Pin DIP [full-size]

B = 8 Pin DIP [half-size]

SUPPLY VOLTAGE

M = +1.8Vdc

N = +2.5Vdc

L = +3.3Vdc

S = +5.0Vdc

FREQUENCY

Product Frequency Code

OPERATING TEMPERATURE RANGE

P = -55°C to +105°C

M = -55°C to +125°C

FREQUENCY STABILITY

3 = ± 50ppm

2 = ± 100ppm [std]

1] Refer to document 016-1454-0, Frequency Code Tables. 3-digits required for frequencies below 100MHz and 4-digits

for frequencies 100MHz or greater.

2] The MXOHT platform is qualified and manufactured to commercial and industrial standards. Use in military, aerospace,

avionics and other high reliability life-dependant applications is not recommended. Contact CTS for alternate product

platforms that are more suitable for these application environments.

Not all performance combinations and frequencies may be available.

Contact your local CTS Representative or CTS Customer Service for availability.

PACKAGING INFORMATION

[reference]

Product is packed in anti-static foam then placed in cardboard box.

100 pcs./box maximum, DIP-14 package.

100 pcs./box maximum, DIP-8 package.

Multiple boxes are master-packed in a larger carton. 30 boxes maximum per master pack.

Document No. 008-0532-0

Page 1- 3

Rev. A

www.ctscorp.com
