LFSPXO027177BULK datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> LFSPXO027177BULK

Preview

LFSPXO027177BULK: DescriptionCMOS Output Clock Oscillator, 0.032768MHz Nom; CategoryPassive components oscillator; File Size503KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO027177BULK Overview

CMOS Output Clock Oscillator, 0.032768MHz Nom

LFSPXO027177BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8341448871
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	50 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	3.4mm x 2.7mm x 1.2mm
longest rise time	50 ns
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

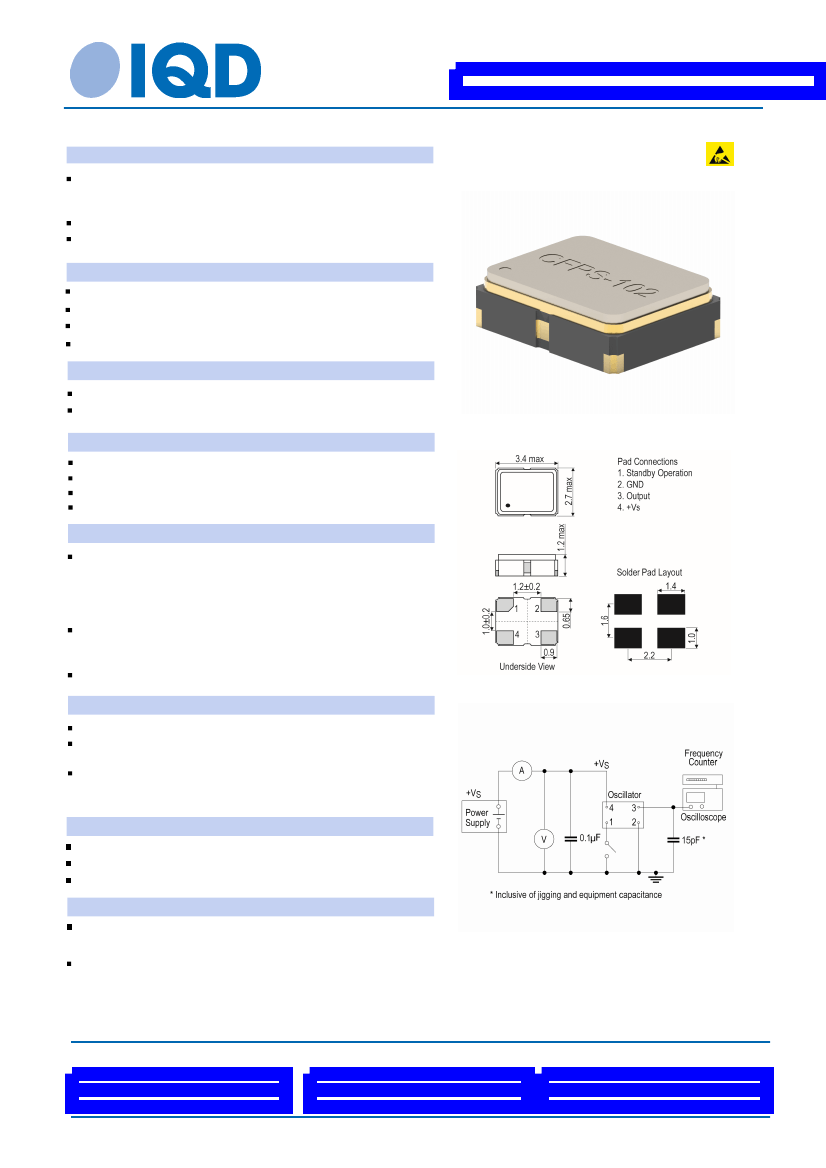

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO027177Bulk

Customer Part:

Description

32.768kHz output crystal oscillator in a ceramic package,

hermetically sealed with a seam sealed metal lid. Suitable for

real time clock applications.

Model

CFPS-102

Model Issue number

4

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

32.7680kHz

±50.00ppm

-40.00 to 85.00°C

±3ppm max per year

Supply Voltage

Current Draw

Output Details

1.8V ±5%

1.500mA

Outline (mm)

Output Compatibility

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

50.0ns max

40/60%

Standby Operation:

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; when

disabled the oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output.

Start-up Time: 35ms max

2ms typ to 90% of final amplitude (under ideal conditions @

25°C)

Standby Current: 20µA max, 1.7µA typ @ 25°C

Test Circuit

Environmental Parameters

Storage Temperature Range: –55 to 125°C

Shock: MIL-STD-883F, Method 2002.4: 1500G, 0.5ms, 3

times in each of 3 mutually perpendicular planes

Vibration: MIL-STD-883F, Method 2007.3: 20G

(20Hz-2000Hz), 1.52mm amplitude, 20mins in 3 mutually

perpendicular planes (total 4hrs)

Compliance

RoHS Status (2015/863/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 7 Jun 21 2:35 using Part Data Sheet V1.0018
