LFSPXO063695CUTT datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> LFSPXO063695CUTT

Preview

LFSPXO063695CUTT: DescriptionCMOS Output Clock Oscillator, 48MHz Nom; CategoryPassive components oscillator; File Size372KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO063695CUTT Overview

CMOS Output Clock Oscillator, 48MHz Nom

LFSPXO063695CUTT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8339922456
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TAPE
maximum descent time	12 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	SURFACE MOUNT
Nominal operating frequency	48 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
physical size	5.0mm x 3.2mm x 0.95mm
longest rise time	12 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

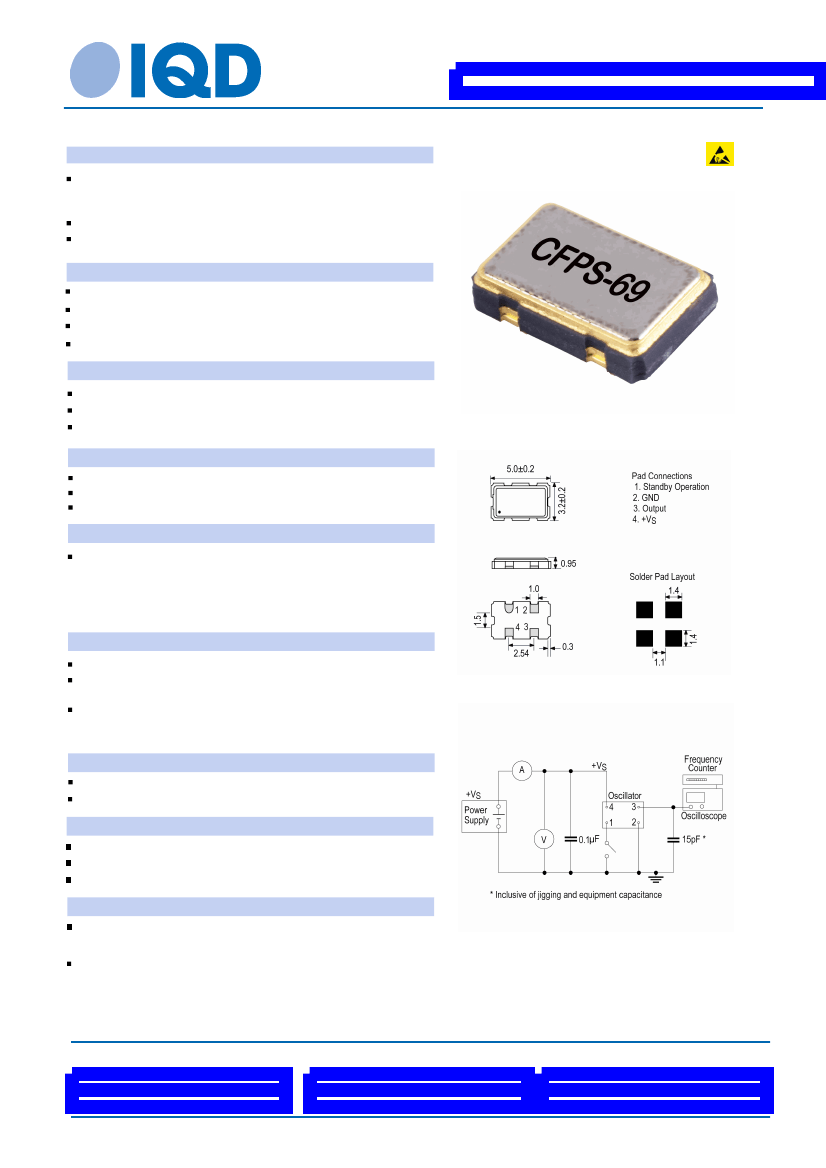

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO063695Cutt

Customer Part:

Description

Low supply current crystal oscillators

Ceramic package with a seam sealed metal lid, hermetically

sealed

Model

CFPS-69

Model Issue number

5

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

48.0MHz

±25.00ppm

-10.00 to 70.00°C

±3ppm max per year

Supply Voltage

Current Draw

Standby Current: 1μA max

Output Details

3.3V ±5%

6.000mA

Outline (mm)

Output Compatibility

Rise and Fall Time

Duty Cycle

Output Control

CMOS

12.0ns max

45/55%

Standby Operation:

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; when

the oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Environmental Parameters

Storage Temperature Range: –55 to 125°C

Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine

wave

Vibration: MIL-STD-202F, Method 204D, Test Condition D:

20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes

(total 12hrs)

Manufacturing Details

Test Circuit

RoHS Terminations

RoHS Reflow Temp

Compliance

NiAu

260degC 10s

RoHS Status (2015/863/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Cutt

Pack Size: 100

In tape, cut from a reel

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 7 Jun 21 20:43 using Part Data Sheet V1.0018
