LFXTAL057192BULK

Description
Parallel - Fundamental Quartz Crystal, 25MHz Nom
CategoryPassive components    Crystal/resonator
File Size236KB,1 Pages
ManufacturerIQD Frequency Products
Environmental Compliance
Download Datasheet Parametric View All

LFXTAL057192BULK Overview

Parallel - Fundamental Quartz Crystal, 25MHz Nom

LFXTAL057192BULK Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid8339122773
Reach Compliance Codeunknown
Other featuresBULK
Ageing5 PPM/YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level100 µW
frequency stability0.005%
frequency tolerance50 ppm
load capacitance20 pF
Installation featuresSURFACE MOUNT
Nominal operating frequency25 MHz
Maximum operating temperature60 °C
Minimum operating temperature-10 °C
physical sizeL5.0XB3.2XH0.8 (mm)/L0.197XB0.126XH0.031 (inch)
Series resistance40 Ω
surface mountYES
Terminal surfaceNOT SPECIFIED

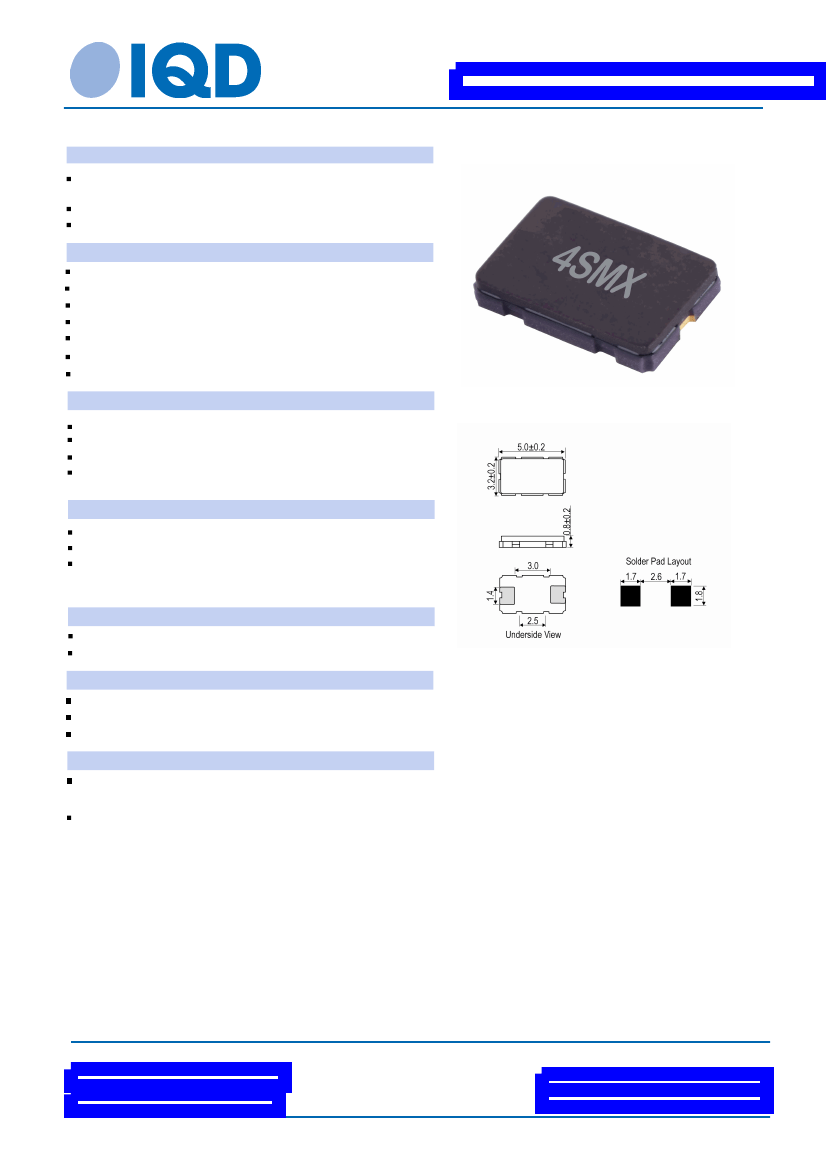

Quartz Crystal Specification
Part No. + Packaging:
LFXTAL057192Bulk
Customer Part:
Description
Quartz crystal in a ceramic package with a resin sealed ceramic
lid, hermetically sealed
Model
4SMX
Model Issue number
8
Frequency Parameters
Frequency
Frequency Tolerance
Tolerance Condition
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
25.0MHz
±50.00ppm
@ 25°C ±2°C
±50.00ppm
-10.00 to 60.00°C
Fundamental
±5ppm max per year @ 25°C
Outline (mm)
Load Capacitance (CL)
Shunt Capacitance (C0)
Drive Level
ESR
Environmental Parameters
20.00pF
7pF max
100µW max
40.00Ω max
Storage Temperature Range: -40 to 85°C
Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms
Vibration: MIL-STD-202F, Method 204D, Test Condition D:
20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes
(total 12hrs)
Manufacturing Details
RoHS Terminations
RoHS Reflow Temp
Compliance
NiAu
260degC 10s
RoHS Status (2015/863/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Bulk
Pack Size: 100
Loose in bulk pack
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
USA: +1.760.318.2824
Printed on 7 Jun 22 23:33 using Part Data Sheet V1.0019
