Photointerrupters(Actuator type)
KODENSHI
SG-405
DIMENSIONS
The SG-405 actuator type photointerrupter combined
GaAs IRED, high sensitive phototransistor and
actuator, is ideal for copiers, facsimiles.
(Unit : mm)
FEATURES
•Widely applicable
•Compact & light
•Wide choice of levers
•Connector type
APPLICATIONS
•Copiers
•Facsimiles
•Printers
•Banking machines
MAXIMUM RATINGS
Item
Power dissipation
Reverse voltage
Input
Forward current
Pulse forward current
*1
Collector power dissipation
Collector current
Output
C-E voltage
E-C voltage
Operating temp.
*2
Storage temp.
*2
*1.½½ 100μ period：T=10msec.
sec.
*2. No icebound or dew
(Ta=25℃)
Symbol
P
D
V
R
I
F
I
FP
P
C
I
C
V
CEO
V
ECO
Topr.
Tstg.
Rating
100
5
60
1
100
40
30
5
－20½＋70
－30½＋85
Unit
mW
V
mA
A
mW
mA
V
V
℃
℃
ELECTRO-OPTICAL CHARACTERISTICS
Item
Forward voltage
Reverse current
Collector dark current
Output
Ligh current
C-E saturation voltage
Input
(Ta=25℃)
Symbol
V
F
I
R
I
CEO
I
L
V
CE
(sat)
Conditions
I
F
=30mA
V
R
=5V
V
CE
=10V
V
CE
=5V,I
F
=20mA
I
F
=20mA,I
C
=0.3mA
Min.
Typ.
1.2
5
1.5
Max.
1.5
10
100
0.4
Unit.
V
μA
nA
mA
V
0.5
MECHANICAL CHARACTERISTICS
Item
Conditions Min.Typ.Max.Unit.
Item
Vibration endurance
Mechanical life time
Conditions Min.Typ.Max.Unit.
10~55~10Hz/Min
Vibration Axis 1.5mm -
X,Y,Z Each Direction
-
Min 10
6
times
Static point θ
1
45
deg.
Open point θ
2
5
10 15 deg.
Movement torque
1.5 gf/cm
Min 30G
Shock endurance packing status
-
- 1-
Photointerrupters(Actuator type)
SG-405

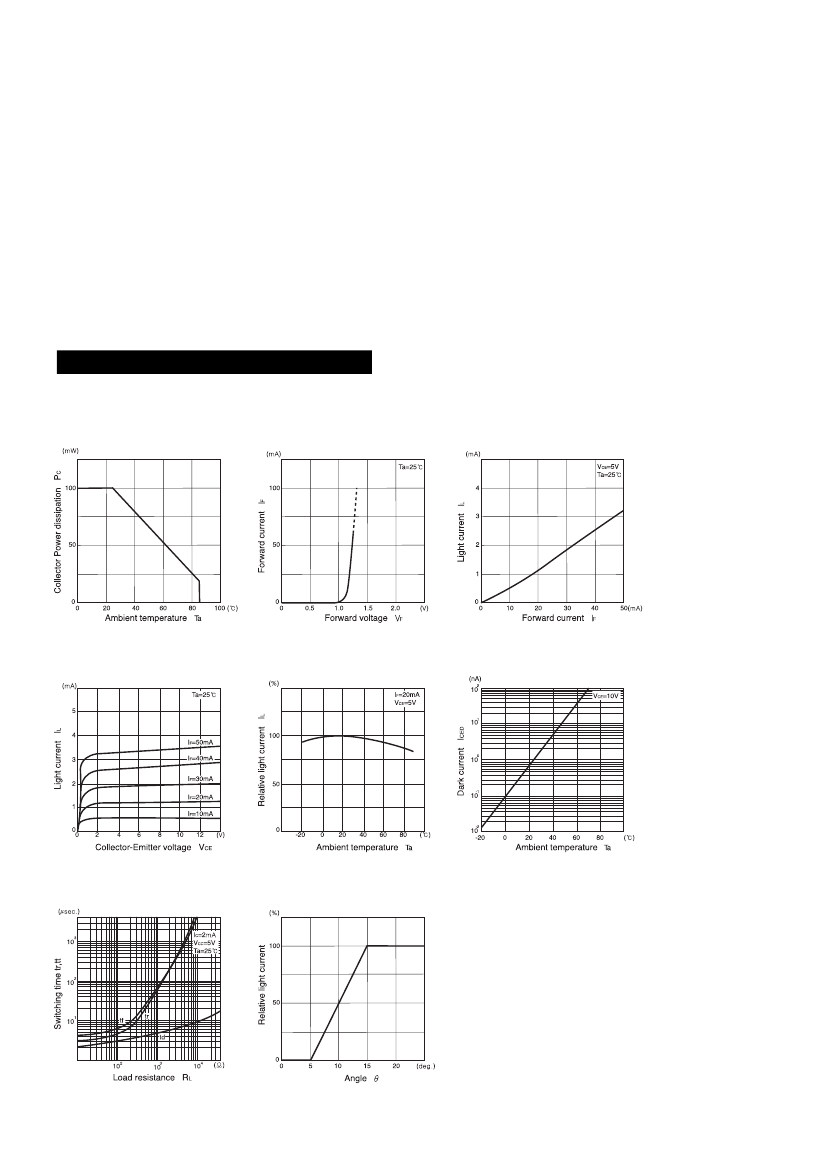

Collector power dissipation Vs.
Ambient temperature
Forward current Vs.
Forward voltage
Light current Vs.
Forward current
Light current Vs.
Collector-Emitter voltage
Relative light current Vs.
Ambient temperature
Dark current Vs.
Ambient temperature
Switching time Vs.
Load resistance
Relative light current Vs.
Angle
- 2-
