B39212B8563P810 datasheet, PDF

B39212B8563P810: DescriptionDuplexer, 1732.5MHz(Tx), 2132.5MHz(Rx), ROHS COMPLIANT, SMD, 9 PIN; CategoryAnalog mixed-signal IC filter; File Size233KB，17 Pages; ManufacturerRF360; Environmental Compliance

Download Datasheet Parametric Compare View All

B39212B8563P810 Overview

Duplexer, 1732.5MHz(Tx), 2132.5MHz(Rx), ROHS COMPLIANT, SMD, 9 PIN

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	4002662716
package instruction	ROHS COMPLIANT, SMD, 9 PIN
Reach Compliance Code	unknown
Other features	OPERATING TEMPERATURE -15 TO 85 C ALSO AVAILABLE FOR W-CDMA BAND 4
filter type	DUPLEXER
high	0.47 mm
Insertion loss (receive)	2.3 dB
Insertion loss (transmit)	2 dB
JESD-609 code	e4
length	2 mm
Installation type	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
physical size	L2.0XB1.6XH0.47 (mm)/L0.079XB0.063XH0.019 (inch)
Receive center frequency	2132.5 MHz
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Transmit center frequency	1732.5 MHz
voltage standing wave ratio	1.4
width	1.6 mm

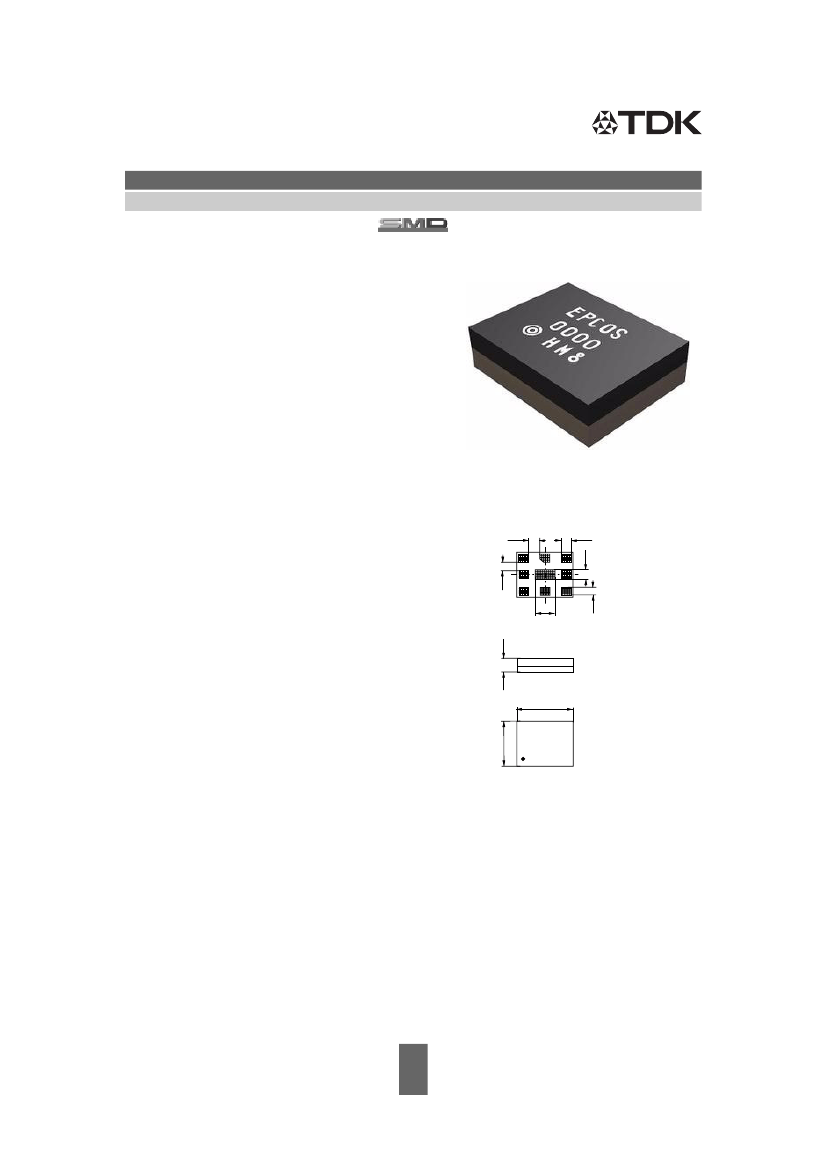

SAW Components

SAW Duplexer

WCDMA Band 4/ CDMA 1x AWS Band

Series/type:

Ordering Code:

Date:

Version:

B8563

B39212B8563P810

January 27, 2012

2.0



EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information

contained therein without EPCOS' prior express consent is prohibited.

EPCOS AG is a TDK Group Company.

	B39212B8563P810
Description	Duplexer, 1732.5MHz(Tx), 2132.5MHz(Rx), ROHS COMPLIANT, SMD, 9 PIN
Is it Rohs certified?	conform to
Objectid	4002662716
package instruction	ROHS COMPLIANT, SMD, 9 PIN
Reach Compliance Code	unknown
Other features	OPERATING TEMPERATURE -15 TO 85 C ALSO AVAILABLE FOR W-CDMA BAND 4
filter type	DUPLEXER
high	0.47 mm
Insertion loss (receive)	2.3 dB
Insertion loss (transmit)	2 dB
JESD-609 code	e4
length	2 mm
Installation type	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
physical size	L2.0XB1.6XH0.47 (mm)/L0.079XB0.063XH0.019 (inch)
Receive center frequency	2132.5 MHz
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Transmit center frequency	1732.5 MHz
voltage standing wave ratio	1.4
width	1.6 mm
