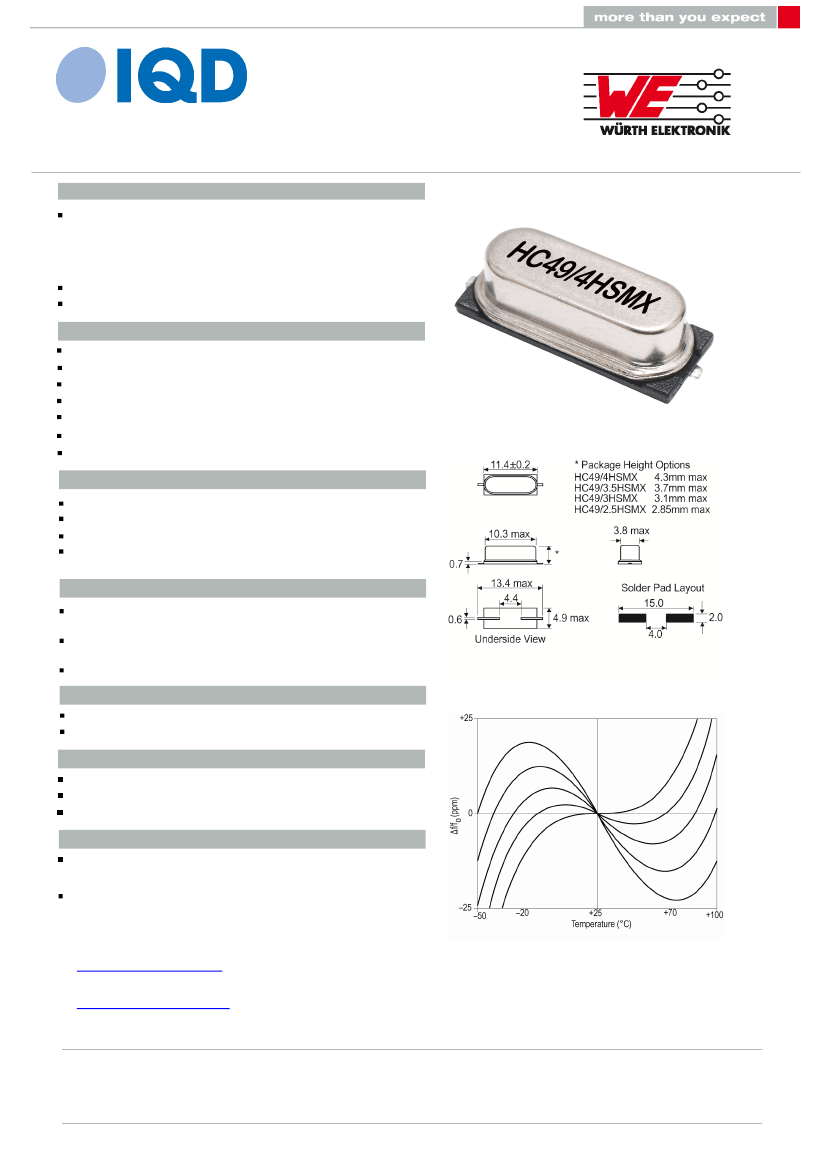

Quartz Crystal Specification
IQD Part No. + Packaging: LFXTAL003151Reel
Wurth Part No.
830003151
Description
Industry standard SMD crystal
Resistance welded, hermetically sealed in an inert atmosphere,
glass to metal seals on leads
Lead wires are mounted onto a plastic former to create a gull
wing mount
Model
HC49/4HSMX
Model Issue number
17
Frequency Parameters
Frequency
Frequency Tolerance
Tolerance Condition
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
8.0MHz
±30.00ppm
@ 25°C ±2°C
±
50.00ppm
-10.00 to 60.00°C
Fundamental
±5ppm typ per year @ 25°C
Outline (mm)
Load Capacitance (CL)
Shunt Capacitance (C0)
Drive Level
ESR
Environmental Parameters
16.00pF
7pF max
500µW max
40.00Ω max
Shock: 981m/s², 6ms, 3 times in each of 3 mutually
perpendicular planes
Vibration: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz,
98.1m/s², 30mins in 3 mutually perpendicular planes
Storage Temperature Range: -55 to 125°C
Manufacturing Details
Typical Frequency vs Temperature Curves
RoHS Terminations
RoHS Reflow Temp
Compliance
SnAgCu or Sn
260degC 10s
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Reel
Pack Size: 1,000
Tape & reel in accordance with EIA-481-D
Alternative packing option available
USEFUL LINKS
Toolbox:
www.we-online.com/toolbox
Product Catalog:
www.we-online.com/products
CONTACT INFORMATION:
Würth Elektronik eiSos GmbH & Co. KG
Max-Eyth-Str. 1, 74638 Waldenburg, Germany
Tel: +49(0) 7942 945-0
Printed on 9 Nov 18 10:30 using WE Part Data Sheet V1.00018
Email: eiSos@we-online.de
Web: www.we-online.com
Page 1 of 1
