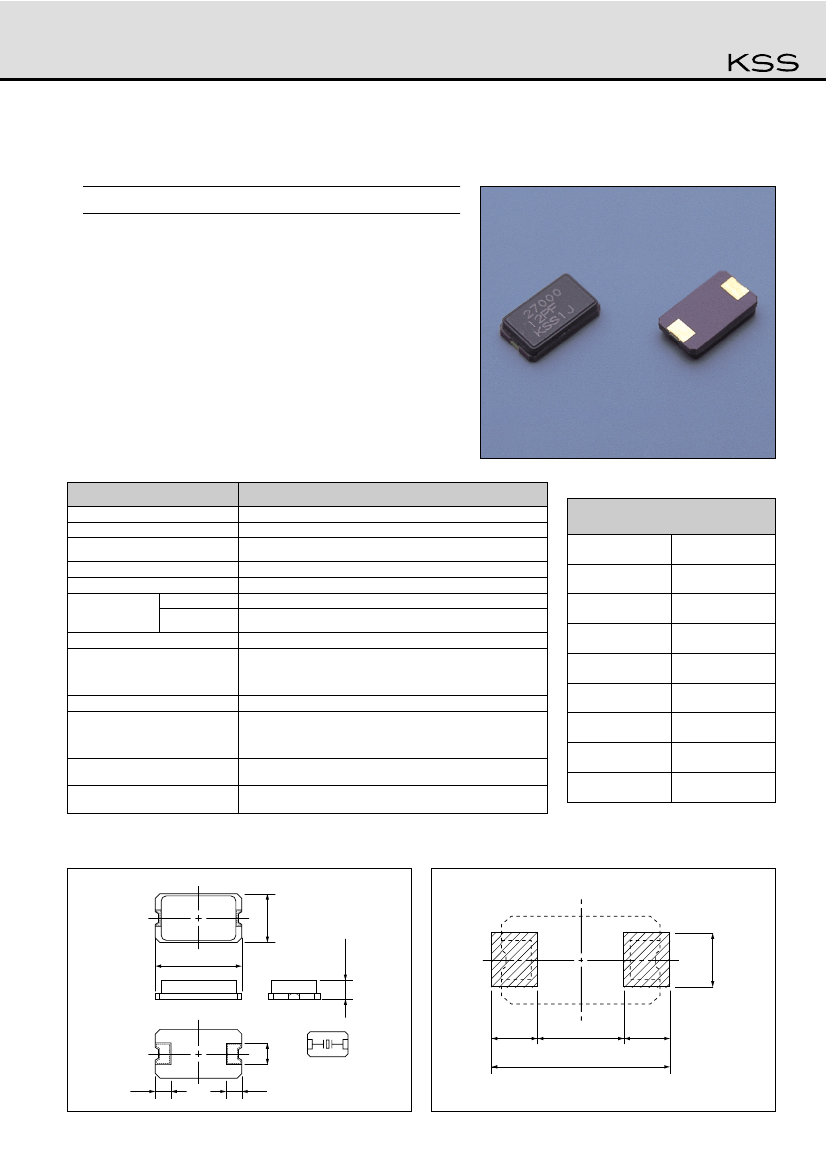

CX-8045G (CX-11F)
SMD
s
Features
¡Compact,
thin. (8.0×4.5×1.8mm)
¡For
self-loading.
¡Ceramic
package leadless type.
¡Emboss
taping.
¡Reflow
soldering.
¡The
oscillation circuit can obtain sufficient output at the inverter
stage.
s
Specifications
Type
Frequency Range
Standard Frequency
Overtone Order
Operating Temp. Range
Storage Temp. Range
Frequency
Tolerance
Load Capacitance
Equivalent Series Resistance
Shunt Capacitance
Drive Level
at 25:
Over The Oper.
Temp. Range
CX-8045G
8~70MHz
Table 1
8~47MHz : Fundamental
40~70MHz : 3rd. O.T.
-10~+70:
-40~+85:
±15, ±30, ±50×10
-6
±15, ±30, ±50×10
-6
(referred to 25:)
12pF
8~10MHz (Fund.) 200Ω MAX.
10~12MHz (Fund.) 150Ω MAX.
12~47MHz (Fund.) 50Ω MAX.
40~70MHz (3rd.) 150Ω MAX.
7pF MAX.
8~16MHz:0.5mW MAX.
16~24MHz:0.3mW MAX.
24~47MHz:0.1mW MAX.
3rd. O.T. :0.3mW MAX.
Three drops onto a hard wood board from the height of 20cm
s
Table 1
Standard Frequencies
Standard Frequency (MHz)
14.31818
16.000
16.384
16.9344
19.6608
20.000
21.47727
24.000
24.576
27.000
28.63636
30.000
32.000
33.8688
36.000
40.000
45.1584
Shock
Vibration
10~55Hz, amplitude 1.5mm, each to 3 directions, 2 hours each
* Please inquire about frequencies other than
the above.
*Taping item packaging : one unit 1,000pcs & 3,000pcs
s
Outline
CX-8045G
4.5±0.3
s
Land Pattern(reference)
1.8±0.2
8.0±0.3
2.4
2.0
4.2
9.0
2.4
CONNECTION
1.5
1.5
Dimensions(mm)
2.8
