18W AC-DC High Reliability Industrial Adaptor
GST18U
series
TPTC004 UL60950-1
CNS14336 IEC60950-1
■
Features
Global certificates
Universal AC input / Full range
2 pole USA plug, Class
Ⅱ
power unit
No load power consumption< 0.075W
Energy efficiency Level VI
Comply with EISA 2007/DoE and NRCan
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Pass LPS
-30~+70
℃
wide range working temperature
LED indicator for power on
3 years warranty
■
Applications
Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipments
■
Description

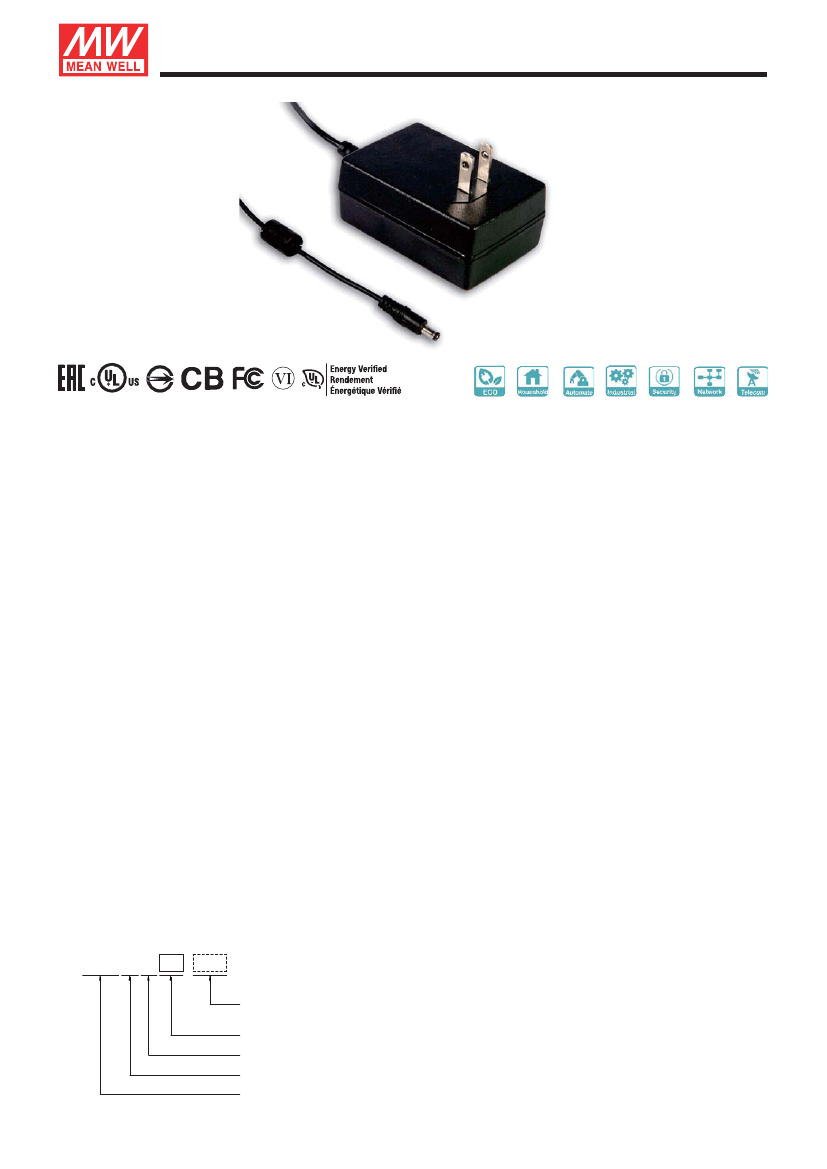

GST18U is a highly reliable, 18W wall-mounted style single-output green adaptor series. This product is
a class
Ⅱ
power unit (no FG), equipped with a 2-Pin standard USA AC power plug, adopting the input
range from85VAC to 264VAC. The entire series supplies different models with output voltages ranging
between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices.
With the efficiency up to 89% and the extremely low no-load power consumption below 0.075W, GST18U is
compliant with USA EISA 2007/DoE and Canada NRCan. The
supreme feature allows the adaptor to save
the energy when it is either under the operating mode or the standby mode. The entire series utilizes the
94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock.
GST18U is certified for the international safety regulations.
■
Model Encoding
GST 18 U 05 - P1J
DC plug type
Output voltage
USA 2 pin AC plug
Rated wattage
Series name
File Name:GST18U-SPEC 2017-05-05
{
P1J: Standard model,2.1
ψ
x5.5
ψ
x11mm,C+,tuning fork type
Other options available by customer requested (see Page 4~5)
18W AC-DC High Reliability Industrial Adaptor
SPECIFICATION
ORDER NO.
SAFETY MODEL NO.
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER (max.)
OUTPUT
GST18U
series
GST18U05-P1J GST18U07-P1J GST18U09-P1J GST18U12-P1J GST18U15-P1J GST18U18-P1J GST18U24-P1J GST18U28-P1J GST18U48-P1J
GST18U05
Note.2
5V
GST18U07
7.5V
2.0A
0 ~ 2.0A
15W
80mVp-p
±5.0%
±1.0%
±5.0%
GST18U09
9V
2.0A
0 ~2.0A
18W
80mVp-p
±5.0%
±1.0%
±5.0%
GST18U12
12V
1.50A
0 ~ 1.50A
18W
80mVp-p
±3.0%
±1.0%
±3.0%
GST18U15
15V
1.20A
0 ~ 1.20A
18W
100mVp-p
±3.0%
±1.0%
±3.0%
GST18U18
18V
1.0A
0 ~ 1.0A
18W
150mVp-p
±3.0%
±1.0%
±3.0%
GST18U24
24V
0.75A
0 ~ 0.75A
18W
150mVp-p
±2.0%
±1.0%
±2.0%
GST18U28
28V
0.64A
0 ~ 0.64A
18W
150mVp-p
±2.0%
±1.0%
±2.0%
GST18U48
48V
0.375A
0 ~ 0.375A
18W
150mVp-p
±2.0%
±1.0%
±2.0%
3.0A
0 ~ 3.0A
15W
RIPPLE & NOISE (max.)
Note.3
80mVp-p
VOLTAGE TOLERANCE
Note.4
±5.0%
LINE REGULATION
LOAD REGULATION
Note.5
±1.0%
Note.6
±5.0%
SETUP, RISE, HOLD UP TIME
1000ms, 30ms, 50ms/230VAC
VOLTAGE RANGE
Note.7
85 ~ 264VAC
FREQUENCY RANGE
INPUT
EFFICIENCY (Typ.)
AC CURRENT
INRUSH CURRENT (max.)
LEAKAGE CURRENT(max.)
OVERLOAD
47 ~ 63Hz
81%
0.5A / 115VAC
0.25mA / 240VAC
85%
85%
0.3A / 230VAC
1500ms, 30ms, 15ms/115VAC at full load
86%
87%
88%
88%
88.5%
89%
Cold start 35A / 115VAC
65A / 230VAC
110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
PROTECTION
110 ~ 140% rated output voltage
OVER VOLTAGE
Protection type : Clamp by zener diode, output short
-30 ~ +70
℃
(Refer to "Derating Curve")
WORKING TEMP.
20% ~ 90% RH non-condensing
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
-40 ~ +85
℃
, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±
0.03% /
℃
(0 ~ 50
℃
)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
UL60950-1, CSA C22.2, BSMI CNS14336,
EAC TP TC 004 approved
SAFETY STANDARDS
WITHSTAND VOLTAGE
I/P-O/P:4242VDC
I/P-O/P:100M Ohms / 500VDC / 25
℃
/ 70% RH
ISOLATION RESISTANCE
SAFETY &
Standard
Parameter
EMC
(Note. 8)
Test Level / Note
Class B
Class B
Conducted emission
EMC EMISSION
Radiated emission
MTBF
DIMENSION
PACKING
PLUG
CABLE
FCC PART 15 / CISPR22,
CAN ICES-3(B)/NMB-3(B)
CNS13438, EAC TP TC 020
FCC PART 15 / CISPR22,
CAN ICES-3(B)/NMB-3(B)
CNS13438, EAC TP TC 020
OTHERS
500Khrs min. MIL-HDBK-217F(25
℃
)
79*54*33mm (L*W*H)
198g; 60pcs/12.9Kg/1.22CUFT
See page 4~5 ; Other type available by customer requested
See page 4~5 ; Other type available by customer requested
CONNECTOR
NOTE
1.All parameters are specified at 115VAC input, rated load, 25
℃
70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1
μ
f & 47
μ
f capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 10% to 100% rated load.
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the
EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
(as available on http://www.meanwell.com)
File Name:GST18U-SPEC 2017-05-05
18W AC-DC High Reliability Industrial Adaptor

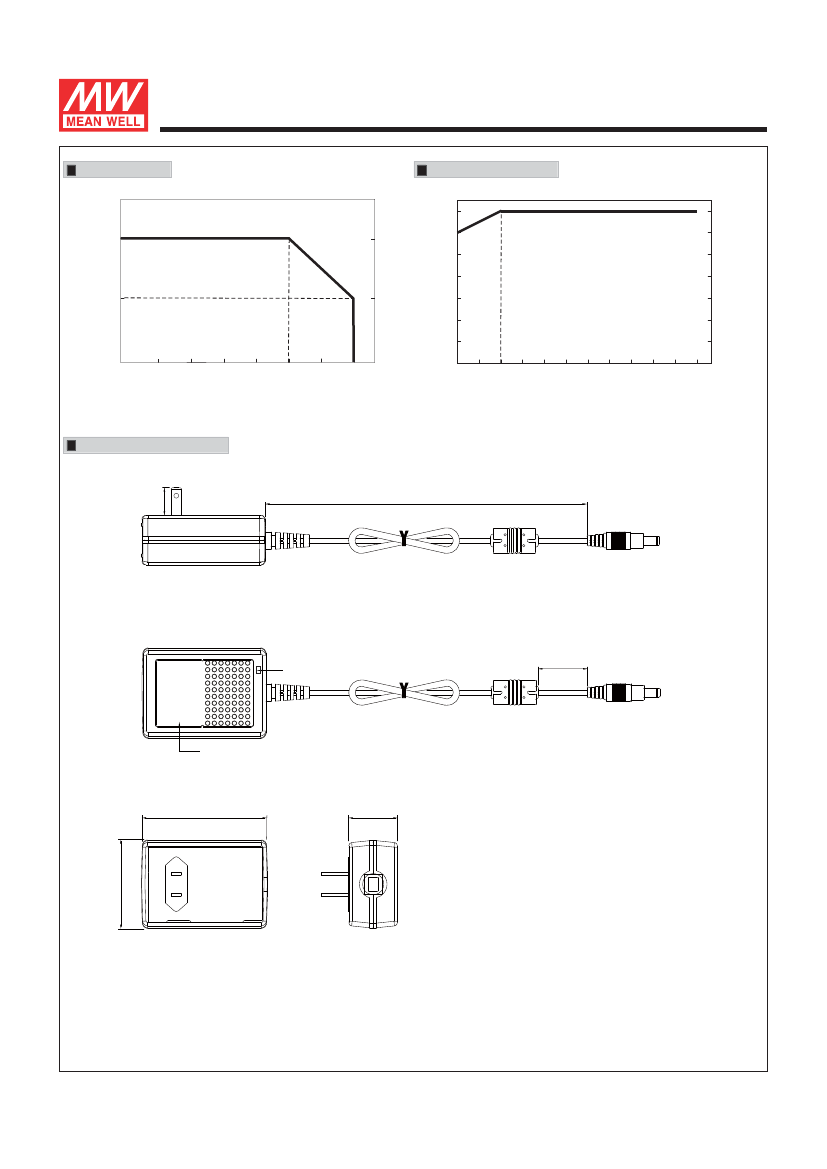

Derating Curve
Static Characteristics
100
100
85
GST18U
series
LOAD (%)
LOAD (%)
10
20
30
40
50
60
70
80
70
60
50
40
50
-30
85
95
100
110
120
140
160
180
200
220
240
264
AMBIENT TEMPERATURE (
℃
)
INPUT VOLTAGE (VAC) 60Hz
Mechanical Specification
UL1185 16AWG 1200
±
50mm for 5~12V
UL1185 18AWG 1800
±
50mm for 15~48V
Unit:mm
17
Power LED
70
±
10mm
Name Plate
79
33
54
2 pole USA plug
File Name:GST18U-SPEC 2017-05-05
18W AC-DC High Reliability Industrial Adaptor
GST18U
series

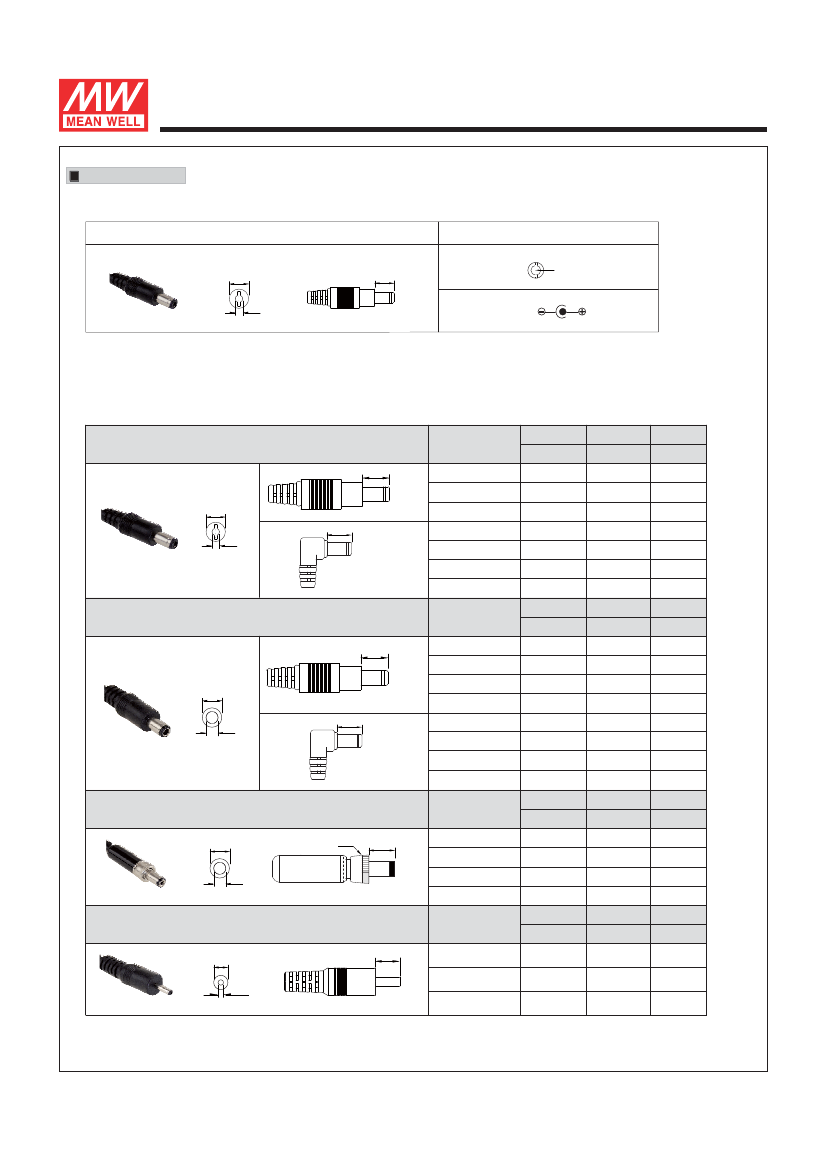

DC output plug
◎
Standard plug: P1J
P1J
11
±
0.5mm
Pin Assignment
C"+"
5.5
2.1
Outside
Inside
◎
Optional DC plug:
Tuning Fork Style
C
Type No.
P1I
P1L
P1M
P1IR
P1JR
P1LR
P1MR
Type No.
A
C
B
(Straight)
(Right-angled)
Barrel Style
C
A
B
C
(Straight)
(Right-angled)
P2I
P2J
P2L
P2M
P2IR
P2JR
P2LR
P2MR
Type No.
Lock Style
A
B
Locking
C
SWITCHCRAFT original or equivalent
P2S(S761K)
P2K(761K)
P2C(S760K)
P2D(760K)
Type No.
Min. Pin Style
A
B
C
P3A
P3B
P3C
A
OD
5.5
5.5
5.5
5.5
5.5
5.5
5.5
A
OD
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
A
OD
5.53
5.53
5.53
5.53
A
OD
2.35
4.0
4.75
B
ID
2.1
2.5
2.5
2.1
2.1
2.5
2.5
B
ID
2.1
2.1
2.5
2.5
2.1
2.1
2.5
2.5
B
ID
2.03
2.54
2.03
2.54
B
ID
0.7
1.7
1.7
C
L
9.5
9.5
11.0
9.5
11.0
9.5
11.0
C
L
9.5
11.0
9.5
11.0
9.5
11.0
9.5
11.0
C
L
12.06
12.06
9.52
9.52
C
L
11.0
11.0
11.0
EIAJ equivalent
File Name:GST18U-SPEC 2017-05-05
18W AC-DC High Reliability Industrial Adaptor
GST18U
A
OD
5
.
5
6.5
7.4
B
ID
3.4
4.4
C
L
11.0
11.0
D
series
Center Pin Style
A
B
D
Type No.
C
Center Pin
P4A
P4B
P4C
Type No.
1.0
1.4
EIAJ equivalent

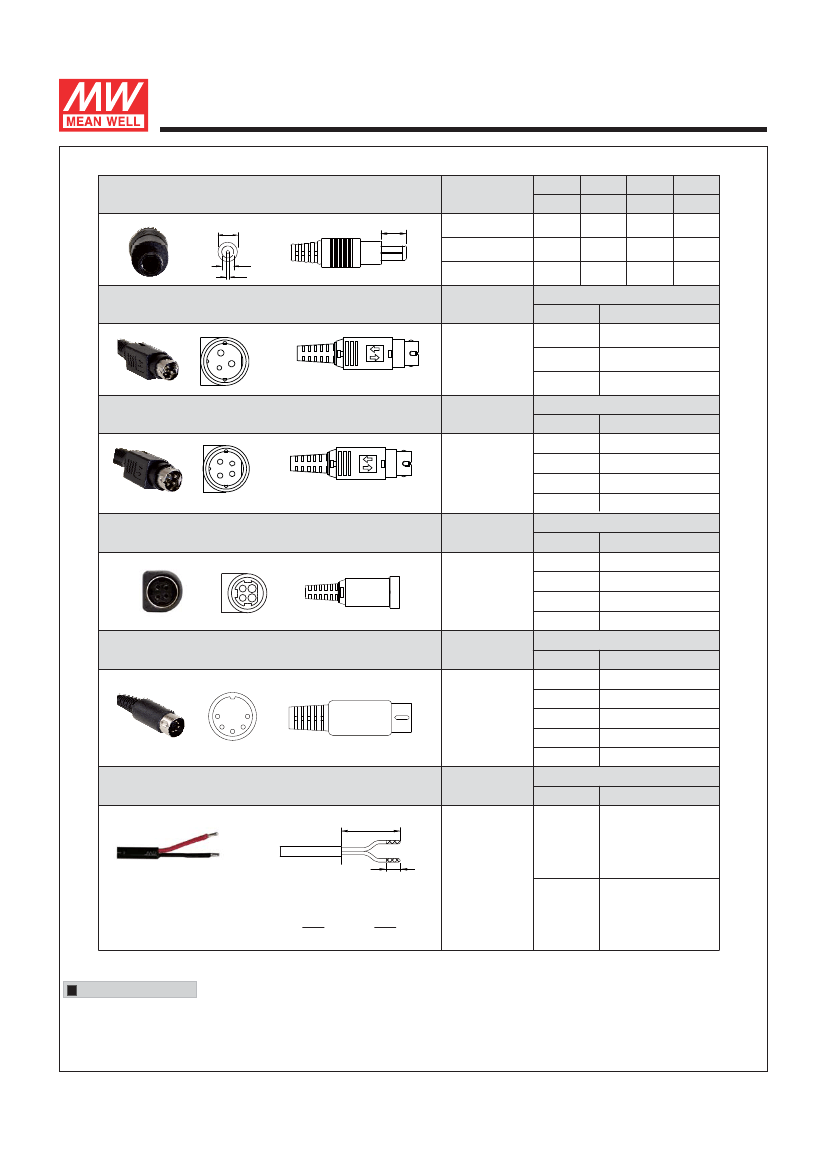

Min. DIN 3 Pin with Lock (male)
1
2
3
11.0
0.6
5.1
Pin Assignment
Output
PIN No.
1
+Vo
-Vo
2
3
R6B
KYCON
KPPX
-
3P equivalent
Min. DIN 4 Pin with Lock (male)
2 3
1 4
KYCON
KPPX
-
4P equivalent
Type No.
R7B
Min. DIN 4 Pin with Lock (female)
Type No.
23
14
KYCON KPJX-CM-4S equivalent
R7BF
DIN 5 Pin (male)
Type No.
3
1
4 2 5
R1B
Stripped and tinned leads
L
(red)
Type No.
+Vo
Pin Assignment
Output
PIN No.
+Vo
1
-Vo
2
3
-Vo
4
+Vo
Pin Assignment
Output
PIN No.
+Vo
1
-Vo
2
3
-Vo
4
+Vo
Pin Assignment
Output
PIN No.
-Vo
1
-Vo
2
3
+Vo
-Vo
4
5
+Vo
Pin Assignment
Output
PIN No.
1
2
L1
(black)
by customer
Length of Land L1 by request
( MW’s standard length, L: 25 mm, L1: 5 mm)
1
+Vo
2
-Vo
Installation Manual
Please refer to : http://www.meanwell.com/manual.html
File Name:GST18U-SPEC 2017-05-05
