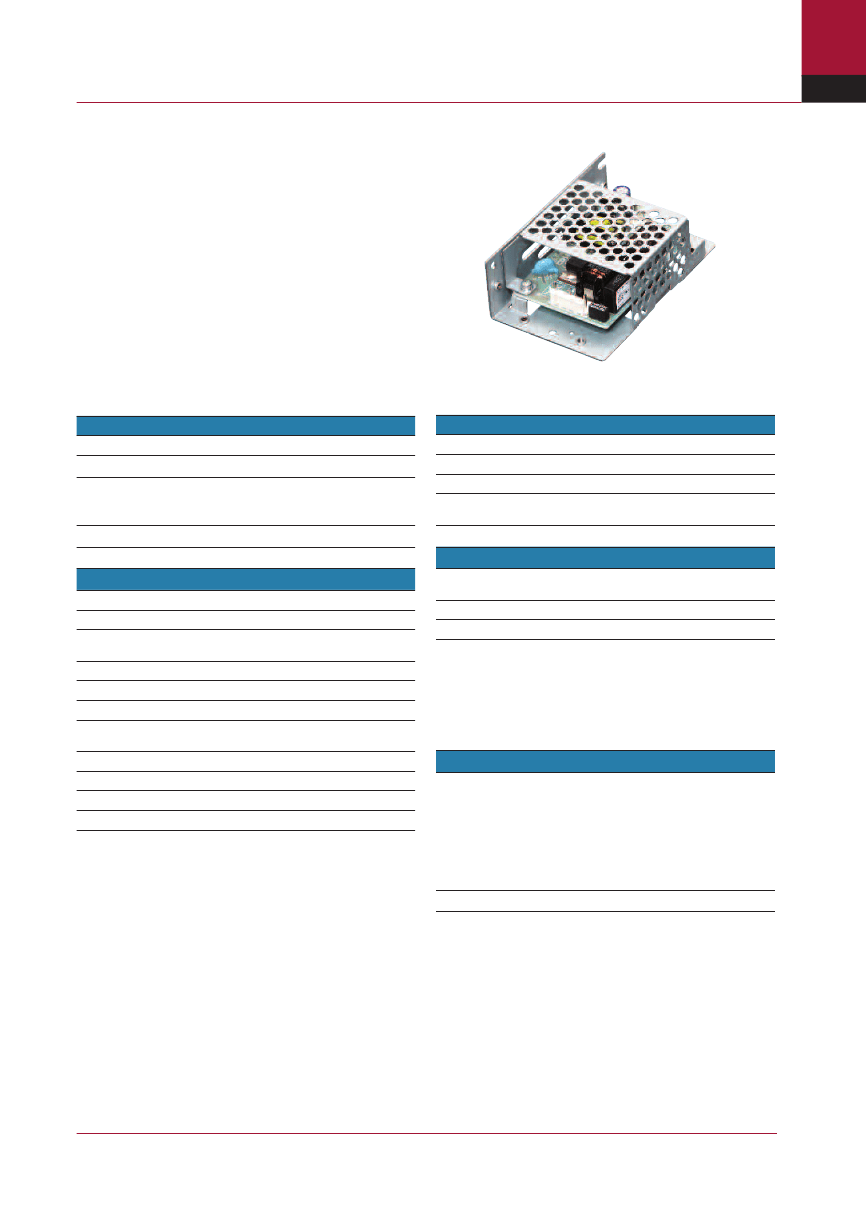

PBB13C Series
7 - 3 0 0 W AT T S - A C / D C S I N G L E O U T P U T
FEATURES
•
•
•
•
•
•
•
•
•
•
Universal input 85-264VAC
Small Size
Over voltage and current protection
Power Factor Correction 100-300 Watts
Chassis mounting
Decrease power consumption during stand-by
10-15Watts -
On board in-rush current limiter
Over current and overvoltage protection
CE marking
RoHS compliance
OPEN FRAME & ENCLOSED
SPECIFICATIONS
INPUT
ENVIRONMENTAL
Voltage
Frequency
Safety isolation
85-264VAC
10-30W (47-440Hz) 50-300W (47-63Hz)
Input-Output
Input - FG
Output - FG
AC 3,000V 1 minute
AC 2,000V 1 minute
AC 500V 1 minute
Operating temperature
Derating
Cooling
Vibration
Impact
STANDARDS
-10°C to 70°C.
Consult Sales Office
Convection.
10Hz–55Hz, 2G, 3 mins period for 60 minutes
along X, Y and Z axis.
20G, 11mS, once each along X, Y and Z axis.
Inrush current
Power factor
OUTPUT
30A typical at 200V AC.
0-90 typ., 50-300W
Safety standards
See table.
See table.
Line: 20-192mv Model Dependant
Load: 40-240mv Model Dependant
Typically ±10%
See table.
At 115%–140% of rated.
Operates over 105% of ratting and recovers
automaticall
20-192mv Model Dependant
See table.
20mS typical (AC in 100V)
Unit will operate with zero load

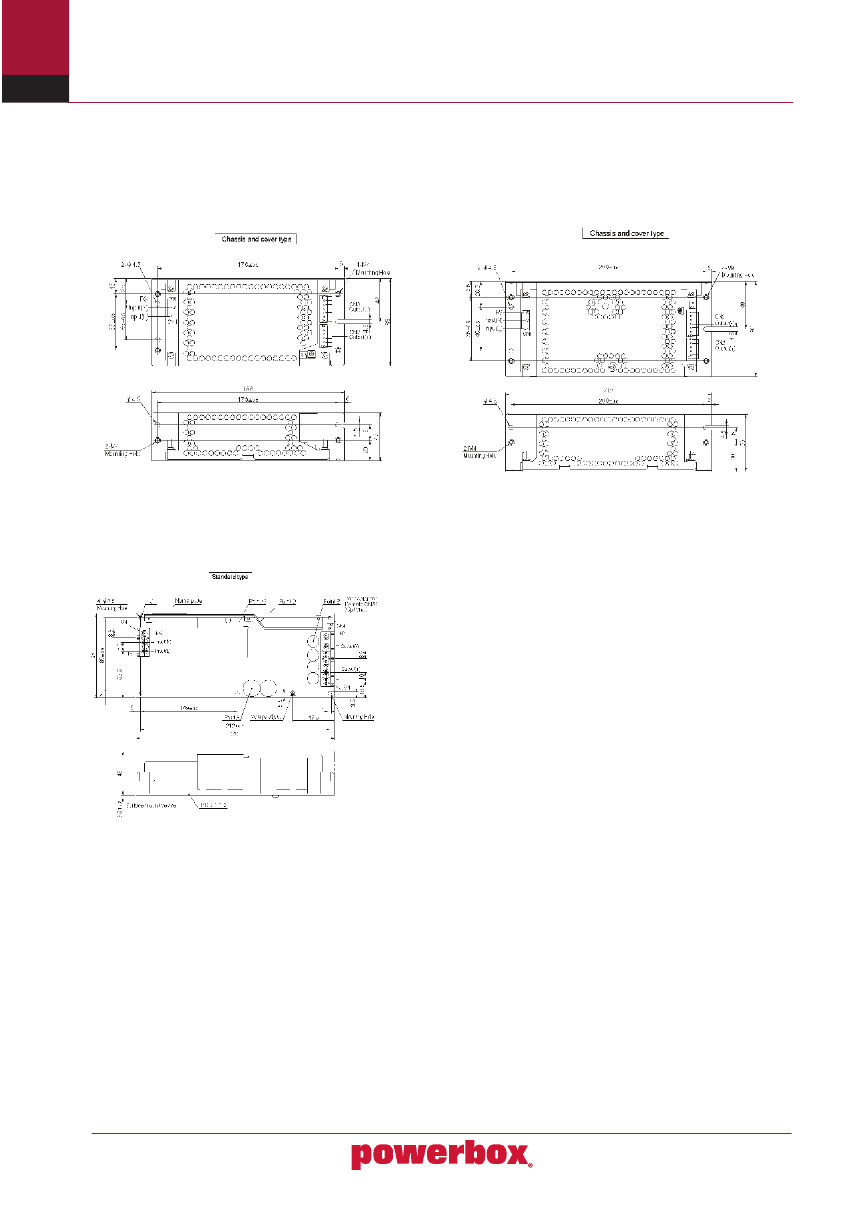

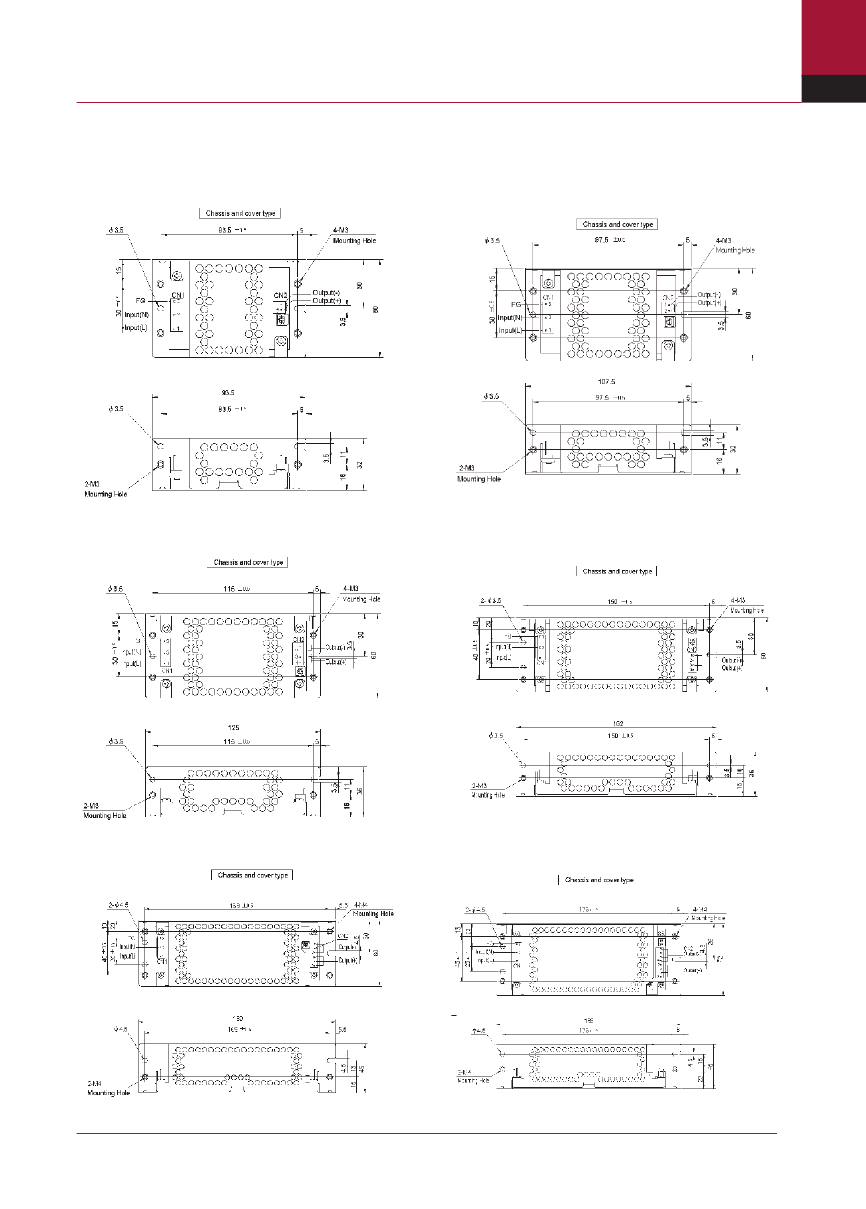

MECHANICAL
Output voltage
Output current
Regulation
Voltage adjustment
Ripple and noise
Overvoltage protection
Overcurrent protection
Temperature drift
Efficiency
Hold up time
Minimum load
UL60950-1, CSA 60950-1, EN60950-1,
EN50178,
AS/NZS CISPR11 Group 1 Class A.
FCC-B, VCCI-B, CISPR-B, EN55011-B, EN5022-B
EN61204-3, EN61000-6-2
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11
PBB13C-D-SNY
PBB13C-F-SNY
PBB13C-H-SNY
PBB13C-J-SNY
PBB13C-L-SNY
PBB13C-M-SNY
PBB13C-R-SNY
PBB13C-E-SNY
PBB13C-T-SNY
60 x32 x 93.5mm
60 x 32 x 107.5mm
60 x 36 x 125mm
60 x 36 x 132m
60 x 33.5 x 162mm
72 x 45 x 185mm
85 X 47 X 188mm
98 X 59 X 212mm
95 X 49 X 222mm
C-Tick
EMI standards
EMC compliance
Case size
Cable harness
Input/output harness supplied with PSU
Doc. No. PBC9 Rev.E 26-5-12
Powering Progress – www.powerbox.com.au
