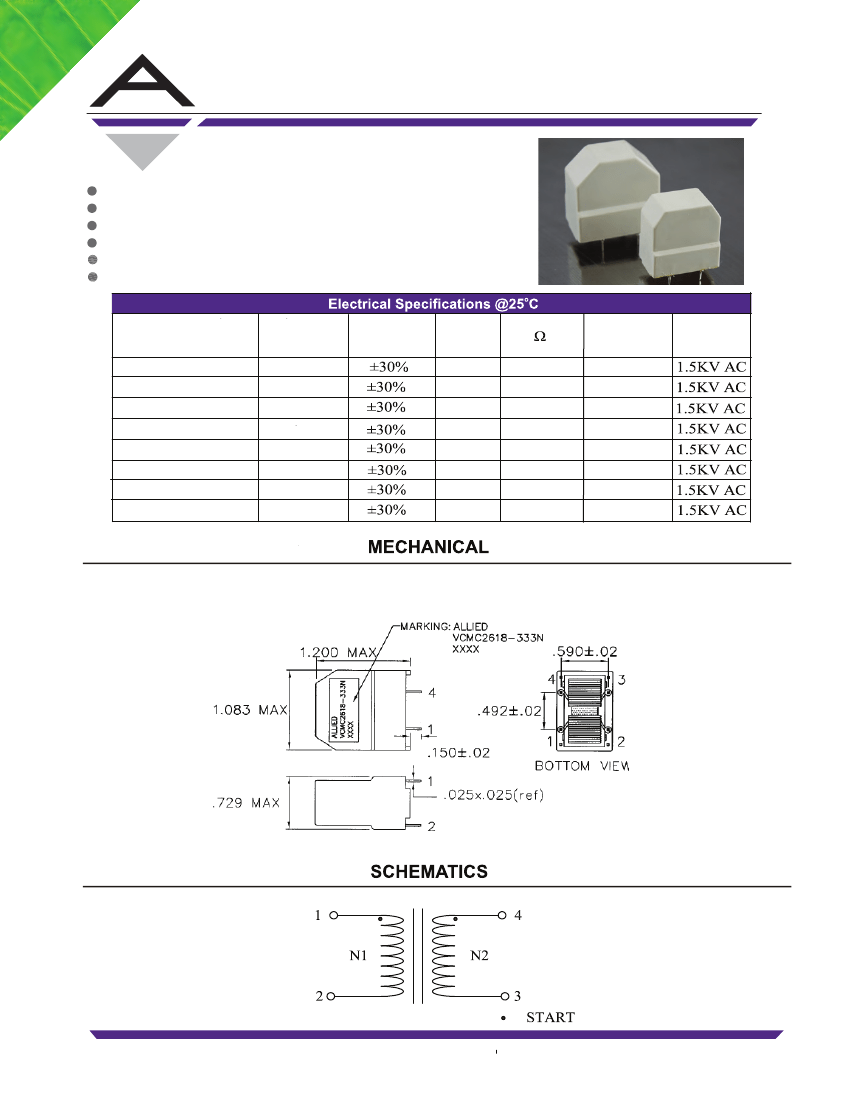

CURRENT COMPENSATED COMMON MODE CHOKE

VCMC2618

Encased for Added Protection and Stable Mounting

High Current Capability

Excellent EMI Suppression

Fixed Pins for easy PCB Insertion

Cross to Wurth 744632XXXX Series

Operating temp: -25ºC to +125ºC

Part Number

VCMC2618-182N

VCMC2618-272N

VCMC2618-402N

VCMC2618-682N

VCMC2618-103N

VCMC2618-273N

VCMC2618-333N

VCMC2618-503N

Inductance

(mH)

1.8

2.7

4.0

6.8

10

27

33

50

Tolerance

Inductance

Test Freq.

KHz/50mV

DCR

( )

0.02

0.06

0.07

0.16

0.18

0.64

0.85

1.20

10

Rated

Current

(A)

6.0

3.0

1.9

1.0

0.8

0.6

HIPOT

3mA for 1min.

All specifications subject to change without notice.

949-356-1780

ALLIED COMPONENTS INTERNATIONAL

Revised 08/08/2014

15

www.alliedcomponents.com
