Series AM2DS-Z
2 Watt | DC-DC Converter
To be added soon
FEATURES:
•
RoHS compliant SIP7 package
•
High efficiency up to 80%
•
I/O Isolation 5200 VDC
•
•
•
Low Ripple and Noise
Continuous Short Circuit Protection
Low coupling capacity
Models
Single output
Model
AM2DS-0503SH52Z
AM2DS-0505SH52Z
AM2DS-0509SH52Z
AM2DS-0512SH52Z
AM2DS-0515SH52Z
AM2DS-1203SH52Z
AM2DS-1205SH52Z
AM2DS-1209SH52Z
AM2DS-1212SH52Z
AM2DS-1215SH52Z
AM2DS-1503SH52Z
AM2DS-1505SH52Z
AM2DS-1509SH52Z
AM2DS-1512SH52Z
AM2DS-1515SH52Z
AM2DS-2403SH52Z
AM2DS-2405SH52Z
AM2DS-2409SH52Z
AM2DS-2412SH52Z
AM2DS-2415SH52Z
Input
Voltage (V)
5
5
5
5
5
12
12
12
12
12
15
15
15
15
15
24
24
24
24
24
Output Voltage
(V)
3.3
5
9
12
15
3.3
5
9
12
15
3.3
5
9
12
15
3.3
5
9
12
15
Output Current
Max (mA)
500
400
222
167
133
500
400
222
167
133
500
400
222
167
133
500
400
222
167
133
Max Capacitive
Load (uF)
1000
470
470
220
220
1000
470
470
220
220
1000
470
470
220
220
1000
470
470
220
220
Efficiency
(%)
70
70
75
77
78
71
71
76
78
79
70
70
75
75
79
70
70
75
78
80
Models
Dual output
Model
AM2DS-0505DH52Z
AM2DS-0509DH52Z
AM2DS-0512DH52Z
AM2DS-0515DH52Z
AM2DS-051509DH52Z
AM2DS-1205DH52Z
AM2DS-1209DH52Z
AM2DS-1212DH52Z
AM2DS-1215DH52Z
AM2DS-121509DH52Z
AM2DS-1505DH52Z
AM2DS-1509DH52Z
AM2DS-1512DH52Z
AM2DS-1515DH52Z
AM2DS-151509DH52Z
AM2DS-2405DH52Z
AM2DS-2409DH52Z
AM2DS-2412DH52Z
AM2DS-2415DH52Z
AM2DS-241509DH52Z
Input
Voltage (V)
5
5
5
5
5
12
12
12
12
12
15
15
15
15
15
24
24
24
24
24
Output Voltage
(V)
±5
±9
±12
±15
+15/-9
±5
±9
±12
±15
+15/-9
±5
±9
±12
±15
+15/-9
±5
±9
±12
±15
+15/-9
Output Current
max (mA)
±200
±111
±83
±67
+67/-111
±200
±111
±83
±67
+67/-111
±200
±111
±83
±67
+67/-111
±200
±111
±83
±67
+67/-111
Max Capacitive
Load (uF)
±220
±220
±100
±100
+100/-220
±220
±220
±100
±100
+100/-220
±220
±220
±100
±100
+100/-220
±220
±220
±100
±100
+100/-220
Efficiency
(%)
71
75
77
78
76
72
76
78
79
77
71
75
78
79
76
71
75
77
78
75
www.aimtec.com
F 051e R6
Tel: +1 514 620 2722
1 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM2DS-Z
2 Watt | DC-DC Converter
Input Specifications
Parameters
Voltage range
Filter
Startup time
Absolute Maximum Rating (1sec max)
Nominal
5
12
15
24
Typical
Maximum
Units
VDC
Quiescent Current
Input Reflected Ripple current
4.5-5.5
10.8-13.2
13.5-16.5
21.6-26.4
Capacitor
Vnom, constant resistive load
20
5 Vin
12 Vin
15 Vin
24 Vin
5 Vin
40
12 Vin
25
15 Vin
20
24 Vin
15
See the suggested circuit
20
ms
0-9
0-18
0-20
0-30
VDC
mA
mA p-p
Isolation Specifications
Parameters
Tested I/O voltage
Resistance
Capacitance
Conditions
60 sec
Typical
>1000
10
Rated
5200
Units
VDC
MOhm
pF
Output Specifications
Parameters
Voltage accuracy
Short Circuit protection
Short circuit restart
Line voltage regulation
Load voltage regulation
Temperature coefficient
Ripple and Noise*
Conditions
Typical
±5
Continuous
Auto recovery
±1.2
±10
±0.03
Maximum
Units
%
For 1% change of V in
From 20 to 100% load
20MHz Bandwidth
100
%
%
o
%/ C
mV p-p
*Output ripple and noise are measured with external connection of 10uF electrolytic capacitor and 1uF ceramic capacitor.
General Specifications
Parameters
Switching frequency
Operating temperature
Storage temperature
Maximum case temperature
Cooling
Humidity
Case material
Soldering temperature
Weight
Dimensions
(L x W x H)
MTBF
Conditions
100% load, depending of the model
With derating above 65°C
Typical
50 - 100
Maximum
Units
KHz
o
C
o
C
o
C
% RH
o
-40 to +85
-55 to +125
95
Free air convection
95
Non-conductive black plastic, epoxy encapsulated (UL94V-0 rated)
1.5mm from case for 10 sec.
260
2.5
0.77 x 0.39 x 0.28 inches
19.5 x 10.0 x 7.2 mm
o
>2 390 000 hrs (MIL-HDBK-217 F at +25 C)
C
g
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at rated output load
unless otherwise specified.
Safety Specifications
Parameters
Designed to meet IEC/EN 60950-1, EN 55022, Class B, with external filter & EN 55024: 2010
IEC 61000-4-2, Criteria A
IEC 61000-4-3, Criteria A
IEC 61000-4-4, Criteria A, with external filter
IEC 61000-4-6, Criteria A
IEC 61000-4-8, Criteria A
Tel: +1 514 620 2722
2 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Standards
www.aimtec.com
F 051e R6
Series AM2DS-Z
2 Watt | DC-DC Converter

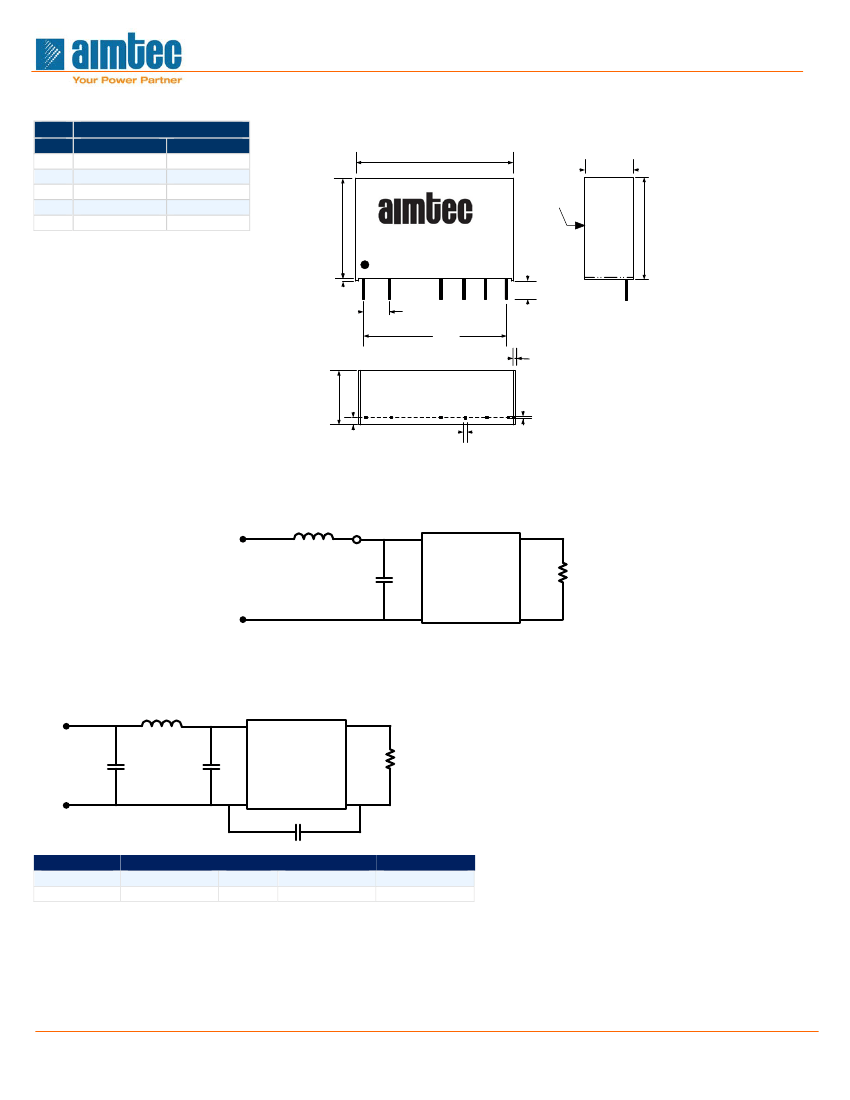

Pin Out Specifications
Pin
1
2
5
6
7
Dimensions
19.50
(0.76)
7.20
(0.28)
PRINTED
FACE
5200 VDC
Single
+ V Input
- V Input
- V Output
No pin
+ V Output
Dual
+ V Input
- V Input
- V Output
Common
+ V Output
9.50
(0.37)
10.00
(0.39)
0.50
(0.02)
2.54
(0.10)
15.20
(0.60)
3.05
(0.12)
NOTE:
Unit:mm [inch]
Pin Diameter: 0.50 ± 0.05mm [0.02 ± 0.002 inch]
Pin Pitch tolerance: ±0.35mm [ ±0.014 inch]
Case tolerance: ±0.50mm [ ±0.02 inch]
0.50
(0.02)
7.20
(0.28)
0.50
(0.02)
1.25
(0.05)
0.25
(0.01)
Input Reflected Ripple Current Test Circuit
Vin+
L1
(12 µh)
Test
Point
+
C1
(47 µf)
Vin-
-
Aimtec
DC-DC
Converter
Vo+
RL
(Full Load)
Vo-
* Tested at full load, and nominal input
EMI Filter Circuit recommendation
Vin+
L1
+
C1
C2
Vin-
-
Aimtec
DC-DC
Converter
C3
Vo+
Vo-
Vin
C1
L1
18 µH
18 µH
C2
2.2 µF / 100V
Load
C3
470 pF / 2kV
5, 12, 15 V
470 µF / 100V
24 V
470 µF / 100V
* Electrolytic type
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
