380L332M050H042 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 380L332M050H042

380L332M050H042: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 3300uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size139KB，12 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric Compare View All

380L332M050H042 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 3300uF, Through Hole Mount, RADIAL LEADED

380L332M050H042 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1949125320
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	3300 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	80 mΩ
leakage current	1.218606 mA
Manufacturer's serial number	380L
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	1700 mA
surface mount	NO
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

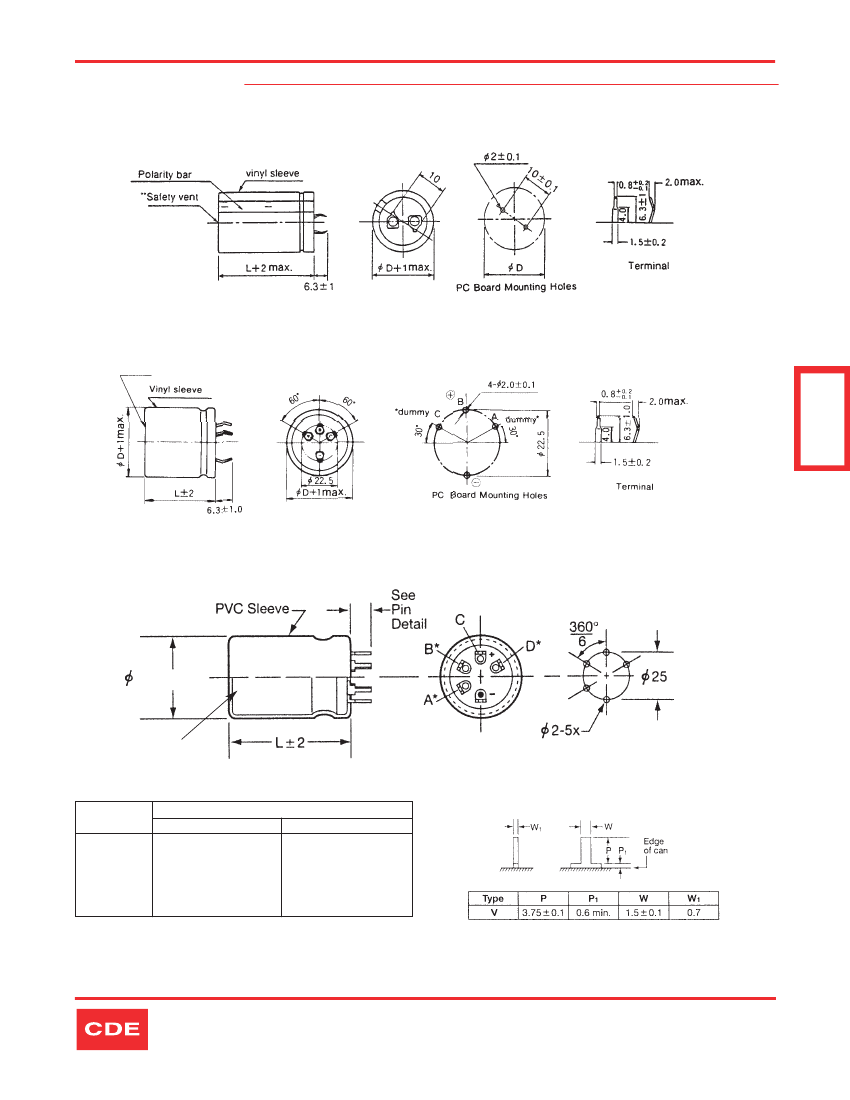

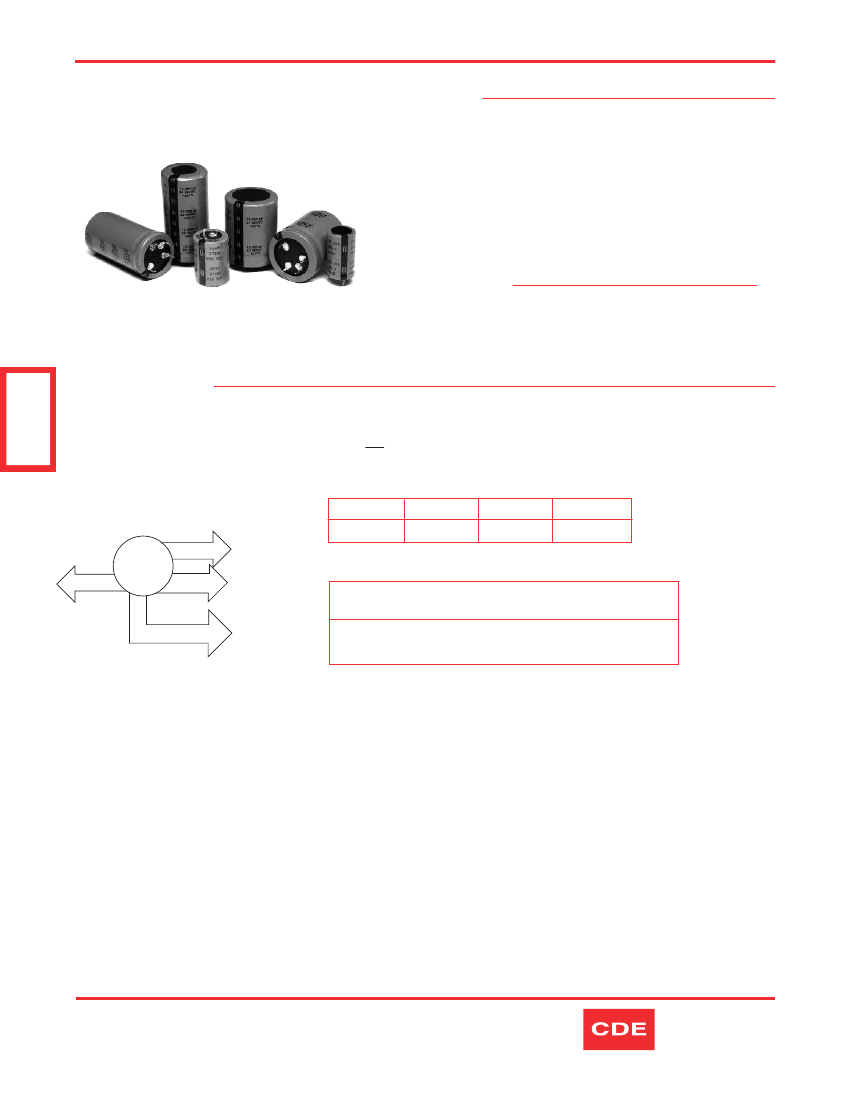

Types 380L, 382L, 380LX & 382LX, 85 C High-Capacitance Snap-In

Types 380L/LX & 4-pin Mount 382LX (85 °C)

The excellent value of Type 380L/LX capacitors finds

application in switching power supply input and output

circuits and even motor drives where the high surface area

of multiple units in parallel approaches the ripple capability

of our Type 520C computer-grade capacitor. Type 380LX

delivers more capacitance per can size while Type 380L

gives lower ESR for the same capacitance rating. Type 382L

gives the choice of 4 or 5 leads for stable, reverse proof

mounting. 382LX is available with 4 pins.

Highlights

Aluminum

Snap-In

Capacitors

Latest available ratings, worldwide

Top performance in power supplies and motor drives

Big selection of 46 case sizes

2, 4 and 5 leads available

Specifications

Operating Temperature:

Rated Voltage:

Capacitance:

Leakage Current:

Ripple Current Multipliers:

40 °C to 85 °C up to 300 V,

16 Vdc to 500 Vdc

µF

to 270,000 F 20%

3 CV A at 5 min.

Ambient Temperature

45 °C

1.5

Frequency

60 Hz 120 Hz

16-100 Vdc

160-450 Vdc

0.95

0.80

1.00

500 Hz

1.05

1.20

1 kHz 10 kHz

& up

1.08

1.25

1.15

1.40

60 °C

1.4

70 °C

1.3

85 °C

1.0

25 °C to 85 °C

315 V

Type 380LQ

p 2.054

Smaller

Life

Ripple

Type 381LX

p 2.074

Type 381LX

p 2.074

Type 381LX

p 2.074

Temp

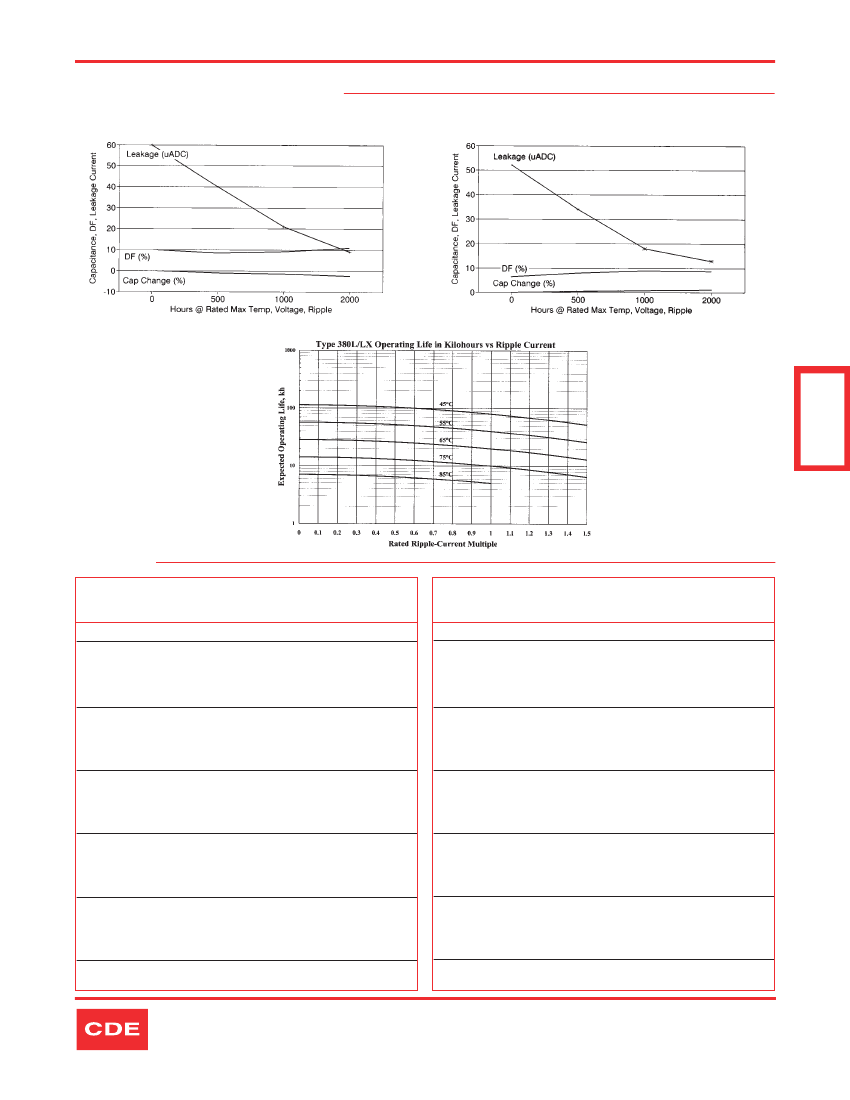

EIA Ripple Life:

Shelf Life:

Vibration:

3,000 h @ full load at +85 °C per EIA IS-749

Capacitance 20%

ESR 150% of limit

DCL 100% of limit

1000 h @ 85 °C, capacitance, ESR and DCL, initial requirements

10 to 55 Hz, 0.06” and 10 g max, 2 h in each plane

Notice:

Type 380L is not for new design. Please substitute Type 380LX.

2.058

140 Technology Place

Liberty, SC 29657

(864) 843-2277, Fax (864) 843-3800

http://www.cornell-dubilier.com

E-mail: cde@cornell-dubilier.com

CORNELL

DUBILIER

Your Source For Capacitor Solutions

380L332M050H042 Related Products

	380L332M050H042	380L271M160J012	380LX332M050G032
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 3300uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 270uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 3300uF, Through Hole Mount, RADIAL LEADED
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	unknown	compliant	unknow
ECCN code	EAR99	EAR99	EAR99
capacitance	3300 µF	270 µF	3300 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
ESR	80 mΩ	737 mΩ	121 mΩ
leakage current	1.218606 mA	0.623538 mA	1.218606 mA
Manufacturer's serial number	380L	380L	380LX
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%
Number of terminals	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%
Rated (DC) voltage (URdc)	50 V	160 V	50 V
ripple current	1700 mA	1400 mA	2700 mA
surface mount	NO	NO	NO
Terminal shape	SNAP-IN	SNAP-IN	SNAP-IN
Is it lead-free?	Lead free	Lead free	-
Maker	-	CDE [ CORNELL DUBILIER ELECTRONICS ]	CDE [ CORNELL DUBILIER ELECTRONICS ]
Custom functions	-	PVC Insulated Can	PVC Insulated C
diameter	-	25 mm	20 mm
length	-	25 mm	35 mm
Package form	-	Radial	Radial
series	-	380L	380LX
Terminal pitch	-	10 mm	10 mm
