MIL Series Connector, 21 Contact(s), Stainless Steel, Female, Crimp Terminal
| Parameter Name | Attribute value |
| Objectid | 1127626389 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |

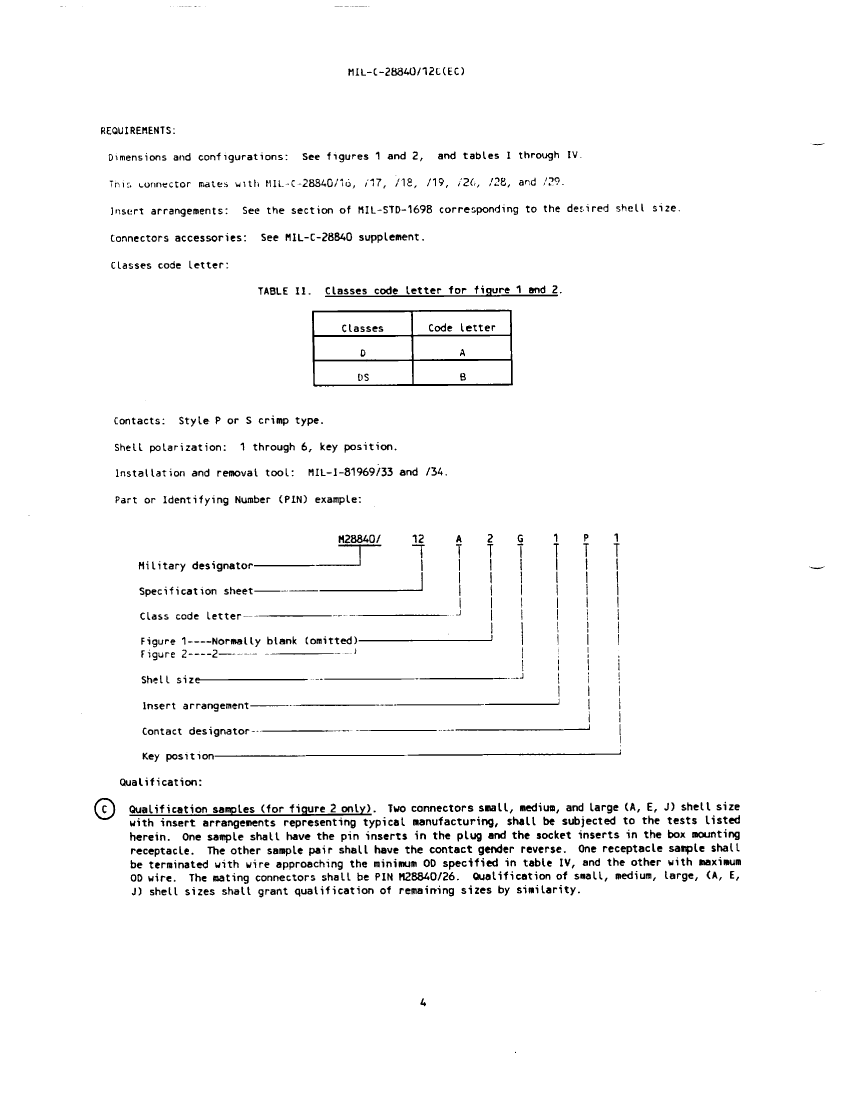

| Other features | STANDARD: MIL-C 28840 |
| Rear interface of connector | No Rear Threads |
| Connector insertion details | I173 |
| Connector type | MIL SERIES CONNECTOR |
| Contact point gender | FEMALE |
| Contact part number | M39029/84-452 |
| Number of contacts | 21 |
| Contact size | 20 |
| Contact type | Crp Fr Rlse |
| Coupling type | THREADED |
| other instructions | Receptacle, Box Mount |

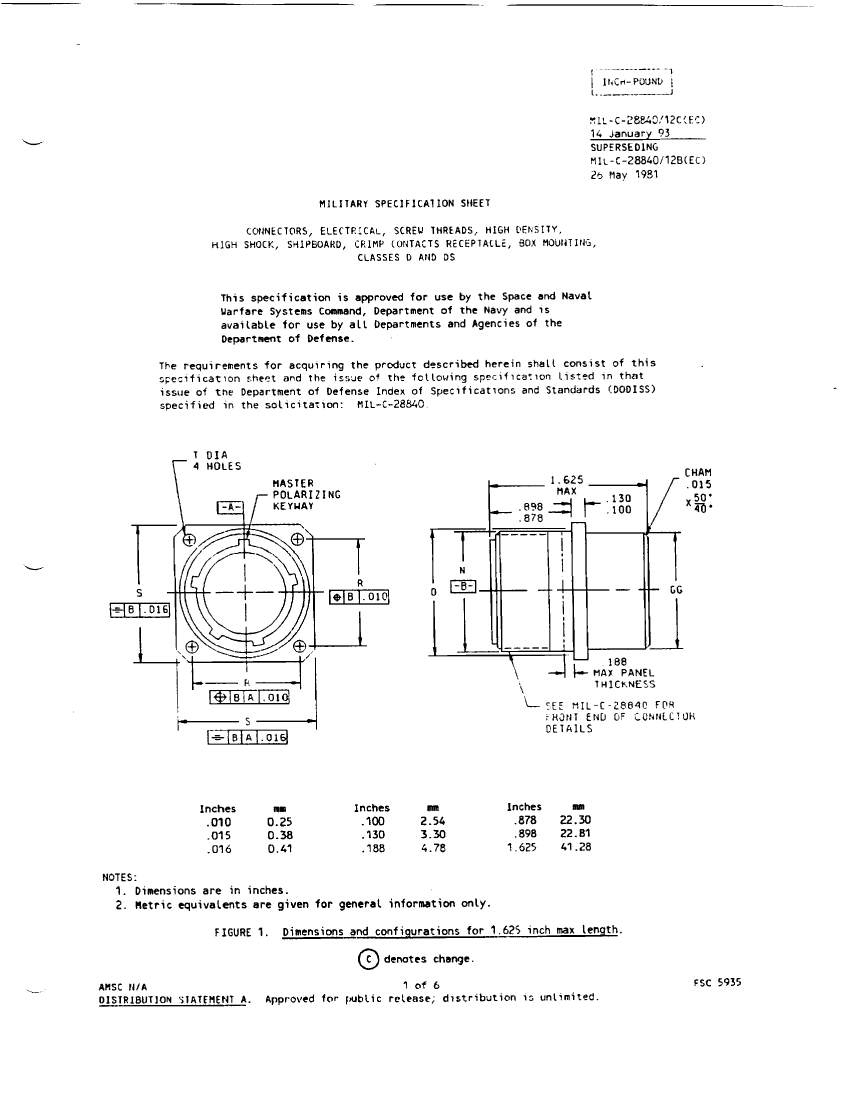

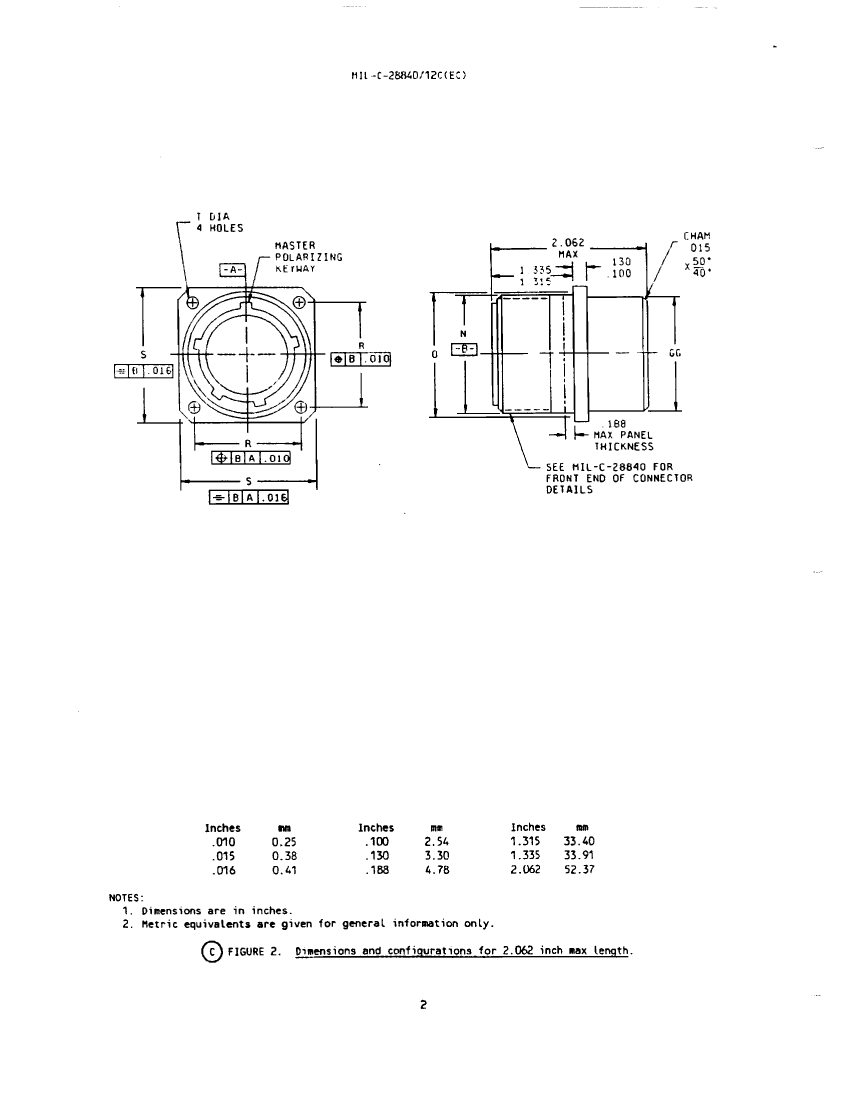

| Drawing date and revision | 14JAN93,C |
| Environmental characteristics | ENVIRONMENT RESISTANT |
| waterproof level | Complete |
| MIL compliance | YES |
| Manufacturer's serial number | M28840/12 |
| Military connector housing | S223B |
| Mixed contacts | NO |
| Maximum operating temperature | 200 °C |
| Minimum operating temperature | -55 °C |

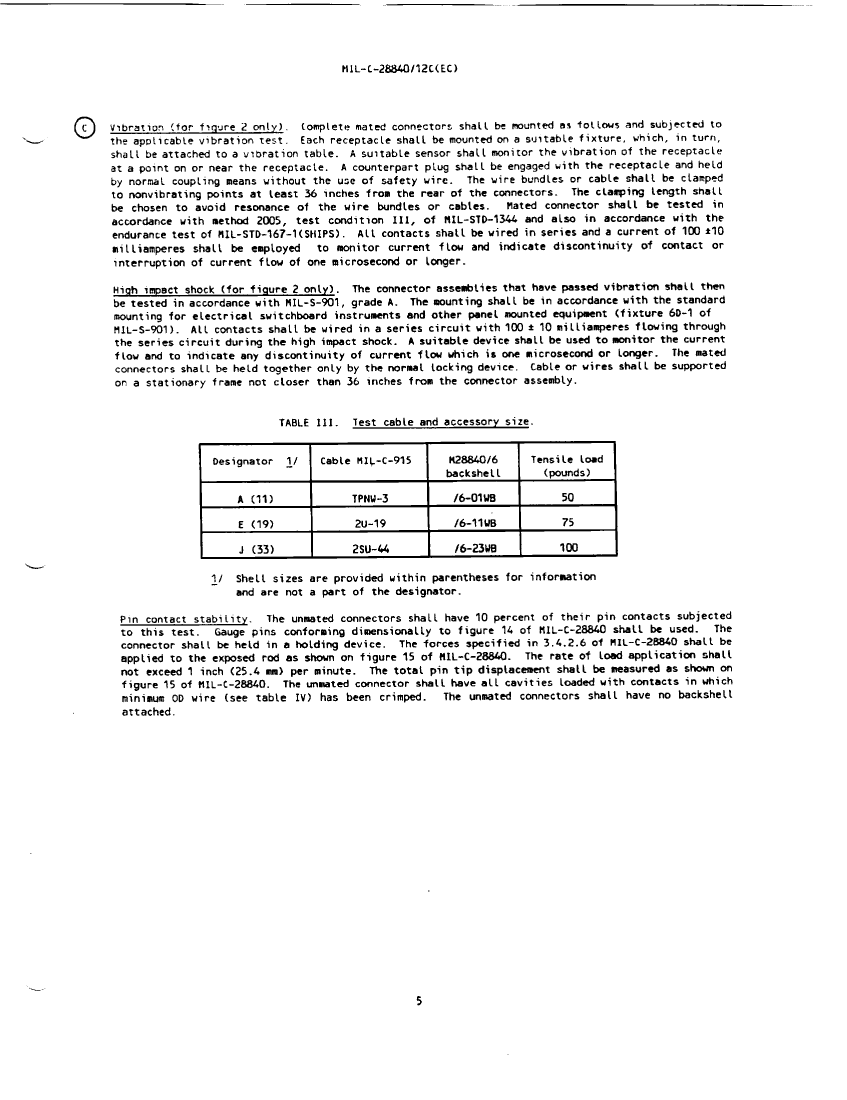

| Maximum plug diameter | 1.263 inch |
| polarization | 2 |
| Shell surface | CADMIUM PLATED |
| Shell material | STAINLESS STEEL |

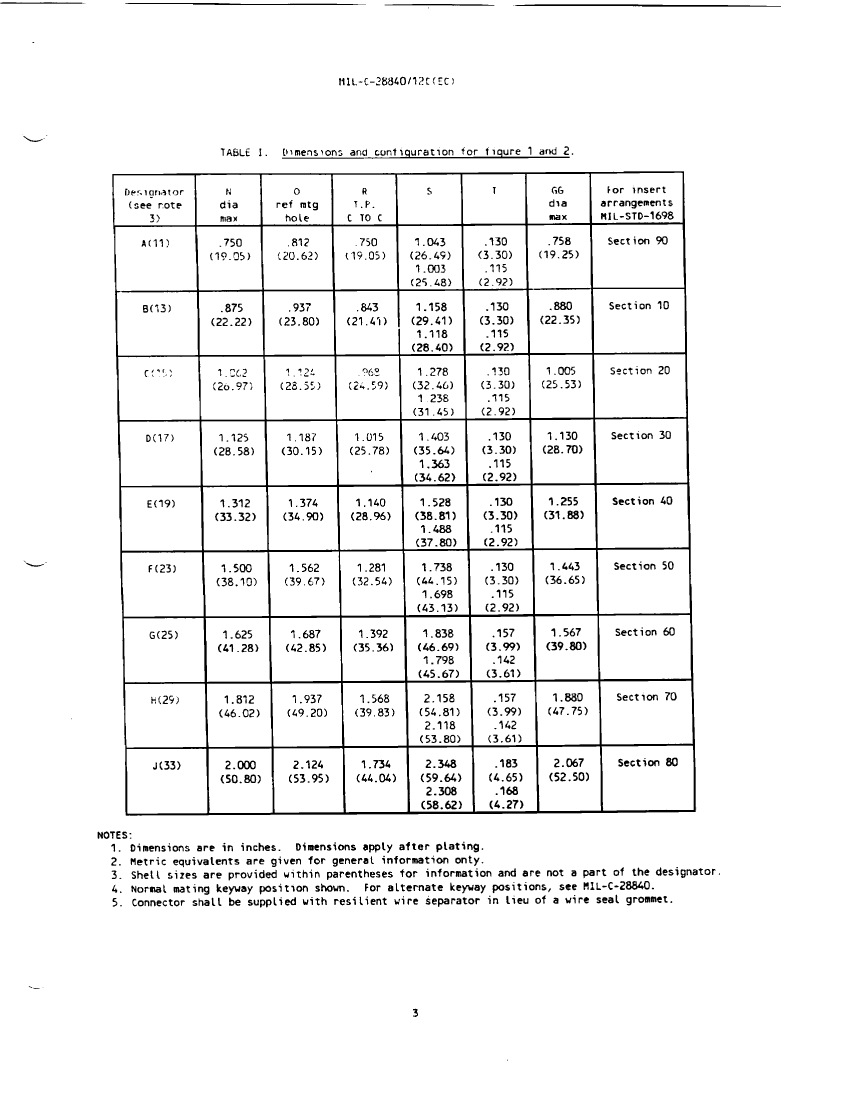

| Housing size | 15 |
| Termination type | CRIMP |
| Total number of contacts | 21 |
| Unique insertion number | C1 |
| M28840/12BC1S2 | M28840/12AJ1B5 | M28840/12BA1A4 | M28840/12BC1B3 | M28840/12BC1D2 | M28840/12BC1G6 | M28840/12BC1P3 | |
|---|---|---|---|---|---|---|---|
| Description | MIL Series Connector, 21 Contact(s), Stainless Steel, Female, Crimp Terminal | MIL Series Connector, 155 Contact(s), Aluminum Alloy, Female, Crimp Terminal | MIL Series Connector, 7 Contact(s), Stainless Steel, Male, Crimp Terminal | MIL Series Connector, 21 Contact(s), Stainless Steel, Female, Crimp Terminal | MIL Series Connector, 21 Contact(s), Stainless Steel, Male, Crimp Terminal | MIL Series Connector, 21 Contact(s), Stainless Steel, Female, Crimp Terminal | MIL Series Connector, 21 Contact(s), Stainless Steel, Male, Crimp Terminal |
| Objectid | 1127626389 | 1127631321 | 1127638717 | 1127626399 | 1127626685 | 1127628414 | 1127635341 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | STANDARD: MIL-C 28840 | STANDARD: MIL-C 28840 | STANDARD: MIL-C 28840 | STANDARD: MIL-C 28840 | STANDARD: MIL-C 28840 | STANDARD: MIL-C 28840 | STANDARD: MIL-C 28840 |
| Rear interface of connector | No Rear Threads | No Rear Threads | No Rear Threads | No Rear Threads | No Rear Threads | No Rear Threads | No Rear Threads |
| Connector insertion details | I173 | I296 | I809 | I173 | I173 | I173 | I173 |
| Connector type | MIL SERIES CONNECTOR | MIL SERIES CONNECTOR | MIL SERIES CONNECTOR | MIL SERIES CONNECTOR | MIL SERIES CONNECTOR | MIL SERIES CONNECTOR | MIL SERIES CONNECTOR |
| Contact point gender | FEMALE | FEMALE | MALE | FEMALE | MALE | FEMALE | MALE |
| Contact part number | M39029/84-452 | M39029/84-452 | M39029/83-450 | M39029/84-452 | M39029/83-450 | M39029/84-452 | M39029/83-450 |
| Number of contacts | 21 | 155 | 7 | 21 | 21 | 21 | 21 |
| Contact size | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Contact type | Crp Fr Rlse | Crp Fr Rlse | Crp Fr Rlse | Crp Fr Rlse | Crp Fr Rlse | Crp Fr Rlse | Crp Fr Rlse |
| Coupling type | THREADED | THREADED | THREADED | THREADED | THREADED | THREADED | THREADED |
| other instructions | Receptacle, Box Mount | Receptacle, Box Mount | Receptacle, Box Mount | Receptacle, Box Mount | Receptacle, Box Mount | Receptacle, Box Mount | Receptacle, Box Mount |
| Drawing date and revision | 14JAN93,C | 14JAN93,C | 14JAN93,C | 14JAN93,C | 14JAN93,C | 14JAN93,C | 14JAN93,C |
| Environmental characteristics | ENVIRONMENT RESISTANT | ENVIRONMENT RESISTANT | ENVIRONMENT RESISTANT | ENVIRONMENT RESISTANT | ENVIRONMENT RESISTANT | ENVIRONMENT RESISTANT | ENVIRONMENT RESISTANT |
| waterproof level | Complete | Complete | Complete | Complete | Complete | Complete | Complete |
| MIL compliance | YES | YES | YES | YES | YES | YES | YES |
| Manufacturer's serial number | M28840/12 | M28840/12 | M28840/12 | M28840/12 | M28840/12 | M28840/12 | M28840/12 |
| Military connector housing | S223B | S223B | S223B | S223B | S223B | S223B | S223B |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO |
| Maximum operating temperature | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C | 200 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Maximum plug diameter | 1.263 inch | 2.329 inch | 1.028 inch | 1.263 inch | 1.263 inch | 1.263 inch | 1.263 inch |
| polarization | 2 | 5 | 4 | 3 | 2 | 6 | 3 |
| Shell surface | CADMIUM PLATED | CADMIUM OVER NICKEL | CADMIUM PLATED | CADMIUM PLATED | CADMIUM PLATED | CADMIUM PLATED | CADMIUM PLATED |
| Shell material | STAINLESS STEEL | ALUMINUM ALLOY | STAINLESS STEEL | STAINLESS STEEL | STAINLESS STEEL | STAINLESS STEEL | STAINLESS STEEL |
| Housing size | 15 | 33 | 11 | 15 | 15 | 15 | 15 |
| Termination type | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP |
| Total number of contacts | 21 | 155 | 7 | 21 | 21 | 21 | 21 |
| Unique insertion number | C1 | J1 | A1 | C1 | C1 | C1 | C1 |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | - |
