BU-65743/65843/65863/65864
PCI MINI-ACE
®
MARK3 AND
Make sure the next
Card you purchase
has...
TM
®
PCI MICRO-ACE
®
*-TE
FEATURES
•
32-Bit/33MHz, 3.3Volt, PCI Target
Interface
•
Fully Integrated 1553A/B Notice 2,
1760, McAir, STANAG 3838 Interface
Terminal
•
All +3.3V Operation or +3.3V Logic
and +5V Transceivers
•
0.88 inch square, 80-Pin CQFP (PCI
Mini-ACE Mark3) or 0.80 inch square
324 ball BGA (PCI Micro-ACE TE)
•
Compatible with PCI Enhanced Mini-
ACE, Enhanced Mini-ACE, Mini-ACE
and ACE Generations
•
Choice of :
-
RT only with 4K RAM (BU-65743)
- BC/RT/MT with 4K RAM (BU-65843)
- BC/RT/MT with 64K RAM, and RAM
Parity (BU-65863, BU-65864)
•
Sleep Mode Option
•
Choice of 10, 12, 16, or 20 MHz 1553
Clock
•
Highly Autonomous BC with Built-In
Message Sequence Control:
- Frame Scheduling
- Branching
- Asynchronous Message Insertion
- General Purpose Queue
- User-defined Interrupts
•
Advanced RT Functions
- Global Circular Buffering
- Interrupt Status Queue
- 50% Circular Buffer Rollover
Interrupts
•
Selective Message Monitor or
RT/Monitor
FOR MORE INFORMATION CONTACT:
DESCRIPTION
The PCI Mini-ACE Mark3/Micro-ACE TE family of MIL-STD-1553 terminals
provides a complete interface between a 32-Bit/33Mhz 3.3V signaling PCI Bus
and a MIL-STD-1553 bus. These terminals integrate dual transceiver, protocol
logic, and 4K or 64K words of RAM, all of which can be powered from 3.3V.

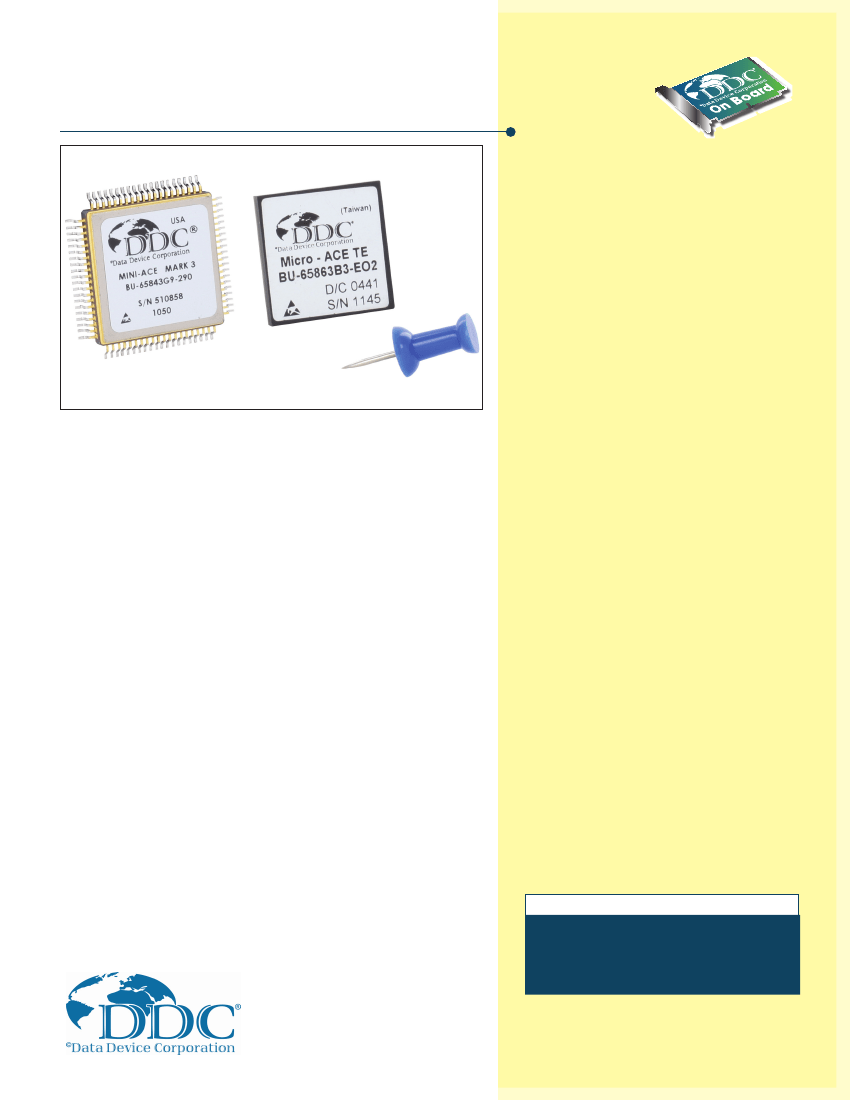

With a 0.88-inch square package, the PCI Mini-ACE Mark3 is the smallest
ceramic CQFP PCI 1553 solution available. The 0.80-inch square 324 ball BGA
PCI Micro-ACE TE has an even smaller footprint, but has a more restricted
operating temperature range. Both are 100% software compatible with the
larger PCI Enhanced Mini-ACE and add TAG_CLK inputs. The TAG_CLK input
allows a software selectable external time tag clock input. Both parts are avail-
able with a choice of either 3.3V transceivers or 5V transceivers.
The PCI Micro-ACE TE has a more restricted set of options compared to the
PCI Mini-ACE Mark3. Please consult the ordering information at the rear of the
data sheet to see which options are available. In addition, the PCI Micro-ACE
TE adds RTBOOT and 1553 clock select inputs for applications which must
boot into RT mode with Busy bit set.
The PCI Mini-ACE Mark3/Micro-ACE TE is nearly 100% software compatible
with the Enhanced Mini-ACE and previous generation Mini-ACE terminals. The
PCI interface to this terminal is not 5V tolerant.
Multiprotocol support of MIL-STD-1553A/B and STANAG 3838, including
Mark3 versions incorporating McAir compatible transmitters, is provided. There
is a choice of 10, 12, 16, or 20 MHz 1553 clocks. The BC/RT/MT versions with
64K words of RAM include built-in RAM parity checking.
BC features include a built-in message sequence control engine, with a set of
20 instructions. This provides an autonomous means of implementing multi-
frame message scheduling, message retry schemes, data double buffering,
asynchronous message insertion, and reporting to the host CPU.
The PCI Mini-ACE Mark3 and Micro-ACE TE RT offer single and circular sub-
address buffering schemes, along with a global circular buffering option, 50%
rollover interrupt for circular buffers, and an interrupt status queue.
FOR MORE INFORMATION CONTACT:
Technical Support:
1-800-DDC-5757 ext. 7771
Technical Support:
1-800-DDC-5757 ext. 7771
Data Device Corporation
105 Wilbur Place
Bohemia, New York 11716
631-567-5600 Fax: 631-567-7358
www.ddc-web.com
*
©
The technology used in DDC’s Micro-ACE series of products may be
subject to one or more patents pending.
All trademarks are the property of their respective owners.
2003 Data Device Corporation
Data Device Corporation
www.ddc-web.com
4K X 16
OR
64K X 17
SHARED
RAM
32 X 32
WRITE
FIFO
TRANSCEIVER
A
AD31-AD0
DATA BUS
PAR
C/BE#3 - C/BE#0
ADDRESS BUS
33 MHZ,
32-BIT
PCI SLAVE
INTERFACE
PCI Address/Data, Parity
and Bus Command/Byte Enable
TX/RX_A
(1:2.07)
CH. A
TX/RX_A
TX_INH A/B
•
•
TRANSCEIVER
B
TX/RX_B
DUAL
ENCODER/DECODER,
MULTIPROTOCOL
AND
MEMORY
MANAGEMENT
(1:2.07)
CH. B
FRAME#, IRDY#,IDSEL
TRDY#, STOP#, DEVSEL#,
PERR#, SERR#
PCI Control
2
RTAD4-RTAD0, RTADP
RT-AD4-LAT
INCMD/MCRST
1553_CLK, SSFLAG/EXT_TRIG,TAG_CLK
BOOT_L,CLK_SEL_0/1 (Micro-ACE TE ONLY)
NOTE 1: Shown with 3.3V transceivers. 5V transceivers are available.
TX/RX_B
(PCI) CLK
PCI CLK
RT ADDRESS AND
ADDRESS LATCH
INT A #
PCI Interrupt
MISCELLANEOUS
MSTCLR (RST#)
BU-65743/65843/65863/65864
AD-2/12-0
FIGURE 1. PCI MINI-ACE MARK3/MICRO-ACE TE (3.3V TRANSCEIVERS) BLOCK DIAGRAM
