C0603CH1H820K030BA_14 datasheet, PDF

Datasheet> All Categories > C0603CH1H820K030BA_14

Preview

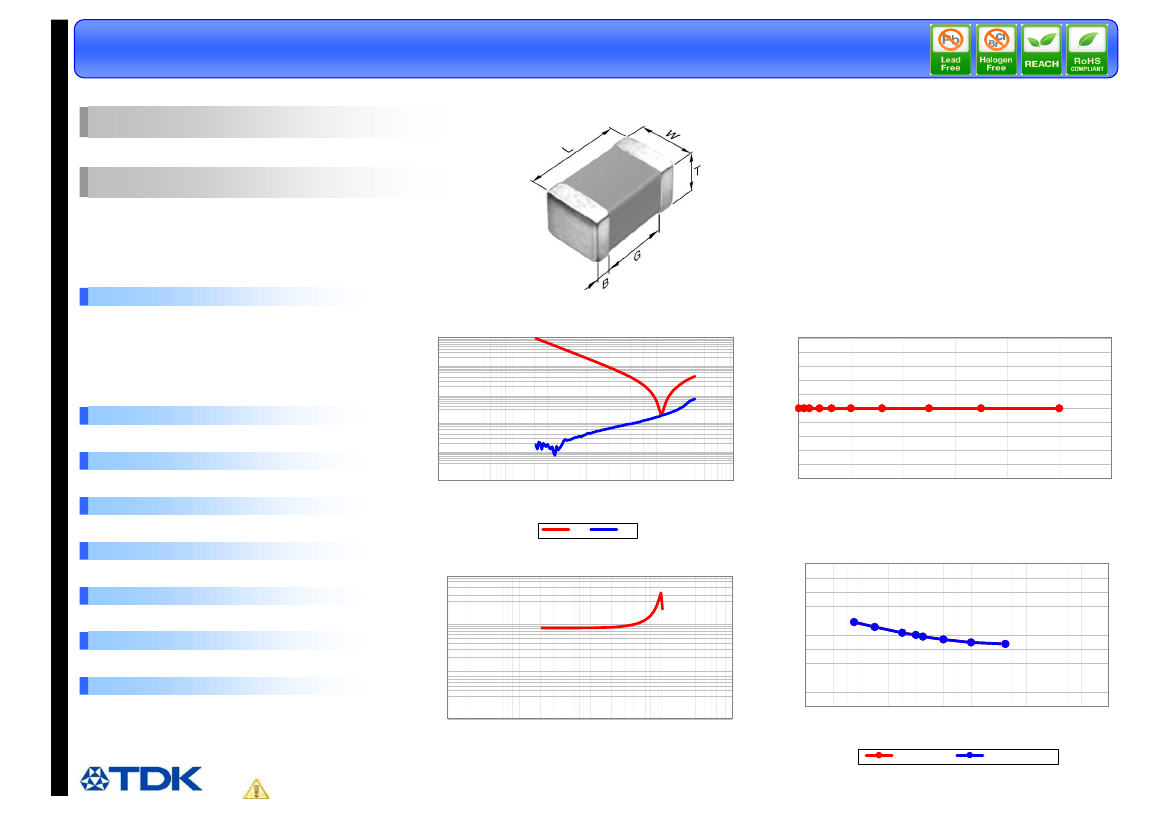

C0603CH1H820K030BA_14: DescriptionMultilayer Ceramic Chip Capacitors; File Size123KB，1 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet View All

C0603CH1H820K030BA_14 Overview

Multilayer Ceramic Chip Capacitors

Preview

Download Datasheet

View All

C0603CH1H820K030BA

TDK Item Description : C0603CH1H820KT****

Application & Main Feature

Commercial Grade ( General (Up to 50V) )

Series

C0603 [EIA CC0201]

Dimensions

Cap. Change/%

|Z|, ESR/ohm

0.60mm

0.30mm

0.10mm

0.20mm

+/-0.03mm

Min.

|Z|, ESR vs. Freq. Characteristics

100

0.1

0.01

-1

-2

-3

-4

-5

DC Bias Characteristic

Temperature Characteristic

Characterization Sheet ( Multilayer Ceramic Chip Capacitors )

CH (-25 to 85 degC 0+/-60ppm/degC)

1H (50Vdc)

82pF

Rated Voltage

Capacitance

0.001

100

1000

10000

Frequency/MHz

|Z|

ESR

DC Bias/V

Capacitance Tolerance

K (+/-10%)

1000 Min.

Cap./pF

1000

Cap. vs. Freq. Characteristic

Cap. Change/%

Temperature Characteristic

0.5

0.4

0.3

0.2

0.1

-0.1

-0.2

-0.3

-0.4

-0.5

Q Factor

100

Insulation Resitance

10Gohm Min.

AEC-Q200

Not Applicable

100

1000

10000

-60

-40

-20

100

120

140

160

Frequency/MHz

Temperature/degC

Temp.Chara.

TCBias(1/2Rated)

All specifications are subject to change without notice.

February 3, 2014
