DOMINANT
Innovating Illumination
TM
DATA SHEET:
Opto Technologies
DomiLED
TM
InGaN White : DDW-LJG-F1P5
DomiLED
TM

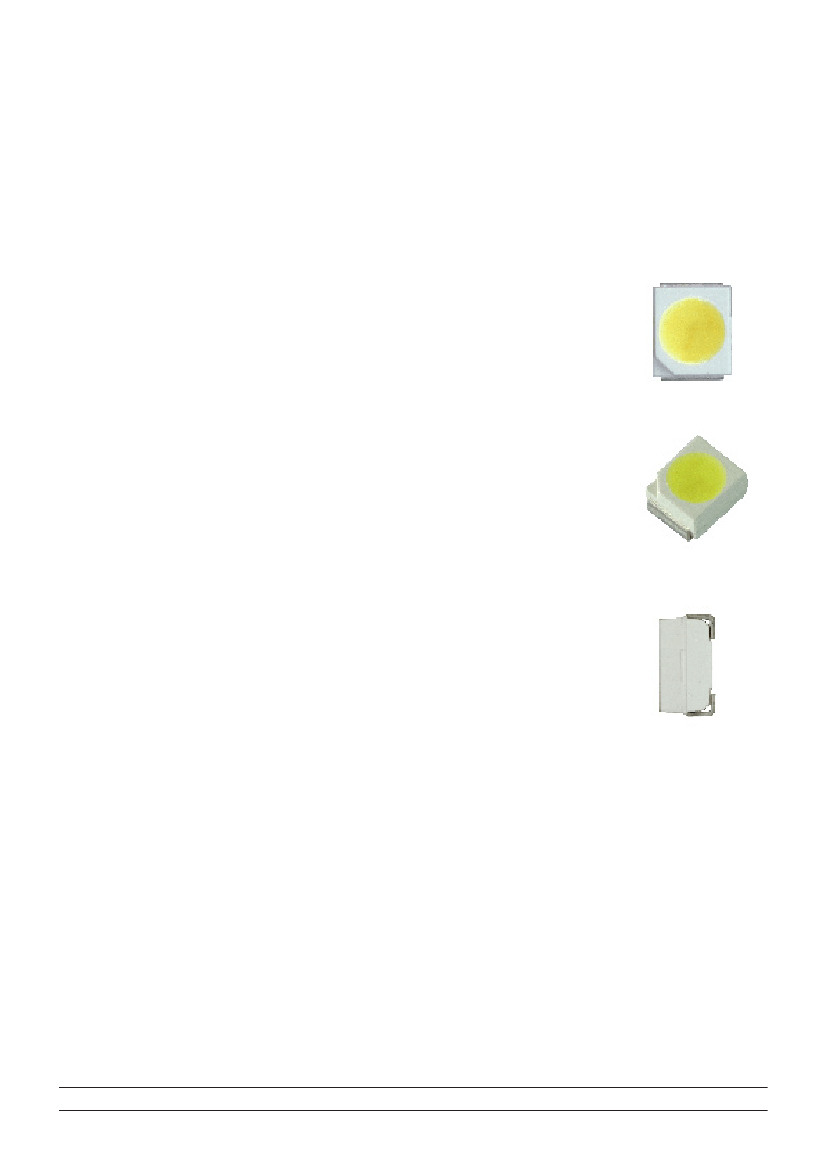

With the intense colors that seem to glow with energy and its significant
brightness, DomiLED white LED is a highly reliable design device. Its
TM
dynamic nature makes it perfect choice for lighthing applications, office
and home applications and standard industrial applications.
Features:
>
>
>
>
>
>
>
>
>
High brightness surface mount LED.
Based on InGaN technology.
120° viewing angle.
Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to IR reflow soldering.
Environmental friendly; RoHS compliance.
Superior Corrosion Resistant
Compliance to automotive standard; AEC-Q101.
Applications:
>
>
>
>
>
Automotive: interior applications, eg: switches, telematics,
climate control system, dashboard, etc.
Consumer appliances: LCD illumination as in PDAs, LCD TV.
Communication: mobile phone flash light, backlights in mobile
phone display.
Display: full color display video notice board.
Industrial: general lighting
© 2005 DomiLED is a trademark of DOMINANT Opto Technologies.
All rights reserved. Product specifications are subject to change without notice.
1
20/10/2015 V1.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
DDW-LJG-F1P5
Optical Characteristics at Tj=25
0
C
Part Ordering
Number
DDW-LJG-W2X-F1P5
Color
White
Viewing
Angle˚
120
Luminous Intensity @ IF = 20mA IV (mcd)
Min.
Typ.
Max.
1400.0
2240.0
2850.0
Luminous Flux
Typ.
6534.0
NOTE
1. All part number above comes in a quantity of 2000 units per reel.
2. Luminous intensity is measured with an accuracy of ± 11%.
3. Color binning is carried for all units as per the color binning table. Only one color group is allowed for each reel.
4. InGaN wavelength is very sensitive to drive current. Operating at lower current is not recommended and may yield unpredictable performace
Current pushing should is used for dimming purposes.
Electrical Characteristics at Tj=25
0
C
Part Number
DDW-LJG
Vf @ If = 20 mA
Min. (V)
2.8
Typ. (V)
3.2
Max. (V)
3.6
Vr @ Ir = 10
µA
Min. (V)
5.0
Forward Voltage, Vf is measured with an accuracy of ± 0.1 V.
Absolute Maximum Ratings
Maximum Value
DC forward current
Peak pulse current; (tp ≤ 10µs, Duty cycle = 0.10)
Reverse voltage; Ir max = 10µA
ESD threshold (HBM)
LED junction temperature
Operating temperature
Storage temperature
Power dissipation (at room temperature)
Thermal resistance
- Junction / ambient, R
th JA
- Junction / solder point, R
th JS
340
180
K/W
K/W
30
100
5
2000
125
-40 … +100
-40 … +100
110
Unit
mA
mA
V
V
˚C
˚C
˚C
mW
(Mounting on FR4 PCB, pad size >= 16 mm
2 per pad)
2
20/10/2015 V1.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
DDW-LJG-F1P5
Characteristics
Symbol
Temperature coefficient of V
F (typ)
I
F
= 20mA; 0 ˚C <= T <= 85˚C
Temperature coefficient of I
V (typ)
I
F
= 20mA; 0 ˚C <= T <= 85 ˚C
Temperature coefficient of Cx
(typ)
I
F
= 20mA; 0 ˚C <= T <= 85 ˚C
Temperature coefficient of Cy
(typ)
I
F
= 20mA; 0 ˚C <= T <= 85 ˚C
TC
V
Part Number
DDW-LJG
Value
-5.40
Unit
mV / K
TC
IV
DDW-LJG
-0.21
%/K
TC
Cx
DDW-LJG
-0.0001
TC
Cy
DDW-LJG
-0.0001
3
20/10/2015 V1.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
DDW-LJG-F1P5

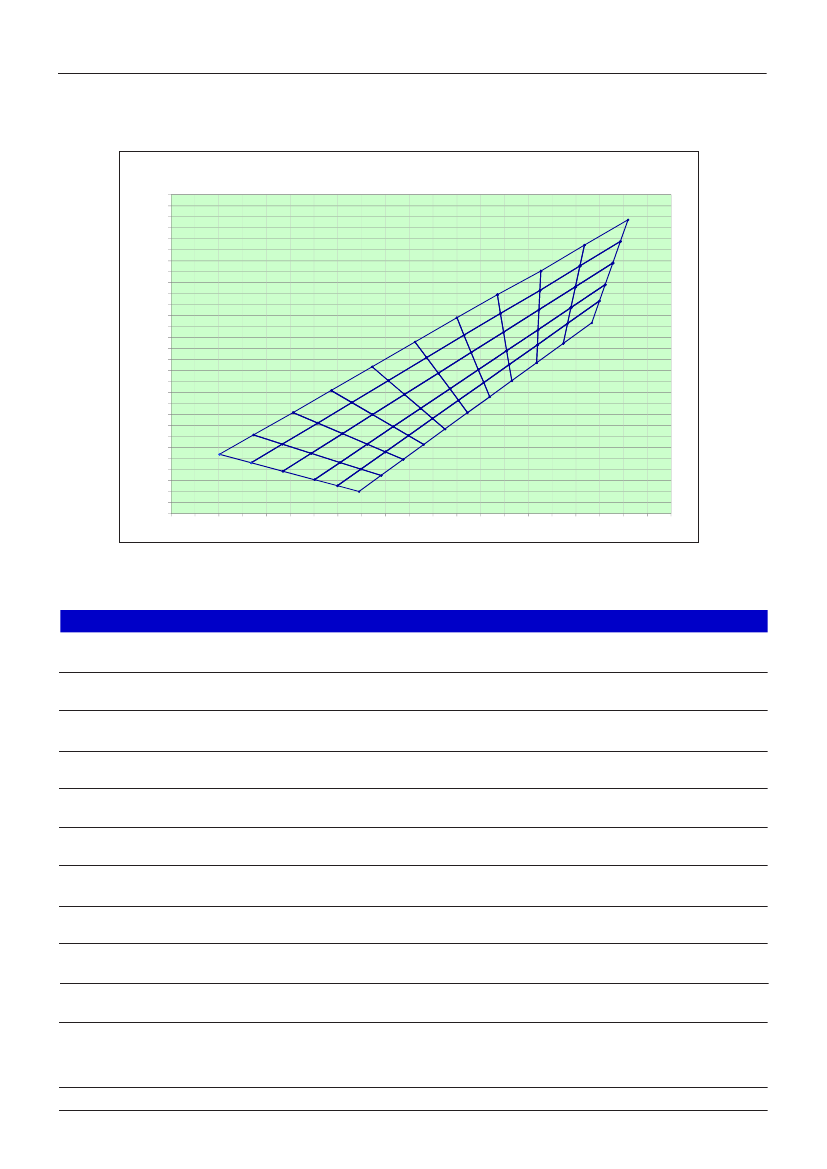

DDW, White Color Grouping
White Bin Structure
0.47
0.46
0.45
0.44
P
0.43
0.42
N
0.41
0.40
M
0.39
0.38
L
0.37
0.36
0.35
K
0.34
0.33
J
0.32
0.31
I
0.30
0.29
H
0.28
0.27
G
0.26
0.25
F
0.24
0.23
5
0.22
4
0.21
3
0.20
2
1
0.19
0.18
0.18 0.19 0.20 0.21 0.22 0.23 0.24 0.25 0.26 0.27 0.28 0.29 0.30 0.31 0.32 0.33 0.34 0.35 0.36 0.37 0.38 0.39
Chromaticity coordinate groups are measured with an accuracy of ± 0.01.
Bin
F1
F2
F3
F4
F5
G1
G2
G3
G4
G5
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
1
0.2498
0.2053
0.2402
0.2108
0.2269
0.2185
0.2136
0.2262
0.2003
0.2339
0.2597
0.2204
0.2509
0.2264
0.2388
0.2348
0.2267
0.2432
0.2146
0.2516
2
0.2589
0.2000
0.2498
0.2053
0.2388
0.2348
0.2267
0.2432
0.2146
0.2516
0.2682
0.2146
0.2597
0.2204
0.2509
0.2264
0.2416
0.2623
0.2312
0.2719
3
0.2682
0.2146
0.2597
0.2204
0.2509
0.2264
0.2388
0.2348
0.2267
0.2432
0.2775
0.2292
0.2700
0.2361
0.2624
0.2431
0.2520
0.2527
0.2416
0.2623
4
0.2597
0.2204
0.2509
0.2264
0.2402
0.2108
0.2269
0.2185
0.2136
0.2262
0.2700
0.2361
0.2624
0.2431
0.2520
0.2527
0.2388
0.2348
0.2267
0.2432
4
20/10/2015 V1.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
Bin
H1
H2
H3
H4
H5
I1
I2
I3
I4
I5
J1
J2
J3
J4
J5
K1
K2
K3
K4
K5
L1
L2
L3
L4
L5
DDW-LJG-F1P5
1
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
0.2700
0.2361
0.2624
0.2431
0.2520
0.2527
0.2416
0.2623
0.2312
0.2719
0.2797
0.2509
0.2733
0.2590
0.2646
0.2700
0.2559
0.2810
0.2472
0.2920
0.2898
0.2664
0.2848
0.2757
0.2780
0.2883
0.2712
0.3009
0.2644
0.3135
0.3007
0.2830
0.2971
0.2935
0.2922
0.3077
0.2873
0.3219
0.2824
0.3361
0.3113
0.2992
0.3090
0.3108
0.3060
0.3266
0.3030
0.3424
0.3000
0.3582
5
2
0.2775
0.2292
0.2700
0.2361
0.2624
0.2431
0.2559
0.2810
0.2472
0.2920
0.2861
0.2427
0.2797
0.2509
0.2733
0.2590
0.2712
0.3009
0.2644
0.3135
0.2950
0.2568
0.2898
0.2664
0.2848
0.2757
0.2873
0.3219
0.2824
0.3361
0.3045
0.2717
0.3007
0.2830
0.2971
0.2935
0.3030
0.3424
0.3000
0.3582
0.3138
0.2862
0.3113
0.2992
0.3090
0.3108
0.3183
0.3621
0.3170
0.3791
3
0.2861
0.2427
0.2797
0.2509
0.2733
0.2590
0.2646
0.2700
0.2559
0.2810
0.2950
0.2568
0.2898
0.2664
0.2848
0.2757
0.2780
0.2883
0.2712
0.3009
0.3045
0.2717
0.3007
0.2830
0.2971
0.2935
0.2922
0.3077
0.2873
0.3219
0.3138
0.2862
0.3113
0.2992
0.3090
0.3108
0.3060
0.3266
0.3030
0.3424
0.3231
0.3008
0.3219
0.3154
0.3209
0.3281
0.3196
0.3451
0.3183
0.3621
4
0.2797
0.2509
0.2733
0.2590
0.2646
0.2700
0.2520
0.2527
0.2416
0.2623
0.2898
0.2664
0.2848
0.2757
0.2780
0.2883
0.2646
0.2700
0.2559
0.2810
0.3007
0.2830
0.2971
0.2935
0.2922
0.3077
0.2780
0.2883
0.2712
0.3009
0.3113
0.2992
0.3090
0.3108
0.3060
0.3266
0.2922
0.3077
0.2873
0.3219
0.3219
0.3154
0.3209
0.3281
0.3196
0.3451
0.3060
0.3266
0.3030
0.3424
20/10/2015 V1.0
