PLP-068-H100-99: DescriptionIC Socket, PLCC68, 68 Contact(s), Surface Mount, ROHS COMPLIANT; CategoryThe connector socket; File Size117KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

PLP-068-H100-99 Overview

IC Socket, PLCC68, 68 Contact(s), Surface Mount, ROHS COMPLIANT

PLP-068-H100-99 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1928818195
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL 94V-0
body width	1.193 inch
subject depth	0.343 inch
body length	1.193 inch
Contact structure	17X17
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact material	PHOSPHOR BRONZE
Contact style	BELLOWED TYPE
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PLCC68
Dielectric withstand voltage	150VAC V
Shell material	PLASTIC
Insulation resistance	5000000000 Ω
JESD-609 code	e3
Manufacturer's serial number	PLP
Installation method	STRAIGHT
Number of contacts	68
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Termination type	SURFACE MOUNT

Preview

Download Datasheet

View All

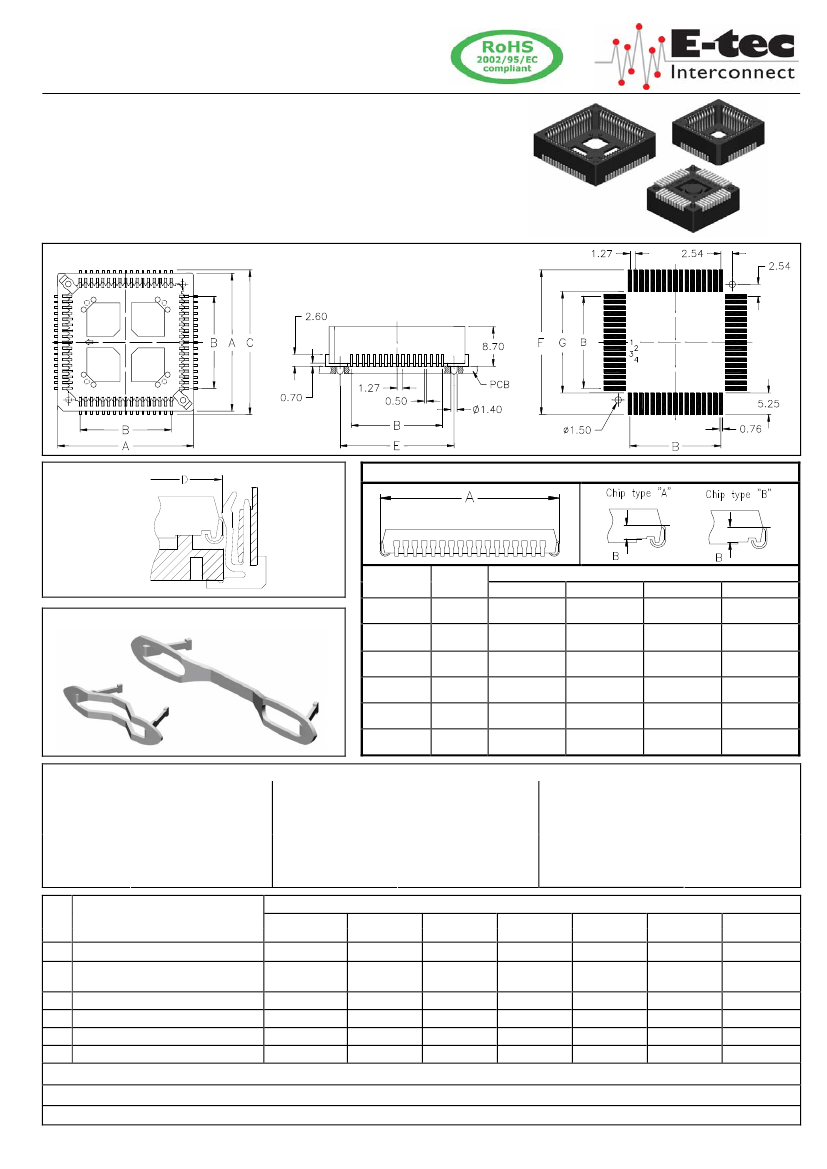

PLP - Series

„Hi-rel“

SMT

PLCC Sockets

E-tec „hi-rel“ SMT PLCC sockets correspond to JEDEC Norms.

Precision stamped contact design provides special

„push-down effect“

onto the leads of the chip.

For very high shock and vibration applications a chip retention clip can

be obtained on request.

Inside polarisation corner prevents wrong insertion of the chips.

Stand-off’s under the base prevent solder shorts.

Chips can be easily removed with the Universal extraction tool PUL-200.

Contact

tip to tip

JEDEC Specification for Plastic Leaded Chip Carrier

Jedec

Nbr

Nbr of

28

32

rectang.

44

52

68

84

"A" min.

12,32 / .485

14,86 x 12,32

.585 x .485

17,40 / .685

19,94 / .785

25,02 / .985

30,10 / 1.185

Dimensions mm/inch

"A" max.

„B“ min.

12,57 / .495

15,11 x 12,57

.595 x .495

17,65 / .695

20,19 / .795

25,27 / .995

30,35 / 1.195

1,37 / .054

1.37 / .054

1,37 / .054

„B“ max.

2,36 / .093

Optional: Chip

Retention Clip

MO-047

AB

MO-052

AE

MO-047

AB

MO-047

AB

MO-047

AB

MO-047

AB

Specifications

Mechanical data

Plating

Mating cycles

Insertion force

Extraction force

Sn

(leadfree)

over Ni;

Au on request

min. 50

max. 1,30N per contact

min. 0,90N per contact

Temperature

Operating temp.

Soldering temp.

- 55°C to +125°C

+250°C +0/-5°C

for 20~40 sec.

Electrical data

Operating voltage

Breakdown voltage

Contact resistance

Insulation resistance

Current rating

Capacitance

100 V RMS / 150V DC

>600 V RMS

<20 m

>5000 M

1 A max., 100V

<2 pF

Material

Insulator

(RoHS compiant)

Contact

(RoHS compiant)

Retention Clip

high temp plastic

UL 94 V-0

Phosphor Bronze

Spring steel

Ordering Code

28

32

44

52

68

84

PLCC SMT Type

"A"

+0,10

- 0,20

Dimensions

"B"

7,62/.300

7,62 x 10,16

.300 x .400

12,70/.500

15,24/.600

20,32/.800

25,40/1.000

mm/inch

"C"

+0,10

- 0,05

"D"

11,50/.453

11,50 x 14,04

.453 x .553

16,58/.653

19,12/.753

24,20/.953

29,28/1.153

"E"

+0,10

- 0,15

"F"

+0,05

- 0,00

"G"

+0,00

- 0,05

PLP - 028 - H100 -

99

(

/x

)

PLP - 032 - H100 -

99

(

/x

)

(rectangular)

17,60/.693

17,60 x 20,14

.693 x .793

22,68/.893

25,22/.993

30,30/1.193

35,38/1.393

19,10/.752

19,10 x 21,64

.752 x .852

24,18/.952

26,72/1.052

31,80/1.252

36,88/1.452

12,70/.500

12,70 x 15,24

.500 x .600

17,78/.700

20,32/.800

25,40/1.000

30,48/1.200

19,60/.772

19,60 x 22,14

.772 x .872

24,68/.972

27,22/1.072

32,30/1.272

37,38/1.472

9,10/.358

9,10 x 11,14

.358 x .438

14,18/.558

16,72/.658

21,80/.858

26,88/1.058

PLP - 044 - H100 -

99

(

/x

)

PLP - 052 - H100 -

99

(

/x

)

PLP - 068 - H100 -

99

(

/x

)

PLP - 084 - H100 -

99

(

/x

)

for sockets with index pins please add:

/1

= 1 pin in right angle corner

/2

= 1 pin in slanted corner

/3

= 2 pins diagonal

Order Code for optional

Retention Clip : HCP - xxx

(

replace

"

xxx

"

with nbr of pins. Example. –028 if for 28-pin Socket )

PUL - 200

36

Universal extraction tool for all socket sizes (see also page 44)

PLP-068-H100-99 Related Products

	PLP-068-H100-99	PLP-032-H100-99	PLP-028-H100-99	PLP-044-H100-99	PLP-084-H100-99
Description	IC Socket, PLCC68, 68 Contact(s), Surface Mount, ROHS COMPLIANT	IC Socket, PLCC32, 32 Contact(s), Surface Mount, ROHS COMPLIANT	IC Socket, PLCC28, 28 Contact(s), Surface Mount, ROHS COMPLIANT	IC Socket, PLCC44, 44 Contact(s), Surface Mount, ROHS COMPLIANT	IC Socket, PLCC84, 84 Contact(s), Surface Mount, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compli	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	UL 94V-0	UL 94V-0	UL 94V-0	UL 94V-0	UL 94V-0
body width	1.193 inch	0.793 inch	0.693 inch	0.893 inch	1.393 inch
subject depth	0.343 inch	0.343 inch	0.343 inch	0.343 inch	0.343 inch
body length	1.193 inch	0.693 inch	0.693 inch	0.893 inch	1.393 inch
Contact structure	17X17	7X9	7X7	11X11	21X21
Contact to complete cooperation	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrie	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
current rating	1 A	1 A	1 A	1 A	1 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PLCC68	PLCC32	PLCC28	PLCC44	PLCC84
Dielectric withstand voltage	150VAC V	150VAC V	150VAC V	150VAC V	150VAC V
Shell material	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
JESD-609 code	e3	e3	e3	e3	e3
Manufacturer's serial number	PLP	PLP	PLP	PLP	PLP
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	68	32	28	44	84
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Objectid	1928818195	-	-	1928818206	1928818199
