ADMIRAL CLASS
- INTERNATIONAL PRINTED CIRCUIT MOUNT, POWER TRANSFORMER
1.
Electrical Specifications
A. Maximum Power: 30VA
B. Input Voltage and Frequency: 115V, 115/230V, 230V
50/60Hz
C. Voltage Regulation: 15% TYP @ full load to no load
Temperature Rise: 40 C TYP
Insulation Resistance: > 1 MEG ohm
Hi-Pot: 4000Vrms 1 minute @ Pri to Sec
4000Vrms 1 minute @ Pri to Core
4000Vrms 1 minute @ Sec to Core
Marking: Ensign Corp, part number (see table), date code
Safety:
UL/cUL 5085-2 Recognized (File 47299)
UL 60950 Recognized Construction (File E144070)
VDE 0805 Licensed (File 19019-3336-9002/A1C)
UL 1446 Recognized Insulation System (File 95662)
D.
E.
F.
2.
3.
Part Number
Primary Schematics
Secondary Schematics
115V
IP030-1-010X
IP030-1-012X
IP030-1-016X
IP030-1-020X
IP030-1-024X
115/230V
IP030-2-010X
IP030-2-012X
IP030-2-016X
IP030-2-020X
IP030-2-024X
IP030-2-028X
IP030-2-036X
230V
IP030-3-010X
IP030-3-012X
IP030-3-016X
IP030-3-020X
IP030-3-024X
IP030-3-028X
IP030-3-036X
Series Connection
10VCT @ 3.0A
12.6VCT @ 2.4A
16VCT @ 1.9A
20VCT @ 1.5A
24VCT @ 1.25A
28VCT @ 1.06A
36VCT @ 0.82A
Parallel Connection
5V @ 6.0A
6.3V @ 4.8A
8V @ 3.8A
10V @ 3.0A
12V @ 2.5A
14V @ 2.12A
18V @ 1.64A
Single Input
(Specify 115V,
120V, 230V or
240V)
Dual Input
(Specify
115/230V or
120/240V)
Single
Output
Center-Tapped
Output
Dual
Output
IP030-1-028X
IP030-1-036X

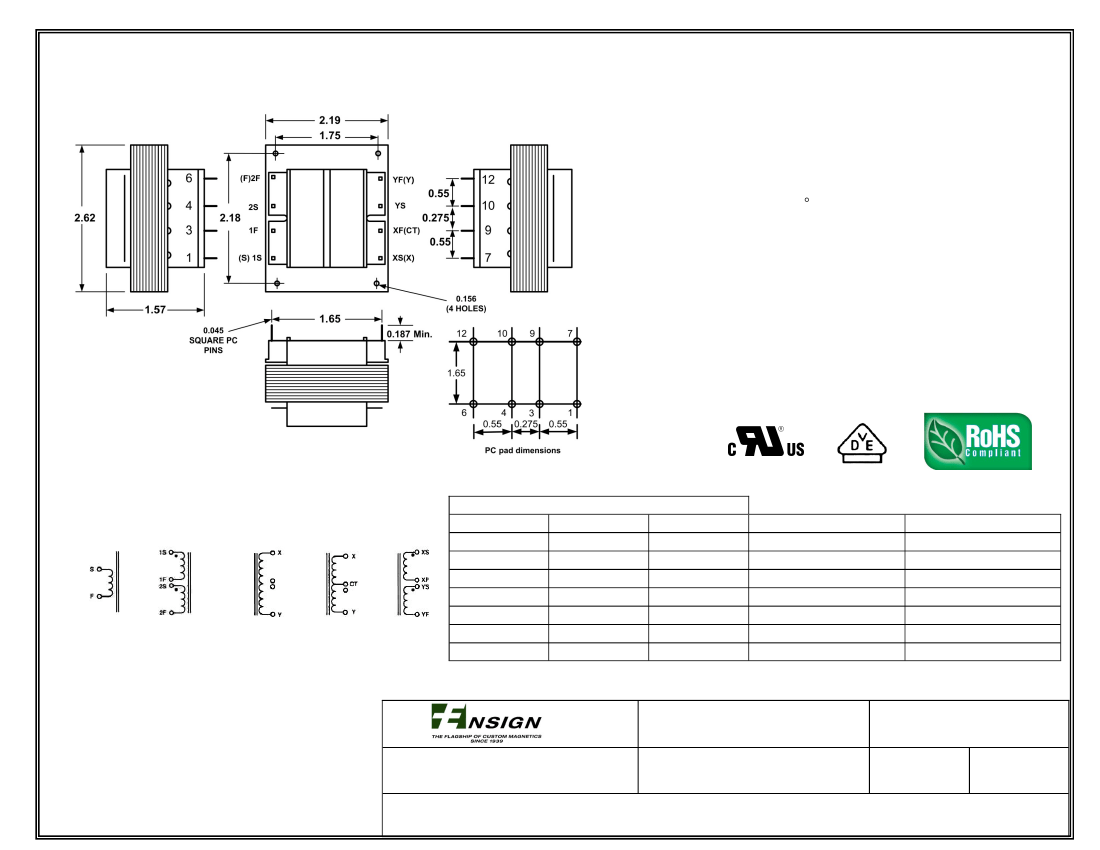

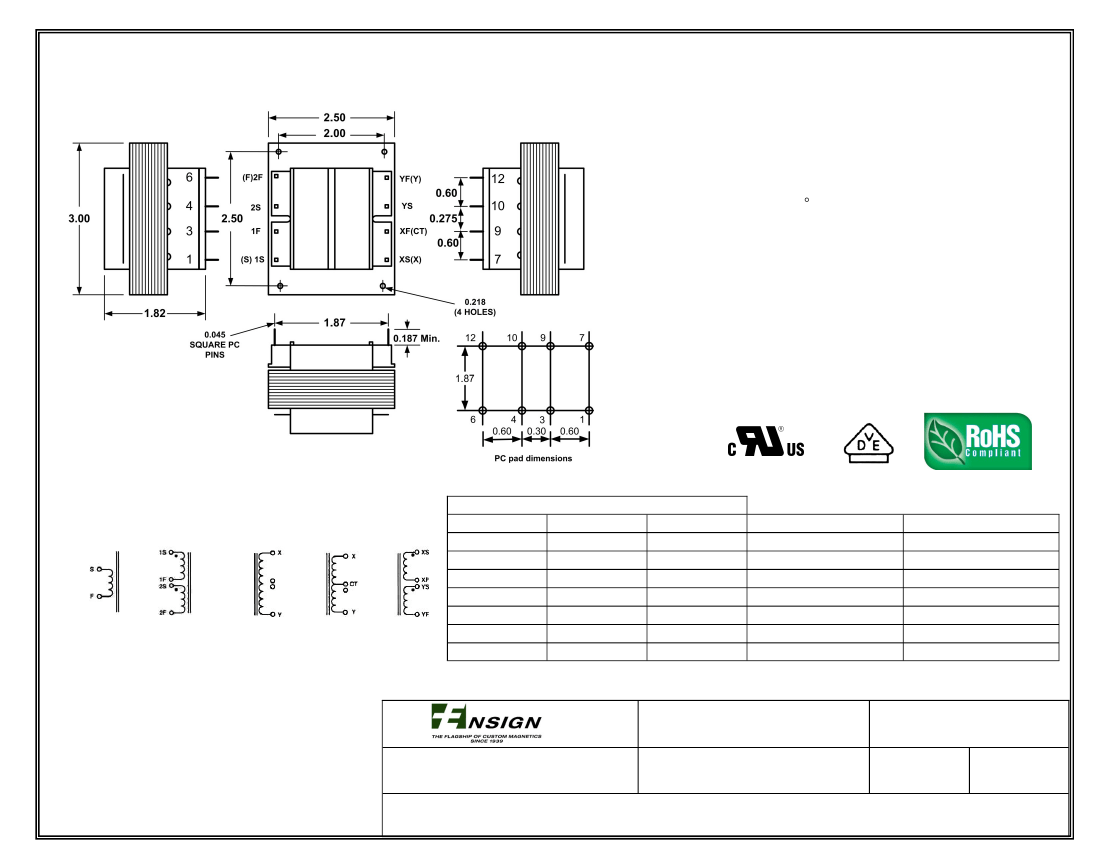

POWER TRANSFORMER
ADMIRAL CLASS
CONTENTS OF THIS DRAWING ARE SUBJECT TO
CHANGE WITHOUT PRIOR NOTICE
IP030-1-XXXX
IP030-2-XXXX
IP030-3-XXXX
Dim: Inches
Sheet 1 of 1
Ensign Corporation
201 ENSIGN RD., BELLEVUE, IA 52031
PROPRIETARY NOTICE: THIS DRAWING PRINT OR DOCUMENT AND SUBJECT MATTER DISCLOSED HEREIN ARE PROPRIETARY ITEMS TO WHICH ENSIGN RETAINS
THE EXCLUSIVE RIGHT OF DISSEMINATION, MANUFACTURE AND SALE. THIS DRAWING, PRINT OR DOCUMENT IS SUBMITTED IN CONFIDENCE FOR CONSIDERATION
BY THE RECIPIENT ALONE UNLESS PERMISSION FOR FURTHER DISCLOSURE IS EXPRESSLY GRANTED IN WRITING
