COMMODORE CLASS
- CHASSIS MOUNT WITH QUICK-CONNECT TERMINALS POWER TRANSFORMER
1.
Electrical Specifications
A. Maximum Power: 2.4VA
B. Input Voltage and Frequency: 115V, 230V
50/60Hz
C. Voltage Regulation: 18% TYP @ full load to no load
D. Temperature Rise: 20C TYP
E. Insulation Resistance: < 1 MEG ohm
Hi-Pot: 2500Vrms 1 minute @ Pri to Sec
2500Vrms 1 minute @ Pri to Core
1500Vrms 1 minute @ Sec to Core
Marking: Ensign Corp, part number (see table), date code,
country, terminal number
Safety:
UL/cUL 5085-2 Recognized (File 47299)
UL 1446 Recognized Insulation System (File 95662)
UL/cUL 5085-3 Class 2 Recognized (File E43609), models marked (*)
F.
2.
3.
Part Number
115V
T002-1-510X*
Primary Schematics
Secondary Schematics
115/230V
T002-2-510X*
T002-2-512X*
T002-2-516X*
T002-2-520X*
T002-2-524X*
T002-2-528X
T002-2-536X
T002-2-548X
T002-2-556X
T002-2-620X
230V
T002-3-510X*
T002-3-512X*
T002-3-516X*
T002-3-520X*
T002-3-524X*
T002-3-528X
T002-3-536X
T002-3-548X
T002-3-556X
T002-3-620X
Secondary
10VCT @ 250mA
12.6VCT @ 200mA
16VCT @ 150mA
20VCT @ 120mA
24VCT @ 100mA
28VCT @ 85mA
36VCT @ 65mA
48VCT @ 50mA
56VCT @ 45mA
120VCT @ 20mA
T002-1-XXXX
T002-2-XXXX
T002-3-XXXX

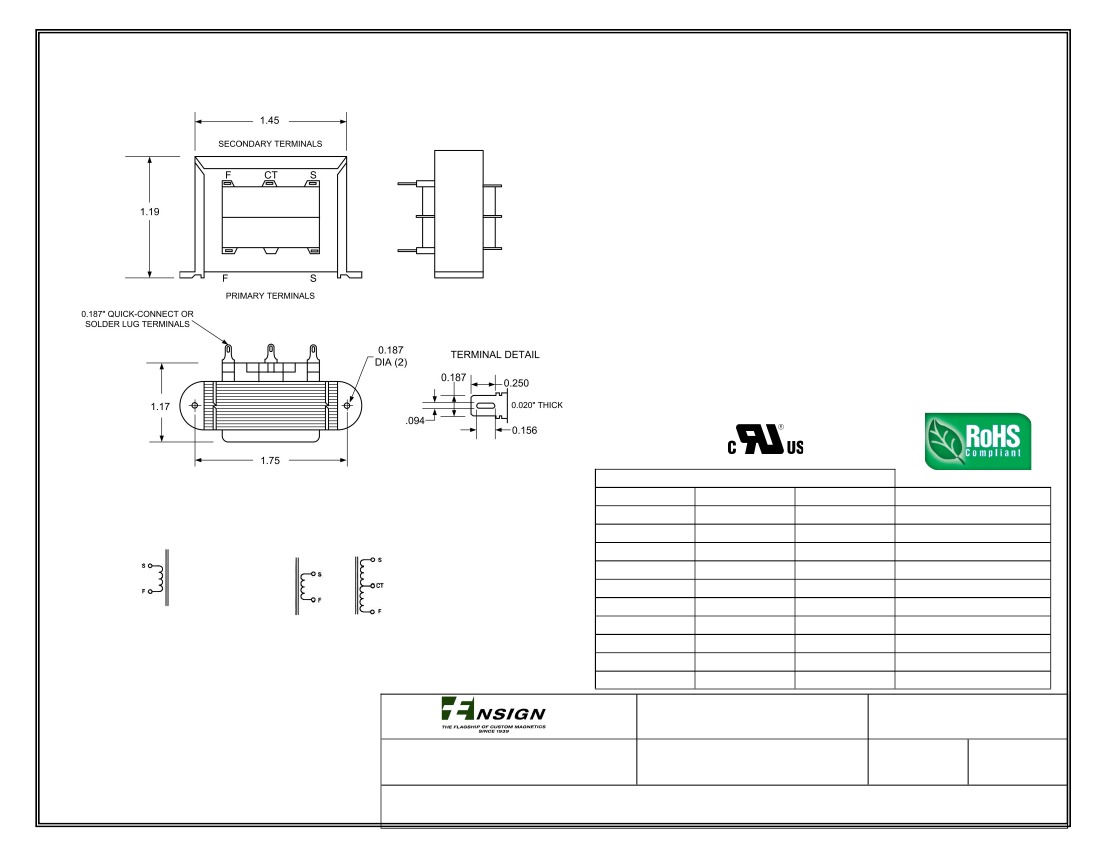

Dim: Inches
Sheet 1 of 1
T002-1-512X*
T002-1-516X*
T002-1-520X*
T002-1-524X*
T002-1-528X
T002-1-536X
T002-1-548X
T002-1-556X
T002-1-620X
Single Input
(Specify 115V,
120V, 230V or
240V)
Single
Output
Center-Tapped
Output
POWER TRANSFORMER
COMMODORE CLASS
CONTENTS OF THIS DRAWING ARE SUBJECT TO
CHANGE WITHOUT PRIOR NOTICE
Ensign Corporation
201 ENSIGN RD., BELLEVUE, IA 52031
PROPRIETARY NOTICE: THIS DRAWING PRINT OR DOCUMENT AND SUBJECT MATTER DISCLOSED HEREIN ARE PROPRIETARY ITEMS TO WHICH ENSIGN RETAINS
THE EXCLUSIVE RIGHT OF DISSEMINATION, MANUFACTURE AND SALE. THIS DRAWING, PRINT OR DOCUMENT IS SUBMITTED IN CONFIDENCE FOR CONSIDERATION
BY THE RECIPIENT ALONE UNLESS PERMISSION FOR FURTHER DISCLOSURE IS EXPRESSLY GRANTED IN WRITING
