CTS32C10UF10%63V datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> CTS32C10UF10%63V

CTS32C10UF10%63V: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 63V, 10% +Tol, 10% -Tol, 10uF, Through Hole Mount, AXIAL LEADED; CategoryPassive components capacitor; File Size528KB，18 Pages; ManufacturerEXXELIA Group; Environmental Compliance

Download Datasheet Parametric View All

CTS32C10UF10%63V Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 63V, 10% +Tol, 10% -Tol, 10uF, Through Hole Mount, AXIAL LEADED

CTS32C10UF10%63V Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1635763760
package instruction	,
Reach Compliance Code	compliant
Other features	STANDARD: CECC30201-019
capacitance	10 µF
Capacitor type	TANTALUM CAPACITOR
diameter	7.5 mm
dielectric materials	TANTALUM (DRY/SOLID)
JESD-609 code	e3
leakage current	0.0063 mA
length	18.2 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
Package form	Axial
method of packing	TR
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	63 V
series	CTS32
surface mount	NO
Delta tangent	0.06
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

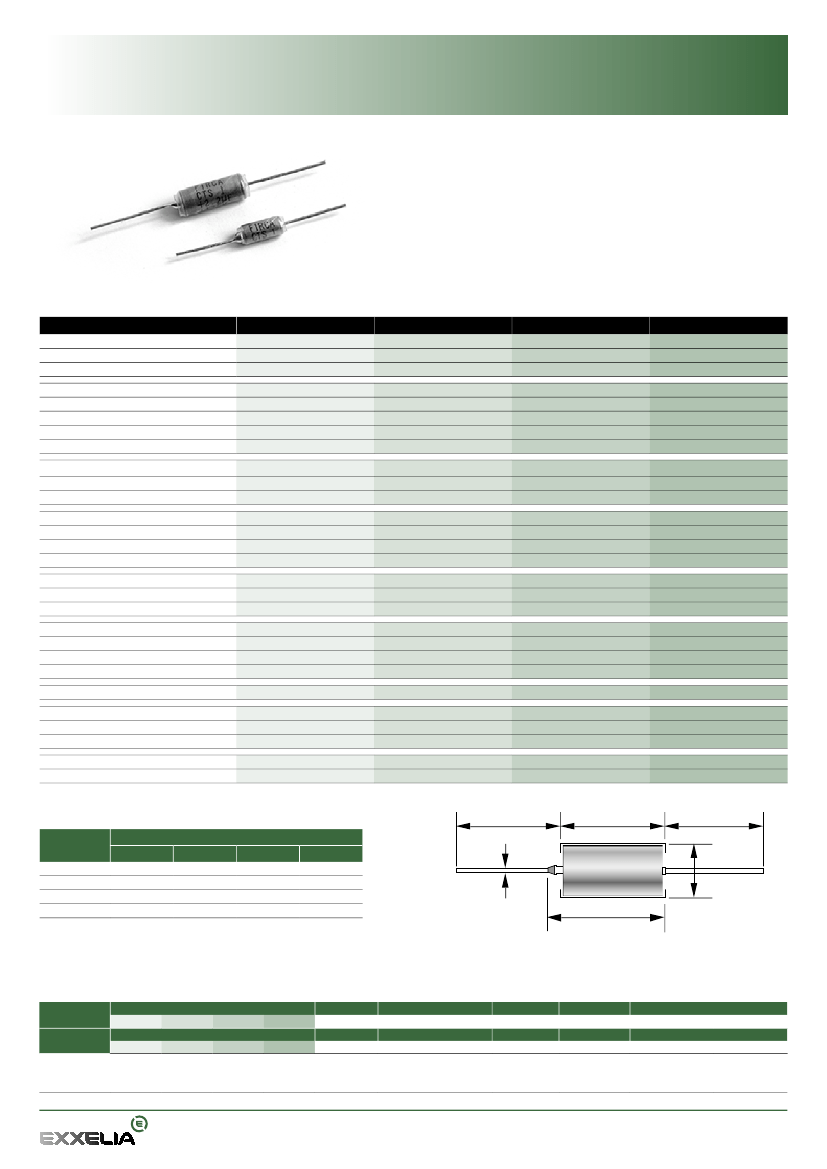

HERMETICALLY SEALED - METAL CASES

SOLID TANTALUM MnO

CAPACITORS

CTS1 - CTS13

CTS32 - CTS1M

Solid tantalum MnO

capacitors

Hermetically sealed metal cases

Axial leads

General purpose - Standard range

Polarized

ELECTRICAL AND CLIMATIC CHARACTERISTICS

CTS1

Detail speciﬁcation

CECC 30201-001

CECC 30201-002

CECC 30201-801

–55°C +125°C

56 days

0,1µF



330µF

±10% - ±20%

6,3V



125V

–10%

+12%

+15%

see table

1,5 x lim20°C

2,0 x lim20°C

see table

0,1 x C

0,125 x C

10 Ω

5Ω

2Ω

1Ω

1,3 x U

CTS13

CECC 30201-005

CTS32

CECC 30201-019

CTS1M

According to MIL-PRF-39003/01

Operating temperature

Damp heat

Capacitance range

Tolerance

Voltage range

Max. capacitance change –55°C

Max. capacitance change +85°C

Max. capacitance change +125°C

Maximum DF at +20°C

Maximum DF at –55°C

Maximum DF at +85°C

Maximum DF at +125°C

Max. leakage current at +20°C

Max. leakage current at +85°C

Max. leakage current at +125°C

Max. impedance (20°C): case A

Max. impedance (20°C): case B

Max. impedance (20°C): case C

Max. impedance (20°C): case D

High surge current

Max. Reverse voltage at +20°C

Max. Reverse voltage at +85°C

Max. Reverse voltage at +125°C

Max. surge voltage at +85°C

Max. surge voltage at +125°C

–55°C +85°C

56 days

0,1µF



330µF

±10% - ±20%

6,3V



63V

–10%

+12%

see table

1,5 x lim20°C

see table

0,1 x C

10 Ω

5Ω

2Ω

1Ω

1,3 x U

30 min (*)

–55°C +125°C

56 days

1µF



330µF

±10% - ±20%

6,3V



63V

–10%

+12%

+15%

see table

1,5 x lim20°C

2,0 x lim20°C

see table

0,1 x C

0,125 x C

10 Ω

5Ω

2Ω

1Ω

1 million cycles

15 % U

5 % U

1 % U

1,3 x U

–55°C +125°C

56 days

0,1µF



330µF

±10% - ±20%

6,3V



100V

–10%

+8%

+12%

see table

= lim20°C

see table

20 x lim 20°C

25 x lim 20°C

10 Ω

5Ω

2Ω

1Ω

3 cycles-100%

15 % U

5 % U

1 % U

1,3 x U

30 min (*)

DIMENSIONS

(mm)

Case code

Dimensions with insulating sleeve

Lt max

L max

D max

+10%/ – 0,05

10,2

8,1

3,6

0,5

15,0

12,8

4,9

0,5

20,5

18,2

7,5

0,6

24,0

20,8

9,1

0,6

(*) 23mm for capacitors delivered on tape

MARKING, PACKAGING, CONSTRUCTION:

see general characteristics

HOW TO ORDER

Commercial

description

EXXELIA PN

CTS1

TS01

Model

CTS13

CTS32

Model code

TS13

TS32

CTS1M

TS01M

Case

Capacitance in µF

150µF

Capacitance code

157

Expressed in pF with 3 digits:

2 digits for the value

and the third for the multiplier

Tolerance in %

DC Voltage

20%

16V

Tolerance code DC Voltage code

016

= 10%

= 20%

Termination

EXXELIA PN

Commercial description

Expressed in volt

= SnPb (non RoHS)

with 3 digits

= Sn100% (RoHS)

www.exxelia.com

tantalum@exxelia.com

Page revised 09/18
