USB 3.0 Cable (Blue)
5
Type A Plug
4
1
C
USB 3.0 Type A Plug
Industrial IP67,
Plastic Version or
Metallized Plastic Version
Bayonet Locking Type
Type Micro-B Plug
USB 3.0 Type Micro-B Plug (IP20)
C
B
THIS DRAWING MAY NOT BE COPIED OR REPRODUCED
IN ANY WAY, AND MAY NOT BE PASSED ON TO A THIRD
PARTY WITHOUT WRITTEN PERMISSION.
OWNERSHIP AND COPYRIGHT OF CONEC CORPORATION
DOT NOT ALTER CAD DRAWING BY HAND
A
NOTES:
1. Electrical Specifications:
Meets USB 3.0 specifications
Low level Contact Resistance:
- 30 mOhm max for VBUS and GND Contacts
- 50 mOhm max for all other contacts
Insulation Resistance 1000 MOhm min.
Current Rating: 2A max. @ 25°C
DWV: 500V AC/60s Pin to Pin; 1000V AC/60s Pin to shell
Connector Operating Temperature: -40°C to +85°C
2. Material and Finish:
- Coupling Ring: Polyester (Black); or ABS, Nickel Plated, UL94 V-0
- Plug Housing: Polyester (Black); or ABS, Nickel Plated, UL94 V-0
- Interfacial Seal: Silicone, Color: White
- Cable Gland: PA (Black) or Brass, Nickel Plated
- Cable Gland Seal: NBR, Color: Black
- Cable Gland Insert (Metal Version): Nylon, Color: White
- USB Insulator: PBT, UL 94V-0, Color: Blue
- USB Metal Shell: SPCC. Nickel plated
- USB Contact: Copper Alloy, 30 u" min. Au over 40 u" min. Nickel Plated
- USB Insulator: PBT +GF, UL94 V-0, Color: Blue
3. Cable: UL AWM 2725, 2 x (Shielded Twist Pair AWG28 + Drain Wire)
+ 2 x Unshielded AWG28 + 2 x AWG24 + Drain Wire, Overall Braid Shield;
Outer Jack PVC, OD: 6.0 mm Color: Blue
Pin Assignment
Type A
Wire Map Micro-B
p1 -------- Red ------- p1
p2 ------- White ----- p2
P3 ------- Green ----- P3
N/A -------------------- P4
P4 ------- Black ------ P5
P5 ----- Orange ----- P6
P6 ------ Purple ----- P7
P7 ---- Drain Wire -- P8
P8 ------- Blue ------- P9
P9 ------ Yellow ----- P10
Shell ----- Braid ----- Shell
L
0.3
± 0.03
m
0.5
± 0.05
m
0.75
± 0.05
m
1
± 0.10
m
2
± 0.10
m
3
± 0.10
m
4
± 0.10
m
5
± 0.10
m
Customer:
Part Number
Plastic Version
Metallized Plastic Version
17-240571
17-240581
17-240591
17-240601
17-240611
17-240621
17-240631
17-240641
Unless otherwise specified
17-240651
17-240661
17-240671
17-240681
17-240691
17-240701
17-240711
17-240721
Scale: N/A
Autodesk
Inventor
Name
Vincent Ke
Thomas Koch
B
Tolerance
Name
Title
Approval Date
0 PLC
1 PLC
2 PLC
3 PLC
ANGLES
`
0.50
`
0.38
`
0.25
`
0.10
`
3
~
Dim. in
Material: See Notes
Title:
2015
Draw.
Appd.
Norm
D-old
Date
Oct. 28
Oct. 28

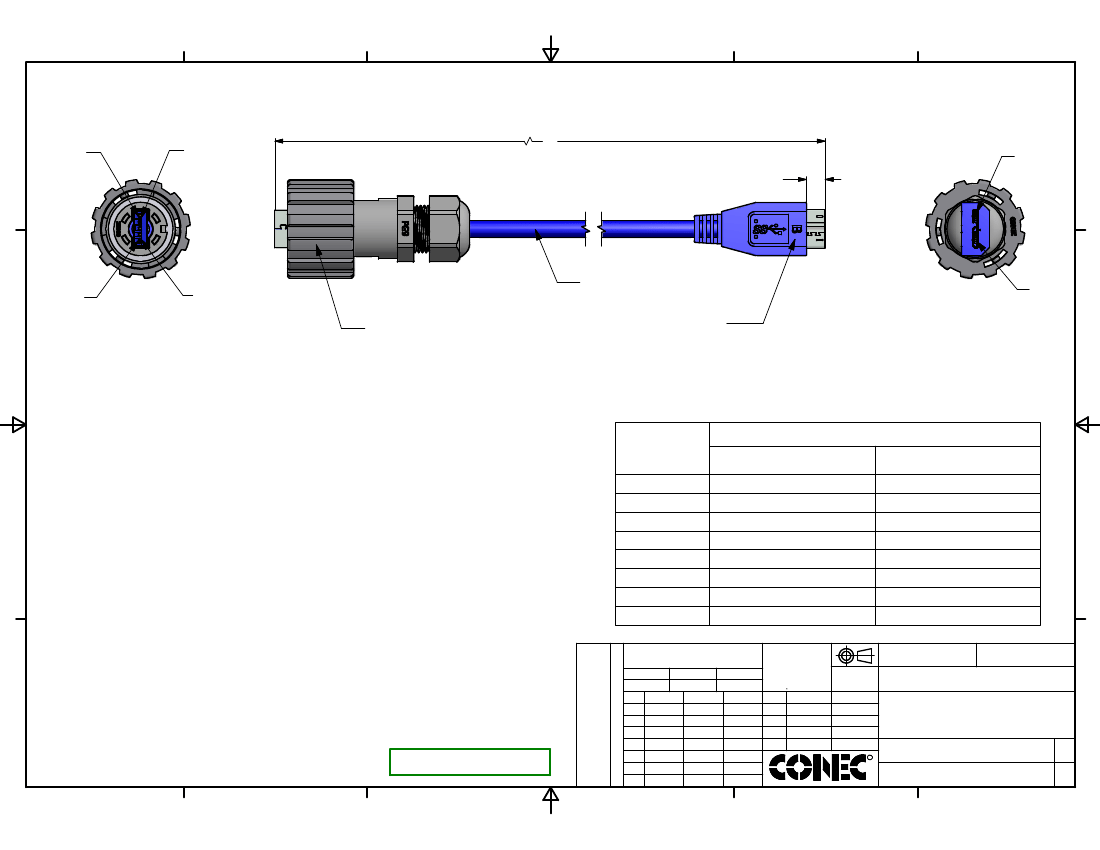

USB Patch Cord
USB 3.0 Type A Plug (IP67)
to USB 3.0 Type Micro-B Plug (IP20)
A
DIN
RoHS Compliant
4
R
Drawing No.: 17K1A581
Part No.: SEE P/N ABOVE
A3
Sheet
a
Rev.
original
Changes
Date
Name
1/1
6
5
3
