TPMBU80-107: Description80W Open Frame Type Medical Power Supplies; File Size332KB，2 Pages; ManufacturerTotal Power International; Websitehttp://www.total-power.com/

Download Datasheet Compare View All

TPMBU80-107 Overview

80W Open Frame Type Medical Power Supplies

Preview

Download Datasheet

View All

Total

Tota Power International, Inc.

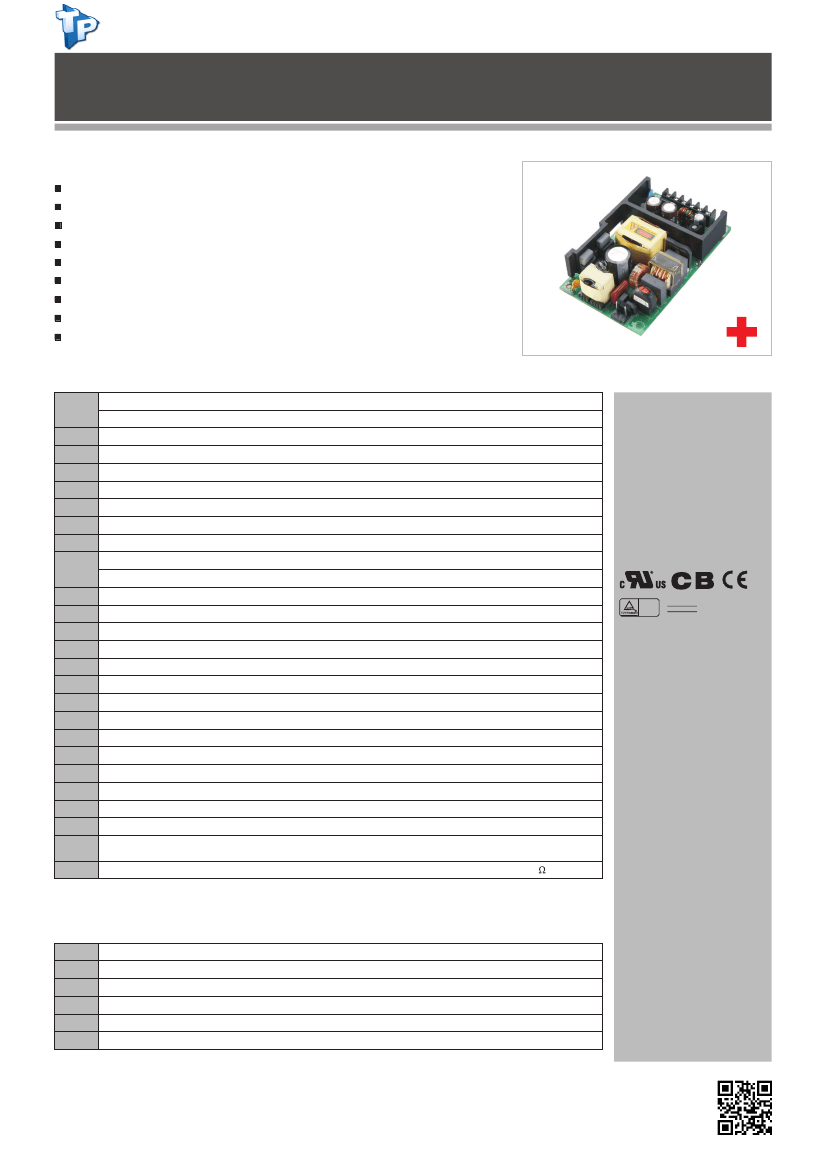

TPMBU80 SERIES

Features:

Wide Operating Voltage 90 to 260 VAC,47 to 63 Hz

Internal EMI filter

Single Output

Active Power Factor Correction

Over Voltage and Over Load protection

Output Voltage Protection (Crowbar Design)

Size: 3"x5"x1.1"

Class I

3 year warranty

80W Open Frame Type

Medical Power Supplies

Electrical Characteristics:

Vin

fin

Iil

Iih

Eff

REG-i

OVP

OCP

Ttr

Vp-p

Ilk

Pno

Vps

Vpg

Ris

Safety Approvals Input Voltage Range

Operate Voltage Range

Input Frequency

Power Factor Correction

Output Power Range

Output Voltage Range

Output Current Range

Input Current (Low Line)

Input Current (High Line)

Low Line Inrush Current

High Line Inrush Current

Efficiency

Line Regulation

Over Voltage Protection

Over Current Protection

Time of Transient Response

Hold-Up Time

Start Up Time

Ripple & Noise(Peak to Peak)

Safety Ground Leakage Current

Temperature Coefficient

Operating Altitude

No-Load Power Consumption

Dielectric Withstanding Voltage

for Primary to PE

Isolation Resistance

No load, Vin=230VAC

Primary to secondary

Primary to PE

Test Voltage=500VDC

Io=Full Load to Half Load, Vin=100VAC

Io=Full Load, Vin=110VAC

Io=Full Load, Vin=100VAC

Full Load, Vin=90VAC

Vin=240VAC/60Hz

All output

Io=Full load, Vin=100VAC

Io=Full load, Vin=240VAC

Io=Full load, 25°C, Cool start, Vin=115VAC

Io=Full load, 25°C, Cool start, Vin=230VAC

Io=Full Load, Vin=230VAC

Io=Full Load

Vin=230VAC

Io=Full load, Vin=240 VAC

100~240VAC

90~260VAC

47~63Hz

0.95~1

See rating chart

1.2A

0.4A

28A (max.)

56A (max.)

72.5~85%

EN 60601-1

Application:

- Medical Touch Panel PC

- Patient Monitoring System

- Ultrasound System

Safety Approvals:

RoHS

2002/95/EC

COMPLIANT

1% (max.)

5% (max.)

112~132%

110~150%

4mS (max.)

16mS (min.)

0.3~2S

1% (max.)

0.1mA (max.)

±0.04%/°C

Up to 3000m

See rating chart

6420VDC (min.)

2503VDC (min.)

50M

(min.)

IEC 60601-1

REG-o Load Regulation

Recommend to be used on the metal chassis.

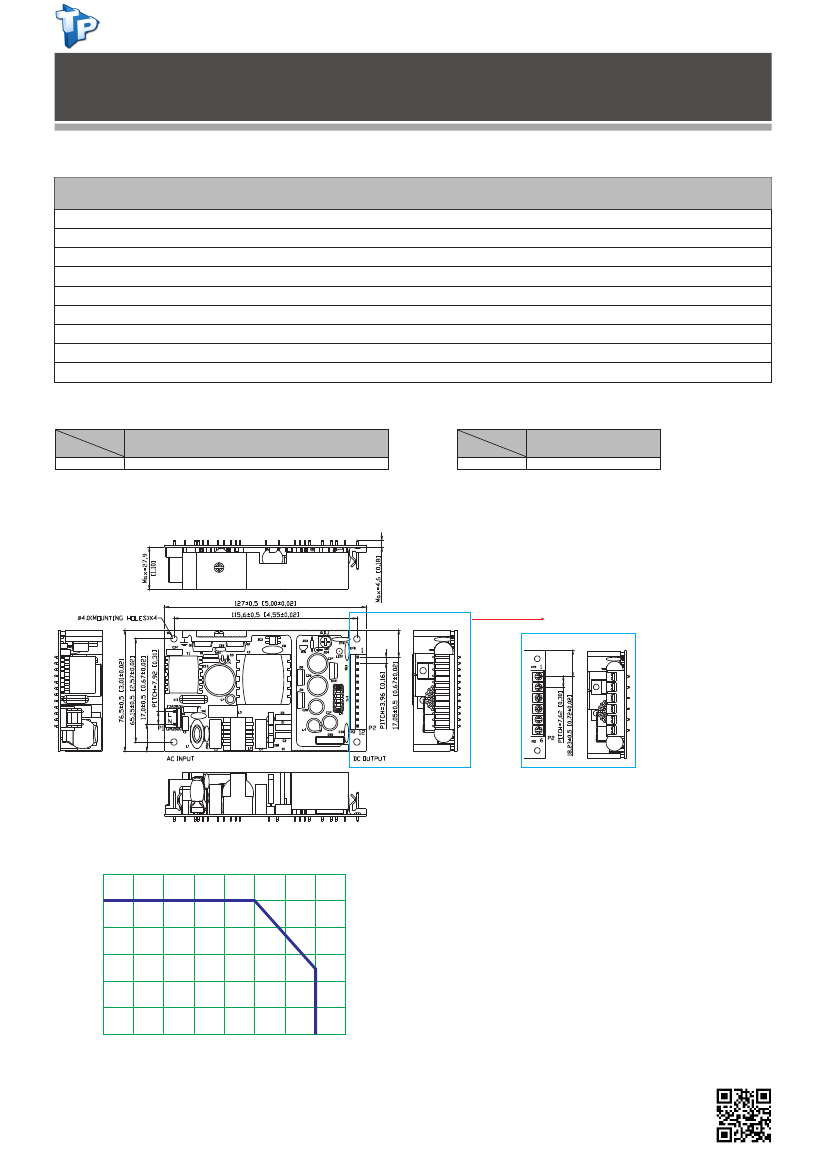

Environmental

MTBF

Operating Temperature

Storage Temperature

Operating Humidity

Storage Humidity

Operating Temperature at 25°C

Calculated per MIL-HDBK-217F

Derate linearly from 100% load at 50°C to 50% load at 70°C

See derating curve

-40~85°C

0~95%

0.1M Hrs (min.)

Total Power In

International, Inc

Toll Free: 877-646-0900

www.total-power.com
