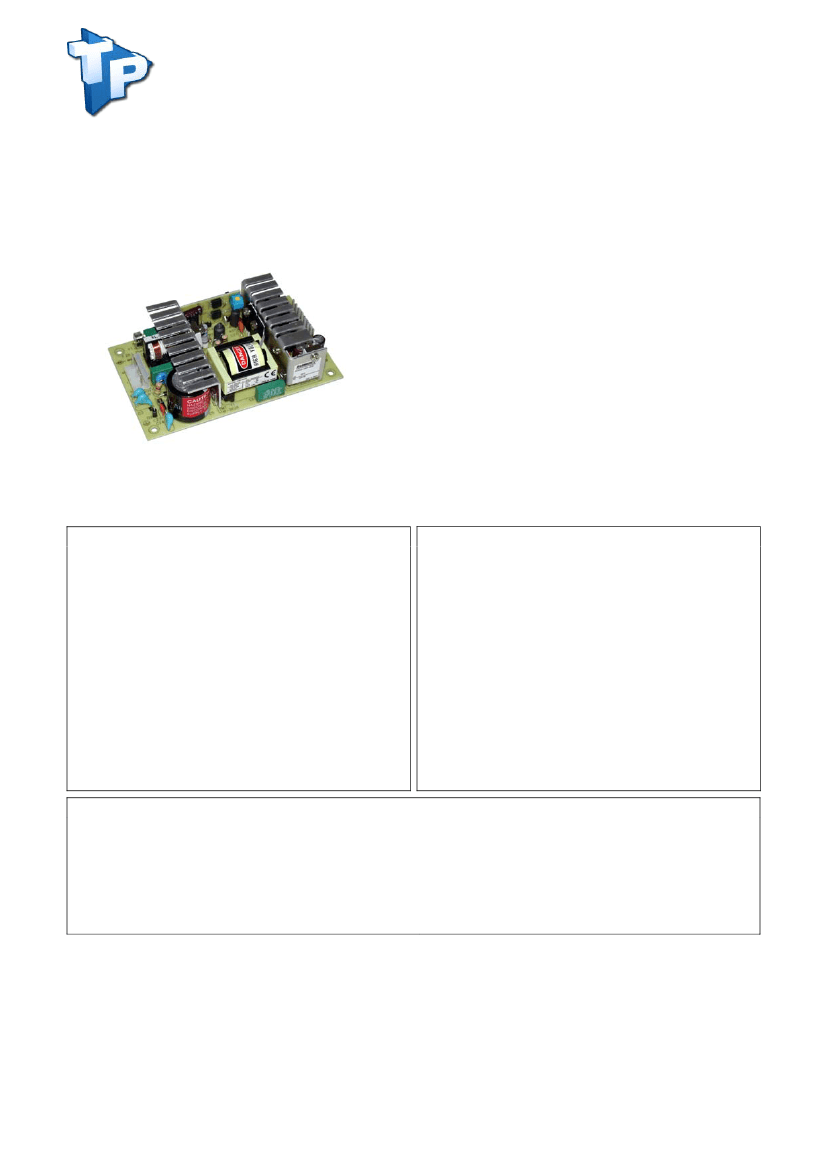

Total Power International, Inc.

UNIVERSAL INPUT AC-DC MEDICAL APPLICATION OPEN FRAME

SINGLE OUTPUT 40 WATTS INTERNAL SWITCHING

POWER SUPPLIES TPMI40 SERIES

FEATURES:

ACCOMMODATE UNIVERSAL AC SOURCES

COMPACT 5”x 3” PCB FORMAT

MEET MEDICAL STANDARD EN 60601-1/

UL 2601-1

EMI MEET EN 55011 & FCC CLASS B

CE MARKING COMPLIANCE

SPECIFICATION

INPUT SPECIFICATION

Input Voltage:

Range typ. 90-264Vac.

Rating 100 to 240Vac.

Input Connector:

V-M connector.

Input Frequency:

47-63Hz.

Inrush Current:

Typ. 2.36Arms @230Vac.

Input Current:

Typ. 0.66A@115Vac, 0.37A @230Vac.

Dielectric Withstand:

Meet IEC 60601-1.

EMI:

Meet EN55011 & FCC Class B.

Hold-up Time:

Typ. 14mS @115Vac, 78.4mS @ 230Vac.

Earth Leakage:

Less than 0.12mA @230Vac.

OUTPUT SPECIFICATION

Output Voltage:

See Ratings Chart.

Output Current:

See Ratings Chart.

Output Connector:

V-M connector.

Output Wattage:

Typ. 40 watts.

Line Regulation:

Typ. 0.2-0.8%.

Load Regulation:

Main VO1 typ ±3%.

Aux. VO2 typ. ±3.8%.

Aux. VO3 typ. ±0.3%.

Noise & Ripple:

Typ. 1.0% peak to peak.

OVP:

Built-in at main output (Latch).

Adjustability:

Available at Main output.

Overload Protection (OLP):

Fully protected against outputs overload and short circuit.

Typ. OLP set at 125-150% of rating output power.

Consult the factory for OLP setting.

GENERAL SPECIFICATION

Efficiency:

Typ. 71%(Various with output voltage).

Switching Frequency:

45 KHz.

Circuit Topology:

Fixed frequency flyback circuit.

Transient Response:

Output voltage returns in less than

2mS following a 25% load change.

Safety Standard:

Meet Medical standards UL 2601-1/

EN 60601-1 Class I.

Operating Temperature:

-20 to +50 °C.

(Various with output voltage).

Storage Temperature:

-20 to +85°C.

Temperature Coefficient:

Typ. 0.04%/°C.

Cooling:

Free air convection.

Power Density:

2.18Watts / Cubic Inch.

Construction:

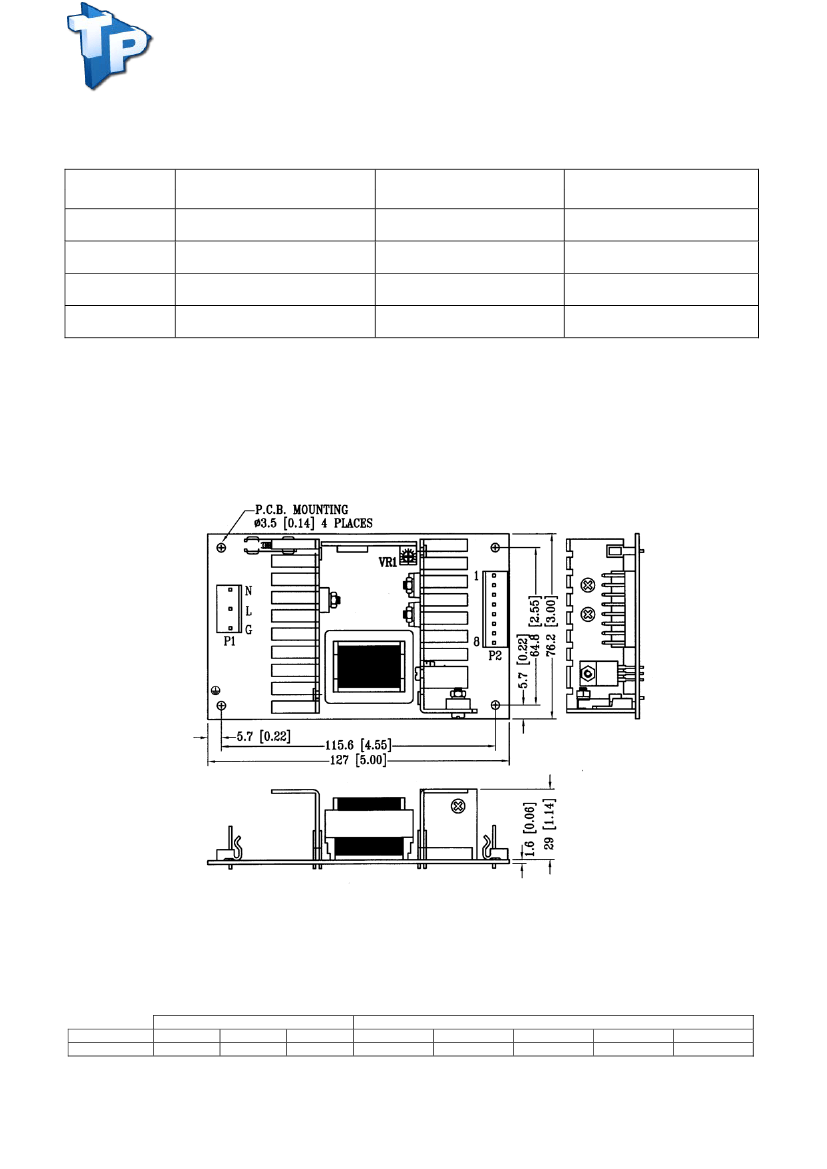

5”x3“ PCB format.

Note: Due to requests in market and advances in technology, specifications subject to change without notification.

Total Power International, Inc. Toll Free: 877-646-0900(US) PH#978-453-7272 www.total-power.com
