LQW15AN5N5B80B: DescriptionInductance; File Size76KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet View All

LQW15AN5N5B80B Overview

Inductance

Preview

Download Datasheet

View All

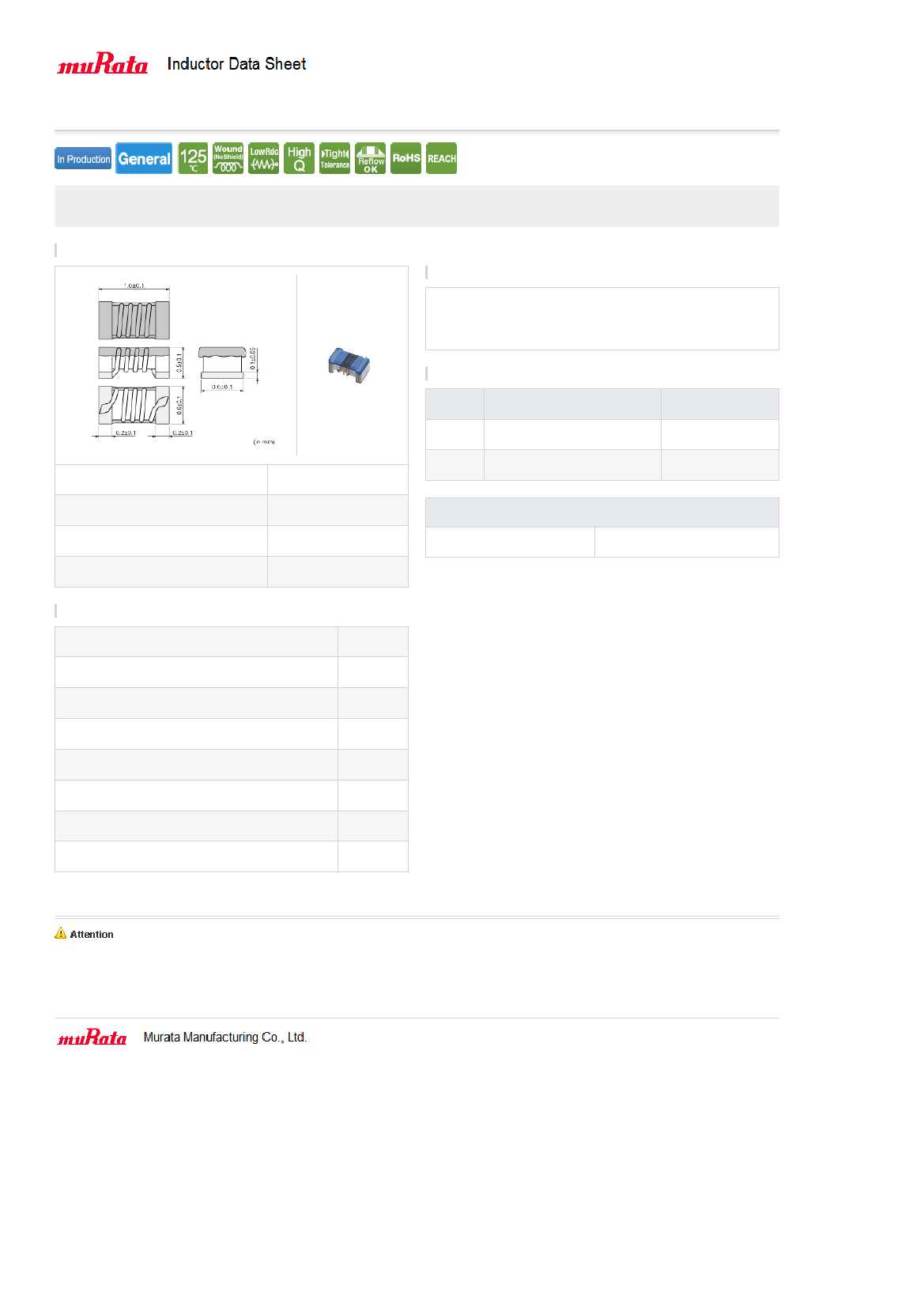

LQW15AN5N5B80#

# indicates a package specification code.

< List of part numbers with package codes >

LQW15AN5N5B80D , LQW15AN5N5B80B

Shape

Notes

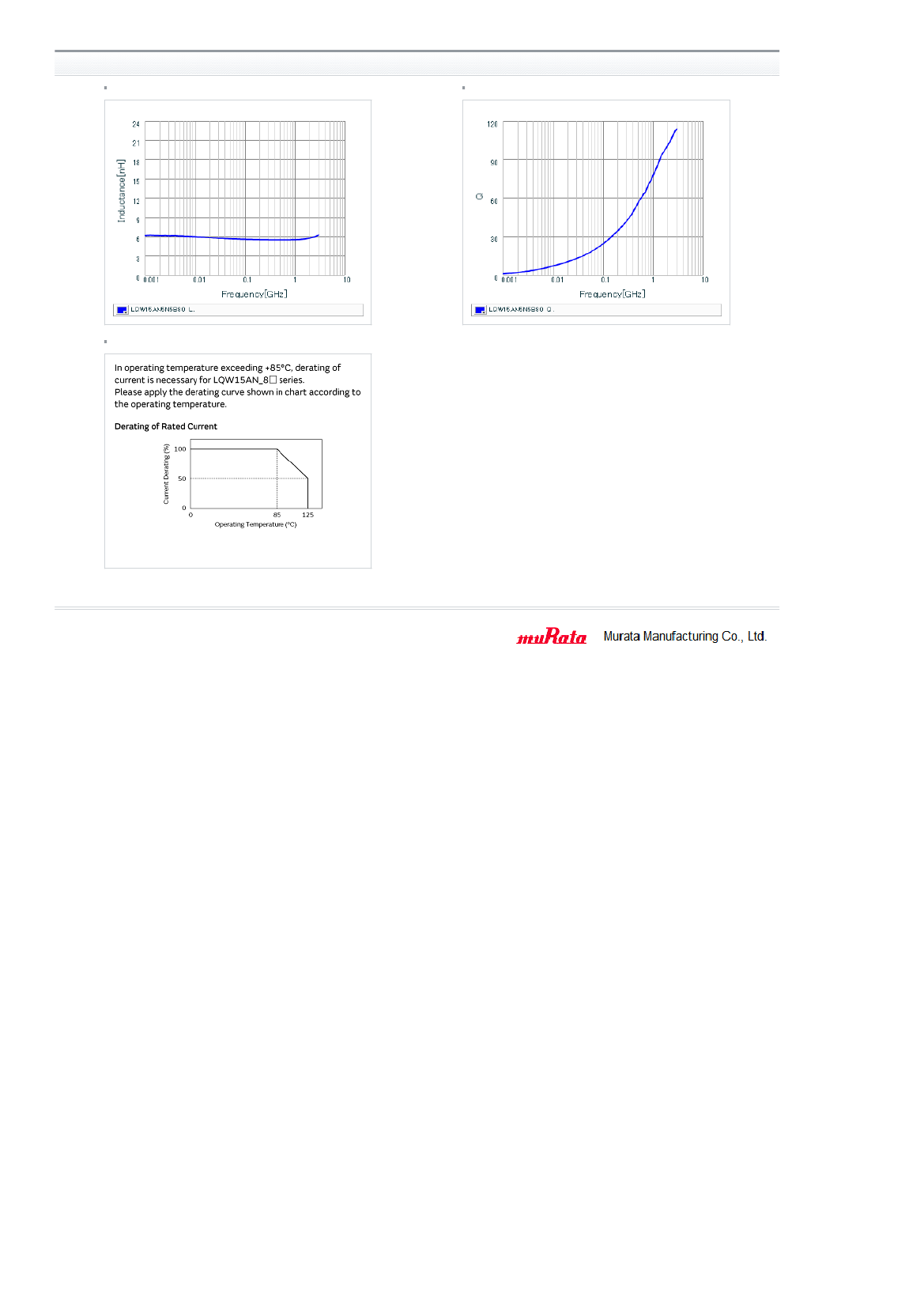

In operating temperature exceeding +85℃, derating of current is necessary for

LQW15A_80 series.

Please apply the derating curve shown in chart according to the operating

temperature.

Please confirm the below "Notice (Rating)".

References

Packaging

code

Specifications

φ180mm Paper taping

Packing in bulk

L size

W size

T size

Size code in inch (mm)

1.0 ±0.1mm

0.6 ±0.1mm

0.5 ±0.1mm

0402 (1005)

Minimum quantity

10000

500

Mass (Typ.)

1 piece

0.0009g

Specifications

Inductance

Inductance test frequency

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Q (min.)

Q test frequency

Self resonance frequency (min.)

Operating temperature range (Self-temperature rise is not included)

5.5nH ±0.1nH

100MHz

1770mA

0.040Ω

250MHz

8.0GHz

-55∼125℃

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/01/11
