SURFACE MOUNT-105 C
UPGRADE
MVE
Series
Surface Mount
High CV
Vertical Chip
Solvent Proof
(6.3-63V )
105 C
Maximum
Temperature
Engineering Bulletin Dec 02
MVE
Actual
Size
The MVE series is a general purpose 105 C surface mount capacitor series from United Chemi-Con.
This series has higher CV values, higher voltage ratings and larger case size options, when compared
to the current MVK series. The larger sizes and higher voltages will allow a surface mount component
to be used in a wider variety of applications where a radial capacitor would normally be required.
The MVE series capacitors
except for those rated at 100-450 volts
are solvent proof. Refer to the
Mini-Glossary for cleaning guidelines and recommended cleaning agents that are compatible with
United Chemi-Con products.
Summary of Specifications
Surface mount lead terminals.
Capacitance range: 0.47 to 6,800µF.
Voltage range: 6.3 to 450VDC.
Category temperature range: 40 C to 105 C.
Leakage current: See specifications table for leakage current values at
Standard capacitance tolerance: 20%
Nominal case size (D L): 4 5.2mm to 18 21.5mm.
Rated lifetime: 1,000 to 2,000 hours at 105 C depending on case size.
20 C.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
1/6
SURFACE MOUNT-105 C
MVE Series
MVE Specifications
Item
Category Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
40 to 105 C
6.3 to 450VDC
0.47 to 6,800 F
20% ( M ) at
Case D55 - J10
Case K14 - M22
Case K14 - M22
Engineering Bulletin Dec 02
MVE
Characteristics
20 C, 120Hz
6.3 -100V
6.3 -100V
160 - 450V
I
I
I
0.01CV or 3 A, whichever is greater, after 2 minutes at
0.03CV or 4 A, whichever is greater, after 1 minute at
0.04CV 100 A after 1 minute at
20 C
20 C
20 C
Where I = Max. leakage current ( A ), C = Nominal capacitance ( F ) and V = Rated voltage ( V )
Dissipation Factor ( Tan )
Low Temperature
Characteristics
Tan
( DF ) at
20 C, 120Hz shall not exceed the specified values given in the Ratings Tables.
25 C or
16
2
3
6
6
25
2
2
4
4
At 120Hz, impedance ( Z ) ratio between the
exceed the values given below.
Rated Voltage ( V )
Z ( 25 C ) / Z ( 20 C )
D55 - J10
K14 - M22
D55 - J10
K14 - M22
6.3
4
5
12
10
10
3
4
8
8
40 C value and
35
2
2
3
3
50
2
2
3
3
63
2
2
3
3
100
3
2
4
3
20 C value shall not
160-250
–
3
–
6
400-450
–
6
–
10
Z ( 40 C ) / Z ( 20 C )
Endurance
(Load Life)
The following specifications shall be satisfied when the capacitors are restored to
subjecting them to the DC rated voltage for the specified test time at 105 C.
Case Code
Test Time
D55 - F80
1,000 Hours
H10 - M22
2,000 Hours
20 C after
Case Code D55 - F80
Capacitance change:
≤
30% of initial measured value
Tan ( DF ):
≤
300% of initial specified value
Leakage current:
≤
initial specified value
Shelf Life
Case Code H10 - M22
Capacitance change:
≤
20% of initial measured value
Tan ( DF ):
≤
200% of initial specified value
Leakage current:
≤
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20 C after
exposing them for the specified test time at 105 C without voltage applied. The rated voltage
shall be applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not
more than 48 hours before the measurements.
Case Code
Test Time
D55 - F80
500 Hours
H10 - M22
1,000 Hours
Case Code D55 - F80
Capacitance change:
≤
25% of initial measured value
Tan ( DF ):
≤
200% of initial specified value
Leakage current:
≤
initial specified value
Case Code H10 - M22
Capacitance change:
≤
20% of initial measured value
Tan ( DF ):
≤
200% of initial specified value
Leakage current:
≤
initial specified value
2 /6
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
SURFACE MOUNT-105 C
MVE Series

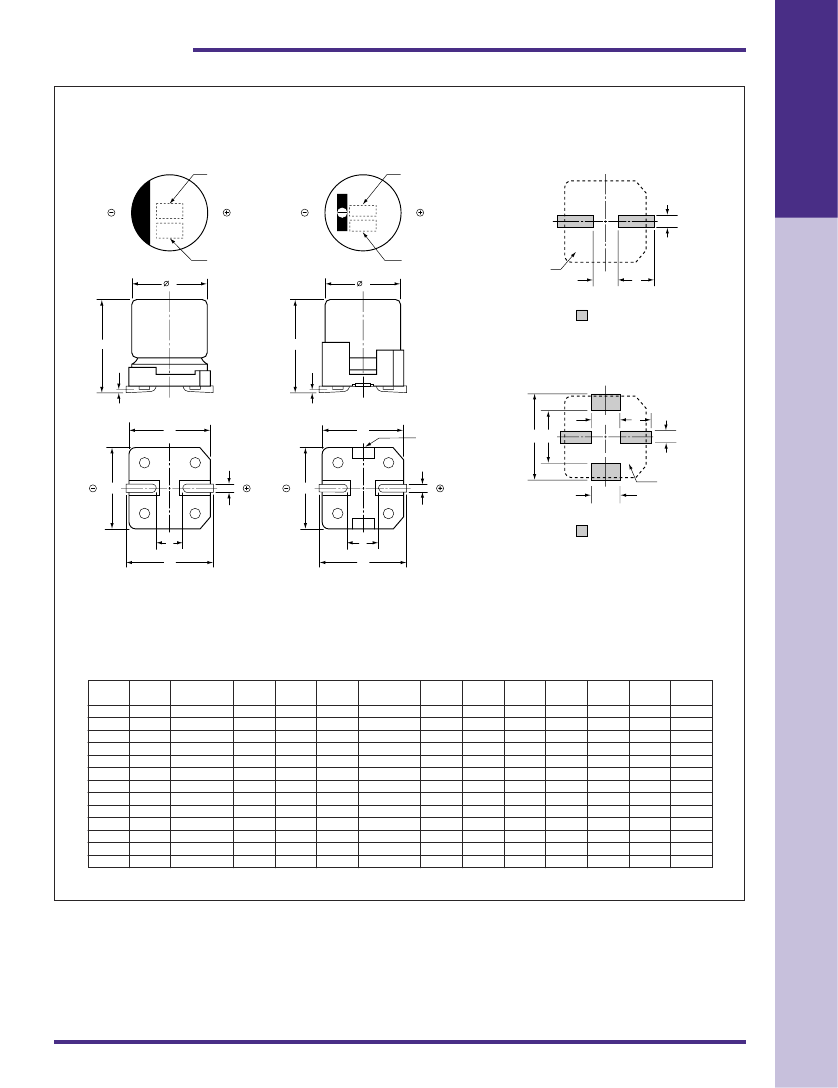

Diagram of Dimensions
Vertical Chip SMD Lead Terminals
VC Type
Ø
D =
Ø
4 -
Ø
12.5
*
MARKING STYLE A
Capacitance
Engineering Bulletin Dec 02
MVE
Unit: mm
VD Type
Ø
D =
Ø
16 &
Ø
18
MARKING STYLE B
Capacitance
Recommended PCB Land Patterns
VC Type
Ø
D =
Ø
4 -
Ø
12.5
V
Rated Voltage
D
D
V
c
Rated Voltage
Location of
Capacitor
a
b
Solder Land
L
L
VD Type
Ø
D =
Ø
16 &
Ø
18
0.3 MAX.
B
0.3 MAX.
a
B
Dummy
Terminals (2)
b
c
f
e
A
W
A
W
d
Location of
Capacitor
Solder Land
P
C
P
C
*
Marking Style B is used for all
Ø
12.5 VC Type products.
Refer to Packaging section for Surface Mount taping,
reel and tray specifications and Surface Mount Soldering
section for reflow soldering conditions.
Case and PCB Land Pattern Dimensions
Case
Code
D55
E55
F55
F60
F80
H10
J10
K14
K16
L17
L 22
M17
M22
Ø
D
0.5
Ø
4
Ø
5
Ø
6.3
Ø
6.3
Ø
6.3
Ø
8
Ø
10
Ø
12.5
Ø
12.5
Ø
16
Ø
16
Ø
18
Ø
18
L
5.2 0.3
5.2 0.3
5.2
5.7
7.7
10.0
10.0
13.5
16.0
16.5
21.5
16.5
21.5
0.3
0.3
0.3
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
A
0.2
4.3
5.3
6.6
6.6
6.6
8.3
10.3
13.0
13.0
17.0
17.0
19.0
19.0
B
0.2
4.3
5.3
6.6
6.6
6.6
8.3
10.3
13.0
13.0
17.0
17.0
19.0
19.0
C
0.2
5.1
5.9
7.2
7.2
7.2
9.0
11.0
13.7
13.7
18.0
18.0
20.0
20.0
W
0.5-0.8
0.5-0.8
0.5-0.8
0.5-0.8
0.5-0.8
0.7-1.1
0.7-1.1
1.0-1.3
1.0-1.3
1.0-1.3
1.0-1.3
1.0-1.3
1.0-1.3
P
1.0
1.4
1.9
1.9
1.9
3.1
4.5
4.2
4.2
6.5
6.5
6.5
6.5
a
1.0
1.4
1.9
1.9
1.9
3.1
4.5
4.0
4.0
6.0
6.0
6.0
6.0
b
2.6
3.0
3.5
3.5
3.5
4.2
4.4
5.7
5.7
6.9
6.9
7.9
7.9
c
1.6
1.6
1.6
1.6
1.6
2.2
2.2
2.5
2.5
2.5
2.5
2.5
2.5
d
–
–
–
–
–
–
–
–
–
6.5
6.5
6.5
6.5
e
–
–
–
–
–
–
–
–
–
11.0
11.0
13.0
13.0
f
–
–
–
–
–
–
–
–
–
19.2
19.2
21.2
21.2
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
3 /6
SURFACE MOUNT-105 C
MVE Series
Part Numbering System for MVE Series
MVE
35
VC
331
M
J10
TP
Engineering Bulletin Dec 02
When ordering, always specify complete catalog number for MVE Series.
MVE
Packaging: TP = Standard Taping for D55 - K16.
TR = Plastic Tray for L17- M22; Optional for K14 - K16.
Case Code: See Case Sizes in Tables.
Capacitance Tolerance: M = 20%
Capacitance Value: Expressed in Microfarads. The first two digits are
significant figures, and the third digit indicates the number of zeros
for capacitance of 100 F or more. R indicates the decimal point for
capacitance less than 100 F (e.g. R33 = .33 F; 3R3 = 3.3 F;
33R = 33 F; 331 = 330 F; 332 = 3,300 F; 333 = 33,000 F ).
Lead Configuration: VC = Vertical Chip, 2 SMD Terminals.
VD = Vertical Chip, 4 SMD Terminals (2 dummy).
DC Rated Voltage: Expressed in Volts (e.g. 35 = 35WVDC).
Series Name: Indicates Basic Capacitor Design.
Standard Voltage Ratings - Surface Mount
Rated
Voltage
(WVDC)
Capacitance
(µF )
Catalog
Part Number
Nominal
Case Size*
D L ( mm )
Case
Code
Dissipation
Factor (Tan )
20 C, 120Hz
Maximum ESR
(
Ω
) at
20 C, 120Hz
Rated
Ripple Current
( mA rms) at
105 C, 120Hz
22
34
38
69
120
290
320
340
410
550
680
840
850
1,000
1,200
1,200
1,200
1,350
30
34
48
69
100
120
290
320
410
750
850
1,000
1,100
1,300
1,350
17
30
45
48
6.3 Volts
8 Volts Surge
22
33
47
100
220
330
470
680
1,000
1,500
2,200
2,200
3,300
3,300
4,700
4,700
6,800
6,800
22
33
47
100
150
220
330
470
1,000
2,200
2,200
3,300
3,300
4,700
4,700
10
22
33
47
MVE6.3VC22RMD55TP
MVE6.3VC33RME55TP
MVE6.3VC47RME55TP
MVE6.3VC101MF55TP
MVE6.3VC221MF80TP
MVE6.3VC331MH10TP
MVE6.3VC471MH10TP
MVE6.3VC681MH10TP
MVE6.3VC102MJ10TP
MVE6.3VC152MJ10TP
MVE6.3VC222MK14TP
MVE6.3VD222ML17TR
MVE6.3VC332MK16TP
MVE6.3VD332MM17TR
MVE6.3VD472ML22TR
MVE6.3VD472MM17TR
MVE6.3VD682ML22TR
MVE6.3VD682MM22TR
MVE10VC22RME55TP
MVE10VC33RME55TP
MVE10VC47RMF55TP
MVE10VC101MF55TP
MVE10VC151MF80TP
MVE10VC221MF80TP
MVE10VC331MH10TP
MVE10VC471MH10TP
MVE10VC102MJ10TP
MVE10VC222MK16TP
MVE10VD222ML17TR
MVE10VD332ML17TR
MVE10VD332MM17TR
MVE10VD472ML22TR
MVE10VD472MM22TR
MVE16VC10RMD55TP
MVE16VC22RME55TP
MVE16VC33RMF55TP
MVE16VC47RMF55TP
4
5
5
6.3
6.3
8
8
8
10
10
12.5
16
12.5
18
16
18
16
18
5
5
6.3
6.3
6.3
6.3
8
8
10
12.5
16
16
18
16
18
4
5
6.3
6.3
5.2
5.2
5.2
5.2
7.7
10
10
10
10
10
13.5
16.5
16
16.5
21.5
16.5
21.5
21.5
5.2
5.2
5.2
5.2
7.7
7.7
10
10
10
16
16.5
16.5
16.5
21.5
21.5
5.2
5.2
5.2
5.2
D55
E55
E55
F55
F80
H10
H10
H10
J10
J10
K14
L17
K16
M17
L22
M17
L22
M22
E55
E55
F55
F55
F80
F80
H10
H10
J10
K16
L17
L17
M17
L22
M22
D55
E55
F55
F55
0.30
0.30
0.30
0.30
0.45
0.40
0.45
0.45
0.40
0.45
0.40
0.40
0.42
0.42
0.44
0.44
0.48
0.48
0.24
0.24
0.24
0.30
0.35
0.35
0.35
0.35
0.35
0.36
0.36
0.38
0.38
0.40
0.40
0.20
0.20
0.20
0.20
22.602
15.068
10.58
4.973
3.39
2.009
1.587
1.097
0.663
0.497
0.301
0.301
0.211
0.211
0.155
0.155
0.117
0.117
18.082
12.055
8.464
4.973
3.868
2.637
1.758
1.234
0.58
0.271
0.271
0.191
0.191
0.141
0.141
33.15
15.068
10.045
7.053
10 Volts
13 Volts Surge
16 Volts
20 Volts Surge
*
Refer to diagrams for detailed case size dimensions.
4 /6
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
SURFACE MOUNT-105 C
MVE Series
Standard Voltage Ratings - Surface Mount
Rated
Voltage
(WVDC)
Capacitance
(µF )
Catalog
Part Number
Nominal
Case Size*
D L ( mm )
Case
Code
Dissipation
Factor (Tan )
20 C, 120Hz
Engineering Bulletin Dec 02
MVE
Maximum ESR
(
Ω
) at
20 C, 120Hz
Rated
Ripple Current
( mA rms) at
105 C, 120Hz
69
100
120
290
320
470
550
650
950
1,000
1,200
1,200
27
44
50
60
100
240
320
450
490
820
880
1,250
1,300
16
27
44
54
80
100
260
375
450
520
650
750
1,000
1,450
5
8
12
15
20
32
47
65
80
230
375
500
600
700
750
1,200
16 Volts
20 Volts Surge
100
150
220
330
470
680
1,000
1,000
2,200
2,200
3,300
3,300
10
22
33
47
100
150
220
330
470
1,000
1,000
2,200
2,200
4.7
10
22
33
47
100
150
220
330
470
470
1,000
1,000
2,200
0.47
1.0
2.2
3.3
4.7
10
22
33
47
100
220
330
330
470
470
1,000
MVE16VC101MF55TP
MVE16VC151MF80TP
MVE16VC221MF80TP
MVE16VC331MH10TP
MVE16VC471MH10TP
MVE16VC681MJ10TP
MVE16VC102MK14TP
MVE16VD102ML17TR
MVE16VD222ML17TR
MVE16VD222MM17TR
MVE16VD332ML22TR
MVE16VD332MM17TR
MVE25VC10RME55TP
MVE25VC22RMF55TP
MVE25VC33RMF55TP
MVE25VC47RMF55TP
MVE25VC101MF80TP
MVE25VC151MH10TP
MVE25VC221MH10TP
MVE25VC331MJ10TP
MVE25VC471MJ10TP
MVE25VD102ML17TR
MVE25VD102MM17TR
MVE25VD222ML22TR
MVE25VD222MM22TR
MVE35VC4R7MD55TP
MVE35VC10RME55TP
MVE35VC22RMF55TP
MVE35VC33RMF60TP
MVE35VC47RMF80TP
MVE35VC101MF80TP
MVE35VC151MH10TP
MVE35VC221MJ10TP
MVE35VC331MJ10TP
MVE35VC471MK14TP
MVE35VD471ML17TR
MVE35VD102ML17TR
MVE35VD102MM17TR
MVE35VD222MM22TR
MVE50VCR47MD55TP
MVE50VC1R0MD55TP
MVE50VC2R2MD55TP
MVE50VC3R3MD55TP
MVE50VC4R7ME55TP
MVE50VC10RMF55TP
MVE50VC22RMF60TP
MVE50VC33RMF80TP
MVE50VC47RMF80TP
MVE50VC101MH10TP
MVE50VC221MJ10TP
MVE50VC331MK14TP
MVE50VD331ML17TR
MVE50VD471ML17TR
MVE50VD471MM17TR
MVE50VD102MM22TR
6.3
6.3
6.3
8
8
10
12.5
16
16
18
16
18
5
6.3
6.3
6.3
6.3
8
8
10
10
16
18
16
18
4
5
6.3
6.3
6.3
6.3
8
10
10
12.5
16
16
18
18
4
4
4
4
5
6.3
6.3
6.3
6.3
8
10
12.5
16
16
18
18
5.2
7.7
7.7
10
10
10
13.5
16.5
16.5
16.5
21.5
16.5
5.2
5.2
5.2
5.2
7.7
10
10
10
10
16.5
16.5
21.5
21.5
5.2
5.2
5.2
5.7
7.7
7.7
10
10
10
13.5
16.5
16.5
16.5
21.5
5.2
5.2
5.2
5.2
5.2
5.2
5.7
7.7
7.7
10
10
13.5
16.5
16.5
16.5
21.5
F55
F80
F80
H10
H10
J10
K14
L17
L17
M17
L22
M17
E55
F55
F55
F55
F80
H10
H10
J10
J10
L17
M17
L22
M22
D55
E55
F55
F60
F80
F80
H10
J10
J10
K14
L17
L17
M17
M22
D55
D55
D55
D55
E55
F55
F60
F80
F80
H10
J10
K14
L17
L17
M17
M22
0.26
0.28
0.28
0.28
0.28
0.28
0.30
0.30
0.32
0.32
0.34
0.34
0.16
0.16
0.16
0.16
0.18
0.18
0.18
0.16
0.18
0.26
0.26
0.28
0.28
0.14
0.14
0.14
0.14
0.16
0.16
0.16
0.16
0.16
0.22
0.22
0.22
0.22
0.24
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.14
0.14
0.14
0.14
0.18
0.18
0.18
0.18
0.18
4.31
3.094
2.11
1.406
0.987
0.683
0.497
0.497
0.241
0.241
0.171
0.171
26.52
12.055
8.036
5.643
2.984
1.989
1.356
0.804
0.635
0.431
0.431
0.211
0.211
49.372
23.205
10.548
7.032
5.643
2.652
1.768
1.205
0.804
0.776
0.776
0.365
0.365
0.181
423.191
198.9
90.409
60.273
42.319
19.89
9.041
7.032
4.937
2.321
1.055
0.904
0.904
0.635
0.635
0.298
25 Volts
32 Volts Surge
35 Volts
44 Volts Surge
50 Volts
63 Volts Surge
*
Refer to diagrams for detailed case size dimensions.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
5 /6
京公网安备 11010802033920号
EEWORLD
