SI513

Description
DUAL FREQUENCY CRYSTAL OSCILLATOR
File Size1MB,20 Pages
ManufacturerSILABS
Websitehttp://www.silabs.com
Download Datasheet Compare View All

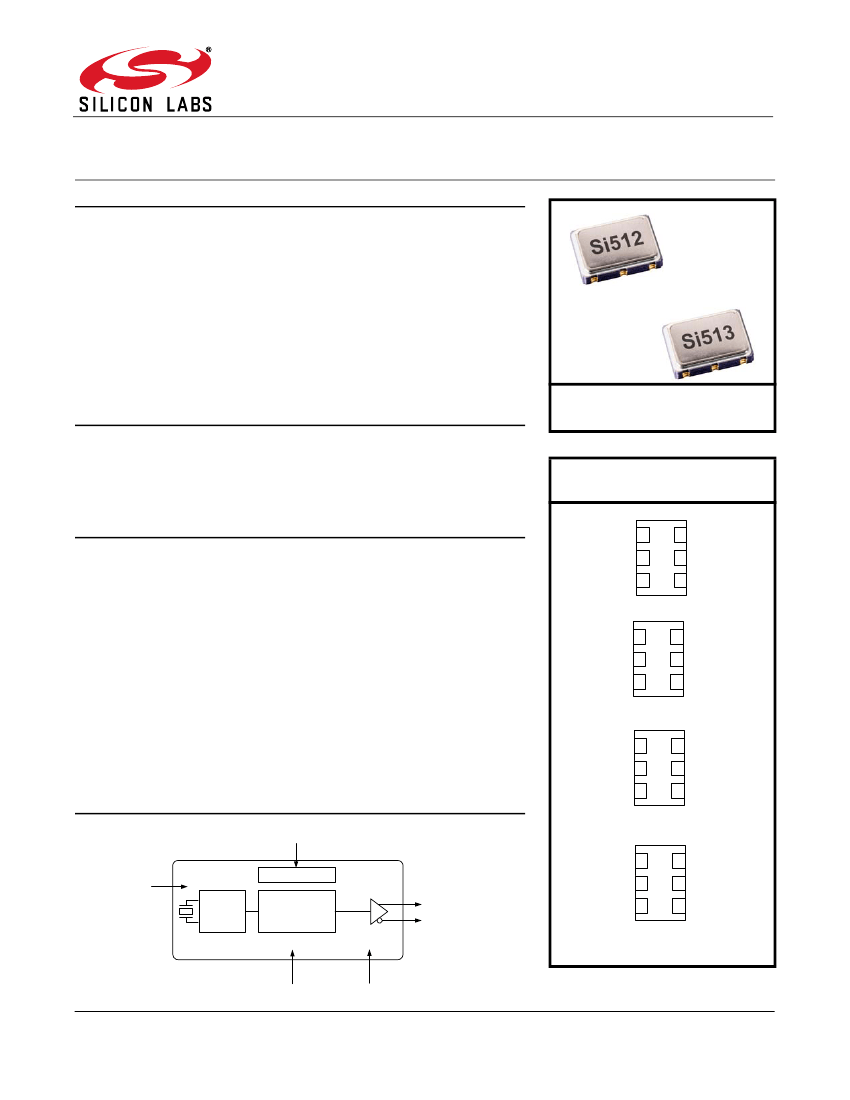

SI513 Overview

DUAL FREQUENCY CRYSTAL OSCILLATOR

S i 5 1 2 / 5 13
D
U A L
F
REQUENCY
C
R Y S TA L
O
SCILLATOR
(XO )
100 k H
Z T O
250 M H
Z
Features
Supports any frequency from
100 kHz to 250 MHz
Two selectable output frequencies
Low-jitter operation
2 to 4 week lead times
Total stability includes 10-year
aging
Comprehensive production test
coverage includes crystal ESR and
DLD
On-chip LDO regulator for power
supply noise filtering
3.3, 2.5, or 1.8 V operation
Differential (LVPECL, LVDS,
HCSL) or CMOS output options
Optional integrated 1:2 CMOS
fanout buffer
Runt suppression on OE and
power on
Industry standard 5x7 and
3.2x5 mm packages
Pb-free, RoHS compliant
–40
to 85
o
C operation
Si5602
Ordering Information:
See page 13.
Applications
SONET/SDH/OTN
Gigabit Ethernet
Fibre Channel/SAS/SATA
PCI Express
Broadcast video
Switches/routers
Telecom
FPGA/ASIC clock generation
Pin Assignments:
See page 12.
Description
The Si512/513 dual frequency XO utilizes Silicon Laboratories' advanced
PLL technology to provide any frequency from 100 kHz to 250 MHz. Unlike a
traditional XO where a different crystal is required for each output frequency,
the Si512/513 uses one fixed crystal and Silicon Labs’ proprietary any-
frequency synthesizer to generate any frequency across this range. This IC-
based approach allows the crystal resonator to provide enhanced reliability,
improved mechanical robustness, and excellent stability. In addition, this
solution provides superior supply noise rejection, simplifying low jitter clock
generation in noisy environments. The Si512/513 is factory-configurable for a
wide variety of user specifications, including frequency, supply voltage,
output format, output enable polarity, and stability. Specific configurations are
factory-programmed at time of shipment, eliminating long lead times and
non-recurring engineering charges associated with custom frequency
oscillators.
FS
OE
GND
1
2
3
6
5
4
V
DD
NC
CLK
Si512 CMOS Dual XO
OE
FS
GND
1
2
3
6
5
4
V
DD
NC
CLK
Si513 CMOS Dual XO
FS
OE
GND
1
2
3
6
5
4
V
DD
CLK–
CLK+
Functional Block Diagram
V
DD
Si512 LVDS/LVPECL/HCSL/CMOS
Dual XO
OE
1
2
3
6
5
4
V
DD
OE
Fixed
Frequency
Oscillator
Power Supply Filtering
FS
CLK–
CLK+
Any-Frequency
0.1 to 250 MHz
DSPLL
®
Synthesis
CLK+
CLK–
GND
Si513 LVDS/LVPECL/HCSL/CMOS
Dual XO
FS
GND
Rev. 1.0 5/12
Copyright © 2012 by Silicon Laboratories
Si512/13
