QX8N33B12.00000B30TT datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> QX8N33B12.00000B30TT

Preview

QX8N33B12.00000B30TT: DescriptionHCMOS Output Clock Oscillator, 12MHz Nom, DIL-8/4; CategoryPassive components oscillator; File Size182KB，2 Pages; ManufacturerQANTEK Technology Corporation; Environmental Compliance

Download Datasheet Parametric View All

QX8N33B12.00000B30TT Overview

HCMOS Output Clock Oscillator, 12MHz Nom, DIL-8/4

QX8N33B12.00000B30TT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145122520132
package instruction	DIL-8/4
Reach Compliance Code	unknown
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	THROUGH HOLE MOUNT
Number of terminals	8
Nominal operating frequency	12 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	30 pF
physical size	13.21mm x 13.21mm x 5.87mm
longest rise time	10 ns
Maximum slew rate	5 mA
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

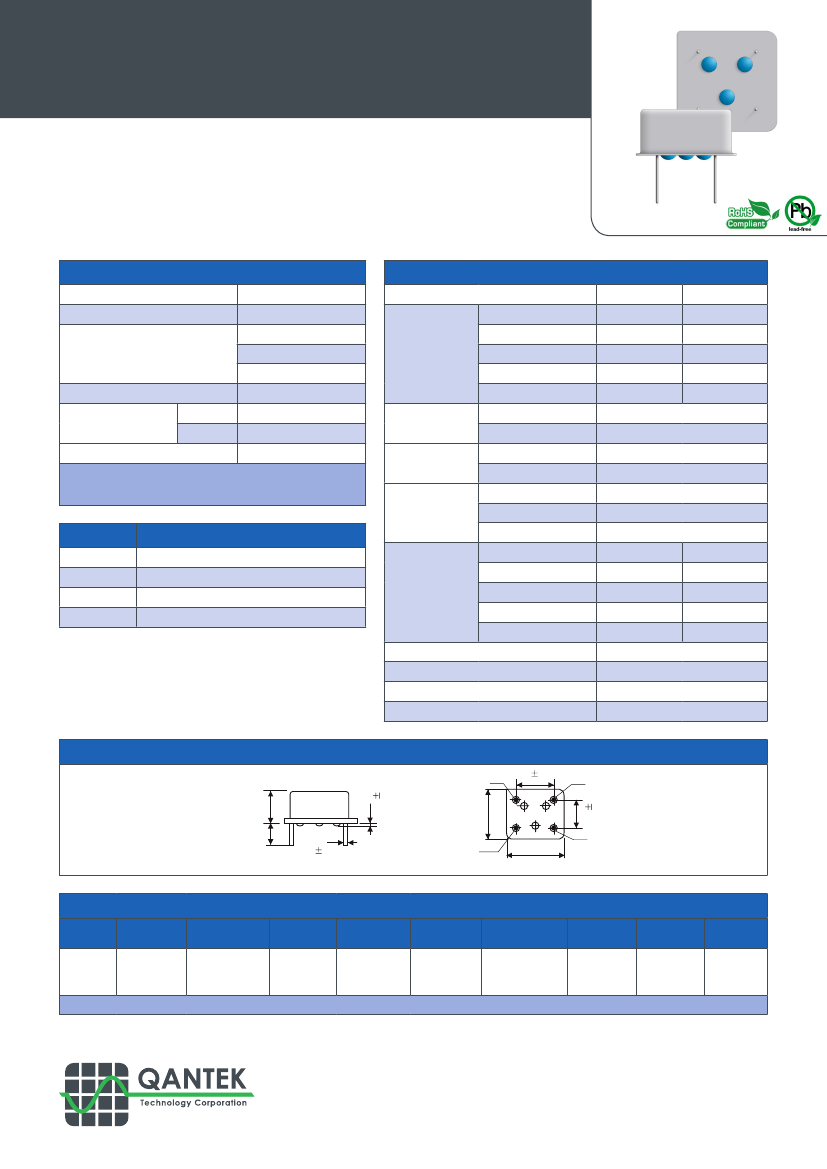

QX8 Series

8 pin Dual-in-Line HCMOS Clock Oscillator

Features

• Industry-standard 8 pin DIL package for

compatibility

• Frequency range from 0.252kHz to 150MHz

• Choice of supply voltage 3.3 or 5.0 Volts DC

• Hermetically sealed package for reliability

and low aging

• Optional Tristate function (Enable/Disable)

General Specifications

Frequency Range

Output Logic

Temperature Stability*

0.500 to 155.000MHz

HCMOS

±100ppm

±50ppm

±25ppm

Aging per year

Operating Temperature

Range

Storage Temperature Range

±5ppm

Standard -10 to +70°C

Industrial -40 to +85°C

-55 to +125°C

Electrical Specifications

Supply Voltage

Input Current

0.500 to 24.000MHz

24.100 to 50.000MHz

50.100 to 70.000MHz

70.100 to 80.000MHz

80.100 to 155.000MHz

Output Voltage

Output

Symmetry

Output Load

Logic High (Voh)

Logic Low (Vol)

Standard

Tight

Standard

Medium

Heavy

Rise and Fall Time

0.500 to 24.000MHz

24.100 to 50.000MHz

50.100 to 70.000MHz

70.100 to 80.000MHz

80.100 to 155.000MHz

Standby Function

Output Eable/Disable Time

Standby Current

Start Up Time

6ns max.

4ns max.

3.3Vdd ±10%

5mA

10mA

25mA

60mA

90% Vdd min.

10% Vdd max.

40 to 60%

45 to 55%

15pF max.

30pF max.

50pF max.

10ns max.

6ns max.

4ns max.

5.0Vdd ±10%

10mA

15mA

50mA

60mA

* Frequency stability is inclusive of calibration tolerance at 25°C, frequency

change due to shock & vibration, ±10% supply voltage variation and stability over

temperature range.

Pin Connection

1 NC or Tristate (Enable/Disable)

4 Ground

5 Output

8 +Vdd

Tristate (optional)

100ns max.

10μA max.

10ms max.

Mechanical Dimensions

0. 08

#1

13. 21Ma x.

7.62

0.13

5. 08Ma x.

0. 79

0. 13

7. 62

#5

13.21Max.

#4

6.35Min.

0.46

0.08 DIA

#8

Pin Connection:

#1

E/D,

#4

GND,

#5

Output,

#8

VDC

Enable/Disable Function:

E/D (#1)

Output (#5),

High (Open)

Operating,

Low

High Impedance

Part Numbering Guide

Qantek Code

Q = Qantek

Package

X8 = DIP8

Option

N = not connected

T = Tristate

=

(Enable/Disable)

Supply Voltage

33 = 3.3V

50 = 5.0V

Frequency

Stability

A = ±25ppm

B = ±50ppm

C = ±100ppm

Frequency

in MHz, always

8 digits including

the decimal point

(f.ie. 20.00000)

Operating Tempera-

ture Range

A = -10 to +70°C

B = -40 to +85°C

Load

Capacitance

15 = 15pF

30 = 30pF

50 = 50pF

Tight Symmetry

Indicator

T = 45/55

Packaging

T = Tube

Example: QX8T33B20.00000B15T

QANTEK Technology Corporation

Phone: +1 877-227-0440 (tollfree)

Fax:

+1 877-227-0440 (tollfree)

www.qantek.com

info@qantek.com

QX8 Rev. 0.3
