PIDC37P datasheet, PDF - EEWORLD Datasheet

PIDC37P: DescriptionD Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Receptacle; CategoryThe connector The connector; File Size131KB，1 Pages; ManufacturerEDAC

Download Datasheet Parametric View All

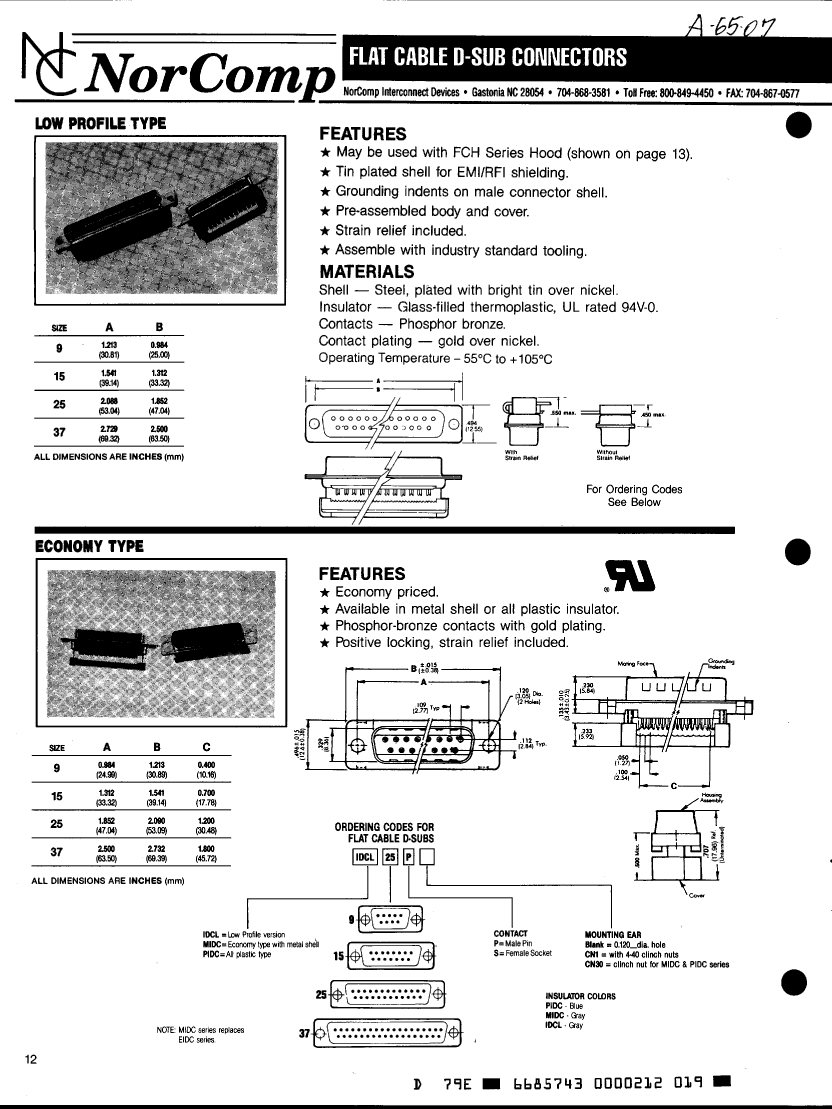

PIDC37P Overview

D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Receptacle

Parameter Name	Attribute value
Objectid	300021102
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ALL PLASTIC TYPE
body width	0.496 inch
subject depth	0.5 inch
body length	2.732 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	RND PIN-SKT
Insulator color	GRAY
insulator material	GLASS FILLED POLYETHYLENE
Manufacturer's serial number	IDC
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .112-.124
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Termination type	IDC
Total number of contacts	37
