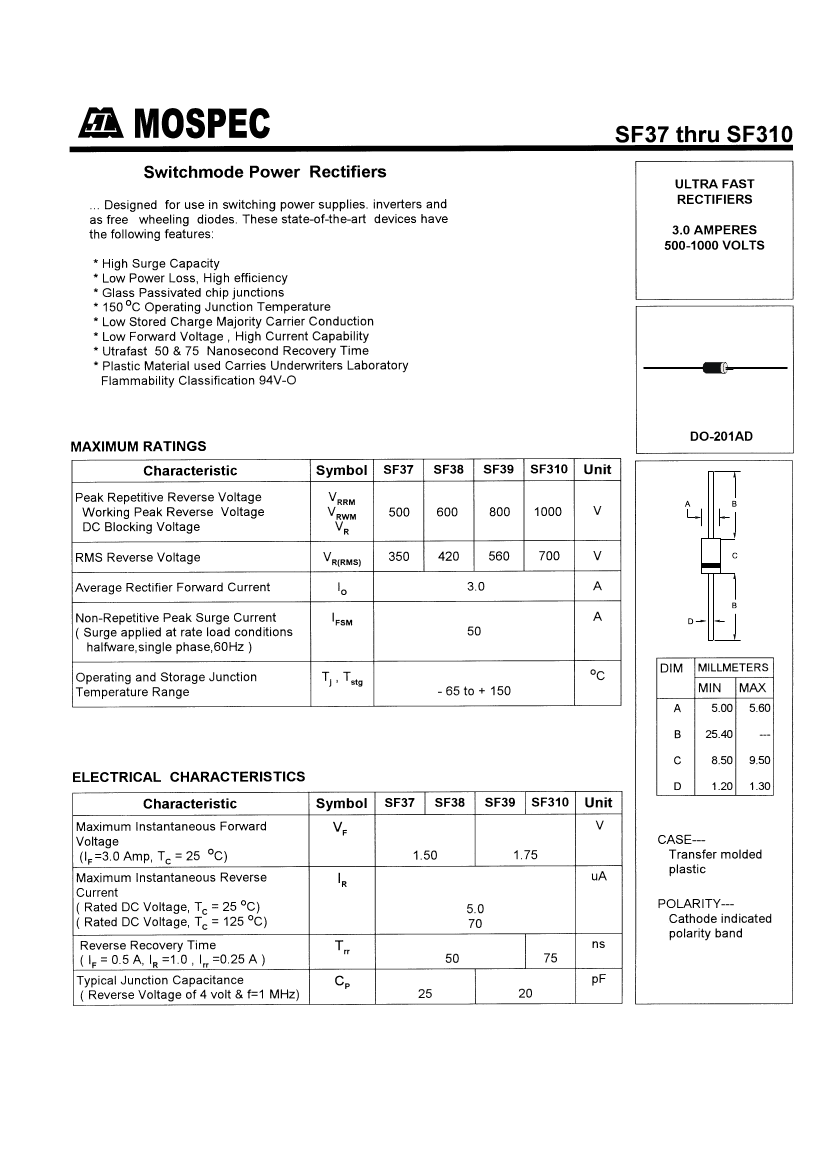

Preview

SF37: Description3 A, 600 V, SILICON, RECTIFIER DIODE, DO-201AD; CategoryDiscrete semiconductor diode; File Size129KB，2 Pages; ManufacturerMOSPEC; Websitehttp://www.mospec.com.tw/eng/index.html

Download Datasheet Parametric Compare View All

SF37 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SF37	-	-	View	Buy Now

SF37 Overview

3 A, 600 V, SILICON, RECTIFIER DIODE, DO-201AD

SF37 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Is Samacsys	N
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	500 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

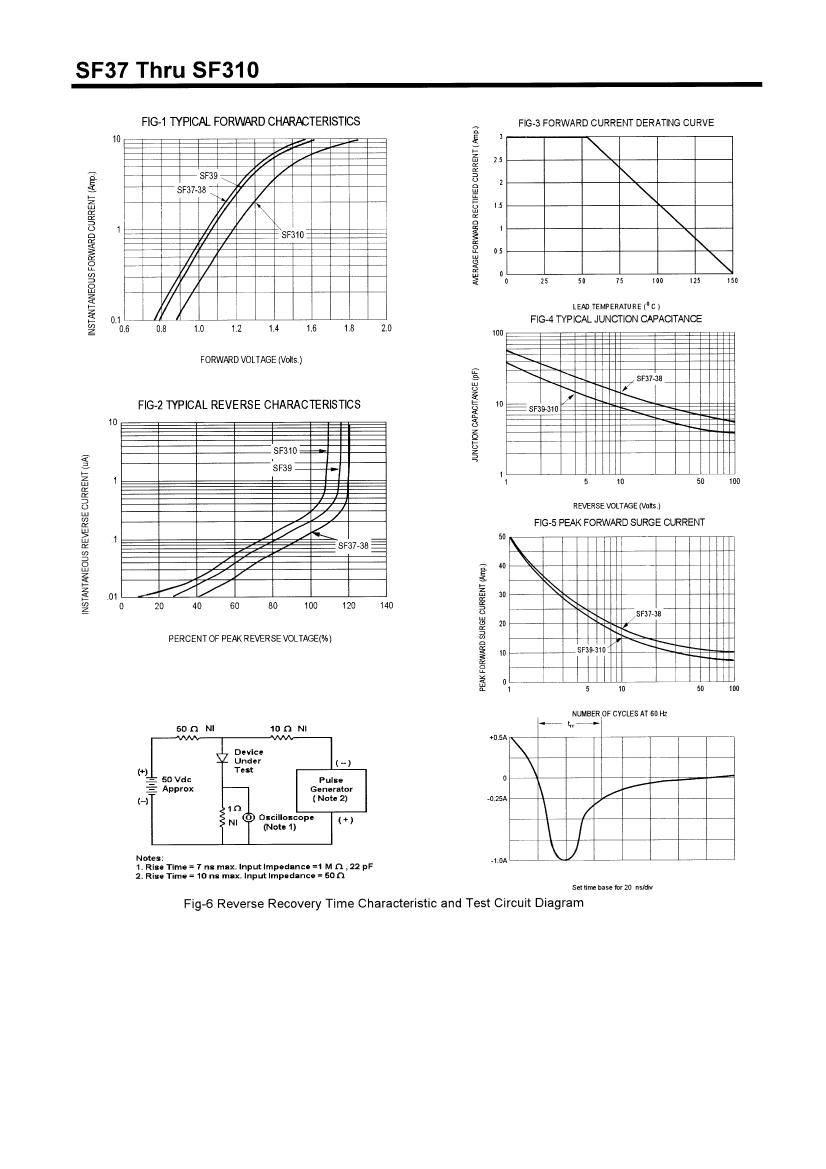

Preview

Download Datasheet

View All

SF37 Related Products

	SF37	SF39	SF38	SF310
Description	3 A, 600 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, SILICON, RECTIFIER DIODE, DO-201AD	3 A, SILICON, RECTIFIER DIODE, DO-201AD	3 A, SILICON, RECTIFIER DIODE, DO-201AD
Reach Compliance Code	unknow	unknow	unknow	unknow
Other features	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V	1.75 V	1.5 V	1.75 V
JEDEC-95 code	DO-201AD	DO-201AD	DO-201AD	DO-201AD
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	3 A	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum repetitive peak reverse voltage	500 V	800 V	600 V	1000 V
Maximum reverse current	5 µA	5 µA	5 µA	5 µA
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs	0.075 µs
surface mount	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL
Maker	-	MOSPEC	MOSPEC	MOSPEC
package instruction	-	O-PALF-W2	O-PALF-W2	O-PALF-W2
