B37878-K9682-J062 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> B37878-K9682-J062

B37878-K9682-J062: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.0068uF, SURFACE MOUNT, 1206, CHIP; CategoryPassive components capacitor; File Size201KB，6 Pages; ManufacturerEPCOS (TDK)

Download Datasheet Parametric Compare View All

B37878-K9682-J062 Overview

CAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.0068uF, SURFACE MOUNT, 1206, CHIP

B37878-K9682-J062 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1951881523
package instruction	, 1206
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0068 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Manufacturer's serial number	B37878
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, BLISTER, 7 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	16 V
size code	1206
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND

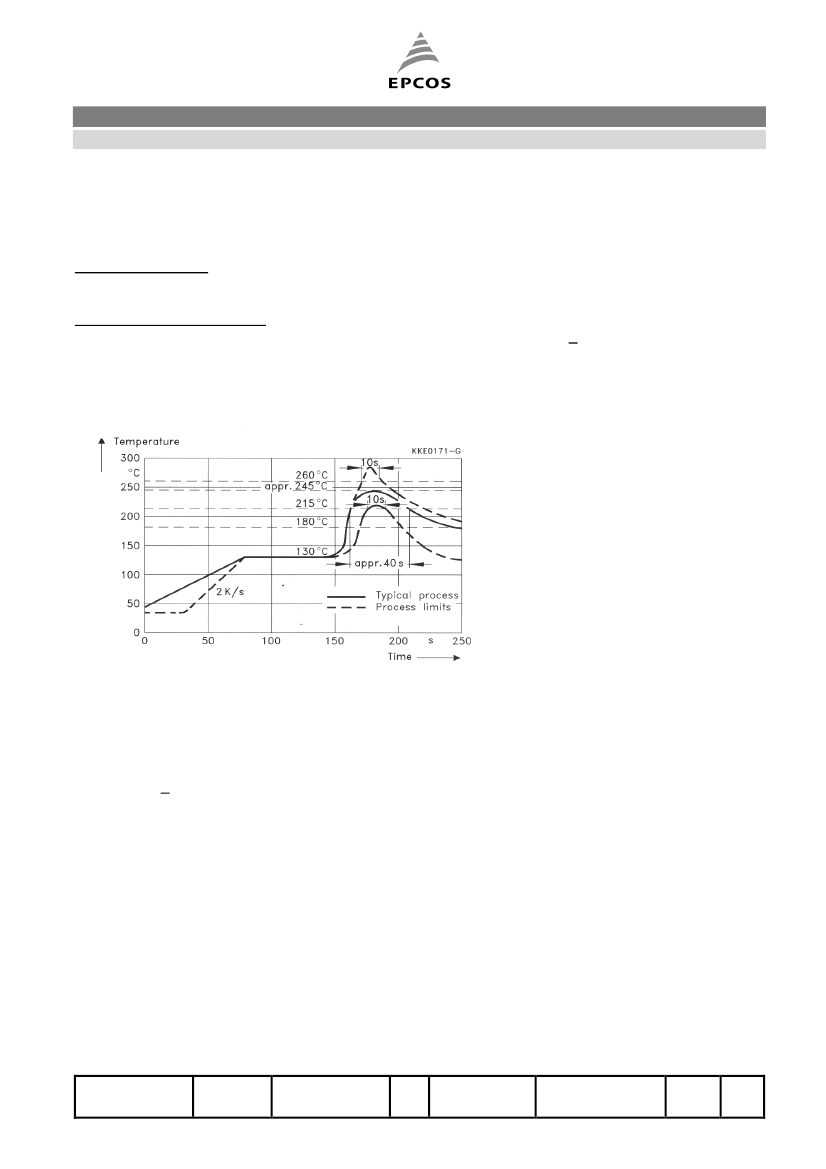

Preview

Download Datasheet

View All

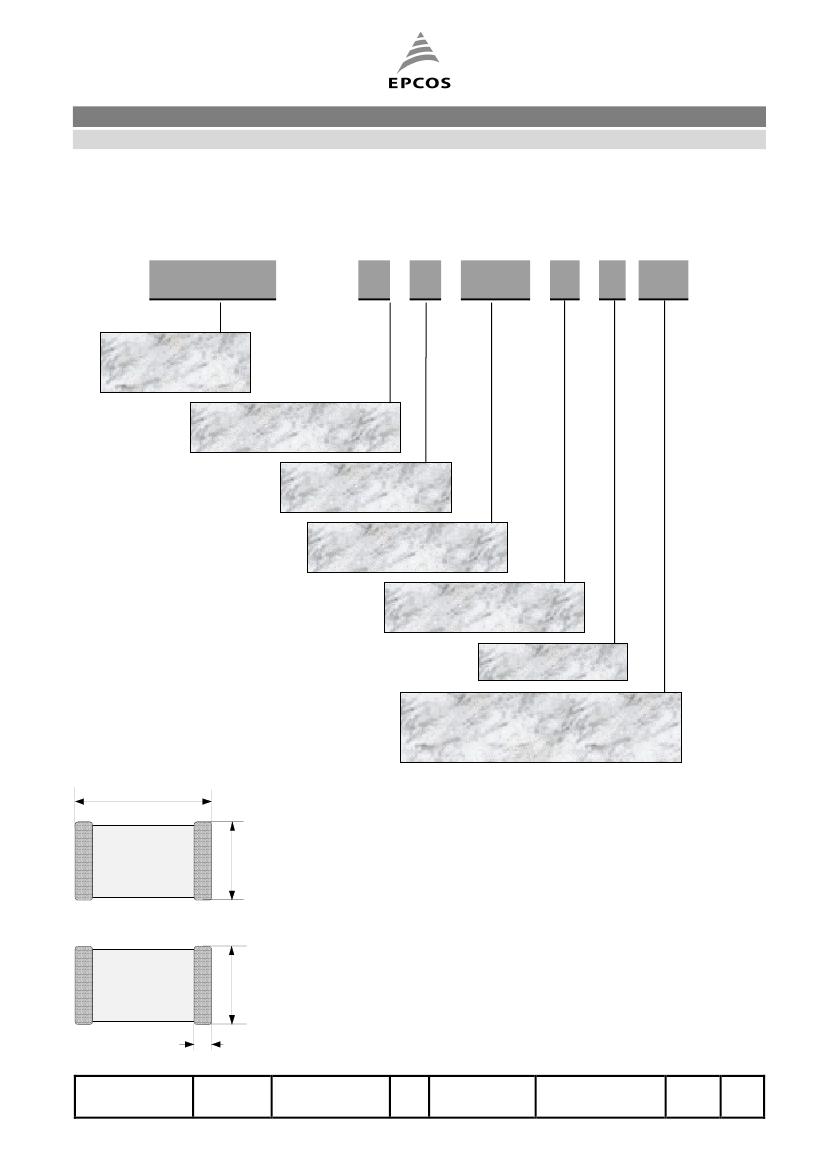

Multilayer Ceramic Capacitor

CPPS – Chip / Size 1206

Data sheet

CPPS / 1206 / 16V

B37878K9******

Order Code System

B37878

Type and Size:

K 9 103

J 0 62

CPPS / 1206

Metallization Type:

K = Ag/Ni/Sn

Rated Voltage:

9 = 16V

Rated Capacitance:

103 = 10 x 10

Capacitance Tolerance:

J = ±5%

K = ±10%

Internal Code

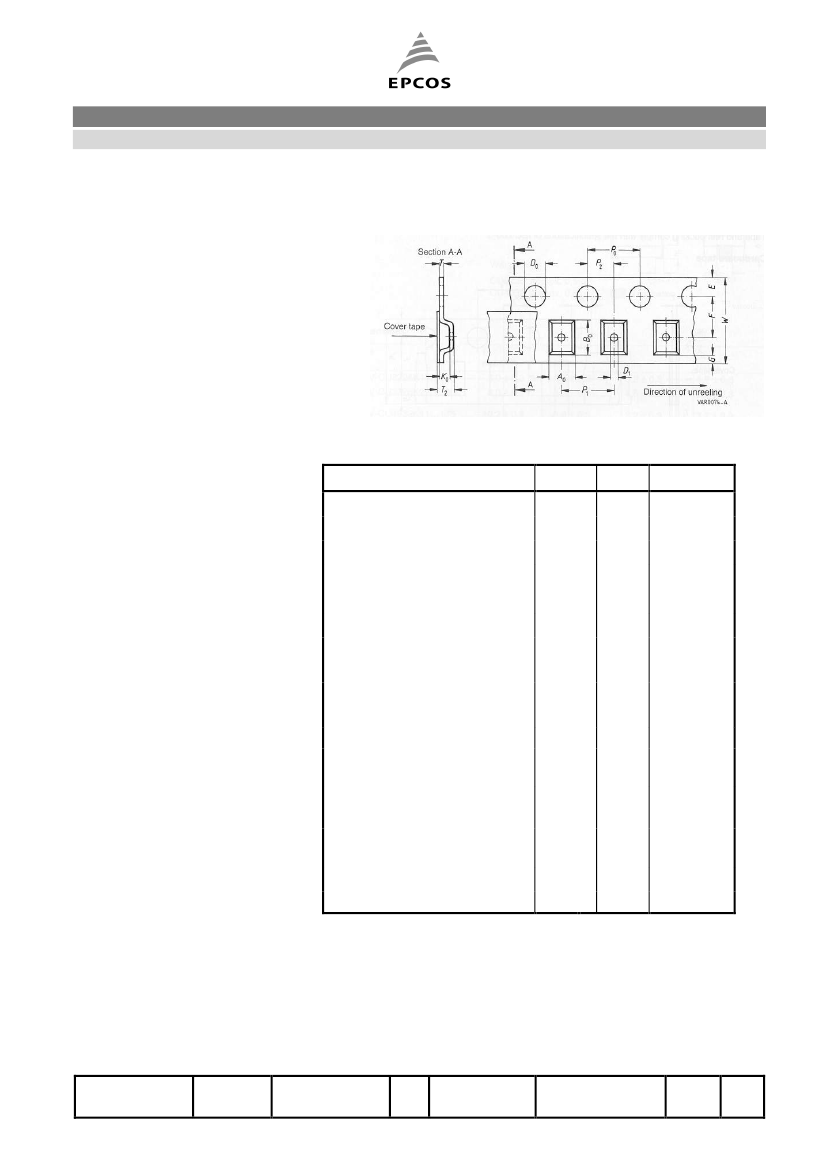

Packaging code:

Part Dimensions

72 = blister tape, 330mm reel

62 = blister tape, 180mm reel

l = 3,2 ± 0,2

b = 1,6 ± 0,5

s = 1,4 max.

k = 0,5 ± 0,25

All Dimensions in [mm]

Tolerances acc. to CECC 32 101-801

ISSUE DATE

4.4.2002

ISSUE

PUBLISHER

EPCOS AG

PAGE

1/6

B37878-K9682-J062 Related Products

	B37878-K9682-J062	B37878-K9123-J062	B37878-K9123-J072	B37878-K9123-K062	B37878-K9123-K072	B37878-K9682-K062	B37878-K9682-K072	B37878-K9183-K062	B37878-K9183-K072
Description	CAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.0068uF, SURFACE MOUNT, 1206, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.012uF, SURFACE MOUNT, 1206, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.012uF, SURFACE MOUNT, 1206, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.012uF, SURFACE MOUNT, 1206, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.012uF, SURFACE MOUNT, 1206, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.0068uF, SURFACE MOUNT, 1206, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.0068uF, SURFACE MOUNT, 1206, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.018uF, SURFACE MOUNT, 1206, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, C0G, 0.018uF, SURFACE MOUNT, 1206, CHIP
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	, 1206	, 1206	, 1206	, 1206	, 1206	, 1206	, 1206	, 1206	, 1206
Reach Compliance Code	compliant	compli	compli	compli	compli	compli	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	0.0068 µF	0.012 µF	0.012 µF	0.012 µF	0.012 µF	0.0068 µF	0.0068 µF	0.018 µF	0.018 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	B37878	B37878	B37878	B37878	B37878	B37878	B37878	B37878	B37878
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
multi-layer	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
negative tolerance	5%	5%	5%	10%	10%	10%	10%	10%	10%
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR, BLISTER, 7 INCH	TR, BLISTER, 7 INCH	TR, BLISTER, 13 INCH	TR, BLISTER, 7 INCH	TR, BLISTER, 13 INCH	TR, BLISTER, 7 INCH	TR, BLISTER, 13 INCH	TR, BLISTER, 7 INCH	TR, BLISTER, 13 INCH
positive tolerance	5%	5%	5%	10%	10%	10%	10%	10%	10%
Rated (DC) voltage (URdc)	16 V	16 V	16 V	16 V	16 V	16 V	16 V	16 V	16 V
size code	1206	1206	1206	1206	1206	1206	1206	1206	1206
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Temperature characteristic code	C0G	C0G	C0G	C0G	C0G	C0G	C0G	C0G	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Maker	-	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	-	-
