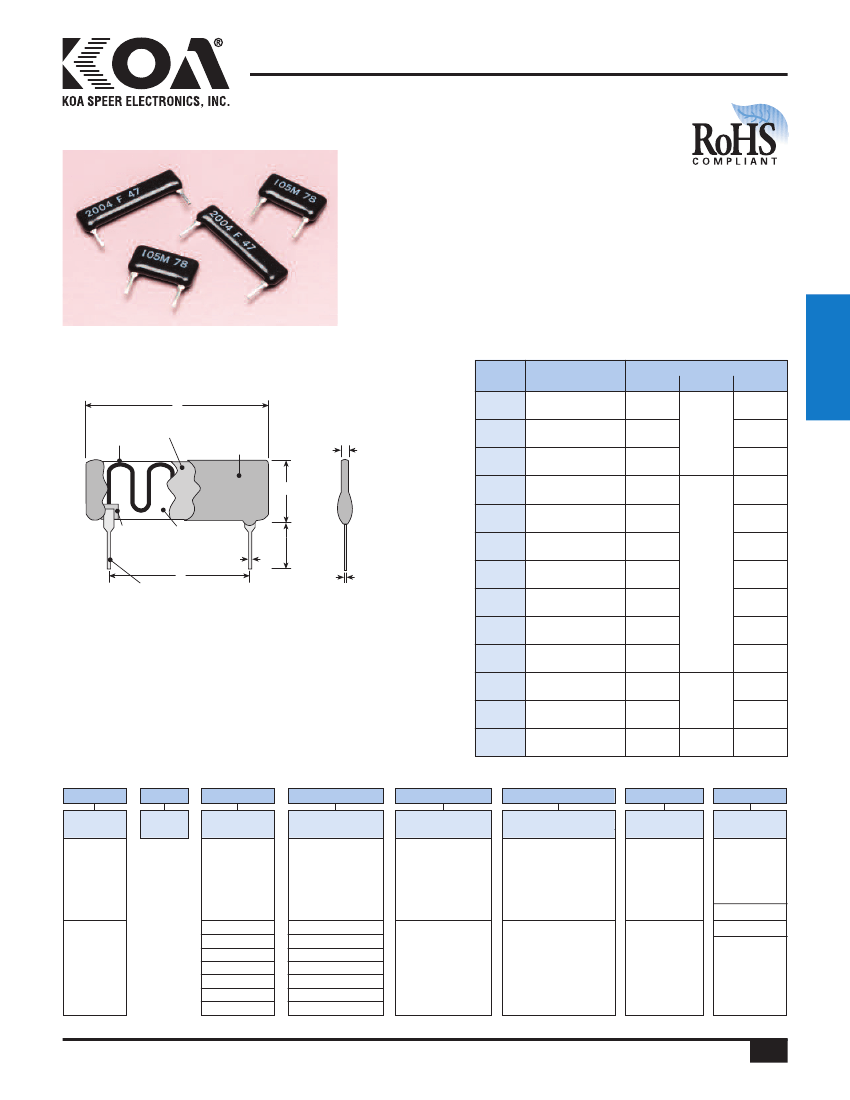

RK92
thick film resistors for high voltage
EU
features
•
High resistance resistors for high voltage circuits
•
Thin SIP shape
•
The flame retardant coats corresponding to UL94V-0
are used
•
Thick film resistors (RuO
2
) ensure high stabilities
in life and change in aging
•
Products with lead-free terminations meet EU RoHS
requirements. EU RoHS regulation is not intended for
Pb-glass contained in electrode, resistor element and glass.
dimensions and construction
Type
L
Inner Insulation
Resistive Coating Outer
Film
Coating Resin
4L
.098 Max
(2.5)
5L
6L
H
3C
4C
Inner
Ceramic
Electrode Substrate
.020±.004
(0.5±0.1)
P
Terminal
+.020
.118
-.012
(3.0
+0.5
)
-0.3
Max. Working
Voltage Symbol
Nil
Nil
Nil
Nil or 4
5
Nil or 6
7
Nil or 8
Nil or 9
Nil
Nil
Nil
Nil
Dimensions
inches
(mm)
L (Max.) H (Max.)
P
.500
(12.7)
.602
(15.3)
.701
(17.8)
.425
(10.8)
.524
(13.3)
.622
(15.8)
.724
(18.4)
.823
(20.9)
.925
(23.5)
1.02
(26.0)
1.22
(31.0)
1.93
(48.9)
1.93
(48.9)
.394
(10.0)
.520
(13.2)
.256
(6.5)
.200
(5.08)
.4±.008
(10.16±0.2)
.5±.008
(12.7±0.2)
.6±.008
(15.24±0.2)
.3±.008
(7.62±0.2)
.4±.008
(10.16±0.2)
.5±.008
(12.7±0.2)
.6±.008
(15.24±0.2)
.7±.008
(17.78±0.2)
.8±.008
(20.32±0.2)
.9±.008
(22.86±0.2)
1.1±.008
(27.94±0.2)
1.8±.008
(45.72±0.2)
1.8±.008
(45.72±0.2)
5C
6C
.10±.004
(0.25±0.1)
7C
8C
9C
11X
18X
18D
ordering information
RK92
Type
–
Dash
3C
Style
4L
5L
6L
3C
5C
7C
8C
9C
11X 18X
18D
18D
3C
4C
5C
6C
7C
8C
4
Max. Working
Voltage Symbol
D
Termination
Surface Material
1004
Nominal
Resistance
F
Resistance
Tolerance
F: ±1%
G: ±2%
J: ±5%
K: ±10%
M: ±20%
50
T.C.R.
(X10
-6
/K)
RK92
(Standard)
Nil
D: SnAgCu
(L: Sn/Pb)
F: 4 digits
G, J, K, M: 3 digits
Nil
100
100
RK92
(Presison)
Nil
4 (kV)
5 (kV)
6 (kV)
7 (kV)
8 (kV)
9 (kV)
D: SnAgCu
D, F: 4 digits
D: ±0.5%
F: ±1%
50
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
4/09/21
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
157
leaded
resistors
RK92
thick film resistors for high voltage
applications and ratings
Max.
Working
Part
Designation Voltage
Symbol
4L
5L
6L
3C
5C
leaded
resistors
100
80
% Rated Power
60
40
20
0
-60
Power
Rating
D: ±0.5%
0.5W
0.5W
0.6W
0.5W
0.75W
0.85W
1.0W
1.1W
1.7W
2.7W
4W
0.5W
0.6W
0.75W
0.8W
0.85W
1W
––
––
––
––
––
––
––
––
––
––
Resistance Range (Ω)
E-12 • 2x10
n
• 3x10
n
• 4x10
n
• 5x10
n
F: ±1%
2M - 10M
G: ±2%
2M - 10M
J: ±5% K: ±10% M: ±20%
––
––
––
T.C.R. Maximum Rated Operating
(ppm/°C) Working Ambient Temp.
Max.
Voltage
Temp.
Range
1kV
10kV
10kV
7kV
±300
10kV
-40°C
to
+125°C
Nil
Nil
Nil
Nil
Nil
Nil
Nil
Nil
Nil
Nil
Nil
4
5
6
7
8
9
1M - 500M 1M - 500M 1M - 1G 1M - 1G 1M - 1G
1M - 500M 1M - 500M 1M - 1G 1M - 1G 1M - 1G
1M - 500M 1M - 500M 1M - 1G 1M - 1G 1M - 1G
1M - 500M 1M - 500M 1M - 1G 1M - 1G 1M - 1G
1M - 500M 1M - 500M 1M - 1G 1M - 1G 1M - 1G
1M - 500M 1M - 500M 1M - 1G 1M - 1G 1M - 1G
1M - 500M 1M - 500M 1M - 1G 1M - 1G 1M - 1G
1M - 500M 1M - 500M 1M - 1G 1M - 1G 1M - 1G
1M - 500M 1M - 500M 1M - 1G 1M - 1G 1M - 1G
±100
––
––
––
––
––
––
––
––
––
––
––
––
––
––
––
––
––
––
––
––
––
––
––
––
±50
7C
8C
9C
11X
18X
18D
3C
4C
5C
6C
7C
8C
+70°C
15kV
4kV
5kV
6kV
7kV
8kV
9kV
1M - 100M 1M - 500M 1M - 500M 1M - 1G 1M - 1G 1M - 1G
1M - 100M 1M - 100M
1M - 100M 1M - 100M
1M - 150M 1M - 150M
1M - 150M 1M - 150M
1M - 200M 1M - 200M
1M - 200M 1M - 200M
Rated voltage =
√
Power Rating X Resistance Value or Max. working voltage, whichever is lower
Please contact factory for other values that are not listed above.
environmental applications
Derating Curve
3 Terminal Product
Circuit Schematics
R1
R2
For resistors operated at an ambient temperature
of 70°C or above, a power rating shall be derated
in accordance with the above derating curve.
-40
-20
-25
0
80 100 120 140
70
125
Ambient Temperature
(°C)
40
60
20
P1
P2
P3
Performance Characteristics
Parameter
Resistance
T.C.R.
Resistance to Solder Heat
Rapid Change of Temperature
Moisture Resistance
Endurance @ 70°C
Requirement
∆
R ±(% + 0.05Ω)
Limit
Typical
Within specified tolerance
Within specified tolerance
1%
1%
5%
5%
—
—
0.5%
0.5%
3%
3%
25°C
+25°C/+125°C
260°C ± 5°C, 10 seconds ± 1 second
-40°C (30 minutes)/ +125°C (30 minutes) 5 cycles
40°C ± 2°C, 90 - 95% RH, 1000 hours
Room temperature 1000 hours, Rated voltage
10/27/21
Test Method
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
158
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
