Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MBL8289CZ

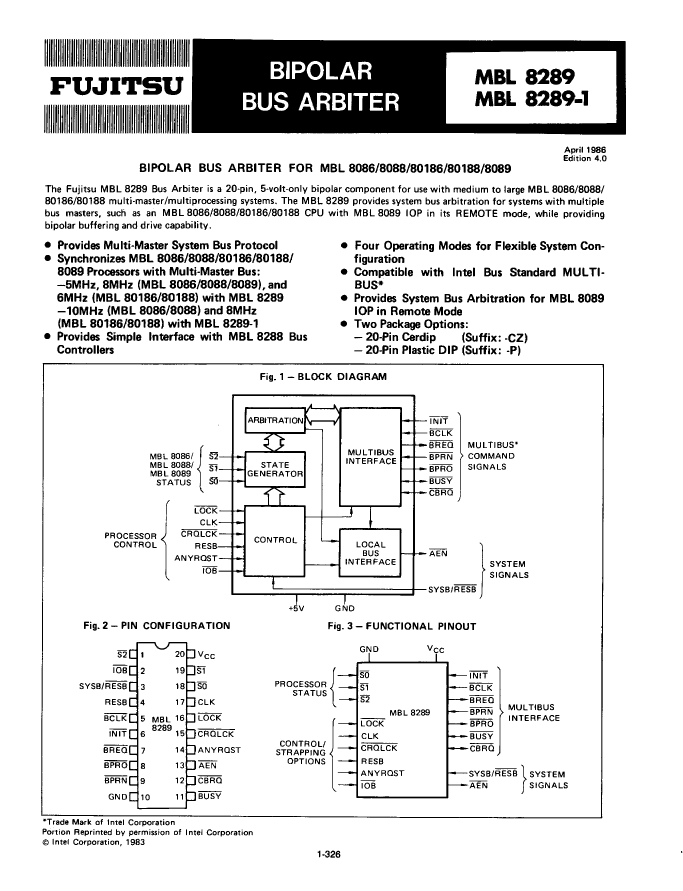

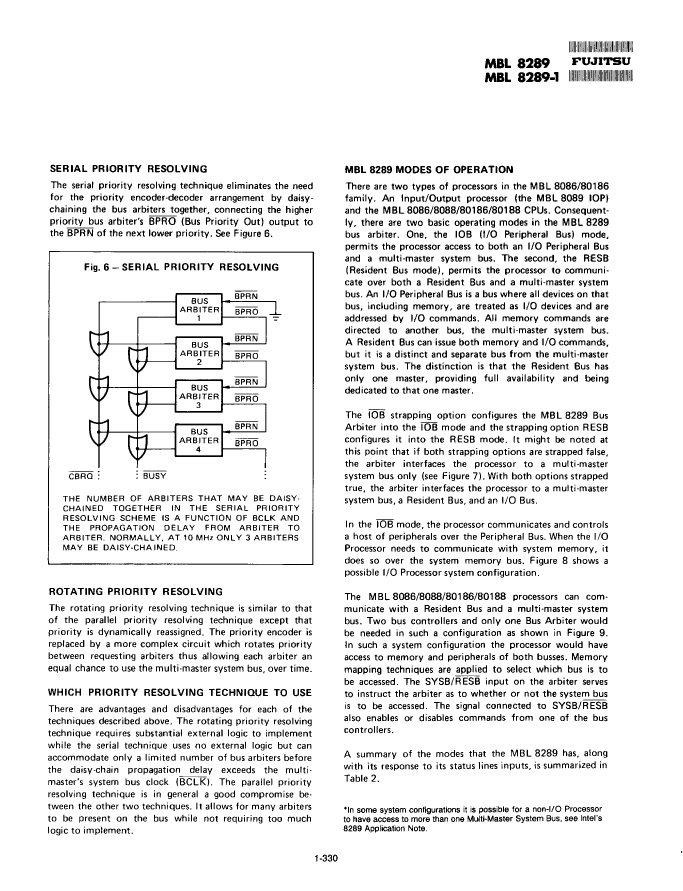

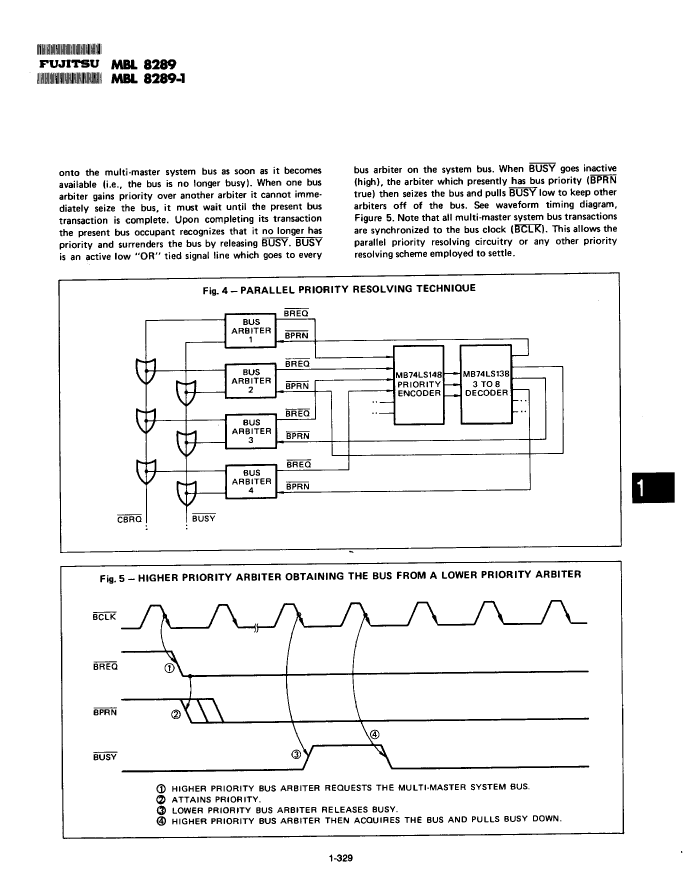

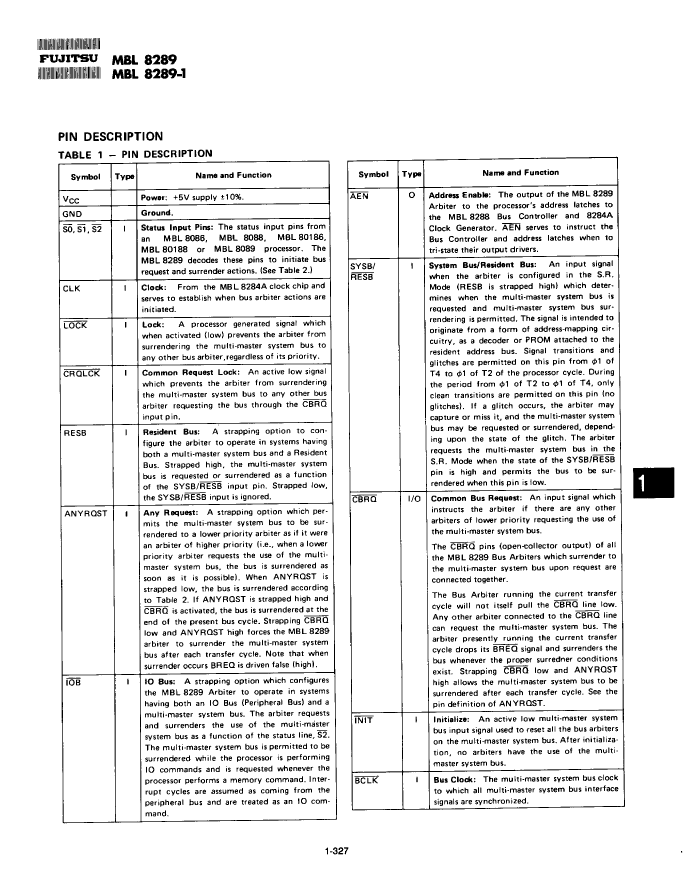

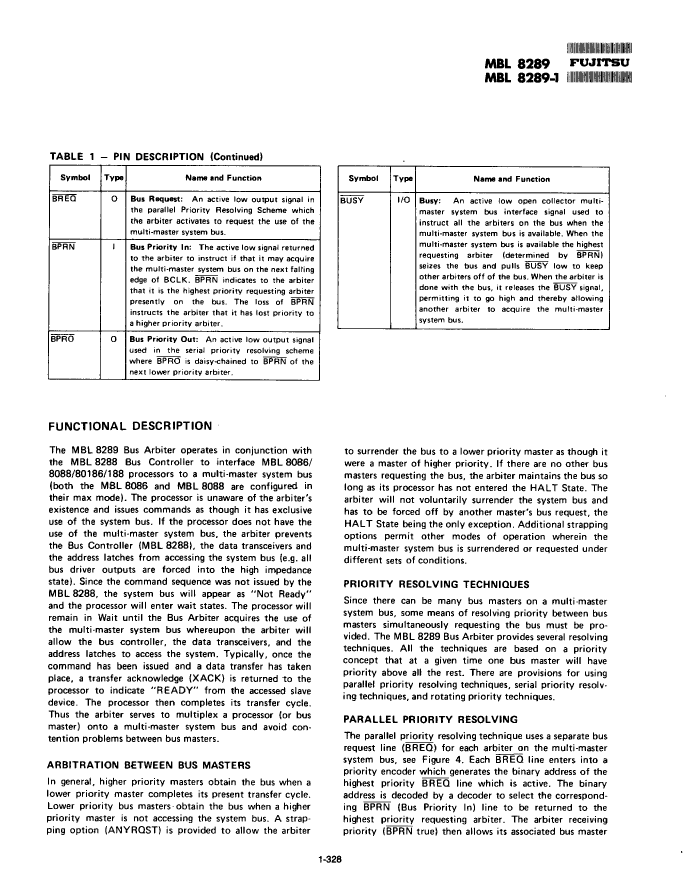

Preview

MBL8289CZ: DescriptionBus Arbiter/Continuous Signal Generator, MOS, CDIP20; CategoryThe embedded processor and controller Microcontrollers and processors; File Size722KB，12 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

MBL8289CZ Overview

Bus Arbiter/Continuous Signal Generator, MOS, CDIP20

MBL8289CZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	101006377
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T20
JESD-609 code	e0
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	NO
technology	MOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	SYSTEM INTERFACE LOGIC, BUS ARBITER AND CONTINUOUS SIGNAL GENERATOR

Preview

Download Datasheet

View All

MBL8289CZ Related Products

	MBL8289CZ	MBL8289-1CZ	MBL8289-1P	MBL8289P
Description	Bus Arbiter/Continuous Signal Generator, MOS, CDIP20	Bus Arbiter/Continuous Signal Generator, MOS, CDIP20	Bus Arbiter/Continuous Signal Generator, MOS, PDIP20	Bus Arbiter/Continuous Signal Generator, MOS, PDIP20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Objectid	101006377	101006380	101006407	101006404
package instruction	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T20	R-XDIP-T20	R-PDIP-T20	R-PDIP-T20
JESD-609 code	e0	e0	e0	e0
Number of terminals	20	20	20	20
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	MOS	MOS	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	SYSTEM INTERFACE LOGIC, BUS ARBITER AND CONTINUOUS SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, BUS ARBITER AND CONTINUOUS SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, BUS ARBITER AND CONTINUOUS SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, BUS ARBITER AND CONTINUOUS SIGNAL GENERATOR
