Series AM10CW-NZ
10 Watt | DC-DC Converter
Picture coming soon
FEATURES:
Wide 4:1 Input Voltage Range
High efficiency up to 88%
1500 VDC Isolation
Over Current Protection
No load consumption
≤
0.12W
Operating Temperature -40ºC to +85ºC
Output Over Voltage protection
Continuous Short Circuit Protection
Input Under voltage Protection
Remote On/Off control
Models
Single output
Model
AM10CW-2403S-NZ
AM10CW-2405S-NZ
AM10CW-2409S-NZ
AM10CW-2412S-NZ
AM10CW-2415S-NZ
AM10CW-2424S-NZ
AM10CW-4803S-NZ
AM10CW-4805S-NZ
AM10CW-4812S-NZ
AM10CW-4815S-NZ
AM10CW-4824S-NZ
Input
Voltage
(V)
9-36
9-36
9-36
9-36
9-36
9-36
18-75
18-75
18-75
18-75
18-75
Output
Voltage
(V)
3.3
5
9
12
15
24
3.3
5
12
15
24
Output
Current max
(A)
2.4
2
1.11
0.83
0.66
0.41
2.4
2
0.83
0.66
0.41
Isolation
(VDC)
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
Max
Capacitive
Load (uF)
2200
2200
680
470
330
100
2200
2200
470
330
100
Efficiency
(%)
79
83
86
87
87
88
79
83
87
87
88
Models
Dual output
Model
Input
Voltage
(V)
Output
Voltage
(V)
Output
Current max
(A)
Isolation
(VDC)
Max
Capacitive
Load (uF)
Efficiency
(%)
AM10CW-2405D-NZ
9-36
±5
±1
1500
±1000
83
AM10CW-2412D-NZ
9-36
±12
±0.41
1500
±470
87
AM10CW-2415D-NZ
9-36
±15
±0.33
1500
±330
87
AM10CW-2424D-NZ
9-36
±24
±0.2
1500
±100
87
AM10CW-4805D-NZ
18-75
±5
±1
1500
±1000
83
AM10CW-4812D-NZ
18-75
±12
±0.41
1500
±470
87
AM10CW-4815D-NZ
18-75
±15
±0.33
1500
±330
87
AM10CW-4824D-NZ
18-75
±24
±0.2
1500
±100
87
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at
rated output load unless otherwise specified.
Input Specifications
Parameters
Voltage range
Filter
Absolute Maximum Rating (100ms)
No Load Input Current
Input reflected current
Input Under voltage turn off
Startup time
Remote On/Off Control
24 Vin
48 Vin
24 Vin
48 Vin
24 Vin
48 Vin
24 Vin
48 Vin
Nominal input, resistive load
On
Off
Nominal
24 Vin
48 Vin
Pi
Typical
9-36
18-75
Maximum
Units
VDC
-0.7 - 50
-0.7 - 100
12
8
40
30
6.5
15.5
10
VDC
mA
mA
VDC
ms
3.5-12VDC or leave open
0-1.2VDC or connect to GND, idle current 6-10mA
www.aimtec.com
F 051e R13
Tel: +1 514 620 2722
1 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM10CW-NZ
10 Watt | DC-DC Converter
Isolation Specifications
Parameters
Tested I/O voltage
Resistance
Capacitance
Conditions
60 sec, <1mA
500VDC
I/O, 100KHz/0.1V
Typical
1500
1000
Maximum
>1000
Units
VDC
MOhm
pF
Output Specifications
Parameters
Voltage accuracy
Voltage balance (Dual Output Models)
Over voltage protection
Over current protection
Short Circuit protection
Short circuit restart
Line voltage regulation (Single)
Line voltage regulation (Dual)
Load voltage regulation (Single)
Load voltage regulation (Dual)
Cross Regulation (Dual Output Models)
Temperature coefficient
Ripple & Noise
Transient recovery time
Transient recovery deviation
Conditions
5% to 100% load
Balanced Load
Typical
±2
110-160
110-190
Continuous
Auto-Recovery
Maximum
±3
±1.5
Units
%
%
% of Vout
% of Iout
Full load, LL to HL
Full load, LL to HL
5% to 100% load
5% to 100% load
50% load on one output & 10-100%
load on second load
100% load
20MHz Bandwidth, 5-100% load
25% load step change
25% load step change
±0.5
±1
±1
±1.5
±5
±0.03
80
500
±5
% of Vin
% of Vin
%
%
%
%/
o
C
mV p-p
µs
%
General Specifications
Parameters
Switching frequency
Operating temperature
Storage temperature
Maximum case temperature
Cooling
Humidity
Case material
Weight
Dimensions
(L x W x H)
MTBF
Maximum soldering temperature
Conditions
100% load
See derating curve
Typical
350
-40 to +85
-55 to +125
Maximum
Units
KHz
o
C
o
C
o
C
% RH
g
100
Free air convection
95
Aluminum Alloy
15
1 x 1 x 0.46 inches
25.40 x 25.40 x 11.70 mm
o
>1,000,000 hours (MIL-HDBK -217F, Ground Benign, t=+25 C)
1.5mm from case for 10 sec
300
o
C
Environmental Specifications
Parameters
Vibration
Test mode
Acceleration
10-55Hz
10G, 30min one cycle, every axis tested
Safety Specifications
Parameters
Approval
CE, UL, pending
EN 55022, class B (with the recommended EMC circuit)
Electrostatic Discharge Immunity
IEC 61000-4-2, Contact ±4KV, Criteria B
RF, Electromagnetic Field Immunity
IEC 61000-4-3, 10V/m, Criteria A
Electrical Fast Transient / Burst Immunity
IEC 61000-4-4, ±2KV, Criteria B (with the recommended EMC circuit)
Surge Immunity
IEC 61000-4-5, ±2KV, Criteria B (with the recommended EMC circuit)
RF, Conducted Disturbance Immunity
IEC 61000-4-6, 3 Vrms, Criteria A
Voltage dips, Short Interruptions & Voltage
IEC 61000-4-29: 0-70%, Criteria B
variations Immunity
Standards
www.aimtec.com
F 051e R13
Tel: +1 514 620 2722
2 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM10CW-NZ
10 Watt | DC-DC Converter

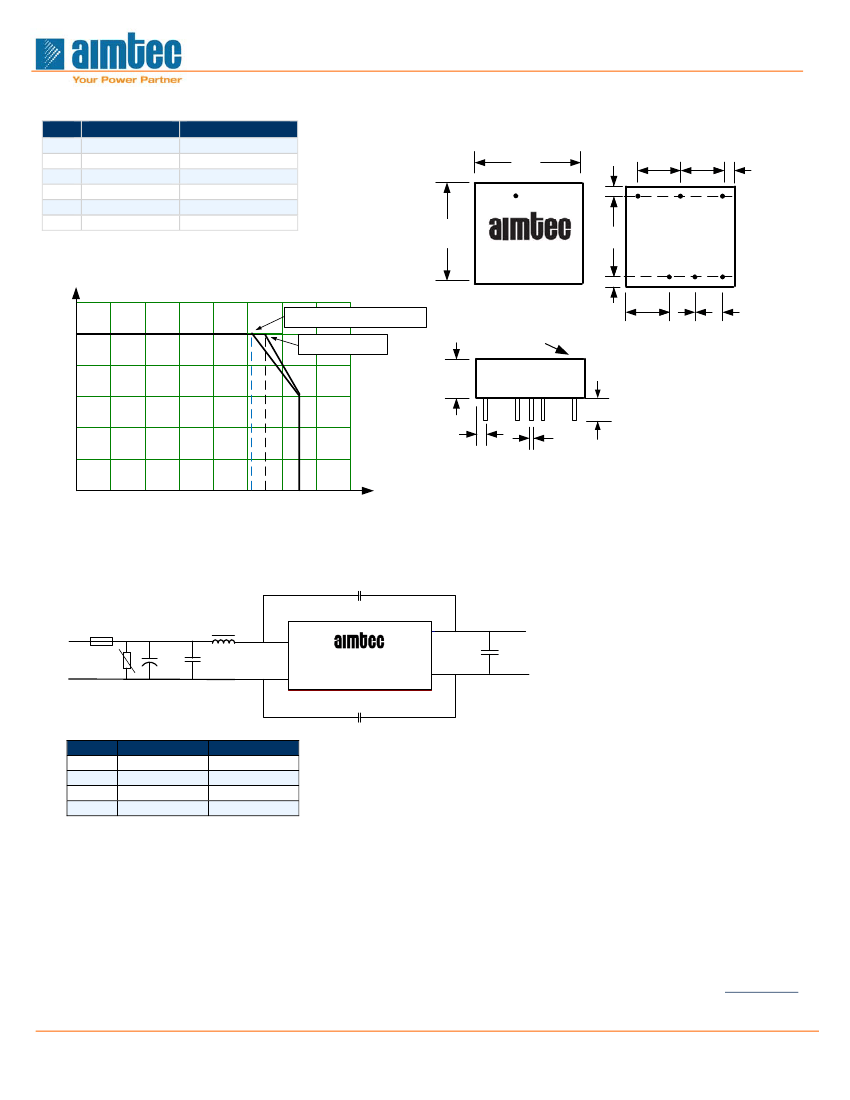

Pin Out Specifications
Pin
1
2
3
4
5
6
Single
+V Input
-V Input
On/Off Control
+V Output
No pin
-V Output
Dual
+V Input
-V Input
On/Off Control
+V Output
Common
-V Output
Dimensions
2.54
(0.10)
Top View
25.40
(1.00)
Bottom View
10.16
(0.40)
10.16 2.54
(0.40) (0.10)
25.40
(1.00)
+V Output
4
5
-V Output
6
20.32
(0.80)
Derating
Free Air Convection
65 ºC 3.3, 5V
& ±5V models
100
71ºC
Other models
2.54
(0.10)
10.16
(0.40)
+V
Input
1
-V
Input CTRL
2
3
5.08 7.62
(0.20) (0.30)
Side View
Printed Face
Output Power (%)
60
40
20
0
- 40
Safe Operating Area
4.10
(0.16)
2.54
(0.10)
ᴓ
1.00
(0.39)
11.70
(0.46)
- 20
0
20
40
60
65 71
80
80
85
100
Ambient Temperature
º C
Dimensions mm (inch)
Case Tolerance ±0.50 (±0.02)
Pin Diameter 1.0 ± 0.10 (0.04 ± 0.004)
Recommended EMC Circuits
CY1
1nF/2KV
F1
+Vin
MOV
‐Vin
CY2
1nF/2KV
C1
LDM
4.7µH
+Vo
C3
C2
DC‐DC Converter
‐Vo
MOV
C1
C2
C3
24V input
S14K35
330µF/50V
1µF/50V
10µF/50V
48V input
S14K60
330µF/100V
1µF/100V
10µF/100V
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4
. All specifications are measured at an ambient temperature of 25°C, humidity<75%,
