AP4501GM-HF
Halogen-Free Product
Advanced Power
Electronics Corp.
▼
Simple Drive Requirement
▼
Low On-resistance
▼
Fast Switching Performance
▼
RoHS Compliant & Halogen-Free
G1
D1
D2
D1
D2
N AND P-CHANNEL ENHANCEMENT
MODE POWER MOSFET
N-CH BV
DSS
R
DS(ON)
I
D
G2
S2
30V
28mΩ
7A
-30V
50mΩ
-5.3A
P-CH BV
DSS
R
DS(ON)
I
D
SO-8
S1
Description
AP4501 series are from Advanced Power innovated design
and silicon process technology to achieve the lowest possible
on-resistance and fast switching performance. It provides the
designer with an extreme efficient device for use in a wide
range of power applications.
The SO-8 package is widely preferred for all commercial-
industrial surface mount applications using infrared reflow
technique and suited for voltage conversion or switch
applications.
G1
D1
D2
G2
S1
S2
Absolute Maximum Ratings@T
j
=25
o
C(unless otherwise specified)
.
Symbol
V
DS
V
GS
I
D
@T
A
=25℃
I
D
@T
A
=70℃
I
DM
P
D
@T
A
=25℃
T
STG
T
J
Parameter
Drain-Source Voltage
Gate-Source Voltage
Drain Current, V
GS
@ 10V
Drain Current, V
GS
@ 10V
Pulsed Drain Current
1
Total Power Dissipation
Linear Derating Factor
Storage Temperature Range
Operating Junction Temperature Range
3
3
Rating
N-channel
30
+20
7.0
5.8
20
2
0.016
-55 to 150
-55 to 150
P-channel
-30
+20
-5.3
-4.7
-20
Units
V
V
A
A
A
W
W/℃
℃
℃
Thermal Data
Symbol
Rthj-a
Parameter
Maximum Thermal Resistance, Junction-ambient
3
Value
62.5
Unit
℃/W
1
201501096AP
Data and specifications subject to change without notice
AP4501GM-HF
N-CH Electrical Characteristics@T
j
=25
o
C(unless otherwise specified)
Symbol
BV
DSS
R
DS(ON)
Parameter
Drain-Source Breakdown Voltage
Static Drain-Source On-Resistance
2
Test Conditions
V
GS
=0V, I
D
=250uA
V
GS
=10V, I
D
=7A
V
GS
=4.5V, I
D
=5A
V
GS(th)
g
fs
I
DSS
Gate Threshold Voltage
Forward Transconductance
Drain-Source Leakage Current
V
DS
=V
GS
, I
D
=250uA
V
DS
=10V, I
D
=6A
V
DS
=30V, V
GS
=0V
V
GS
=+20V, V
DS
=0V
I
D
=6A
V
DS
=24V
V
GS
=4.5V
V
DS
=15V
I
D
=1A
R
G
=3.3Ω
V
GS
=10V
V
GS
=0V
Min.
30
-
-
1
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Typ.
-
-
-
-
15
-
-
-
8
2
4.5
8
5
19
5
645
150
95
Max. Units
-
28
42
3
-
10
25
+100
13.5
-
-
-
-
-
-
800
-
-
V
mΩ
mΩ
V
S
uA
uA
nA
nC
nC
nC
ns
ns
ns
ns
pF
pF
pF
Drain-Source Leakage Current (T
j
=70
o
C)
V
DS
=24V ,V
GS
=0V
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
C
iss
C
oss
C
rss
Gate-Source Leakage
Total Gate Charge
Gate-Source Charge
Gate-Drain ("Miller") Charge
Turn-on Delay Time
Rise Time
Turn-off Delay Time
Fall Time
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
.
V
DS
=25V
f=1.0MHz
Source-Drain Diode
Symbol
V
SD
t
rr
Q
rr
Parameter
Forward On Voltage
2
Test Conditions
I
S
=7A, V
GS
=0V
I
S
=6A,
V
GS
=0
V
,
dI/dt=100A/µs
Min.
-
-
-
Typ.
-
19
14
Max. Units
1.2
-
-
V
ns
nC
Reverse Recovery Time
Reverse Recovery Charge
2
AP4501GM-HF
P-CH Electrical Characteristics@T
j
=25
o
C(unless otherwise specified)
Symbol
BV
DSS
R
DS(ON)
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
C
iss
C
oss
C
rss
Parameter
Drain-Source Breakdown Voltage
Static Drain-Source On-Resistance
2
Gate Threshold Voltage
Forward Transconductance
Drain-Source Leakage Current
o
Test Conditions
V
GS
=0V, I
D
=-250uA
V
GS
=-10V, I
D
=-5.3A
V
GS
=-4.5V, I
D
=-4.2A
V
DS
=V
GS
, I
D
=-250uA
V
DS
=-10V, I
D
=-5A
V
DS
=-30V, V
GS
=0V
V
GS
=+20V, V
DS
=0V
I
D
=-5A
V
DS
=-15V
V
GS
=-4.5V
V
DS
=-15V
I
D
=-1A
R
G
=3.3Ω
V
GS
=-10V
V
GS
=0V
V
DS
=-25V
f=1.0MHz
Min.
-30
-
-
-1
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Typ.
-
-
-
-
5
-
-
-
8
1.7
4.5
6.7
10
21
10
595
80
75
Max. Units
-
50
90
-3
-
-10
-25
+100
13
-
-
-
-
-
-
950
-
-
V
mΩ
mΩ
V
S
uA
uA
nA
nC
nC
nC
ns
ns
ns
ns
pF
pF
pF
Drain-Source Leakage Current (T
j
=70 C)
V
DS
=-24V, V
GS
=0V
Gate-Source Leakage
Total Gate Charge
Gate-Source Charge
Gate-Drain ("Miller") Charge
Turn-on Delay Time
Rise Time
Turn-off Delay Time
Fall Time
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
.
Source-Drain Diode
Symbol
V
SD
t
rr
Q
rr
Parameter
Forward On Voltage
2
Test Conditions
I
S
=-2.6A, V
GS
=0V
I
S
=-5A,
V
GS
=0
V
,
dI/dt=100A/µs
Min.
-
-
-
Typ.
-
18
11
Max. Units
-1.2
-
-
V
ns
nC
Reverse Recovery Time
Reverse Recovery Charge
Notes:
1.Pulse width limited by Max. junction temperature.
2.Pulse test
3.Surface mounted on 1 in
2
copper pad of FR4 board, t <10sec ; 135
℃/W
when mounted on Min. copper pad.
THIS PRODUCT IS SENSITIVE TO ELECTROSTATIC DISCHARGE, PLEASE HANDLE WITH CAUTION.
USE OF THIS PRODUCT AS A CRITICAL COMPONENT IN LIFE SUPPORT OR OTHER SIMILAR SYSTEMS IS NOT AUTHORIZED.
APEC DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED
HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
APEC RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN.
3
AP4501GM-HF
N-Channel
20
20
T
A
=25
℃
16
I
D
, Drain Current (A)
12
I
D
, Drain Current (A)
10V
8.0V
6.0V
5.0V
V
G
= 4.5V
T
A
=150
℃
16
10V
8.0V
6.0V
5.0V
V
G
=4.5V
12
8
8
4
4
0
0
2
4
6
8
0
0
2
4
6
8
10
V
DS
, Drain-to-Source Voltage (V)
V
DS
, Drain-to-Source Voltage (V)

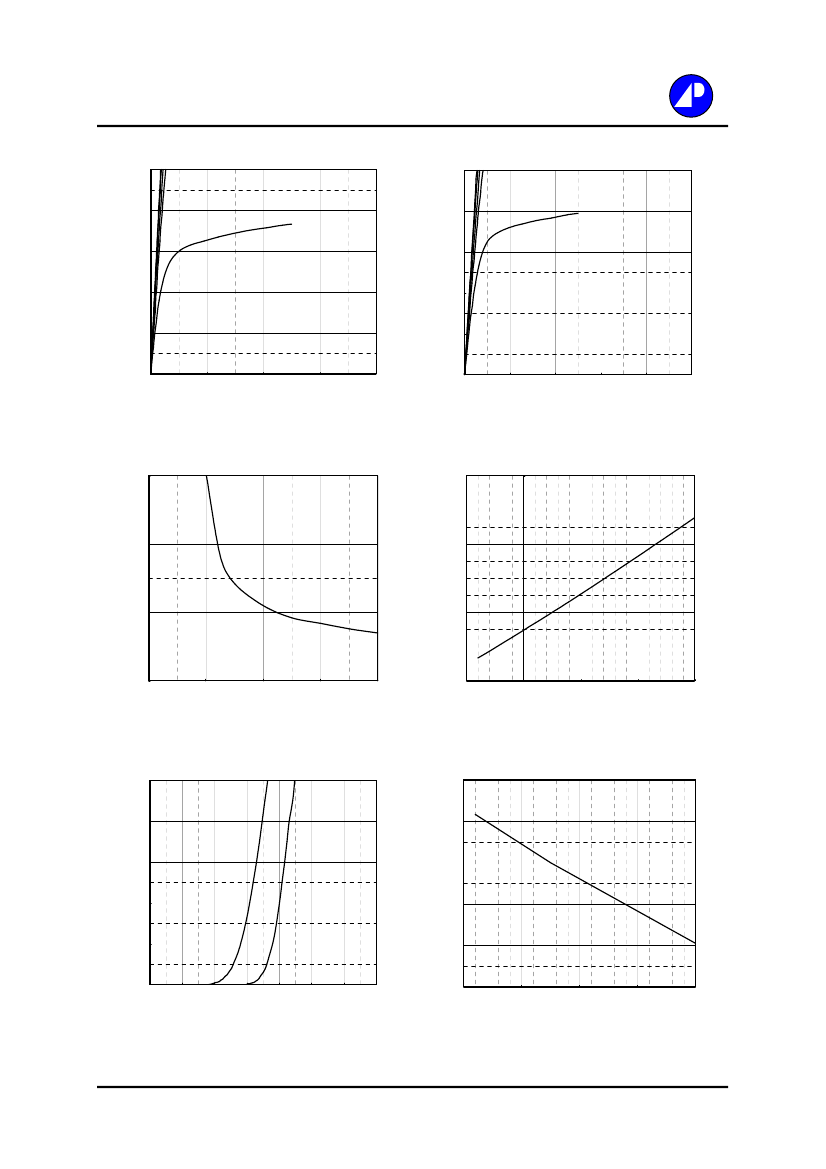

Fig 1. Typical Output Characteristics
Fig 2. Typical Output Characteristics
40
1.8
I
D
= 5A
Normalized R
DS(ON)
T
A
= 25
o
C
R
DS(ON0
(m
Ω
)
30
I
D
=7A
V
G
=10V
1.4
.
20
1.0
30
10
2
4
6
8
10
-30
0
50
100
150
0.6
-50
V
GS
, Gate-to-Source Voltage (V)
T
j
, Junction Temperature ( C)
o
Fig 3. On-Resistance v.s. Gate Voltage
Fig 4. Normalized On-Resistance
v.s. Junction Temperature
1.4
10
8
1.2
T
j
=150
o
C
I
S
(A)
6
Normalized V
GS(th)
1.4
T
j
=25
o
C
1.0
4
0.8
2
0.6
0
0
0.2
0.4
0.6
0.8
1
1.2
0.4
-50
0
50
100
150
V
SD
, Source-to-Drain Voltage (V)
T
j
, Junction Temperature ( C)
o
Fig 5. Forward Characteristic of
Reverse Diode
Fig 6. Gate Threshold Voltage v.s.
Junction Temperature
4
AP4501GM-HF
N-Channel
f=1.0MHz
10
1200
V
GS
, Gate to Source Voltage (V)
I
D
=6A
V
DS
= 24 V
8
1000
800
6
C (pF)
C
iss
600
4
400
2
200
C
oss
C
rss
0
0
3
6
9
12
15
18
0
1
5
9
13
17
21
25
29
Q
G
, Total Gate Charge (nC)
V
DS
, Drain-to-Source Voltage (V)
Fig 7. Gate Charge Characteristics
Fig 8. Typical Capacitance Characteristics
100
1
Duty factor=0.5
Normalized Thermal Response (R
thja
)
10
0.2
100us
I
D
(A)
1ms
1
0.1
0.1
0.05
10ms
100ms
0.1
.
0.02
0.01
P
DM
0.01
Single Pulse
t
T
Duty factor = t/T
Peak T
j
= P
DM
x R
thja
+ T
a
R
thja
=135
o
C/W
1s
T
A
=25
o
C
Single Pulse
DC
1
10
100
30
0.001
0.0001
0.001
0.01
0.1
-30
1
0.01
0.1
10
100
1000
V
DS
, Drain-to-Source Voltage (V)
t , Pulse Width (s)

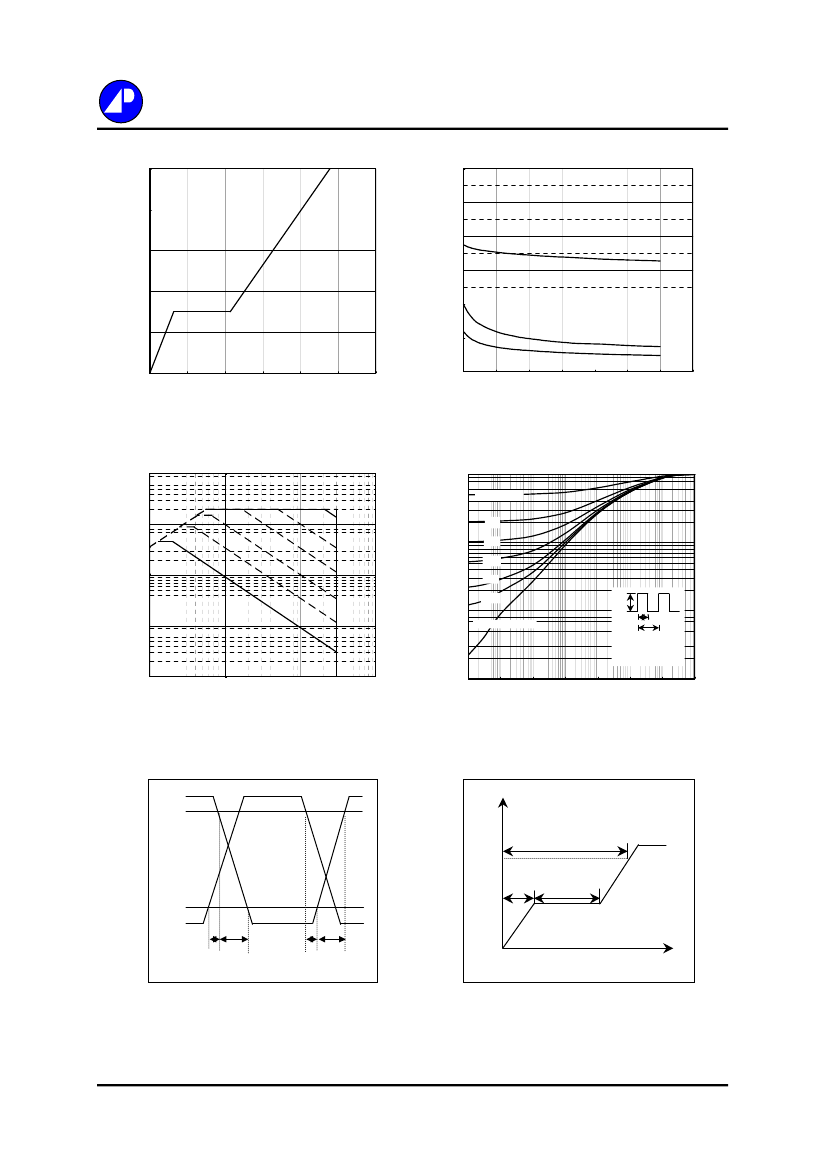

Fig 9. Maximum Safe Operating Area
Fig 10. Effective Transient Thermal Impedance
V
DS
90%
V
G
Q
G
4.5V
Q
GS
Q
GD
10%
V
GS
t
d(on)
t
r
t
d(off)
t
f
Charge
Q
Fig 11. Switching Time Waveform
Fig 12. Gate Charge Waveform
5
