74-IFHMAL30: DescriptionLong Life (1000 hrs min.) LED Indicator lights when fuse is blown; File Size6MB，1 Pages; ManufacturerNTE; Websitehttp://www.nteinc.com

Download Datasheet View All

74-IFHMAL30 Overview

Long Life (1000 hrs min.) LED Indicator lights when fuse is blown

Preview

Download Datasheet

View All

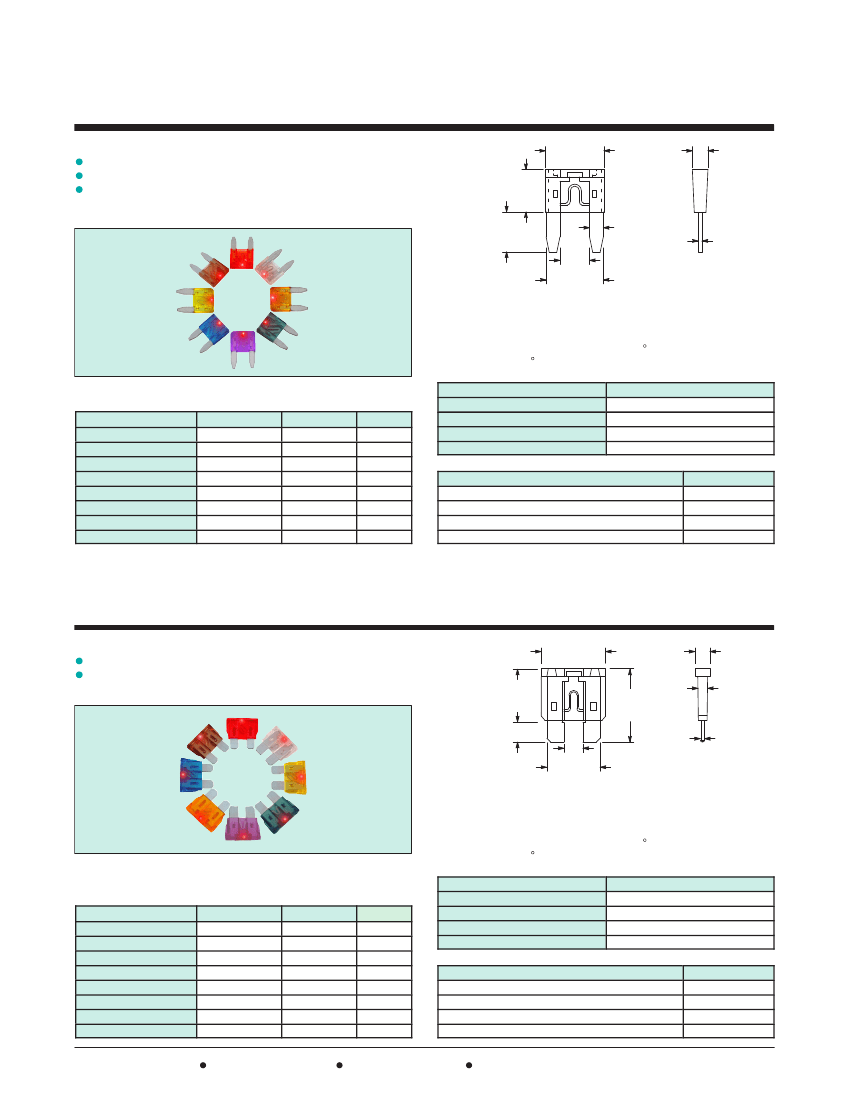

ATM_ID Equivalent - Low Voltage, Fast Acting,

Miniature Automotive with LED Indicator

Features

Long Life (1000 hrs min.) LED Indicator lights when fuse is blown

Miniature Blade Type

RoHS Compliant

F−12

.354

(9.0)

Max

.276

(7.0)

Min

.441 (11.2)

Max

.157 (4.0) Max

.110 (2.8)

.327 (8.3)

.205

(5.2)

.429 (10.9)

Specifications

Rated Voltage:

32V

LED Voltage Rating:

12VDC, 24VDC, 32VDC

LED Lifetime:

around 1000 hours at +60 C. The resin won’t be

melted under +130 C.

Time Current Characteristics:

% of Ampere Rating

Opening Time

110%

100 hours min.

135%

0.75

−

1800 seconds

200%

0.15

−

5 seconds

350%

0.08

−

0.25 seconds

Accessories:

Description

NTE Type No.

In−Line Fuse Holder, up to 15A

74−IFHMA15

In−Line Fuse Holder, up to 30A

74−IFHMA30

In−Line Fuse Holder w/LED Light, up to 15A

74−IFHMAL15

In−Line Fuse Holder w/LED Light, up to 30A

74−IFHMAL30

ATC_ID Equivalent - Low Voltage, Fast Acting,

Automotive with LED Indicator

Features

Long Life (1000 hrs min.) LED Indicator lights when fuse is blown

RoHS Compliant

NTE Type No.

74−LMAF3A

74−LMAF5A

74−LMAF7.5A

74−LMAF10A

74−LMAF15A

74−LMAF20A

74−LMAF25A

74−LMAF30A

Rated Current

7.5A

10A

15A

20A

25A

30A

Color Code

Violet

Tan

Brown

Red

Blue

Yellow

Natural

Green

Diag No.

F−12

F−13

.494

(12.54)

Max

.243 (6.17)

Min

.760 (19.3)

Max

.207 (5.25)

.750

(19.05)

Max

.150 (3.8)

.158

(4.02)

.575 (14.61)

Max

.026 (0.65)

Specifications

Rated Voltage:

32V

LED Voltage Rating:

12VDC, 24VDC, 32VDC

LED Lifetime:

around 1000 hours at +60 C. The resin won’t be

melted under +130 C.

Time Current Characteristics:

% of Ampere Rating

Opening Time

110%

100 hours min.

135%

0.75 seconds min.

200%

0.15 seconds min.

350%

0.08 seconds min.

Accessories:

Description

NTE Type No.

In−Line Fuse Holder, up to 15A

74−IFHA15

In−Line Fuse Holder, up to 30A

74−IFHA30

In−Line Fuse Holder w/LED Light, up to 15A

74−IFHAL15

In−Line Fuse Holder w/LED Light, up to 30A

74−IFHAL30

NTE Type No.

74−LAF3A

74−LAF5A

74−LAF7.5A

74−LAF10A

74−LAF15A

74−LAF20A

74−LAF25A

74−LAF30A

Rated Current

7.5A

10A

15A

20A

25A

30A

Color Code

Violet

Tan

Brown

Red

Blue

Yellow

Natural

Green

Diag No.

F−13

NTE Electronics, Inc.

Voice (973) 748−5089

FAX (973) 748−6224

http://www.nteinc.com
