AR11-3957 Overview

SINGLE PORT RJ45 CONNECTOR

RoHS
SINGLE PORT RJ45 CONNECTOR
AR11-3957
10/100 BaseT for LAN and other Ethernet Applications
Transmit open circuit inductance (OCL): 350uH (MIN) @100KHz,0.1VRMS with 8mA DC Bias
RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
Standard operating temp: 0ºC to +70ºC
Electrical Specifications @ 25°C
Part
Number
AR11-3957
OCL(uH Min)
@ 100kHz, 0.1V
With 8mA DC Bias
350
Turns Ratio
(
±
2%)
TX
RX
1CT:1CT
1CT:1CT
0.5-10MHz
-50
Cross Talk
(dB Min)
30MHz 50MHz
-35
-40
HI-POT
1.0mA (V)
100MHz without capacitance with capacitance
-30
1500 AC
2250 DC
Electrical Specifications @ 25°C
Part
Number
AR11-3957
Insertion Loss
(dB Max)
1-100MHz 100-125 MHz (10/100/100) 1-30MHz
-1.2
-18
-1.0
30-50MHz
-16
Return Loss
(dB Min) @ Load 100 Ohm
60-80MHz 80-100MHz (10/100/1000)
60MHz
-12
-10
-14
CMR
(dB Min)
1-100MHz
-30
All specifications subject to change without notice.

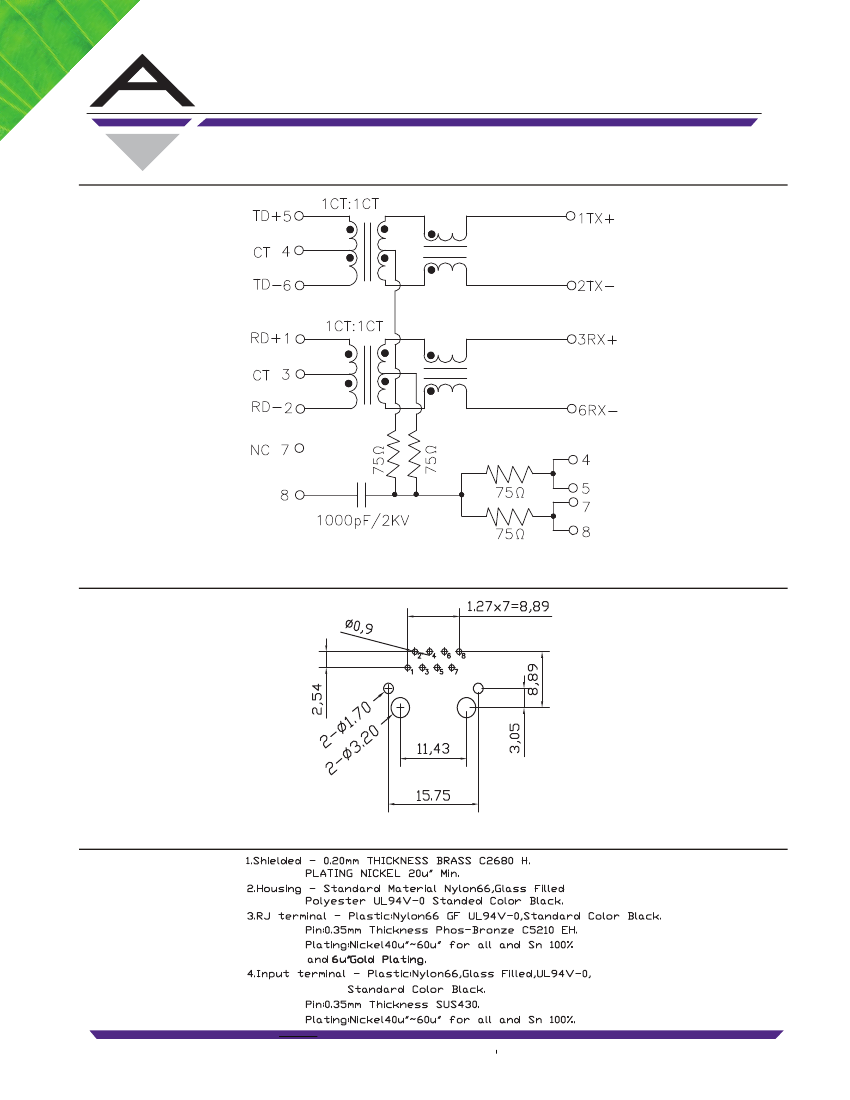

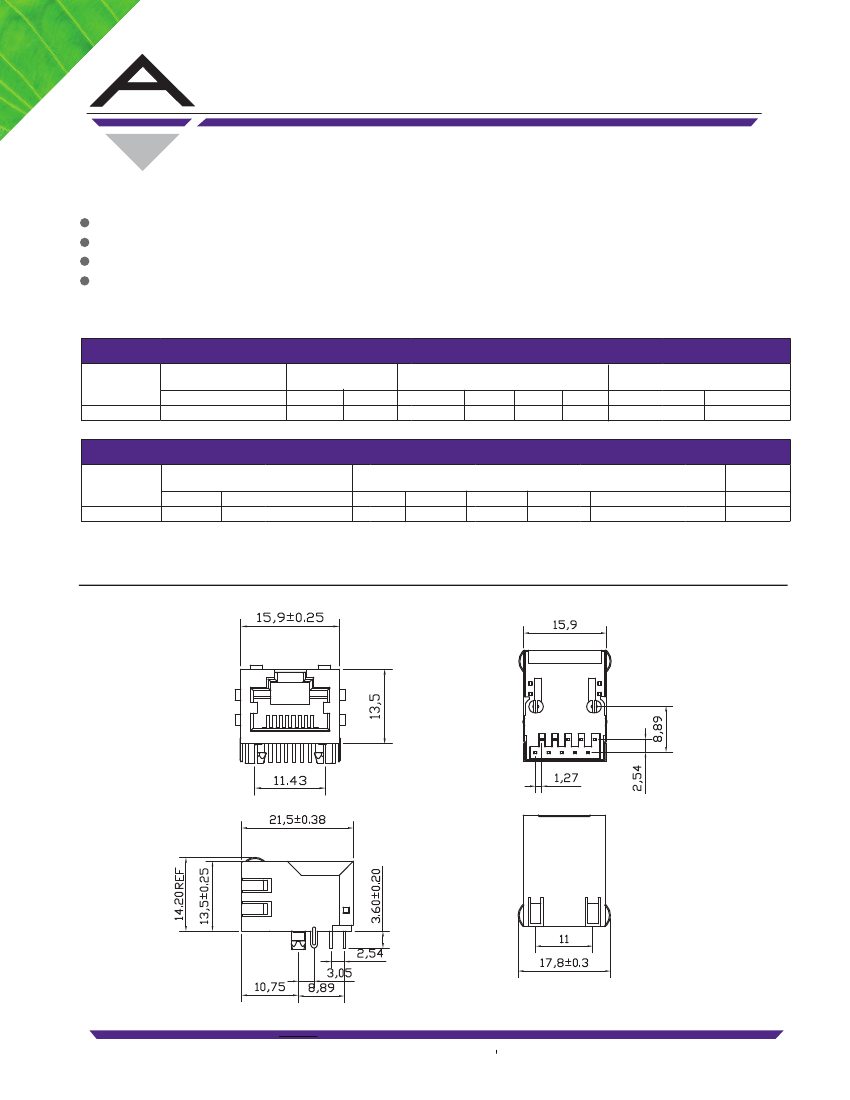

MECHANICAL
949-356-1780
ALLIED COMPONENTS INTERNATIONAL
1/14/2016
www.alliedcomponents.com
