AP2310GG-HF
Halogen-Free Product
Advanced Power
Electronics Corp.
▼
Lower Gate Charge
▼
Fast Switching Characteristic
▼
Simple Drive Requirement
▼
RoHS Compliant & Halogen-Free
G
N-CHANNEL ENHANCEMENT MODE
POWER MOSFET
D
BV
DSS
R
DS(ON)
I
D
60V
90mΩ
2.7A
S
D
Description
AP2310 series are from Advanced Power innovated design and
silicon process technology to achieve the lowest possible on-
resistance and fast switching performance. It provides the designer
with an extreme efficient device for use in a wide range of power
applications.
SOT-89
D
G
S
Absolute Maximum Ratings@T
j
=25
o
C(unless otherwise specified)
Symbol
V
DS
V
GS
I
D
@T
A
=25℃
I
D
@T
A
=70℃
I
DM
P
D
@T
A
=25℃
T
STG
T
J
Parameter
Drain-Source Voltage
Gate-Source Voltage
Drain Current, V
GS
@ 10V
Drain Current, V
GS
@ 10V
Pulsed Drain Current
1
3
3
Rating
60
+20
2.7
2.2
10
1.25
-55 to 150
-55 to 150
Units
V
V
A
A
A
W
℃
℃
Total Power Dissipation
Storage Temperature Range
Operating Junction Temperature Range
Thermal Data
Symbol
Rthj-a
Parameter
Maximum Thermal Resistance, Junction-ambient
3
Value
100
Unit
℃/W
Data and specifications subject to change without notice
1
201501212
AP2310GG-HF
Electrical Characteristics@T
j
=25
o
C(unless otherwise specified)
Symbol
BV
DSS
R
DS(ON)
Parameter
Drain-Source Breakdown Voltage
Static Drain-Source On-Resistance
2
Test Conditions
V
GS
=0V, I
D
=250uA
V
GS
=10V, I
D
=2.5A
V
GS
=4.5V, I
D
=1.5A
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
C
iss
C
oss
C
rss
Gate Threshold Voltage
Forward Transconductance
Gate-Source Leakage
Total Gate Charge
2
2
Min.
60
-
-
1
-
-
-
-
-
-
-
-
-
-
-
-
-
Typ.
-
-
-
-
7
-
-
6.5
1.5
3.5
5
5
17
4
550
70
50
Max. Units
-
90
120
3
-
10
+100
10.5
-
-
-
-
-
-
880
-
-
V
mΩ
mΩ
V
S
uA
nA
nC
nC
nC
ns
ns
ns
ns
pF
pF
pF
V
DS
=V
GS
, I
D
=250uA
V
DS
=10V, I
D
=2.5A
V
DS
=48V, V
GS
=0V
V
GS
=+20V, V
DS
=0V
I
D
=2.5A
V
DS
=48V
V
GS
=4.5V
V
DS
=30V
I
D
=1A
R
G
=3.3Ω
V
GS
=10V
V
GS
=0V
V
DS
=15V
f=1.0MHz
Drain-Source Leakage Current
Gate-Source Charge
Gate-Drain ("Miller") Charge
Turn-on Delay Time
2
Rise Time
Turn-off Delay Time
Fall Time
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Source-Drain Diode
Symbol
V
SD
t
rr
Q
rr
Parameter
Forward On Voltage
2
Test Conditions
I
S
=1A, V
GS
=0V
I
S
=2A, V
GS
=0V,
dI/dt=100A/µs
Min.
-
-
-
Typ.
-
23
23
Max. Units
1.3
-
-
V
ns
nC
Reverse Recovery Time
2
Reverse Recovery Charge
Notes:
1.Pulse width limited by Max. junction temperature.
2.Pulse test
3.Surface mount on FR4 board, t < 10s.
THIS PRODUCT IS SENSITIVE TO ELECTROSTATIC DISCHARGE, PLEASE HANDLE WITH CAUTION.
USE OF THIS PRODUCT AS A CRITICAL COMPONENT IN LIFE SUPPORT OR OTHER SIMILAR SYSTEMS IS NOT AUTHORIZED.
APEC DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED
HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
APEC RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN.
2
AP2310GG-HF
10
10
T
A
=25 C
8
o
I
D
, Drain Current (A)
I
D
, Drain Current (A)
10V
7.0V
5.0V
4.5V
T
A
=150
o
C
8
10V
7.0V
5.0V
4.5V
6
6
V
GS
=3.0V
4
V
GS
= 3.0V
4
2
2
0
0
2
4
6
8
0
0
2
4
6
8
V
DS
, Drain-to-Source Voltage (V)
V
DS
, Drain-to-Source Voltage (V)

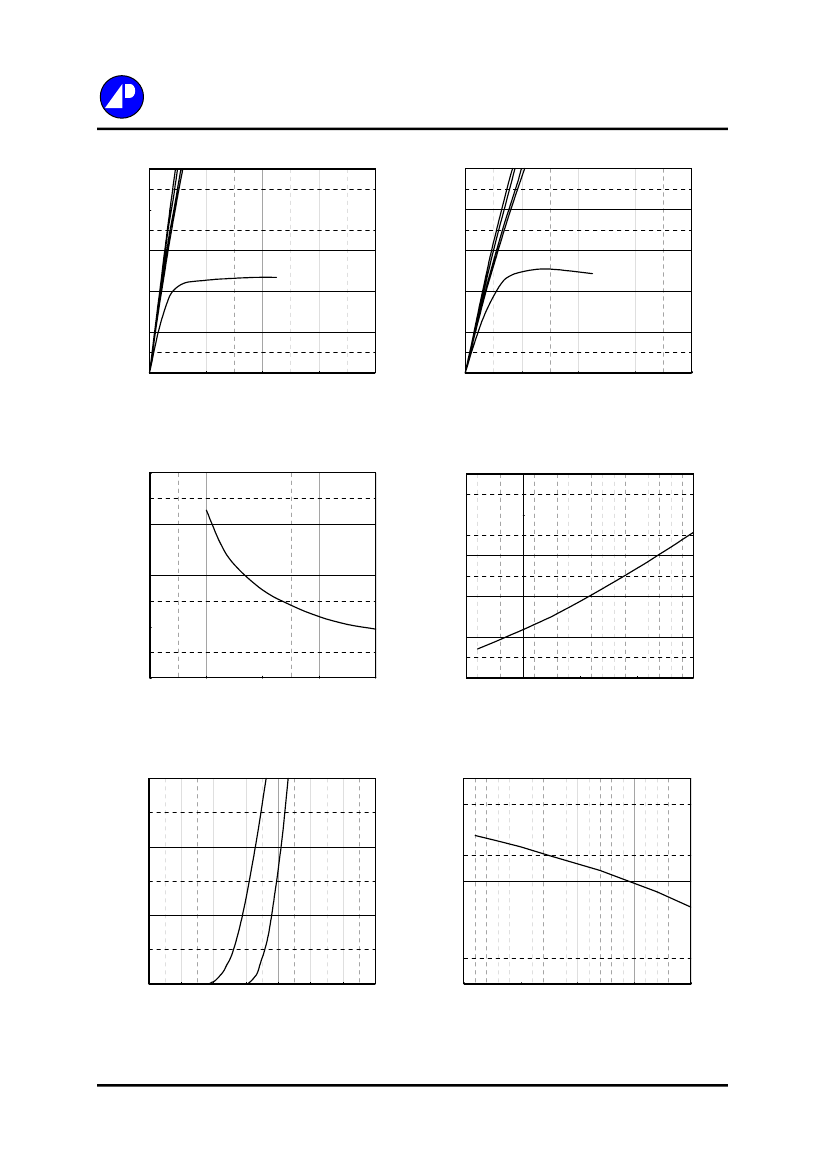

Fig 1. Typical Output Characteristics
Fig 2. Typical Output Characteristics
110
2.4
I
D
= 1.5 A
T
A
=25
o
C
100
2.0
I
D
=2.5A
V
GS
=10V
Normalized R
DS(ON)
R
DS(ON)
(m
Ω
)
1.6
90
1.2
80
0.8
70
2
4
6
8
10
0.4
-50
0
50
100
150
V
GS
, Gate-to-Source Voltage (V)
T
j
, Junction Temperature (
o
C)
Fig 3. On-Resistance v.s. Gate Voltage
Fig 4. Normalized On-Resistance
v.s. Junction Temperature
1.6
3
I
D
=250uA
1.2
2
T
j
=150
o
C
T
j
=25
o
C
Normalized V
GS(th)
1.2
1.4
I
S
(A)
0.8
1
0.4
0
0
0.2
0.4
0.6
0.8
1
0
-50
0
50
100
150
V
SD
, Source -to-Drain Voltage (V)
T
j
, Junction Temperature ( C )
o
Fig 5. Forward Characteristic of
Reverse Diode
Fig 6. Gate Threshold Voltage v.s.
Junction Temperature
3
AP2310GG-HF
10
800
f=1.0MHz
I
D
= 2.5 A
V
GS
, Gate to Source Voltage (V)
8
600
6
C (pF)
V
DS
= 30V
V
DS
= 36V
V
DS
= 48V
C
iss
400
4
200
2
C
oss
C
rss
0
0
0
2
4
6
8
10
12
1
5
9
13
17
21
25
29
Q
G
, Total Gate Charge (nC)
V
DS
, Drain-to-Source Voltage (V)

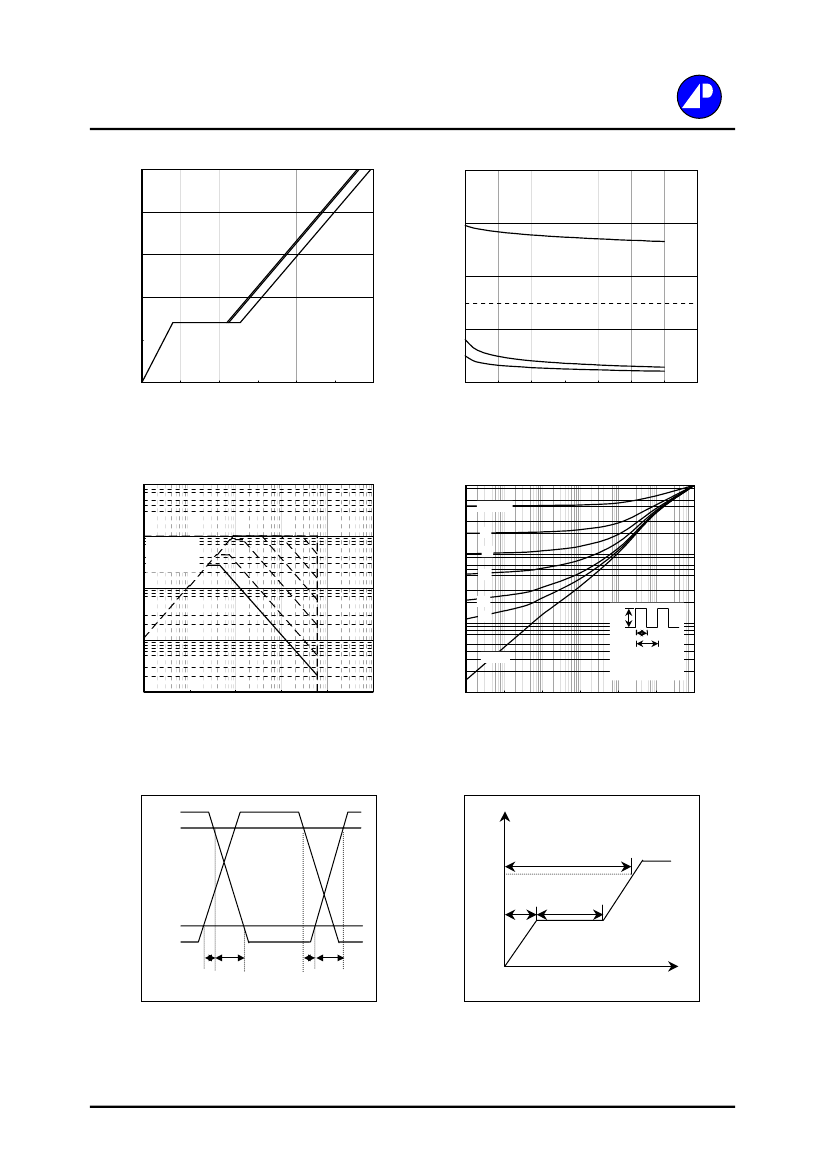

Fig 7. Gate Charge Characteristics
Fig 8. Typical Capacitance Characteristics
100
1
Duty factor=0.5
Normalized Thermal Response (R
thjc
)
0.2
10
Operation in this
area limited by
R
DS(ON)
100us
1ms
10ms
100ms
0.1
0.1
I
D
(A)
0.05
1
0.02
0.01
P
DM
0.01
t
T
Single Pulse
0.1
T
A
=25
o
C
Single Pulse
0.01
0.01
0.1
1
10
1s
DC
100
1000
Duty factor = t/T
Peak T
j
= P
DM
x R
thjc
+ T
C
Rthja=100℃/W
0.001
0.00001
0.0001
0.001
0.01
0.1
1
10
V
DS
, Drain-to-Source Voltage (V)
t , Pulse Width (s)
Fig 9. Maximum Safe Operating Area
Fig 10. Effective Transient Thermal Impedance
V
DS
90%
V
G
Q
G
4.5V
Q
GS
Q
GD
10%
V
GS
t
d(on)
t
r
t
d(off)
t
f
Charge
Q
Fig 11. Switching Time Waveform
Fig 12. Gate Charge Waveform
AP2310GG-HF
MARKING INFORMATION
Part Number
2310
YWWS
Date Code (YWWS)
Y：Last Digit Of The Year
WW：Week
S：Sequence
5
